SEAT TOLEDO 2019 Owners Manual

Start and driving

Driving

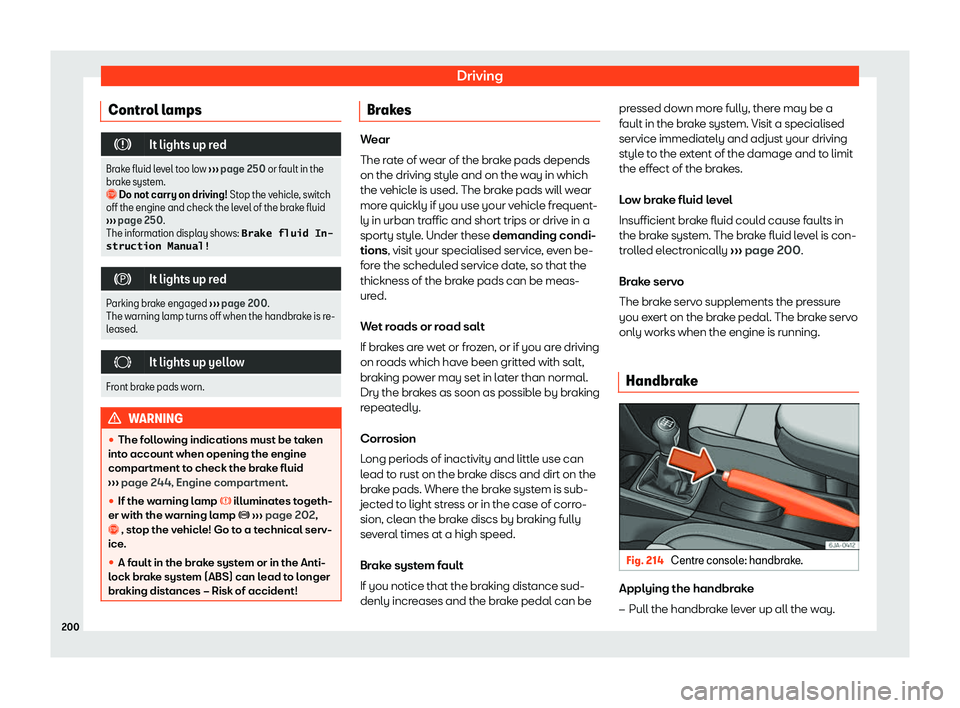

Control lamps 
It lights up red
Brake fluid level too low

Start and driving

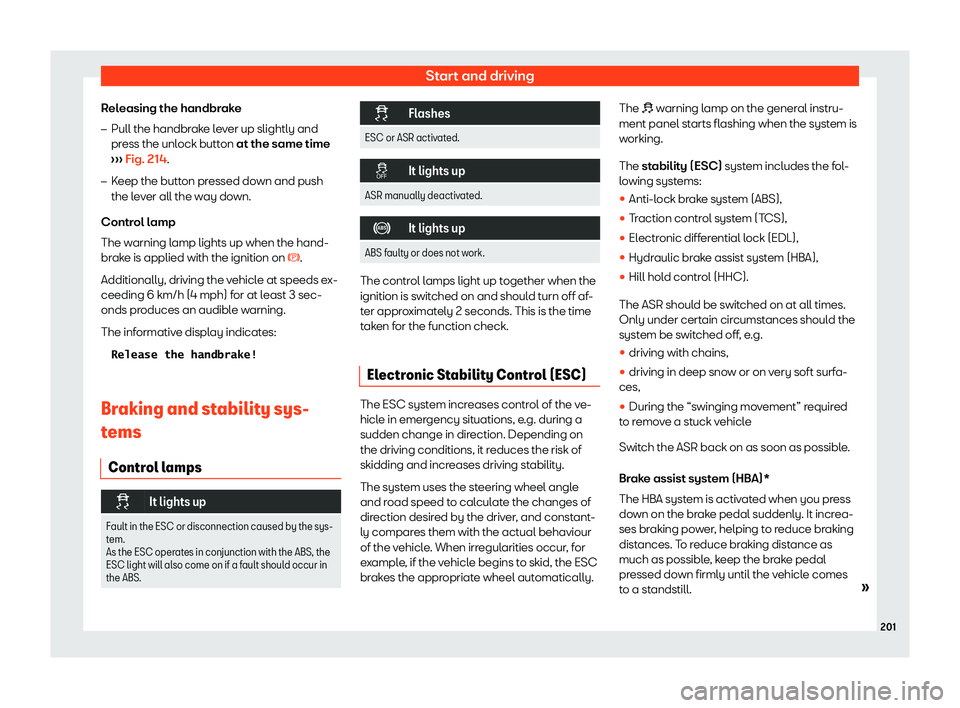

Releasing the handbrake

Driving

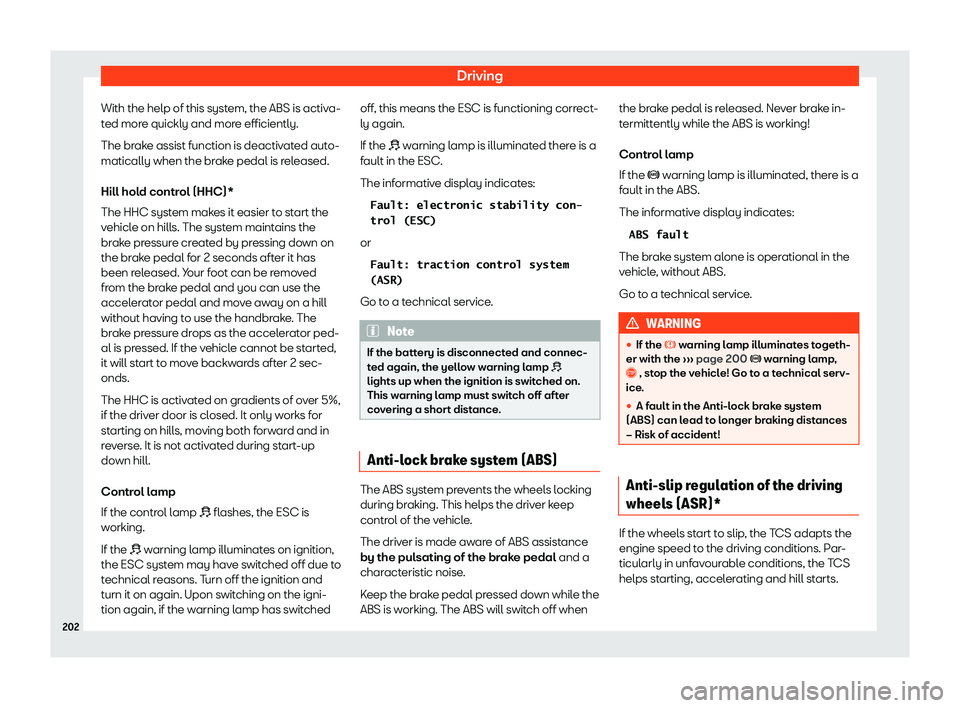

With the help of this system, the ABS is activa-
t ed mor
e quickly and mor
e efficiently.
The brake assist function is deactivated auto-
matically when the brake pedal is released.
Hill hold control (HHC)*
The HHC system makes it easier to start the
vehicle on hills. The system maintains the
brake pressure created by pressing down on
the brake pedal for 2 seconds after it has
been released. Your foot can be removed
from the brake pedal and you can use the
accelerator pedal and move away on a hill
without having to use the handbrake. The
brake pressure drops as the accelerator ped-
al is pressed. If the vehicle cannot be started,
it will start to move backwards after 2 sec-
onds.
The HHC is activated on gradients of over 5%,
if the driver door is closed. It only works for
starting on hills, moving both forward and in
reverse. It is not activated during start-up
down hill.
Control lamp
If the control lamp ! flashes, the ESC is working.
If the ! warning lamp illuminates on ignition,
the ESC system may have switched off due to
technical reasons. Turn off the ignition and
turn it on again. Upon switching on the igni-
tion again, if the warning lamp has switched off, this means the ESC is functioning correct-
ly again.
If the !
warning lamp is illuminat
ed there is a
fault in the ESC.
The informative display indicates:
Fault: electronic stability con-
trol (ESC)
or Fault: traction control system
(ASR)
Go to a technical service. Note
If the battery is disconnected and connec-
ted again, the yell o

w warning lamp !
lights up when the ignition is switched on.
This warning lamp must switch off after
covering a short distance. Anti-lock brake system (ABS)
The ABS system prevents the wheels locking
during br
aking. This helps the driv
er k

eep
control of the vehicle.
The driver is made aware of ABS assistance
by the pulsating of the brake pedal and a
characteristic noise.
Keep the brake pedal pressed down while the
ABS is working. The ABS will switch off when the brake pedal is released. Never brake in-
termittently whil

e the ABS is working!
Control lamp
If the  warning lamp is illuminated, there is a fault in the ABS.
The informative display indicates:
ABS fault
The brake system alone is operational in the
vehicle, without ABS.
Go to a technical service. WARNING

Start and driving
If the control lamp ! fl ashes, the ASR is w
ork -
ing.
If the ! warning lamp illuminates on ignition, the TCS system may have switched off due to
technical reasons. Turn off the ignition and
turn it on again. Upon switching on the igni-
tion again, if the warning lamp has switched
off, this means the TCS is functioning correct-
ly again.
If the ! warning lamp remains illuminated,
there is a fault in the TCS.
The informative display indicates:
Fault: traction control system
(ASR)
Go to a technical service.
Electronic differential lock If one of the wheels starts to skid, the EDL
br
ak
es that wheel, tr

ansmitting the driving
force to the other wheels. This increases vehi-
cle stability and improves driving stability.
To prevent the disc brake of the braking
wheel from overheating, the EDL cuts out au-
tomatically if subjected to excessive loads.
The vehicle will continue to function normally
without EDL. The EDL will switch on again au-
tomatically when the brake has cooled down. Manual gearbox
Changing gears Fig. 215
Gear shift diagram of a 5- or 6-speed
manual gearbo x Read the additional information carefully

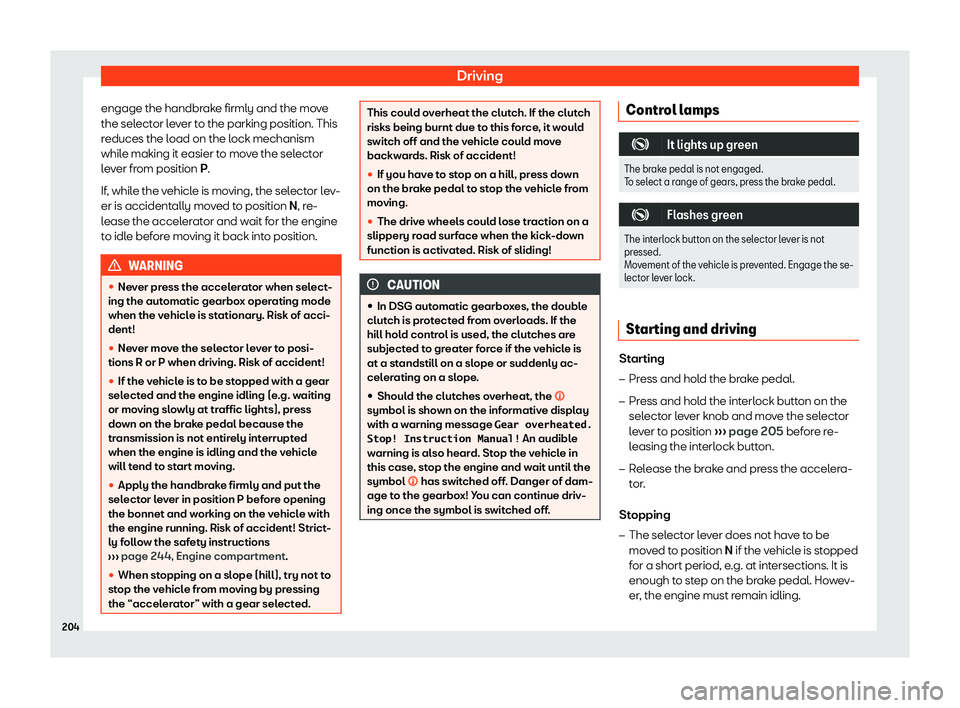

Driving
engage the handbrake firmly and the move
the sel ect
or l
ever to the parking position. This
reduces the load on the lock mechanism
while making it easier to move the selector
lever from position P.
If, while the vehicle is moving, the selector lev-
er is accidentally moved to position N, re-
lease the accelerator and wait for the engine
to idle before moving it back into position. WARNING

Start and driving
Parking

Driving

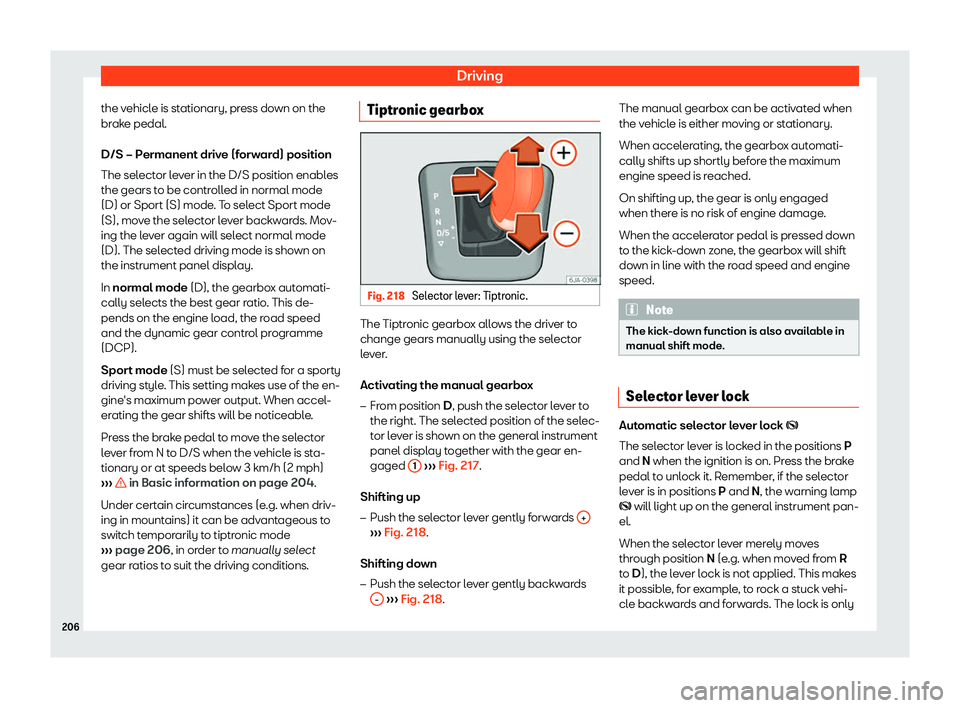

the vehicle is stationary, press down on the
br ak
e pedal.
D/S

Start and driving

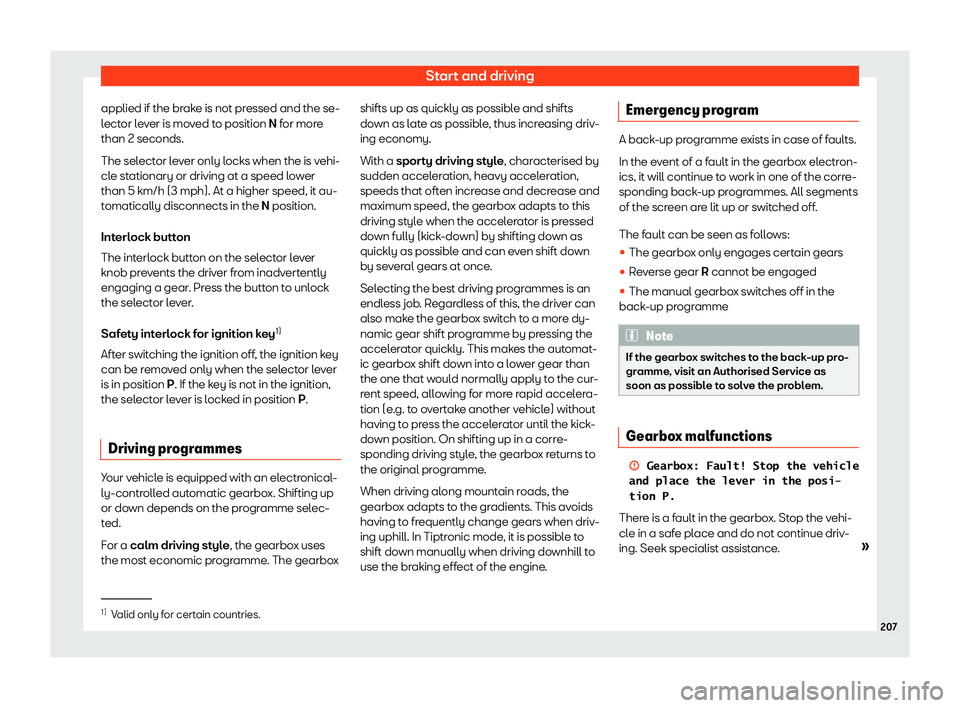

applied if the brake is not pressed and the se-
l ect
or l
ever is moved to position N for more
than 2 seconds.
The selector lever only locks when the is vehi-
cle stationary or driving at a speed lower
than 5 km/h (3 mph). At a higher speed, it au-
tomatically disconnects in the N position.
Interlock button
The interlock button on the selector lever
knob prevents the driver from inadvertently
engaging a gear. Press the button to unlock
the selector lever.
Safety interlock for ignition key 1)
After switching the ignition off, the ignition key
can be removed only when the selector lever
is in position P. If the key is not in the ignition,
the selector lever is locked in position P.
Driving programmes Your vehicle is equipped with an electronical-
ly-contr
oll
ed aut

omatic gearbox. Shifting up
or down depends on the programme selec-
ted.
For a calm driving style, the gearbox uses
the most economic programme. The gearbox shifts up as quickly as possible and shifts
down as lat

e as possible, thus increasing driv-
ing economy.
With a sporty driving style, characterised by
sudden acceleration, heavy acceleration,
speeds that often increase and decrease and
maximum speed, the gearbox adapts to this
driving style when the accelerator is pressed
down fully (kick-down) by shifting down as
quickly as possible and can even shift down
by several gears at once.
Selecting the best driving programmes is an
endless job. Regardless of this, the driver can
also make the gearbox switch to a more dy-
namic gear shift programme by pressing the
accelerator quickly. This makes the automat-
ic gearbox shift down into a lower gear than
the one that would normally apply to the cur-
rent speed, allowing for more rapid accelera-
tion (e.g. to overtake another vehicle) without
having to press the accelerator until the kick-
down position. On shifting up in a corre-
sponding driving style, the gearbox returns to
the original programme.
When driving along mountain roads, the
gearbox adapts to the gradients. This avoids
having to frequently change gears when driv-
ing uphill. In Tiptronic mode, it is possible to
shift down manually when driving downhill to
use the braking effect of the engine. Emergency program A back-up programme exists in case of faults.
In the ev
ent of a f

ault in the gearbox electron-
ics, it will continue to work in one of the corre-
sponding back-up programmes. All segments
of the screen are lit up or switched off.
The fault can be seen as follows:

Driving

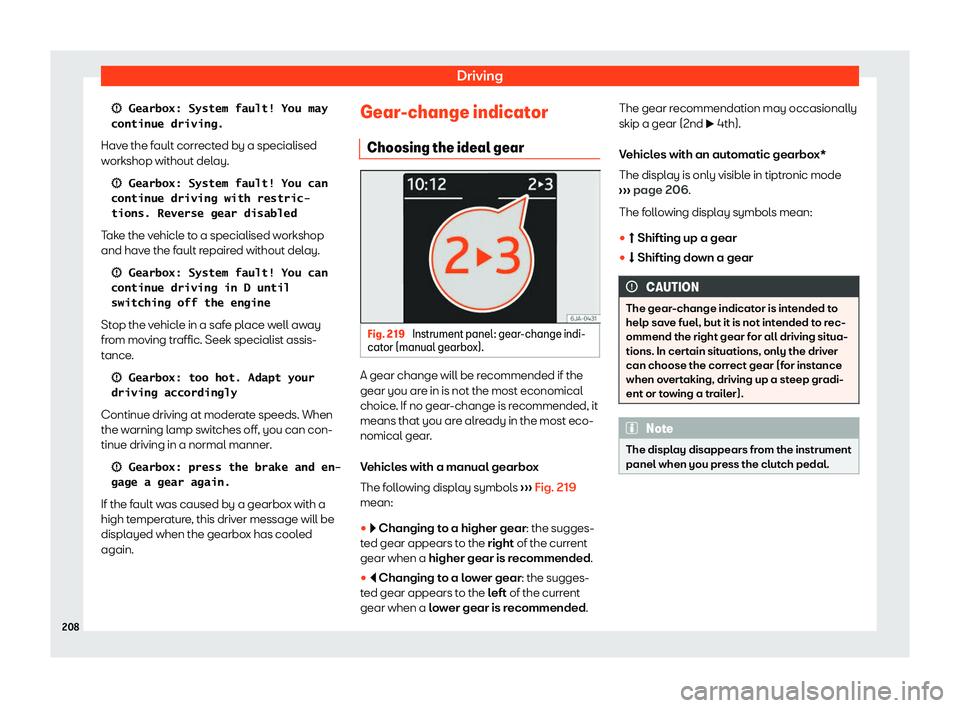

 Gearbox: System fault! You may
continue driving.
Hav e the f
ault corrected by a specialised
workshop without delay.
 Gearbox: System fault! You can
continue driving with restric-
tions. Reverse gear disabled
Take the vehicle to a specialised workshop
and have the fault repaired without delay.  Gearbox: System fault! You can
continue driving in D until
switching off the engine
Stop the vehicle in a safe place well away
from moving traffic. Seek specialist assis-
tance.  Gearbox: too hot. Adapt your
driving accordingly
Continue driving at moderate speeds. When
the warning lamp switches off, you can con-
tinue driving in a normal manner.  Gearbox: press the brake and en-
gage a gear again.
If the fault was caused by a gearbox with a
high temperature, this driver message will be
displayed when the gearbox has cooled
again. Gear-change indicator
Choosing the ideal gear Fig. 219
Instrument panel: gear-change indi-
cat or (manual gearbo x). A gear change will be recommended if the
gear you ar
e in is not the most economical
choice . If no gear

-change is recommended, it
means that you are already in the most eco-
nomical gear.
Vehicles with a manual gearbox
The following display symbols
