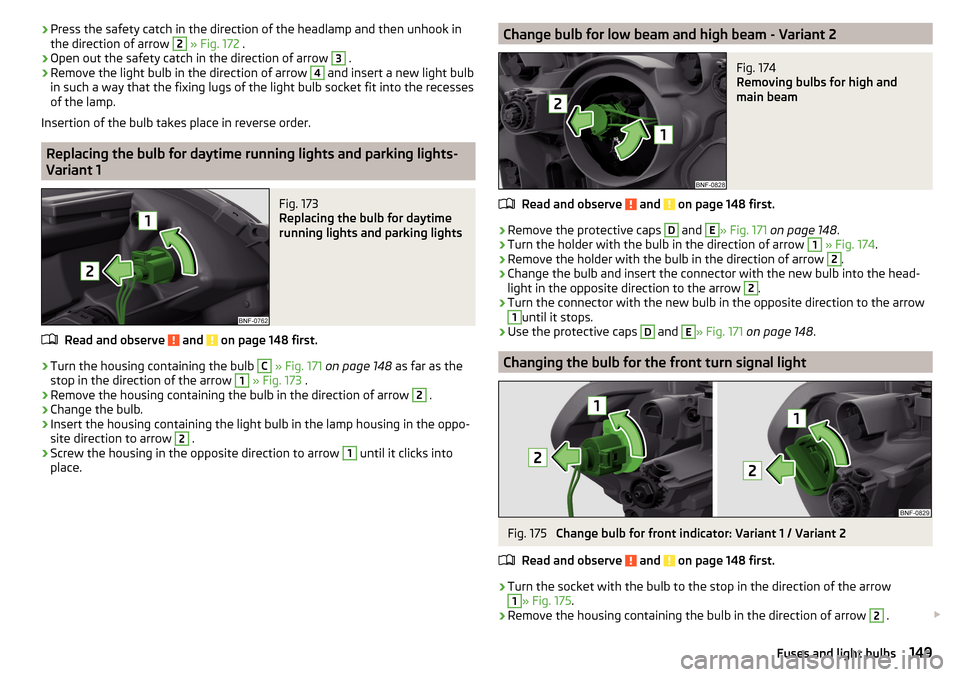

›Press the safety catch in the direction of the headlamp and then unhook in
the direction of arrow 2 » Fig. 172 .›
Open out the safety catch in the direction of arrow
3
.
›
Remove the light bulb in the direction of arrow
4
and insert a new light bulb
in such a way that the fixing lugs of the light bulb socket fit into the recesses
of the lamp.
Insertion of the bulb takes place in reverse order.
Replacing the bulb for daytime running lights and parking lights-
Variant 1
Fig. 173
Replacing the bulb for daytime
running lights and parking lights
Read and observe and on page 148 first.
›
Turn the housing containing the bulb
C
» Fig. 171 on page 148 as far as the
stop in the direction of the arrow
1
» Fig. 173 .
›
Remove the housing containing the bulb in the direction of arrow
2
.
›
Change the bulb.
›
Insert the housing containing the light bulb in the lamp housing in the oppo-
site direction to arrow
2
.
›
Screw the housing in the opposite direction to arrow
1
until it clicks into
place.
Change bulb for low beam and high beam - Variant 2Fig. 174
Removing bulbs for high and
main beam
Read and observe and on page 148 first.
›
Remove the protective caps
D
and
E
» Fig. 171 on page 148 .
›
Turn the holder with the bulb in the direction of arrow
1
» Fig. 174 .
›
Remove the holder with the bulb in the direction of arrow
2
.
›
Change the bulb and insert the connector with the new bulb into the head-
light in the opposite direction to the arrow
2
.
›
Turn the connector with the new bulb in the opposite direction to the arrow
1
until it stops.
›
Use the protective caps
D
and
E
» Fig. 171 on page 148 .
Changing the bulb for the front turn signal light
Fig. 175
Change bulb for front indicator: Variant 1 / Variant 2
Read and observe
and on page 148 first.
›
Turn the socket with the bulb to the stop in the direction of the arrow
1
» Fig. 175 .
›
Remove the housing containing the bulb in the direction of arrow
2
. 
149Fuses and light bulbs

›Unscrew the defective bulb in its housing in an
anti-clockwise direction and
remove it.›
Place a new bulb in the housing and turn it in a clockwise direction as far as
it will go.
›
Insert the housing containing the light bulb in the lamp housing in the oppo-
site direction to arrow
2
.
›
Screw the housing in the opposite direction to arrow
1
until it clicks into
place.
Changing light bulbs for fog lights
Fig. 176
Remove wheel arch trim
Fig. 177
Changing a bulb
Read and observe
and on page 148 first.
Remove wheel arch trim
›
Use the on board tool to remove screws
A
» Fig. 176 from the wheel well.
›
Using a flat, blunt object (e.g. a coin) turn the part of the expansion rivet with
a slit a quarter of a turn in the direction of arrow
1
.
› Pull out the part of the expansion rivet with a slit in the direction of arrow2 .›
Take out the expansion rivet in the direction of the arrow
3
.
Changing a bulb
›
Open out the wheel house trim in the direction of arrow
4
» Fig. 177 .
›
Press the latch on the connector in the direction of arrow
5
.
›
Remove the connector in the direction of the arrow
6
.
›
Turn the socket with the bulb to the stop in the direction of the arrow
7
.
›
Remove the socket with the bulb in the direction of arrow
8
.
›
Place a new connector with the bulb in the headlamp and turn it in the direc-
tion of arrow
7
as far as the stop.
›
Attach the connector until it clicks firmly into place.
Insert wheel arch cover
›
Fold the wheel house trim back.
›
Push in the part of the expansion rivet with a slit
2
and turn it a quarter of
one turn in the opposite direction to arrow
1
» Fig. 176 .
›
Firmly tighten the two attachment bolts
A
with the screwdriver.
Changing the bulb for the licence plate light
Fig. 178
Remove licence plate light
Read and observe
and on page 148 first.
›
Insert a slotted screwdriver into the slot in area
A
» Fig. 178 and free up the
lamp in the direction of arrow
1
.
›
Remove the lamp from the bumper.
›
Unscrew the lamp in the direction of arrow
2
and remove it in the direction
of arrow
3
.
›
Change the bulb. 
150Do-it-yourself

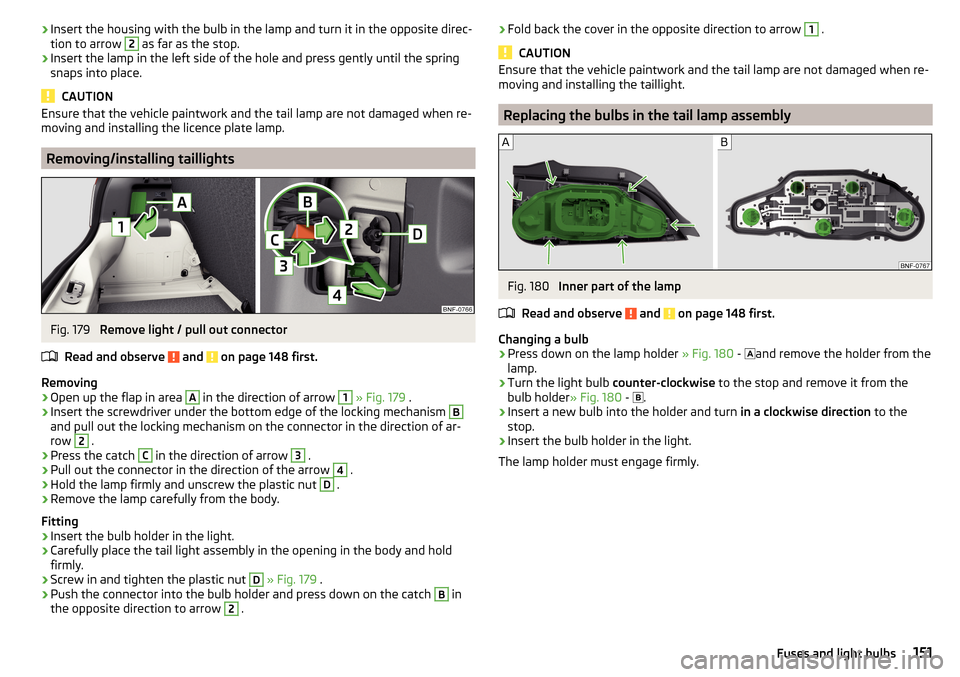

›Insert the housing with the bulb in the lamp and turn it in the opposite direc-
tion to arrow 2 as far as the stop.›
Insert the lamp in the left side of the hole and press gently until the spring
snaps into place.
CAUTION
Ensure that the vehicle paintwork and the tail lamp are not damaged when re-
moving and installing the licence plate lamp.
Removing/installing taillights
Fig. 179
Remove light / pull out connector
Read and observe
and on page 148 first.
Removing
›
Open up the flap in area
A
in the direction of arrow
1
» Fig. 179 .
›
Insert the screwdriver under the bottom edge of the locking mechanism
B
and pull out the locking mechanism on the connector in the direction of ar-
row
2
.
›
Press the catch
C
in the direction of arrow
3
.
›
Pull out the connector in the direction of the arrow
4
.
›
Hold the lamp firmly and unscrew the plastic nut
D
.
›
Remove the lamp carefully from the body.
Fitting
›
Insert the bulb holder in the light.
›
Carefully place the tail light assembly in the opening in the body and hold
firmly.
›
Screw in and tighten the plastic nut
D
» Fig. 179 .
›
Push the connector into the bulb holder and press down on the catch
B
in
the opposite direction to arrow
2
.
› Fold back the cover in the opposite direction to arrow 1 .
CAUTION
Ensure that the vehicle paintwork and the tail lamp are not damaged when re-
moving and installing the taillight.
Replacing the bulbs in the tail lamp assembly
Fig. 180
Inner part of the lamp
Read and observe
and on page 148 first.
Changing a bulb
›
Press down on the lamp holder » Fig. 180 - 
and remove the holder from the
lamp.
›
Turn the light bulb counter-clockwise to the stop and remove it from the
bulb holder » Fig. 180 - 
.
›
Insert a new bulb into the holder and turn in a clockwise direction to the
stop.
›
Insert the bulb holder in the light.
The lamp holder must engage firmly.
151Fuses and light bulbs

Technical data
Technical data
Basic vehicle data
Introduction
This chapter contains information on the following subjects:
Vehicle data
152
Operating weight
153
Payload
153
Measurement of fuel consumption and CO 2 emissions according to ECE
Regulations and EU Directives
153
Dimensions
154
Departure angle
155
The details given in the vehicle's technical documentation always take prece-
dence over the details in the Owner's Manual.
The performance values listed were determined without performance-reduc- ing equipment, e.g. air conditioning system.
The values given have been determined in accordance with regulations and in
conditions prescribed by legal or technical provisions for determining the oper-
ating and technical data of vehicles.
The listed values are for the basic model without optional equipment.
Vehicle data
Fig. 181
Vehicle data sticker/type plate
Vehicle data sticker
The vehicle data sticker » Fig. 181 -  is located on the base of the luggage
compartment and is also stuck into the Owner's Manual.
The vehicle data sticker contains the following data. Vehicle identification number (VIN)
Vehicle type
Gearbox code/paint number/interior equipment/engine output/engine code
Partial vehicle description
Type plate
The type plate » Fig. 181 -
 is located at the bottom of the B-pillar on the left
driver's side.
The type plate contains the following data. Vehicle manufacturers
Vehicle identification number (VIN)
Maximum permissible gross weight
Maximum permissible front axle load
Maximum permissible rear axle load
Vehicle identification number (VIN)
The vehicle identification number - VIN (vehicle body number) is stamped into
the engine compartment on the right hand suspension strut dome. This num-
ber is also located on a sign on the lower left hand edge below the windscreen
(together with a VIN bar code), and on the type plate.
Engine number
The engine number (three-digit code letter and serial number) is stamped on the engine block.
Supplementary Information (applies to Russia)
The full type approval number of the means of transport is indicated in the
registration documents, field 17.WARNINGDo not exceed the specified maximum permissible weights – risk of acci-
dent and damage!123456789152Technical data

Operating weight
This value is only a guide value and corresponds to the lowest possible operat-
ing weight without any equipment added that would also increase the weight
(e.g. air conditioning, emergency or spare wheel etc.). It also includes a weight
allowance for the driver (75 kg), the weight of the operating fluids, the tool kit
and a fuel tank filled to 90 % capacity.EngineTransmissionOperating weight (kg)1.0 l/44 kW MPIMT929ASG9321.0 l/44 kW MPI Green tecMG940ASG9311.0 ltr./55 kW MPIMG929ASG9321.0 l/55 kW MPI Green tecMG940ASG9311.0 l/50 kW MPI G-TECMG1031
Note
If required, you can find out the precise weight of your vehicle at a specialist
garage.
Payload
It is possible to calculate the approximate maximum payload from the differ-
ence between the permissible total weight and the operating weight.
The payload consists of the following weights.
▶ The weight of the passengers.
▶ The weight of all items of luggage and other loads.
▶ The weight of the roof, including the roof rack system.
▶ The weight of the equipment that is excluded from the operating weight.
Measurement of fuel consumption and CO
2 emissions according to
ECE Regulations and EU Directives
The data on fuel consumption and CO 2 emissions were not available at the
time of going to press.
The data on fuel consumption and CO 2 emissions are given on the ŠKODA
websites or in the sales and technical vehicle documentation.
The measurement of the intra-urban cycle begins with a cold start of the en-
gine. Afterwards urban driving is simulated.
In the extra-urban driving cycle, the vehicle is accelerated and decelerated in
all gears, corresponding to daily routine driving conditions. The driving speed
varies between 0 and 120 km/h.
The calculation of the combined fuel consumption considers a weighting of
about 37 % for the intra-urban cycle and 63 % for the extra-urban cycle.
Note
■ The emission and fuel consumption figures given on the ŠKODA websites or
in the commercial and technical vehicle documentation have been established
in accordance with rules and under conditions that are set out by statutory or
technical rules for the determination of operational and technical data of mo-
tor vehicles.■
Depending on the extent of the equipment, the driving style, traffic condi-
tions, weather influences and vehicle condition, consumption values can in
practice result in fuel economy figures in the use of the vehicle that differ from
the fuel consumption values listed on the ŠKODA websites or in the commer-
cial and technical vehicle documentation.
153Technical data

DimensionsFig. 182
Vehicle dimensions
Vehicle dimensions for operating weight without driver (in mm)
» Fig. 182SpecificationValueA
Height
Basic dimension1478Vehicles with the Green tec package1463G-TEC vehicles1480BFront track1428CWidth1641/1645 a)DRear track1424EWidth including exterior mirror1910F
Clearance
Basic dimension136Vehicles with the Green tec package121G-TEC vehicles134GWheel baseBasic dimension2420G-TEC vehicles2421HLength3563a)
Applies to 5-door models.
154Technical data

Departure angleFig. 183
Overhang angle
Angle » Fig. 183
Overhang angle, front
Overhang angle, rear
The overhang angle values indicate the maximum incline of a slope, up which the vehicle can drive at a slow speed without the bumper or underbody mak-
ing contact with the slope. The values listed correspond to the maximum axle
load, front or back.
Departure angle (°)
EngineOverhang angle, frontOverhang angle, rear1.0 ltr./44 kW MPI14.622.31.0 l/44 kW MPI Green tec12.522.91.0 ltr./55 kW MPI14.622.31.0 l/55 kW MPI Green tec12.522.91.0 l/50 kW MPI G-TEC13.226.6AB155Technical data

Vehicle-specific data depending on the engine
Introduction
This chapter contains information on the following subjects:
1.0 ltr./44 kW MPI engine
156
1.0 l/55 kW MPI engine
156
1.0 l/50 kW MPI G-TEC engine
156The values given have been determined in accordance with regulations and in
conditions prescribed by legal or technical provisions for determining the op-
erating and technical data of vehicles.The emissions standard is detailed in the technical vehicle documentation as
well as in the certificate of conformity (so-called COC document), which can
be obtained from a ŠKODA partner a)
.a)
Only valid for some countries and some models.
1.0 ltr./44 kW MPI engineOutput (kW/rpm)44/5000Maximum torque (Nm at 1/min)95/3000Number of cylinders/displacement (cm 3
)3/999TransmissionMTMT (Green tec)ATASG (Green tec)Top speed (km/h)160161160161Acceleration 0-100 km/h (s)14.414.415.315.3
1.0 l/55 kW MPI engine
Output (kW/rpm)55/6200Maximum torque (Nm at 1/min)95/3000Number of cylinders/displacement (cm 3
)3/999TransmissionMTMT (Green tec)ATASG (Green tec)Top speed (km/h)171172171172Acceleration 0-100 km/h (s)13.213.213.913.9
1.0 l/50 kW MPI G-TEC engine
Output (kW/rpm)50/6200Maximum torque (Nm at 1/min)90/3000Number of cylinders/displacement (cm 3
)3/999TransmissionMTTop speed (km/h)164Acceleration 0-100 km/h (s)16.3156Technical data

Index
A
ABS Operation
104
Warning light34
Acceptance and recycling of used vehicles
112
Accessories110
Adjusting Steering wheel
13
Adjusting the seats12
Adjustment Light range
49
Adjust radio volume77
Advice on tyre/wheel usage128
Air-conditioning system Air outlet vents
74
air bag17
Airbag Adjustments and impairments to the airbagsystem
111
Deactivation20
Deployment18
Warning light35
Airbag system17
air conditioning recirculation
73
Air conditioning71
Climatronic73
Manual air conditioning72
Air outlet vents74
All-year tyres131
Alternator Warning light
32
AM82
Anti-lock braking system (ABS)104
Anti-theft wheel bolts136
Application management93
Connection93
Main menu94
Ashtray62
Assist systems103
Audio source85
Auto check control41
Automated manual transmission Kick-down
101
Tiptronic101
Automated transmission100
Automatically turn off the radio77
Automatic driving light control51
Automatic shutdown of consumers126
Automatic transmission Defect
33
Selector lever100
Starting-off and driving101
Warning light33
Automatic transmission modes100
AUX87
Avoiding damage to your vehicle102
B
Battery Change in key
142
Belts14
Belt tensioners16
Blues radio Device language settings
81
Display settings81
Factory settings81
Media menu84
Media menu settings81
menu settings80
Radio menu81
Radio menu settings80
safe removal of the data source81
Settings80
Sound settings80
Status line77
Blues Radio75
Device description76
Information on the device system81
Blues radio display76
Bluetooth profile93
Bluetooth® player87
Bonnet Closing
122
Opening122
Boot Class N1 vehicles
70
see boot lid46
Boot lid Automatic locking
46
Open/Close46
Brake Assist (HBA)104
Brake booster98
Brake fluid125
Check125
specification125
Brake pads new
98
Brake pedal - automatic transmission warning light
36
Brakes Brake booster
98
Brake fluid125
Braking and stabilisation systems103
Handbrake98
Information on braking98
Warning lights32
Brake system103
Braking Running in
102
Breakdown kit137
Breakdown service90
see Help in an emergency10
157Index

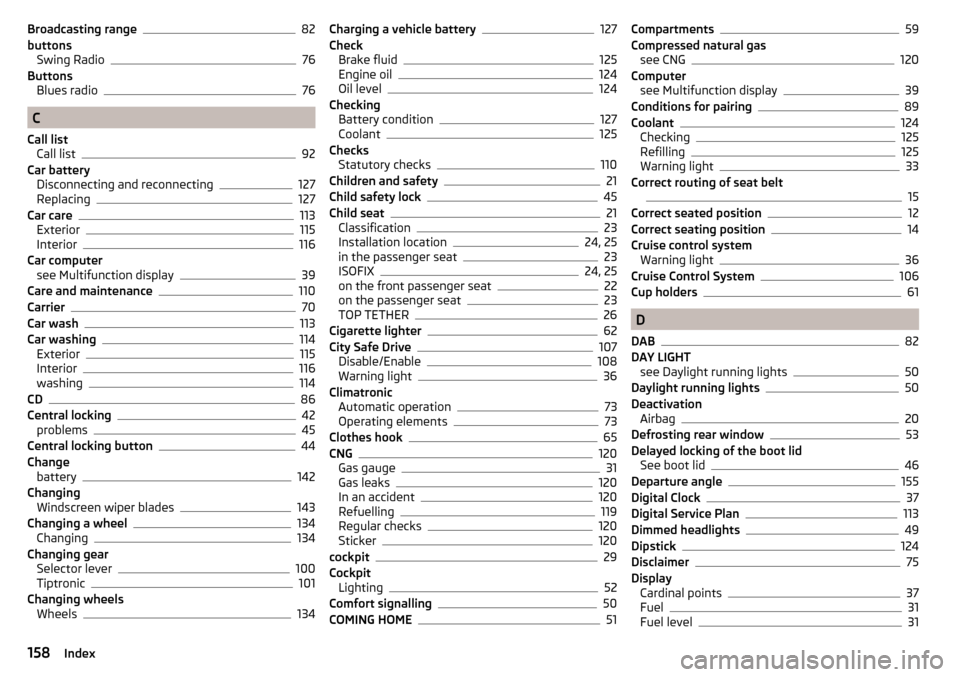

Broadcasting range82
buttons Swing Radio
76
Buttons Blues radio
76
C
Call list Call list
92
Car battery Disconnecting and reconnecting
127
Replacing127
Car care113
Exterior115
Interior116
Car computer see Multifunction display
39
Care and maintenance110
Carrier70
Car wash113
Car washing114
Exterior115
Interior116
washing114
CD86
Central locking42
problems45
Central locking button44
Change battery
142
Changing Windscreen wiper blades
143
Changing a wheel134
Changing134
Changing gear Selector lever
100
Tiptronic101
Changing wheels Wheels
134
Charging a vehicle battery127
Check Brake fluid
125
Engine oil124
Oil level124
Checking Battery condition
127
Coolant125
Checks Statutory checks
110
Children and safety21
Child safety lock45
Child seat21
Classification23
Installation location24, 25
in the passenger seat23
ISOFIX24, 25
on the front passenger seat22
on the passenger seat23
TOP TETHER26
Cigarette lighter62
City Safe Drive107
Disable/Enable108
Warning light36
Climatronic Automatic operation
73
Operating elements73
Clothes hook65
CNG120
Gas gauge31
Gas leaks120
In an accident120
Refuelling119
Regular checks120
Sticker120
cockpit29
Cockpit Lighting
52
Comfort signalling50
COMING HOME51
Compartments59
Compressed natural gas see CNG
120
Computer see Multifunction display
39
Conditions for pairing89
Coolant124
Checking125
Refilling125
Warning light33
Correct routing of seat belt
15
Correct seated position12
Correct seating position14
Cruise control system Warning light
36
Cruise Control System106
Cup holders61
D
DAB
82
DAY LIGHT see Daylight running lights
50
Daylight running lights50
Deactivation Airbag
20
Defrosting rear window53
Delayed locking of the boot lid See boot lid
46
Departure angle155
Digital Clock37
Digital Service Plan113
Dimmed headlights49
Dipstick124
Disclaimer75
Display Cardinal points
37
Fuel31
Fuel level31
158Index
