SKODA CITIGO 2018 Owners Manual

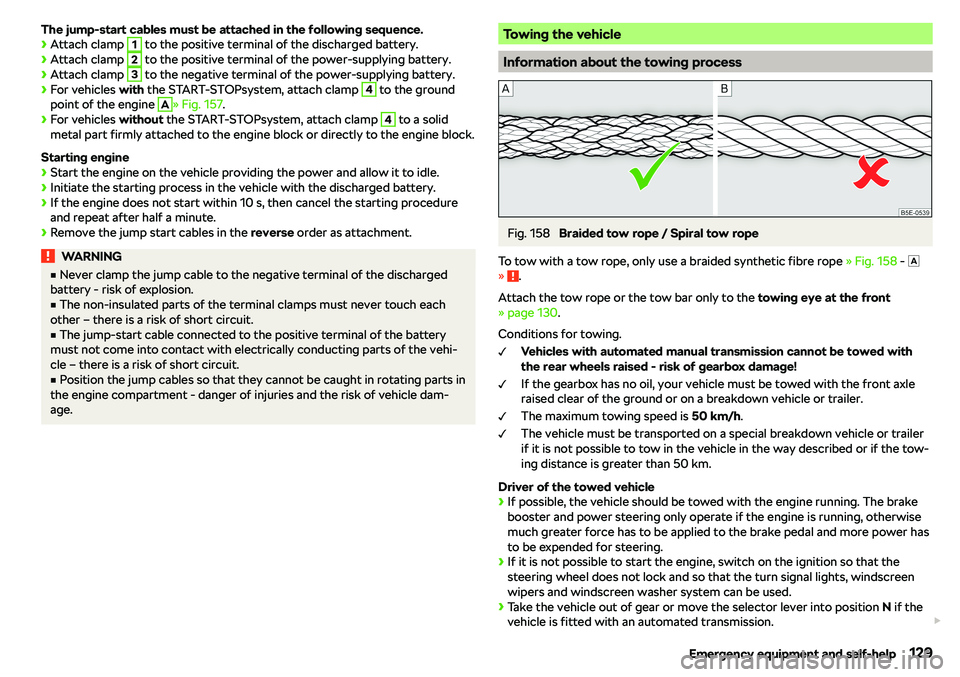

The jump-start cables must be attached in the following sequence.

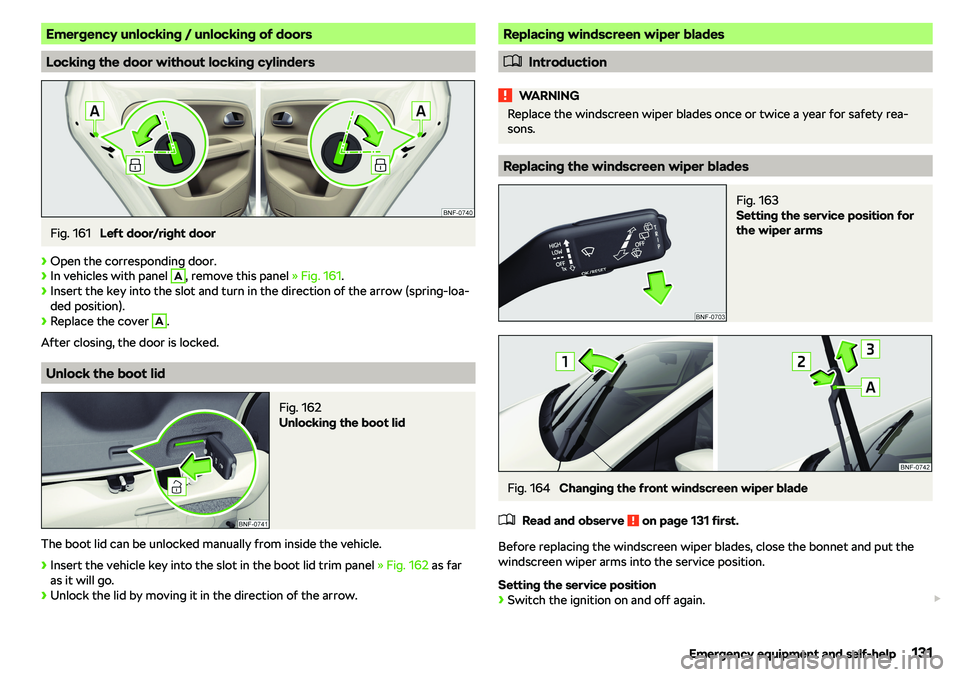

Emergency unlocking / unlocking of doors
Locking the door without locking cylinders
Fig. 161
Left door/right door

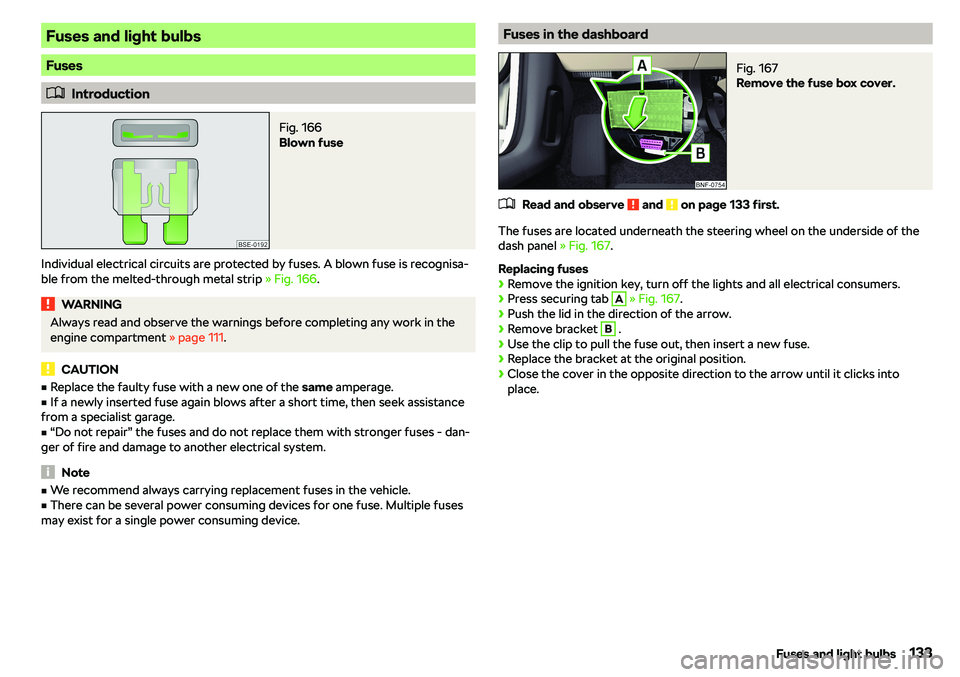

Fuses and light bulbs
Fuses

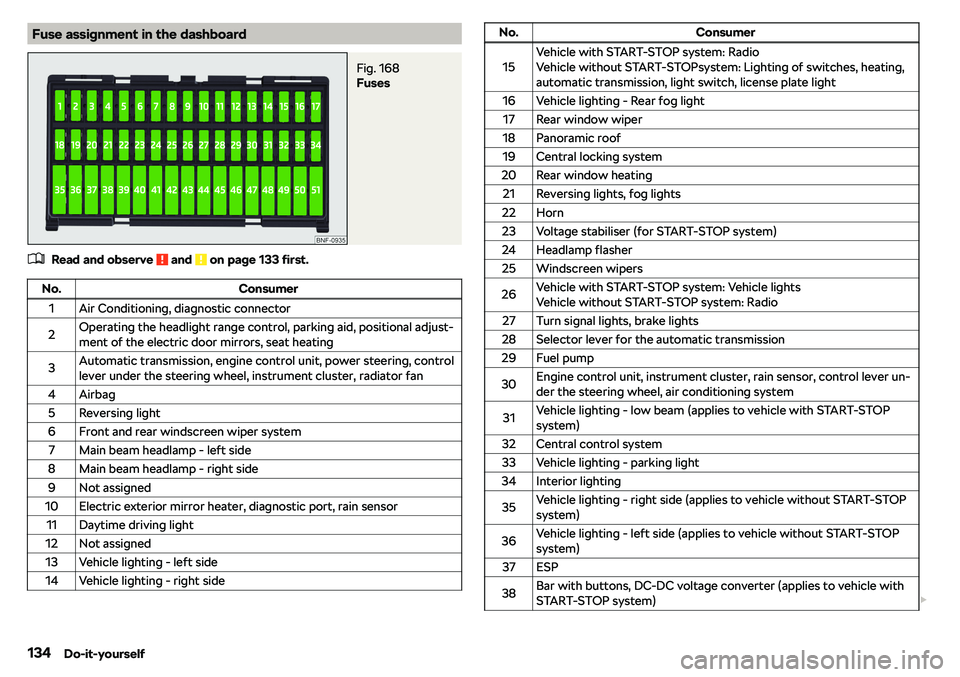

Fuse assignment in the dashboardFig. 168
Fuses

No.Consumer39Control lever under the steering wheel, front and rear window wash-
er40Lambda probe, radiator fan, gas valve, oil pressure valve, valve for ac-
tivated charcoal filter41Brake pedal switch, clutch pedal switch, radiator fan, engine compo- nents42Engine control system43Fuel pump, vacuum pump for brake system44Injection valves, engine components, fuel pump45Ignition coils, engine components4612-volt power outlet47Air blower for air conditioning/heating48Seat heaters49Electric windows - right50Vehicle lighting - daytime running lights, high beam51Electric windows - left
Fuses on the dashboard side
Fig. 169
Remove the fuse box cover.

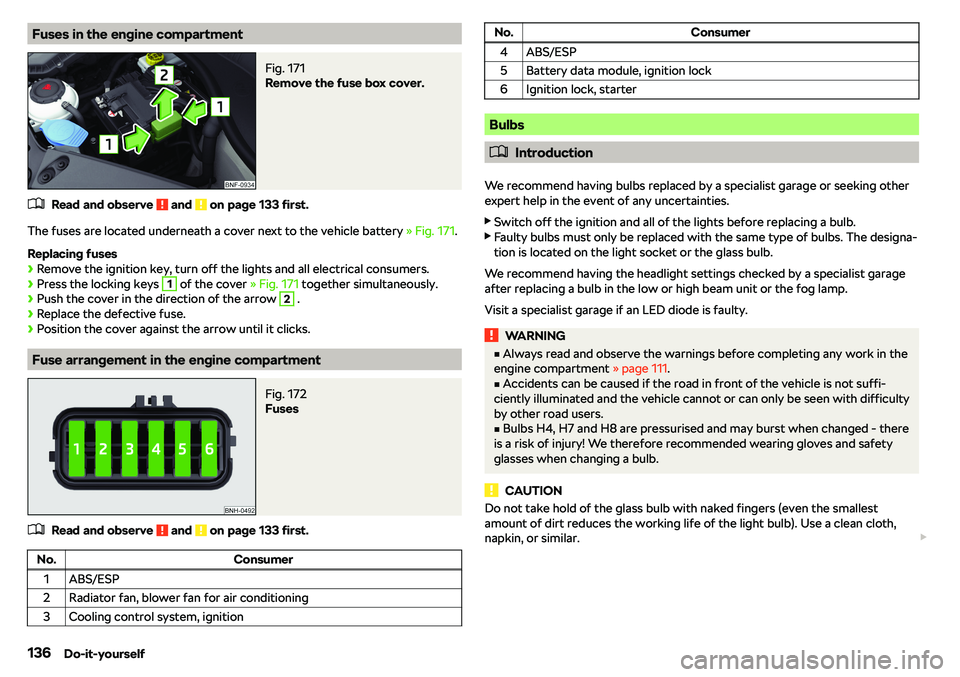

Fuses in the engine compartmentFig. 171
Remove the fuse box cover.

Note
vThis Owner

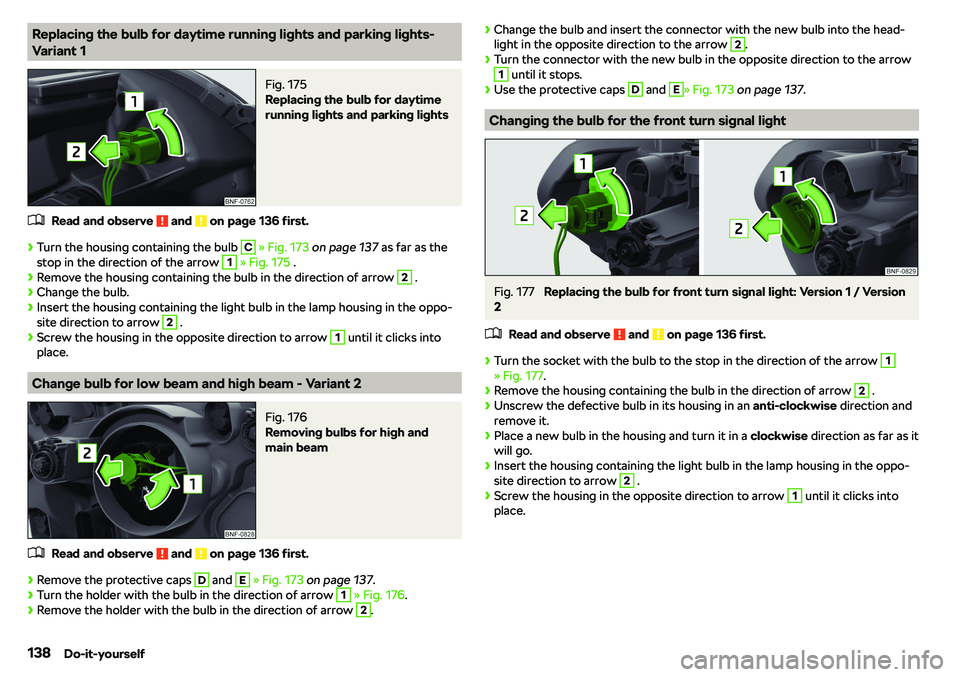

Replacing the bulb for daytime running lights and parking lights-
Variant 1Fig. 175
Replacing the bulb for daytime
running lights and parking lights
