SKODA CITIGO 2018 Repair Manual

Securing/removing the bracketFig. 77
Insert bracket into the adapter / remove bracket from the
adapter

Transport of cargo
Luggage compartment and transporting objects

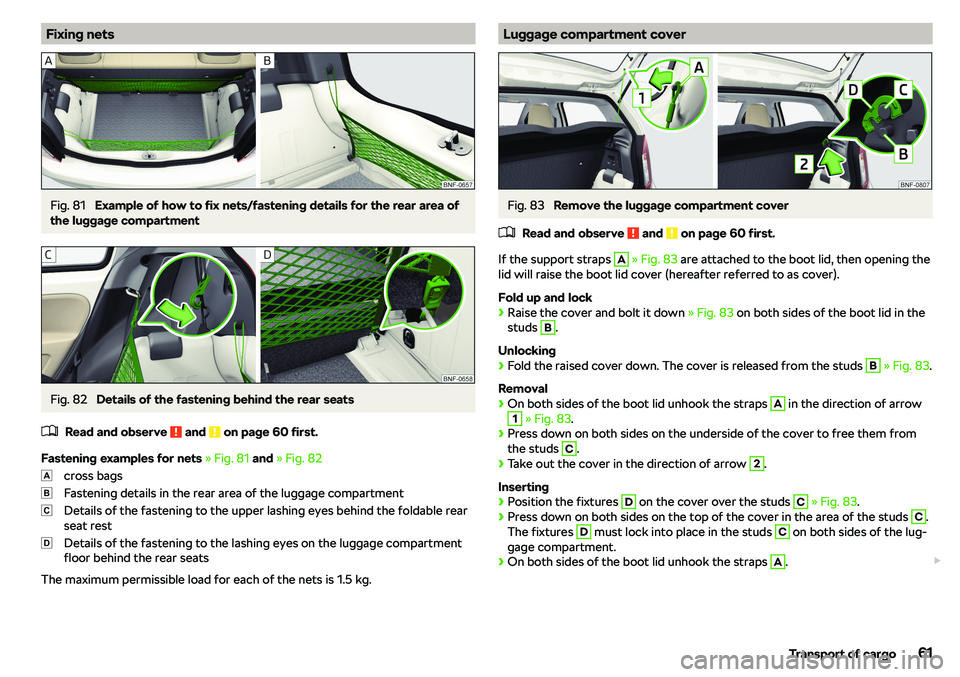

Fixing netsFig. 81
Example of how to fix nets/fastening details for the rear area of
the luggage compartment
Fig. 82
Details of the fastening behind the rear seats

WARNING
vDo not place any objects on the cover during the trip - risk of injury if
braking suddenly or colliding!
v
Never ride with the cover up - risk of damage to the cover.
Variable loading floor
Fig. 84
Variable loading floor in the raised position: raise / raised
Fig. 85
Variable loading floor: lower / lowered

Roof load
The maximum permitted weight of the load incl. carriers is 50 kg.WARNINGThe following instructions must be observed to aid road safety when trans- porting cargo on the roof rack.
v
Always distribute the load on the roof rack evenly and secure properly
with suitable lashing straps or tensioning straps.

v
When transporting heavy objects or objects which take up a large area on
the roof rack system, the handling of the car may change as a result of the
displacement of the centre of gravity. The style of driving and speed must
therefore be adapted to the current circumstances.

v
The permissible roof load, permissible axle loads and permissible total ve-
hicle weight must not be exceeded under any circumstances

Note
vThe air inlet in front of the windscreen must be free of e.g. ice, snow or
leaves to ensure that the heating and cooling system operates properly.
v
After switching on the cooling Condensation from the evaporator of the air
conditioning may drip down and form a puddle below the vehicle. This is not a
leak!

v
If the coolant temperature is too high, the cooling system is switched off to
ensure that the engine cools down.

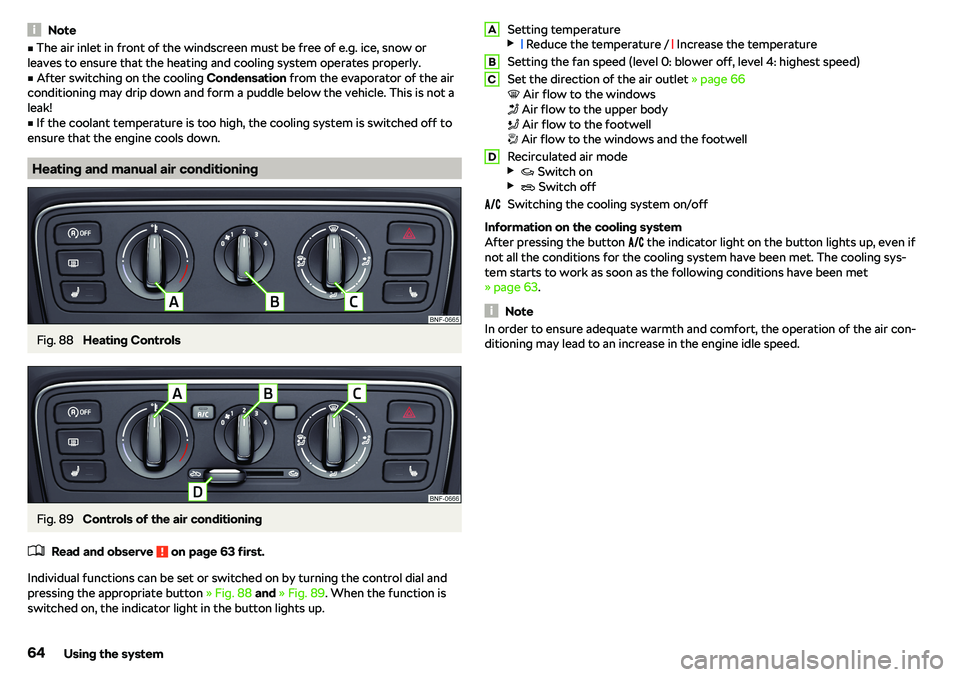

Heating and manual air conditioning
Fig. 88
Heating Controls
Fig. 89
Controls of the air conditioning

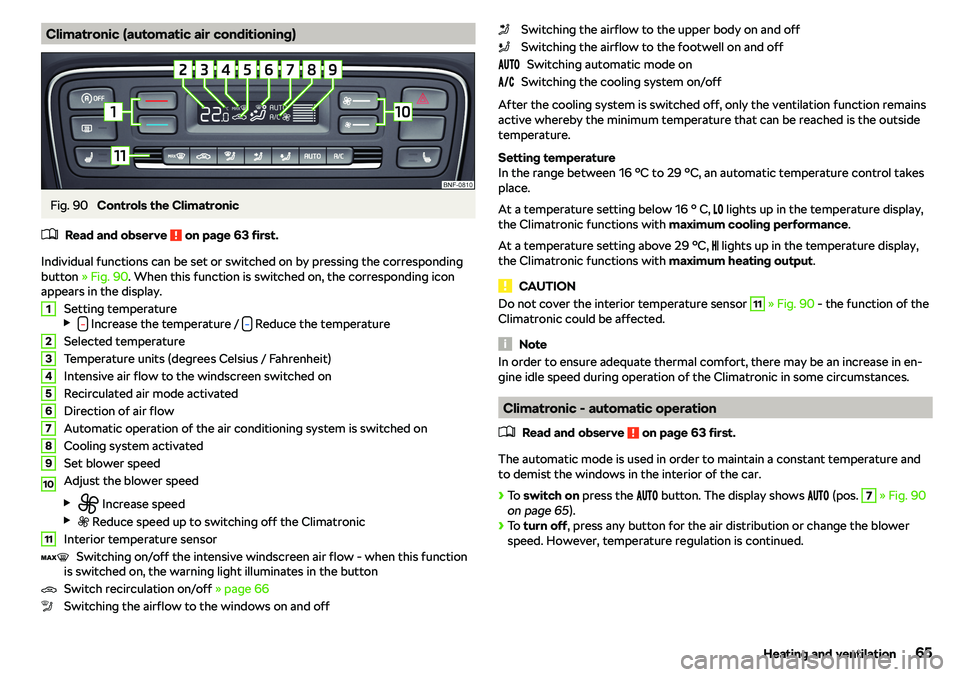

Climatronic (automatic air conditioning)Fig. 90
Controls the Climatronic

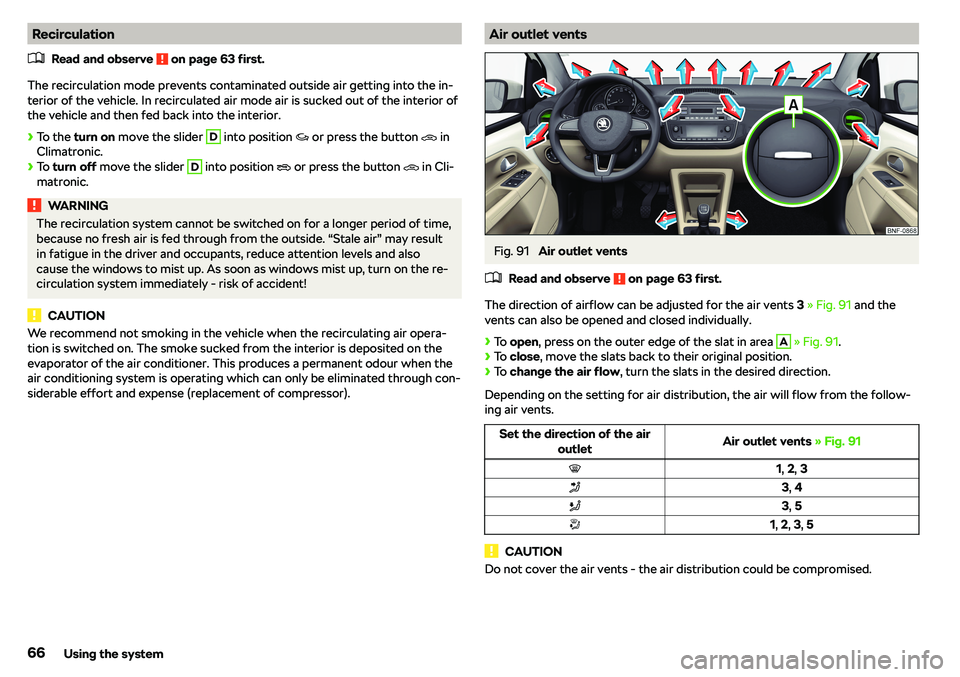

Recirculation

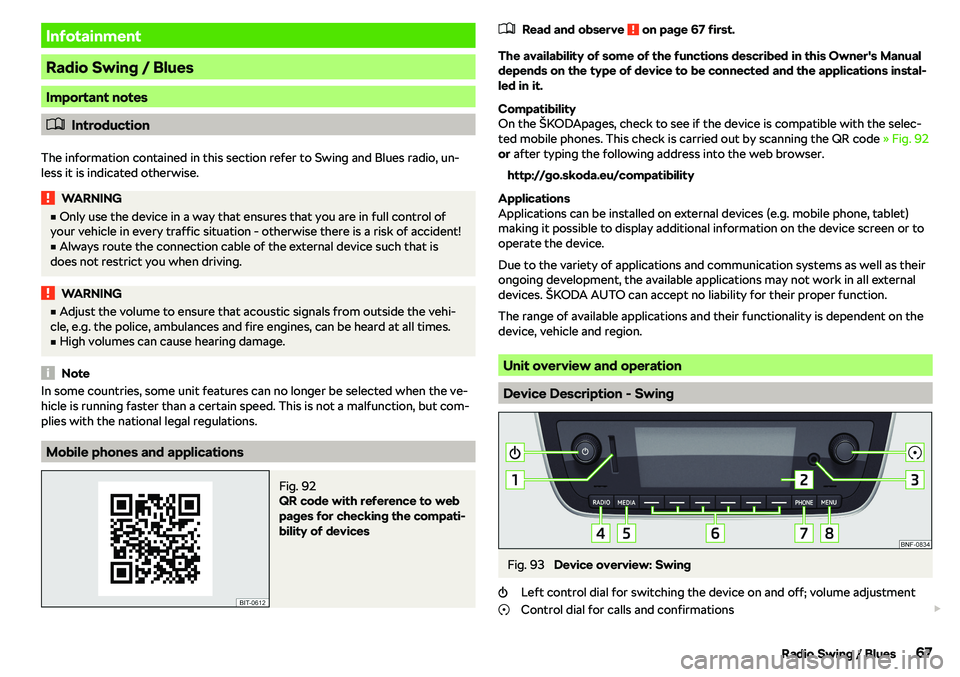

Infotainment
Radio Swing / Blues
Important notes

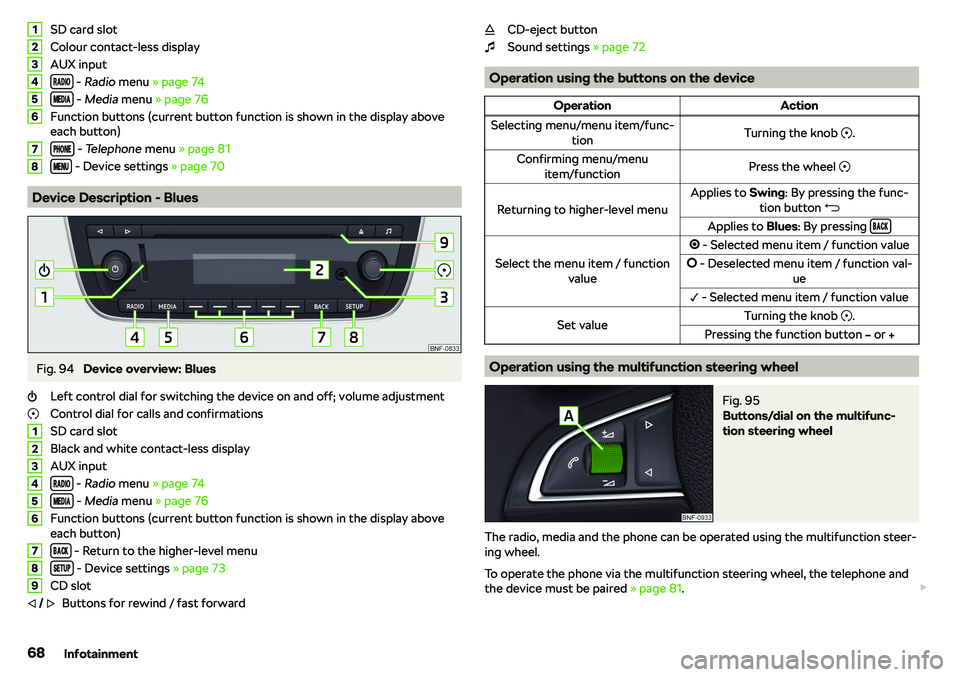

SD card slot
Colour contact-less display
AUX input 
- Radio menu
