SKODA FABIA 2006 2.G / 5J Beat Car Radio Manual

A longer press on the right-hand knob
brings you to the Setup menu. Here you
can parameter special setting, such as
using the radio in combination with a tele-
phone.
The individual menu options are selected
by pressing the right-hand knob brief-
ly. Unless you have switched off “BEEP”
in the Setup menu, switching from one
menu option to another is acknowledged
by an audible signal.
Changes to the selected menu option are
made by turning the right-hand knob
and are stored when you move on to the
next menu option.
A longer press on the right-hand button
enables you to leave the Setup
menu without storing any changes to the
last menu option. Warning:
Any changes in the Setup menu
affect your radio’s general operati-
on and therefore , for safety rea-
sons, should only be made when
the vehicle is stationary!!!
The following functions can be set in the
Setup menu:
• GALA speed-dependent volume
adjustment
• ONVOL maximum volume on
switching on
• PHONE telephone function
ON/OFF switch
• AUX function external audio
source ON/OFF switch
• BEEP beep tone ON/OFF
• CD selection of the CD
playing sequence
• LOUD loudness ON/OFFGALA
The noise level in the vehicle increases
as your driving speed increases. The
GALA function enables you to increase
the radio’s volume as your speed increa-
ses.
The amount of increase can be selected
from 1to 7. When the GALA function is
set to NO, it is switched off.
• Select GALAin the Setup menu.
“GALA” is shown on the display, with
the current setting.
• Use the right-hand knob to set
the option to the desired value from NO
to 7.
ONVOL
This menu option sets the maximum
volume level you wish when the radio is
switched on. Normally, when you switch
on the radio, it returns to the last volume
level set. However, if this level is above
the level set in the Setup menu, the volu-
me is reduced to the set level.
Setup menu
2
2
22
2
9
GB
bed_anl_Skoda-Beat_A05 rz.QXP 02.03.2006 16:27 Uhr Seite 9

10

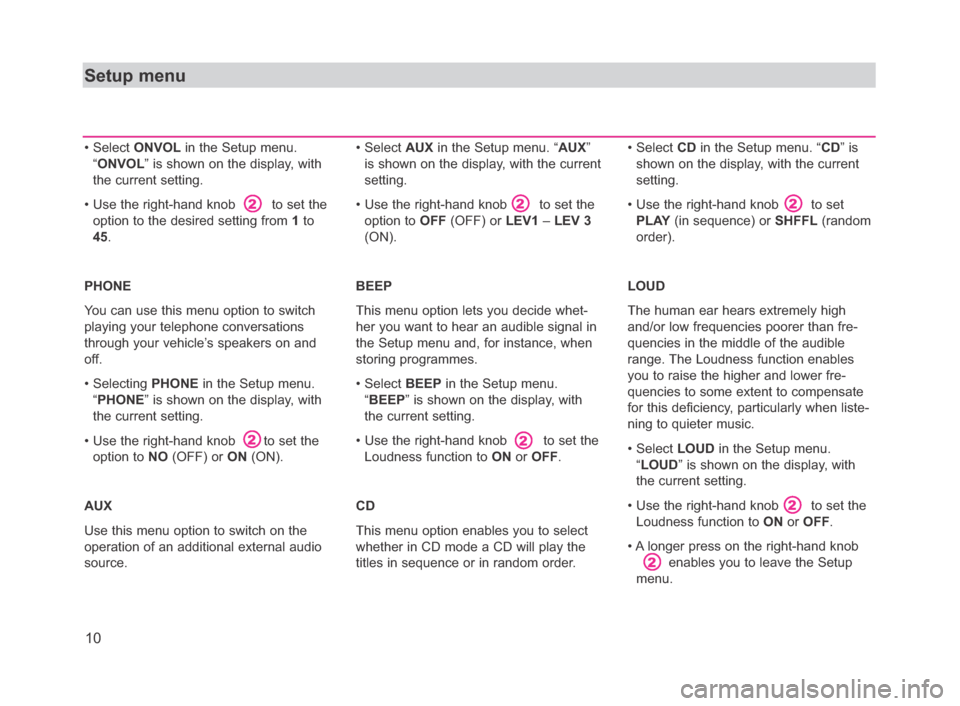

Setup menu
• Select ONVOLin the Setup menu.
“ONVOL” is shown on the display, with
the current setting.
• Use the right-hand knob to set the
option to the desired setting from 1to
45.
PHONE
You can use this menu option to switch
playing your telephone conversations
through your vehicle’s speakers on and
off.
• Selecting PHONEin the Setup menu.
“PHONE” is shown on the display, with
the current setting.
• Use the right-hand knob to set the
option to NO(OFF) or ON(ON).
AUX
Use this menu option to switch on the
operation of an additional external audio
source. • Select AUXin the Setup menu. “AUX”
is shown on the display, with the current
setting.
• Use the right-hand knob to set the
option to OFF(OFF) or LEV1– LEV 3
(ON).
BEEP
This menu option lets you decide whet-
her you want to hear an audible signal in
the Setup menu and, for instance, when
storing programmes.
• Select BEEPin the Setup menu.
“BEEP” is shown on the display, with
the current setting.
• Use the right-hand knob to set the
Loudness function to ONor OFF.
CD
This menu option enables you to select
whether in CD mode a CD will play the
titles in sequence or in random order. • Select CDin the Setup menu. “CD” is
shown on the display, with the current
setting.
• Use the right-hand knob to set
PLAY(in sequence) or SHFFL(random
order).
LOUD
The human ear hears extremely high
and/or low frequencies poorer than fre-
quencies in the middle of the audible
range. The Loudness function enables
you to raise the higher and lower fre-
quencies to some extent to compensate
for this deficiency, particularly when liste-
ning to quieter music.
• Select LOUDin the Setup menu.
“LOUD” is shown on the display, with
the current setting.
• Use the right-hand knob to set the
Loudness function to ONor OFF.
• A longer press on the right-hand knob
enables you to leave the Setup
menu.
2
2
2
2
2
2
2
bed_anl_Skoda-Beat_A05 rz.QXP 02.03.2006 16:27 Uhr Seite 10

Security code
When the radio is switched off and the
key has been removed from the ignition,
the anti-theft system is activated. This
electronically prevents the radio from
being operated by unauthorized persons
in another vehicle.
If you have not received a device-specific
security code for your car radio, your
vehicle is fitted with a comfort coding
system for which you do not require a
code. If the battery has been disconnec-
ted and then reconnected, you must first
switch on the ignition with the key in the
ignition lock before you switch on the
radio. If nevertheless you wish to have a
code, please contact your service partner
or importer.
Comfort radio coding
When the radio is used for the first time,
the comfort coding stores the code num-
ber not only in the radio but also in the
vehicle.Now, if the on-board voltage supply to
your vehicle is interrupted, when you next
switch on the radio it compares the inter-
nal number with the number in the vehi-
cle.
If these two numbers match, the radio is
immediately available for unrestricted
use. The code number is only requested
if the numbers do not match.
The code number should not be car-
ried in the vehicle but kept in a safe
place at home. Only then will the radio
be useless for a thief to steal.
Removing the electronic loc
Take the following steps, keep to the cor-
rect sequence and enter the correct code
number as quickly as possible. Please
also refer to page 4 “Comfort radio
coding”.
• Switch the radio on. “SAFE” is shown
on the display.
• After approximately 3 seconds “1000”
appears on the display. • Now use station button 1to enter
the first digit of the code number
• Repeat the procedure using station but-
ton 2for the second digit of the
code number, station button 3for the
third digit, and so on until you have
entered the complete code number.
• Confirm the entry with a long press on
station button 6. The radio is now
ready for use.
Wrong code number
If you inadvertently confirm the wrong
code number, the message “SAFE” flas-
hes on the display. After a few seconds
“1000” is displayed again. Now enter the
security code again as described above.
If a wrong code number is confirmed
again the radio is now locked for approxi-
mately an hour.
Security code
3
3
3
11
GB
bed_anl_Skoda-Beat_A05 rz.QXP 02.03.2006 16:27 Uhr Seite 11

OBSAH
12

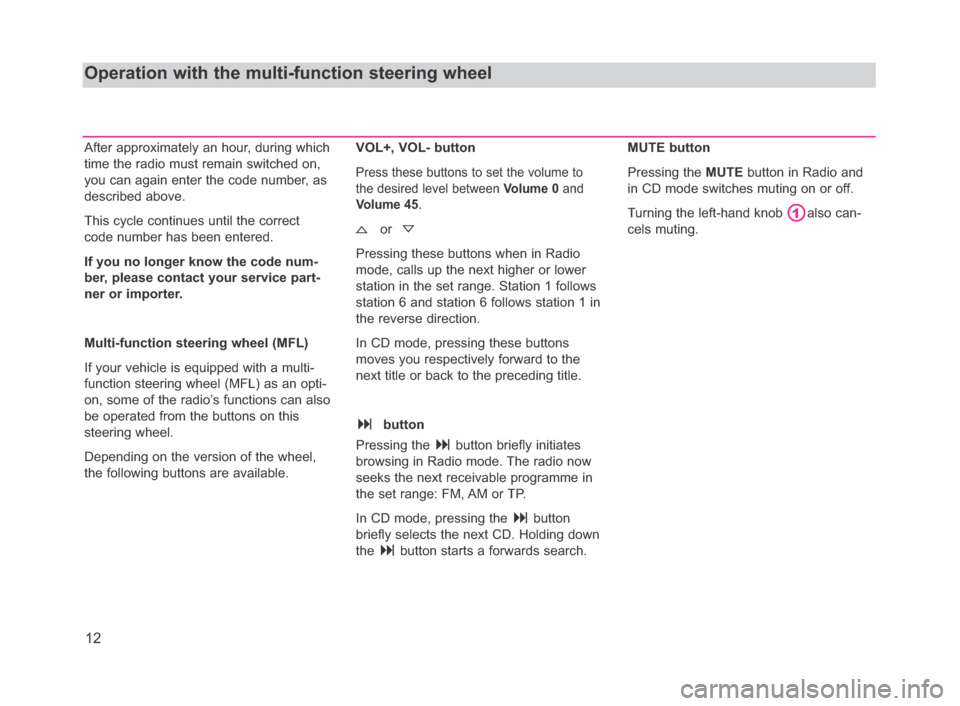

After approximately an hour, during which
time the radio must remain switched on,
you can again enter the code number, as
described above.
This cycle continues until the correct
code number has been entered.
If you no longer know the code num-
ber, please contact your service part-
ner or importer.
Multi-function steering wheel (MFL)
If your vehicle is equipped with a multi-
function steering wheel (MFL) as an opti-
on, some of the radio’s functions can also
be operated from the buttons on this
steering wheel.
Depending on the version of the wheel,
the following buttons are available.VOL+, VOL- button
Press these buttons to set the volume to
the desired level between Volume 0and
Volume 45.
or
Pressing these buttons when in Radio
mode, calls up the next higher or lower
station in the set range. Station 1 follows
station 6 and station 6 follows station 1 in
the reverse direction.
In CD mode, pressing these buttons
moves you respectively forward to the
next title or back to the preceding title.
 button
Pressing the
button briefly initiates
browsing in Radio mode. The radio now
seeks the next receivable programme in
the set range: FM, AM or TP.
In CD mode, pressing the
button
briefly selects the next CD. Holding down
the
button starts a forwards search.MUTE button
Pressing the MUTEbutton in Radio and
in CD mode switches muting on or off.
Turning the left-hand knob also can-
cels muting.
Operation with the multi-function steering wheel





1
bed_anl_Skoda-Beat_A05 rz.QXP 02.03.2006 16:27 Uhr Seite 12

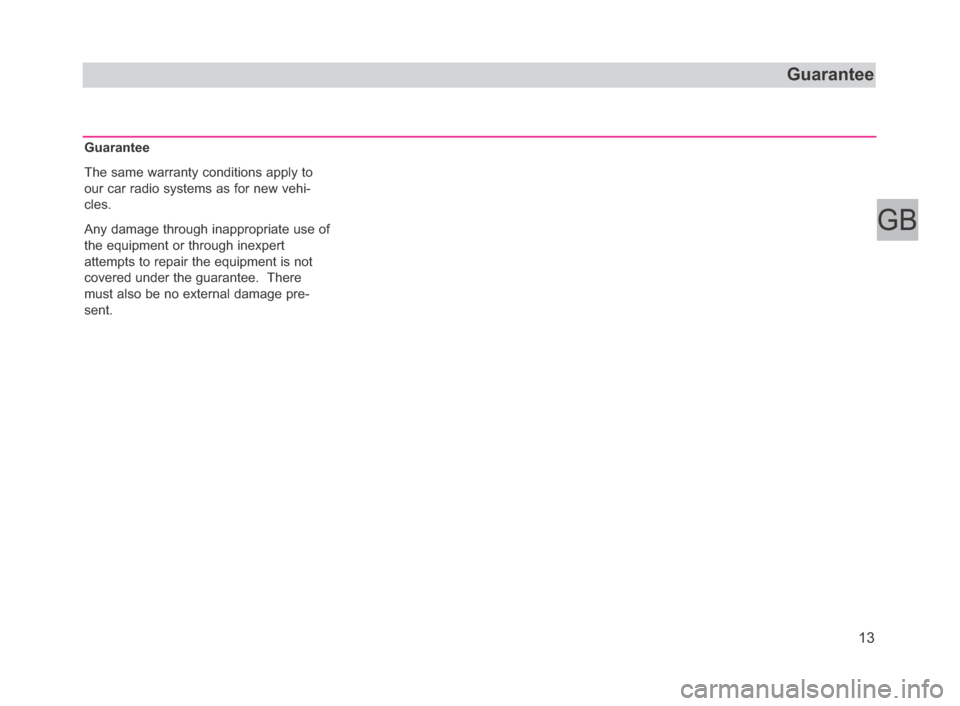

Guarantee
The same warranty conditions apply to
our car radio systems as for new vehi-
cles.
Any damage through inappropriate use of
the equipment or through inexpert
attempts to repair the equipment is not
covered under the guarantee. There
must also be no external damage pre-
sent.
Guarantee
13
GB
bed_anl_Skoda-Beat_A05 rz.QXP 02.03.2006 16:27 Uhr Seite 13

OBSAH
14

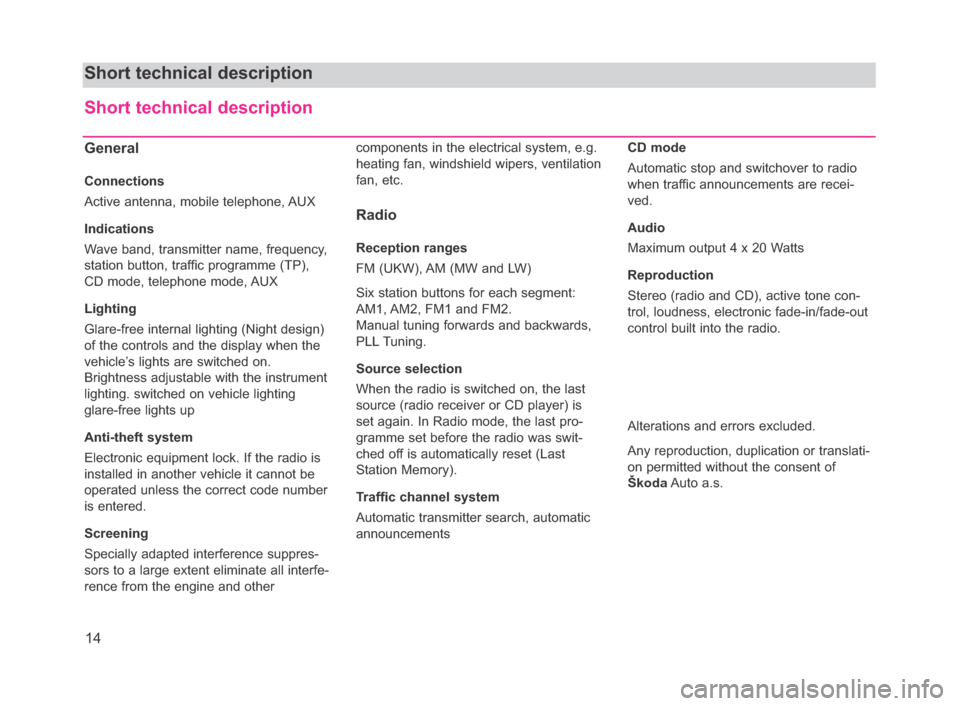

Short technical description
General
Connections
Active antenna, mobile telephone, AUX
Indications
Wave band, transmitter name, frequency,
station button, traffic programme (TP),
CD mode, telephone mode, AUX
Lighting
Glare-free internal lighting (Night design)
of the controls and the display when the
vehicle’s lights are switched on.
Brightness adjustable with the instrument
lighting. switched on vehicle lighting
glare-free lights up
Anti-theft system
Electronic equipment lock. If the radio is
installed in another vehicle it cannot be
operated unless the correct code number
is entered.
Screening
Specially adapted interference suppres-
sors to a large extent eliminate all interfe-
rence from the engine and other components in the electrical system, e.g.
heating fan, windshield wipers, ventilation
fan, etc.
Radio
Reception ranges
FM (UKW), AM (MW and LW)
Six station buttons for each segment:
AM1, AM2, FM1 and FM2.
Manual tuning forwards and backwards,
PLL Tuning.
Source selection
When the radio is switched on, the last
source (radio receiver or CD player) is
set again. In Radio mode, the last pro-
gramme set before the radio was swit-
ched off is automatically reset (Last
Station Memory).
Traffic channel system
Automatic transmitter search, automatic
announcementsCD mode
Automatic stop and switchover to radio
when traffic announcements are recei-
ved.
Audio
Maximum output 4 x 20 Watts
Reproduction
Stereo (radio and CD), active tone con-
trol, loudness, electronic fade-in/fade-out
control built into the radio.
Alterations and errors excluded.
Any reproduction, duplication or translati-
on permitted without the consent of
ŠkodaAuto a.s.
Short technical description
bed_anl_Skoda-Beat_A05 rz.QXP 02.03.2006 16:27 Uhr Seite 14

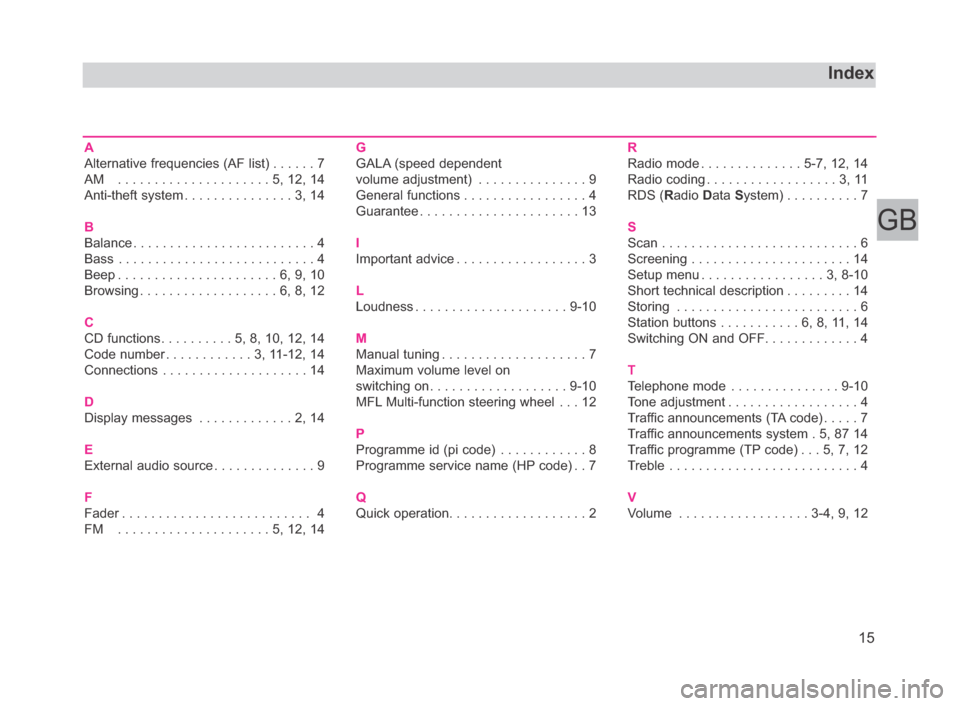

A
Alternative frequencies (AF list) . . . . . . 7
AM . . . . . . . . . . . . . . . . . . . . . 5, 12, 14
Anti-theft system . . . . . . . . . . . . . . . 3, 14
B
Balance . . . . . . . . . . . . . . . . . . . . . . . . . 4
Bass . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Beep . . . . . . . . . . . . . . . . . . . . . . 6, 9, 10
Browsing . . . . . . . . . . . . . . . . . . . 6, 8, 12
C
CD functions . . . . . . . . . . 5, 8, 10, 12, 14
Code number . . . . . . . . . . . . 3, 11-12, 14
Connections . . . . . . . . . . . . . . . . . . . . 14
D
Display messages . . . . . . . . . . . . . 2, 14
E
External audio source . . . . . . . . . . . . . . 9
F
Fader . . . . . . . . . . . . . . . . . . . . . . . . . . 4
FM . . . . . . . . . . . . . . . . . . . . . 5, 12, 14G
GALA (speed dependent
volume adjustment) . . . . . . . . . . . . . . . 9
General functions . . . . . . . . . . . . . . . . . 4
Guarantee . . . . . . . . . . . . . . . . . . . . . . 13
I
Important advice . . . . . . . . . . . . . . . . . . 3
L
Loudness . . . . . . . . . . . . . . . . . . . . . 9-10
M
Manual tuning . . . . . . . . . . . . . . . . . . . . 7
Maximum volume level on
switching on . . . . . . . . . . . . . . . . . . . 9-10
MFL Multi-function steering wheel . . . 12
P
Programme id (pi code) . . . . . . . . . . . . 8
Programme service name (HP code) . . 7
Q
Quick operation. . . . . . . . . . . . . . . . . . . 2R
Radio mode . . . . . . . . . . . . . . 5-7, 12, 14
Radio coding . . . . . . . . . . . . . . . . . . 3, 11
RDS (Radio Data System) . . . . . . . . . . 7
S
Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Screening . . . . . . . . . . . . . . . . . . . . . . 14
Setup menu . . . . . . . . . . . . . . . . . 3, 8-10
Short technical description . . . . . . . . . 14
Storing . . . . . . . . . . . . . . . . . . . . . . . . . 6
Station buttons . . . . . . . . . . . 6, 8, 11, 14
Switching ON and OFF. . . . . . . . . . . . . 4
T
Telephone mode . . . . . . . . . . . . . . . 9-10
Tone adjustment . . . . . . . . . . . . . . . . . . 4
Traffic announcements (TA code) . . . . . 7
Traffic announcements system . 5, 87 14
Traffic programme (TP code) . . . 5, 7, 12
Treble . . . . . . . . . . . . . . . . . . . . . . . . . . 4
V
Volume . . . . . . . . . . . . . . . . . . 3-4, 9, 12
Index
15
GB
bed_anl_Skoda-Beat_A05 rz.QXP 02.03.2006 16:27 Uhr Seite 15

SIMPLY CLEVER
www.skoda-auto.cz
www.skoda-auto.comAutorádio Beat
Škoda Auto 03.06
S00.5610.38.99
5J0 012 095 ŠkodaAuto AUTORÁDIO BEAT
AUTORADIO BEAT
CAR RADIO BEAT
zk.indd 1zk.indd 131.1.2006 11:46:5331.1.2006 11:46:53
