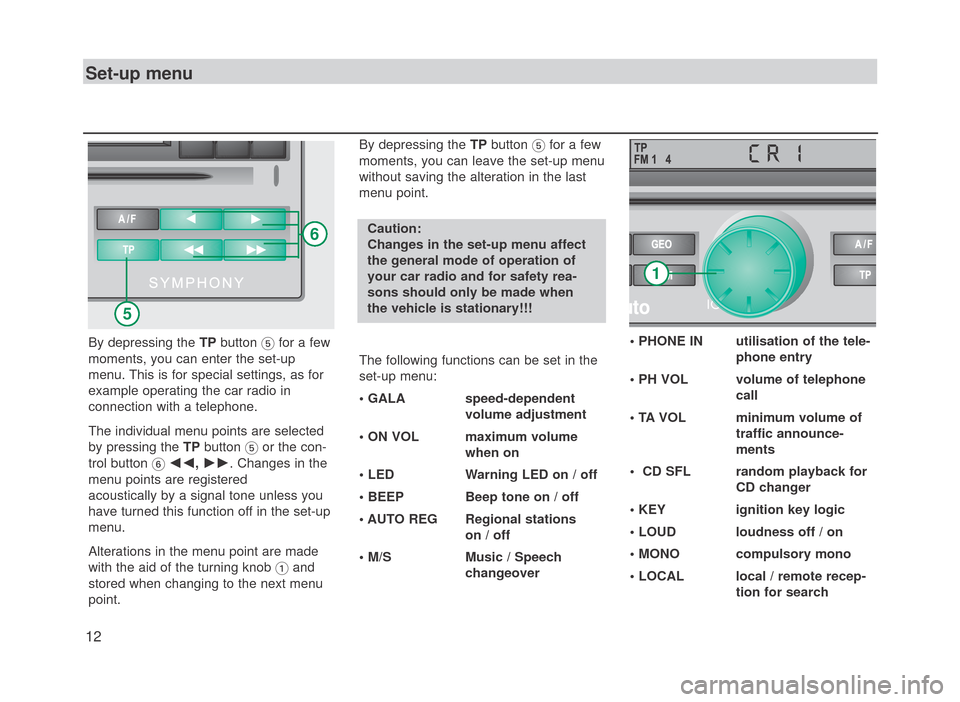

Set-up menu
By depressing the TPbutton for a few
moments, you can enter the set-up
menu. This is for special settings, as for
example operating the car radio in
connection with a telephone.
The individual menu points are selected
by pressing the TP button or the con-
trol button , . Changes in the
menu points are registered
acoustically by a signal tone unless you
have turned this function off in the set-up
menu.
Alterations in the menu point are made
with the aid of the turning knob and
stored when changing to the next menu
point. By depressing the TP
button for a few
moments, you can leave the set-up menu
without saving the alteration in the last
menu point.
Caution:
Changes in the set-up menu affect
the general mode of operation of
your car radio and for safety rea-
sons should only be made when
the vehicle is stationary!!!
The following functions can be set in the
set-up menu:
• GALA speed-dependent volume adjustment
• ON VOL maximum volume when on
• LED Warning LED on / off
• BEEP Beep tone on / off
• AUTO REG Regional stations on / off
• M/S Music / Speech
changeover • PHONE IN utilisation of the tele-
phone entry
• PH VOL volume of telephone call
• TA VOL minimum volume of traffic announce-
ments
• CD SFL random playback for CD changer
• KEY ignition key logic
• LOUD loudness off / on
• MONO compulsory mono
• LOCAL local / remote recep- tion for search
12
5
6
FM1 4
TP
1
3. Bed. Anl. Skoda Radio Engl. 13.12.2004 14:20 Uhr Seite 12
Page 14 of 22
Set-up menu
GALA
As the driving speed increases, the sound
level rises in the vehicle. With the aid of
the GALA function (speed-dependant
volume adjustment) the volume of the car
radio becomes louder as the speed
increases. The extent of the rise in vol-
ume can be selected by setting from 1to
9. If set to NO, the GALA function is
turned OFF.
• Select GALAin the menu. "GALA" is
shown in the display with the current
value.
• Use the turning knob to set the de-
sired value from NO to 9.
• By briefly pressing the TPbutton or
the control button , you can store
the indicated value and go to the next
menu point
or
• by depressing the TPbutton for a few
moments, you can leave the set-up
menu without storing the change.
ON VOL
Set the maximum ON volume in this menu
point. Normally, the last heard volume is
set when the radio is switched on. However if it exceeds the volume set in
the menu, it is reduced to the set value.
• Select
ON VOL in the menu. "ON VOL”
appears in the display with the current
value.
• Use the turning knob to set the de-
sired value from 1 to 45.
• By briefly pressing the TPbutton or
the control button , you can store
the indicated value and go to the next
menu point
or
• by depressing the TPbutton for a few
moments, you can leave the set-up
menu without storing this change.
LED
This point is for setting whether the warn-
ing LED should blink when turned off in
conjunction with the absence of the
ignition key (indicated by " ON” ) or should
be turned off (indicated by "OFF”).
• Select LEDin the menu. "LED” is shown
in the display with the current value.
• Use the turning knob to set ON or
OFF.
• By briefly pressing the TPbutton or
the control button , you can store the indicated value and go to the next
menu point
or
• by depressing the
TPbutton for a few
moments, you can leave the set-up
menu without storing this change.
BEEP
In this menu point, you can decide if you
wish to continue to have an audible signal
in the set-up menu and e.g. when storing
programs.
• Select BEEPin the menu. "BEEP” is
shown in the display with the current
value.
• Use the turning knob to set ON or
OFF.
• By briefly pressing the TPbutton or
the control button , you can store
the indicated value and go to the next
menu point
or
• by depressing the TPbutton for a few
moments, you can leave the set-up
menu without storing this change.
13
GB
3. Bed. Anl. Skoda Radio Engl. 13.12.2004 14:20 Uhr Seite 13
Page 15 of 22
Set-up menu
AUTO-REG / REG OFF
In this menu point you can set the switch-
over to alternative frequencies of regional
stations. The setting causes the following
function:
If during the drive the quality of the recep-
tion of the set program gets worse, your
radio first sets alternative frequencies only
of the program you are currently listening
to.
If there is a risk of "station loss”, your
appliance will resort to frequencies of a
related program.
For example the 1st station of NDR
Schleswig Holstein (NDR 1 SH), Hamburg
(NDR 1 HH) and Lower Saxony (NDR 1,
NDS) with regional programmes of differ-
ent content.
As these programs sometimes transmit
different regional programs, a change of
frequency may change the radio program.
With the "AUTO-REG” function, (autono-
mous regional programs) there is only a
switchover to regional programs in an
emergency.
The "REG OFF" setting allows unlimited
switching between "related” regional pro-
grams. • Select
AUTO-REG / REG OFF in the
menu. The current value "AUTO-REG /
REG OFF" is shown in the display.
• Use the turning knob to set AUTO-
REG or REG OFF.
• By briefly pressing the TPbutton or
the control button , you can store
the indicated value and go to the next
menu point
or
• by depressing the TPbutton for a few
moments, you can leave the set-up
menu without storing this change.
M/S
With the aid of this function, you can set
whether or not there should be an auto-
matic switchover between optimum repro-
duction for music and speech with the aid
of the RDS Signal.
• Select M/Sin the menu. The display
shows "M/S” with the current value.
• Set ONor OFF with the aid of the turn-
ing knob¨.
• By briefly pressing the TPbutton or
the control button , you can store
the indicated value and go to the next
menu point
or • by depressing the
TPbutton for a few
moments, you can leave the set-up
menu without storing this change.
PHONE
Enter this menu point if your vehicle is
equipped with a telephone and modify the
radio functions under this menu point to
suit your telephone as in the following.
no: No telephone fitted into the vehicle.
ON: There is a telephone fitted into the
vehicle. With this setting, the radio is
muted when the telephone is activa-
ted by a telephone call or when dial-
led.
in: The built-in telephone is connected to
the radio by means of a corresponding
hands-free speaking unit, so that the
person calling/called can be heard
through the car speakers.
• Select PHONE in the menu. The display
shows "PHONE” with the current value.
• Use the turning knob to set the
appropriate function.
• By briefly pressing the TPbutton or
the control button , you can store
the indicated value and go to the next
menu point.
14
