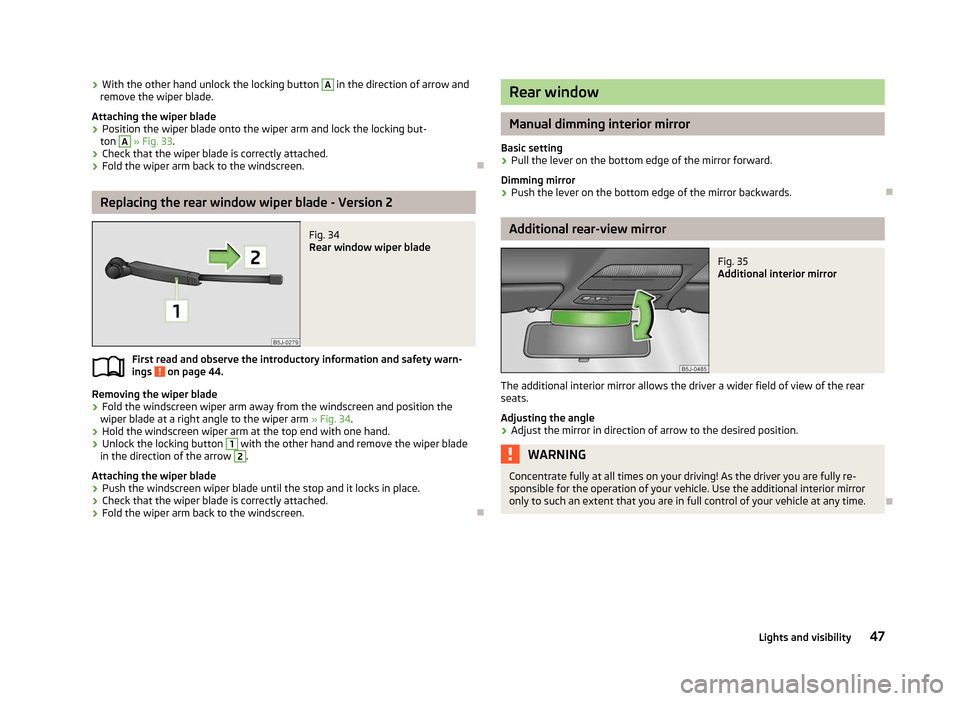

With the other hand unlock the locking button A
in the direction of arrow and
remove the wiper blade.
Attaching the wiper blade
› Position the wiper blade onto the wiper arm and lock the locking but-
ton A
» Fig. 33
.
› Check that the wiper blade is correctly attached.
› Fold the wiper arm back to the windscreen. ÐReplacing the rear window wiper blade - Version 2
Fig. 34
Rear window wiper blade
First read and observe the introductory information and safety warn-
ings on page 44.
Removing the wiper blade
›
Fold the windscreen wiper arm away from the windscreen and position the
wiper blade at a right angle to the wiper arm » Fig. 34.
› Hold the windscreen wiper arm at the top end with one hand.
› Unlock the locking button 1
with the other hand and remove the wiper blade
in the direction of the arrow 2
.
Attaching the wiper blade
› Push the windscreen wiper blade until the stop and it locks in place.
› Check that the wiper blade is correctly attached.
› Fold the wiper arm back to the windscreen. Ð
ä Rear window
Manual dimming interior mirror
Basic setting
› Pull the lever on the bottom edge of the mirror forward.
Dimming mirror
› Push the lever on the bottom edge of the mirror backwards. Ð Additional rear-view mirror
Fig. 35
Additional interior mirror
The additional interior mirror allows the driver a wider field of view of the rear
seats.
Adjusting the angle › Adjust the mirror in direction of arrow to the desired position. WARNING
Concentrate fully at all times on your driving! As the driver you are fully re-
sponsible for the operation of your vehicle. Use the additional interior mirror
only to such an extent that you are in full control of your vehicle at any time. Ð
47
Lights and visibility
Page 52 of 196

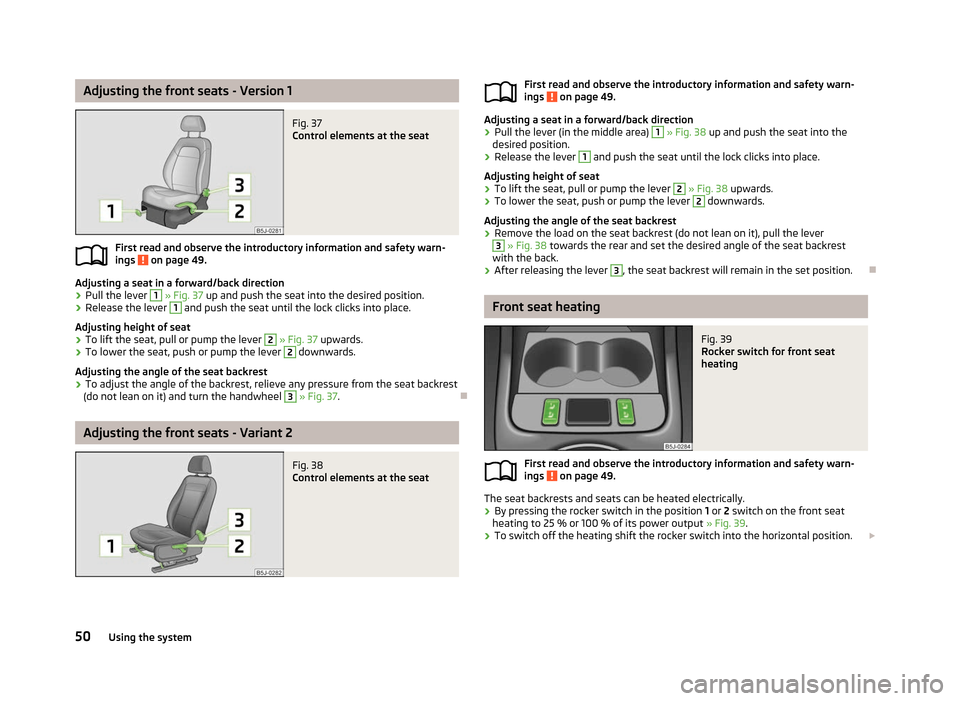

Adjusting the front seats - Version 1
Fig. 37
Control elements at the seat
First read and observe the introductory information and safety warn-
ings on page 49.
Adjusting a seat in a forward/back direction
›
Pull the lever 1
» Fig. 37
up and push the seat into the desired position.
› Release the lever 1
and push the seat until the lock clicks into place.
Adjusting height of seat
› To lift the seat, pull or pump the lever 2
» Fig. 37
upwards.
› To lower the seat, push or pump the lever 2
downwards.
Adjusting the angle of the seat backrest
› To adjust the angle of the backrest, relieve any pressure from the seat backrest
(do not lean on it) and turn the handwheel 3
» Fig. 37
. ÐAdjusting the front seats - Variant 2
Fig. 38
Control elements at the seat
ä
First read and observe the introductory information and safety warn-
ings on page 49.
Adjusting a seat in a forward/back direction
›
Pull the lever (in the middle area) 1
» Fig. 38 up and push the seat into the
desired position.
› Release the lever 1
and push the seat until the lock clicks into place.
Adjusting height of seat
› To lift the seat, pull or pump the lever 2
» Fig. 38 upwards.
› To lower the seat, push or pump the lever 2
downwards.
Adjusting the angle of the seat backrest
› Remove the load on the seat backrest (do not lean on it), pull the lever 3
» Fig. 38 towards the rear and set the desired angle of the seat backrest
with the back.
› After releasing the lever 3
, the seat backrest will remain in the set position.
Ð Front seat heating
Fig. 39
Rocker switch for front seat
heating
First read and observe the introductory information and safety warn-
ings on page 49.
The seat backrests and seats can be heated electrically.
›
By pressing the rocker switch in the position
1 or 2 switch on the front seat
heating to 25 % or 100 % of its power output » Fig. 39.
› To switch off the heating shift the rocker switch into the horizontal position.
£
ä
ä
50 Using the system
Page 53 of 196
WARNING
If, as an occupant, you have a subdued pain and/or temperature sensitivity,
e.g. through medication, paralysis or because of chronic illness (e.g. diabetes),
we recommend not to use the seat heating. This can lead to burns on the
back, the posterior and the legs which are difficult to heal. If the seat heating
is used, we recommend to make regular breaks in your journey when driving
long distances, so that the body can recuperate from the stress of the jour-
ney. Please consult your doctor, who can evaluate your specific condition. CAUTION
■ Do not kneel on the seats or otherwise apply pressure at specific points to
avoid damaging the heating elements for the seat heaters.
■ Do not use the seat heaters if the seats are not occupied by persons or if ob-
jects, such as a child seat, bag, etc., are fastened or stored on them. A fault of the
heating elements in the seat heating can occur.
■ Do not clean the seats using moisture » page 134. Note
■ The seat heating should only be switched on when the engine is running. This
has a significant effect of saving on the battery capacity. ■ If the on-board voltage drops, the seat heating is switched off automatically, in
order to provide sufficient electrical energy for the engine control » page 149, Au-
tomatic load deactivation . ÐHead restraints

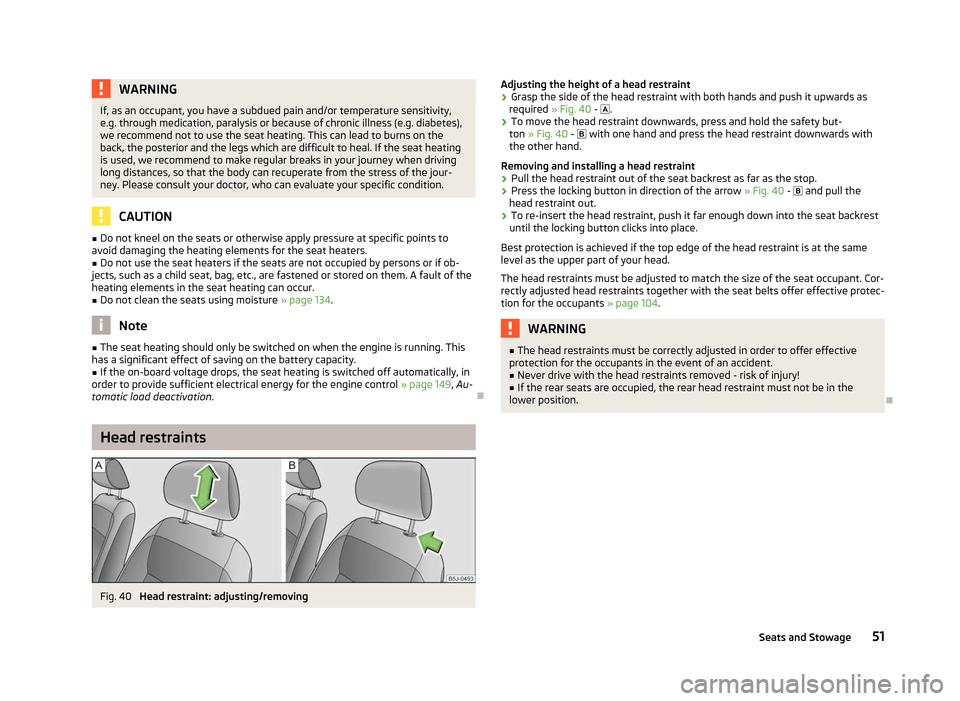

Fig. 40
Head restraint: adjusting/removing Adjusting the height of a head restraint
› Grasp the side of the head restraint with both hands and push it upwards as
required » Fig. 40 - .
› To move the head restraint downwards, press and hold the safety but-
ton » Fig. 40 - with one hand and press the head restraint downwards with
the other hand.
Removing and installing a head restraint
› Pull the head restraint out of the seat backrest as far as the stop.
› Press the locking button in direction of the arrow
» Fig. 40 - and pull the
head restraint out.
› To re-insert the head restraint, push it far enough down into the seat backrest
until the locking button clicks into place.
Best protection is achieved if the top edge of the head restraint is at the same
level as the upper part of your head.
The head restraints must be adjusted to match the size of the seat occupant. Cor-
rectly adjusted head restraints together with the seat belts offer effective protec-
tion for the occupants » page 104. WARNING
■ The head restraints must be correctly adjusted in order to offer effective
protection for the occupants in the event of an accident. ■ Never drive with the head restraints removed - risk of injury!
■ If the rear seats are occupied, the rear head restraint must not be in the
lower position. Ð
51
Seats and Stowage
Page 54 of 196

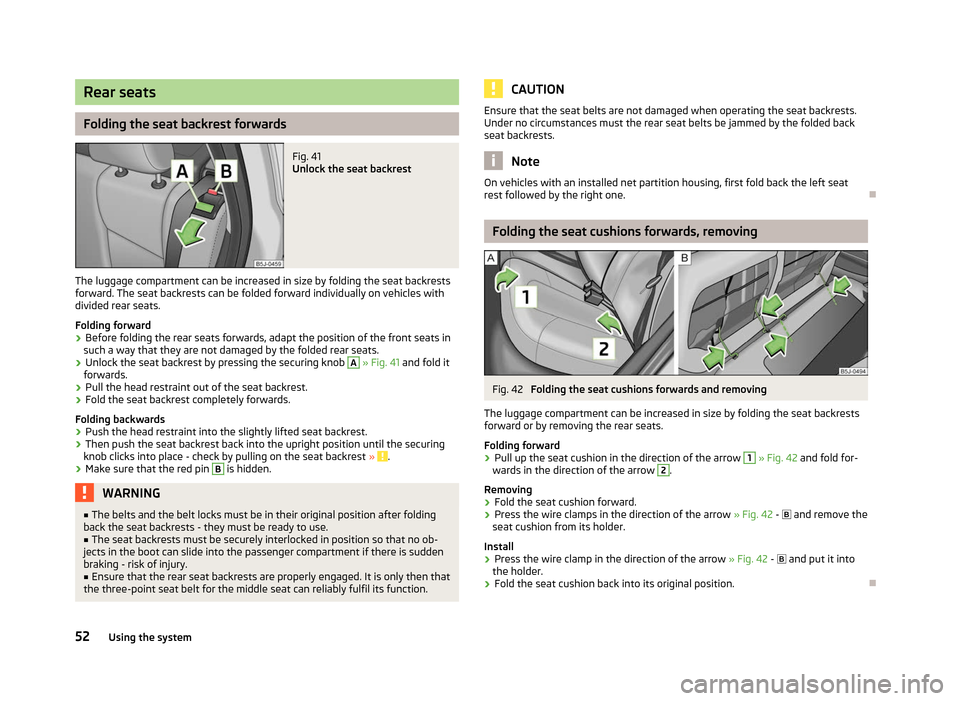

Rear seats
Folding the seat backrest forwards
Fig. 41
Unlock the seat backrest
The luggage compartment can be increased in size by folding the seat backrests
forward. The seat backrests can be folded forward individually on vehicles with
divided rear seats.
Folding forward
› Before folding the rear seats forwards, adapt the position of the front seats in
such a way that they are not damaged by the folded rear seats.
› Unlock the seat backrest by pressing the securing knob A
» Fig. 41 and fold it
forwards.
› Pull the head restraint out of the seat backrest.
› Fold the seat backrest completely forwards.
Folding backwards
› Push the head restraint into the slightly lifted seat backrest.
› Then push the seat backrest back into the upright position until the securing
knob clicks into place - check by pulling on the seat backrest » .
› Make sure that the red pin B
is hidden.
WARNING
■ The belts and the belt locks must be in their original position after folding
back the seat backrests - they must be ready to use.
■ The seat backrests must be securely interlocked in position so that no ob-
jects in the boot can slide into the passenger compartment if there is sudden
braking - risk of injury.
■ Ensure that the rear seat backrests are properly engaged. It is only then that
the three-point seat belt for the middle seat can reliably fulfil its function. CAUTION
Ensure that the seat belts are not damaged when operating the seat backrests.
Under no circumstances must the rear seat belts be jammed by the folded back
seat backrests. Note
On vehicles with an installed net partition housing, first fold back the left seat
rest followed by the right one. Ð Folding the seat cushions forwards, removing
Fig. 42
Folding the seat cushions forwards and removing
The luggage compartment can be increased in size by folding the seat backrests
forward or by removing the rear seats.
Folding forward
› Pull up the seat cushion in the direction of the arrow 1
» Fig. 42 and fold for-
wards in the direction of the arrow 2
.
Removing
› Fold the seat cushion forward.
› Press the wire clamps in the direction of the arrow
» Fig. 42 - and remove the
seat cushion from its holder.
Install
› Press the wire clamp in the direction of the arrow
» Fig. 42 - and put it into
the holder.
› Fold the seat cushion back into its original position. Ð
52 Using the system
Page 57 of 196
Fixing nets
Fig. 46
Fixing net: double horizontal pocket, floor fixing net/double vertical
pockets
First read and observe the introductory information and safety warn-
ings on page 53.
Fixing examples for a fixing net as a horizontal pocket, floor fixing net
» Fig. 46 -
and a horizontal pocket » Fig. 46 - . WARNING
Do not exceed the maximum permissible load of the fixing nets. Heavy objects
are not secured sufficiently - risk of injury! CAUTION
■ The maximum permissible load of the fixing nets is 1.5 kg.
■ Do not place any sharp objects in the nets - risk of damaging the net. Ð
ä Boot cover
Fig. 47
Removing the boot cover
First read and observe the introductory information and safety warn-
ings on page 53.
The boot cover can be removed if you wish to transport bulky goods.
Removing cover
›
Unhook the support straps 1
» Fig. 47.
› Remove the cover from the holders 2
by lightly knocking on the underside of
the cover in the area between the holders.
Installing the cover
› Place the cover on the contact surfaces of the side trim panel.
› The mounts of the cover 3
» Fig. 47
must be positioned above the holders 2
of the side trim panel.
› Interlock the cover by lightly knocking on the top side of the cover in the area
between the holders.
› Hook the support straps 1
on the boot lid.
WARNING
No objects should be placed on the boot cover, the vehicle occupants could be
endangered if there is sudden braking or the vehicle collides with something. £
ä
55
Seats and Stowage
Page 58 of 196

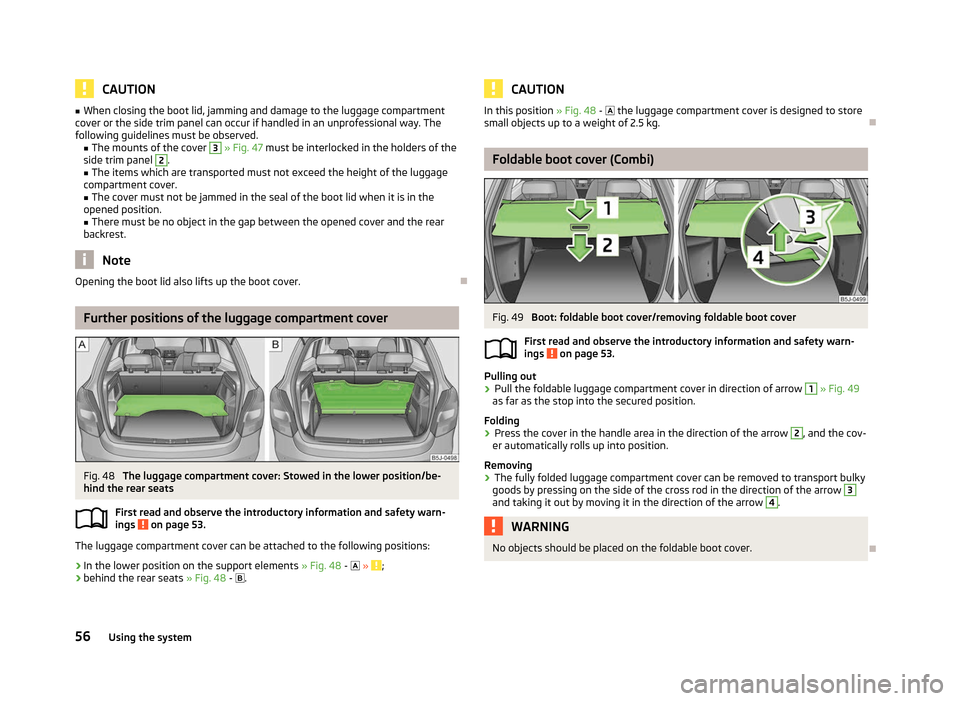

CAUTION
■ When closing the boot lid, jamming and damage to the luggage compartment
cover or the side trim panel can occur if handled in an unprofessional way. The
following guidelines must be observed. ■The mounts of the cover 3
» Fig. 47 must be interlocked in the holders of the
side trim panel 2
.
■ The items which are transported must not exceed the height of the luggage
compartment cover. ■ The cover must not be jammed in the seal of the boot lid when it is in the
opened position.
■ There must be no object in the gap between the opened cover and the rear
backrest. Note
Opening the boot lid also lifts up the boot cover. ÐFurther positions of the luggage compartment cover
Fig. 48
The luggage compartment cover: Stowed in the lower position/be-
hind the rear seats
First read and observe the introductory information and safety warn-
ings on page 53.
The luggage compartment cover can be attached to the following positions:
› In the lower position on the support elements
» Fig. 48 - » ;
› behind the rear seats
» Fig. 48
- .
ä CAUTION
In this position » Fig. 48 - the luggage compartment cover is designed to store
small objects up to a weight of 2.5
kg. Ð Foldable boot cover (Combi)
Fig. 49
Boot: foldable boot cover/removing foldable boot cover
First read and observe the introductory information and safety warn-
ings on page 53.
Pulling out
›
Pull the foldable luggage compartment cover in direction of arrow 1
» Fig. 49
as far as the stop into the secured position.
Folding
› Press the cover in the handle area in the direction of the arrow 2
, and the cov-
er automatically rolls up into position.
Removing
› The fully folded luggage compartment cover can be removed to transport bulky
goods by pressing on the side of the cross rod in the direction of the arrow 3
and taking it out by moving it in the direction of the arrow 4
.
WARNING
No objects should be placed on the foldable boot cover. Ð
ä
56 Using the system
Page 59 of 196
Variable loading floor in the luggage compartment
(Combi) Introductory information
The variable loading floor makes handling of bulky items of luggage easier. CAUTION
The maximum permissible load of the variable loading floor is 75 kg.Note
The room under the variable loading floor can be used to stow objects. ÐDividing the boot with variable loading floor
Fig. 50
Dividing the boot with variable
loading floor
› Lift up the part with the holder and secure it by sliding it into the grooves
marked with the arrows »
Fig. 50. Ð Removing and installing the variable loading floor
Fig. 51
Fold up variable loading floor/remove
Removing
› Unlock the variable loading floor by turning the locking bolts A
to the left by
around 180° » Fig. 51.
› Fold up the loading floor by moving it in the direction of the arrow B
.
› Fold up the variable loading floor in the direction of the arrow 1
» Fig. 51 and
remove by pulling in the direction of the arrow 2
» Fig. 51.
Install
› Fold up the variable loading floor and place it on the carrier rails.
› Fold out the variable loading floor.
› Lock the variable loading floor by turning the locking bolt A
to the right by ap-
prox. 180°. WARNING
Ensure that the carrier rails and variable loading floor are correctly fastened
when installing the variable loading floor. If this is not the case, there is a risk
of injury for the occupants. Ð
57
Seats and Stowage
Page 60 of 196
Removing and installing carrier rails
Fig. 52
Slacken check points/remove carrier rails
Removing
› Slacken the check points B
» Fig. 52
on the carrier rails using the vehicle key or
a flat screwdriver.
› Grasp the carrier rail A
at position 1
and slacken it by pulling in the direction
of arrow. You can take out the removable storage compartments in order to fa-
cilitate the removal » page 68 , Storage compartments in the boot .
› Grasp the carrier rail A
at position 2
and slacken it by pulling in the direction
of arrow.
› The carrier rail on the other side of the luggage compartment can be removed
in the same way.
Install
› Position the carrier rails on the sides of the boot.
› Press both check points on each carrier rail B
»
Fig. 52
up to the stop.
› Check the attachment of the carrier rails by pulling it. WARNING
Ensure that the carrier rails and variable loading floor are correctly fastened
when installing the variable loading floor. If this is not the case, there is a risk
of injury for the occupants. Ð Net partition (Combi)
ä
Introduction
This chapter contains information on the following subjects:
Using the net partition behind the rear seats 59
Using the net partition behind the front seats 59
Removing and installing net partition housing 60
WARNING
■ The belt locks and the belts must be in their original position after folding
back the seat cushions and backrests - they must be ready to use.
■ The seat backrests must be securely interlocked in position so that no ob-
jects in the luggage compartment can slide into the passenger compartment if
there is sudden braking - risk of injury!
■ Ensure that the rear seat backrests are properly engaged. It is only then that
the three-point seat belt for the middle seat can reliably fulfil its function. ■ Ensure that the cross rod is inserted into the mounts C
» Fig. 53 on
page 59
or » Fig. 54 on page 59 in the front position! Ð
58 Using the system
Page 61 of 196
Using the net partition behind the rear seats
Fig. 53
Pull out the net partition/roll up
First read and observe the introductory information and safety warn-
ings on page 58.
Pulling out
› Open the rear right door.
› Fold down the rear seat backrests slightly forwards, which makes it possible to
clear the access for removing the net partition.
› Pull the net partition by the bracket A
» Fig. 53 out of the housing B
in direc-
tion of the holders C
.
› Insert the cross rod into one of the mounts C
and push forwards.
› In the same way, insert the cross rod into the mount C
on the other side of the
vehicle.
› Then push the seat backrest back into the upright position until the securing
knob clicks into place - check by pulling on the seat backrest.
Folding
› First pull the cross rod back slightly on the one side and then on the other side
and remove it from the mounts C
» Fig. 53.
› Hold the cross rod in such a way that the net partition can slowly roll up into
the housing B
without being damaged.
If you wish to use the entire boot, the foldable boot cover can be re-
moved » page 56 . Ð
ä Using the net partition behind the front seats
Fig. 54
Pull out the net partition/roll up
First read and observe the introductory information and safety warn-
ings on page 58.
Pulling out
› Open the rear right door.
› Fold the seat cushions and rear seat rests forward.
› Pull the net partition by the bracket A
» Fig. 54
out of the housing B
in direc-
tion of the holders C
.
› Insert the cross rod into one of the mounts C
and push forwards.
› In the same way, insert the cross rod into the mount C
on the other side of the
vehicle.
Folding
› First pull the cross rod back slightly on the one side and then on the other side
and remove it from the mounts C
» Fig. 54
.
› Hold the cross rod in such a way that the net partition can slowly roll up into
the housing B
without being damaged.
› Fold the rear seats back into their original position. Ð
ä
59
Seats and Stowage

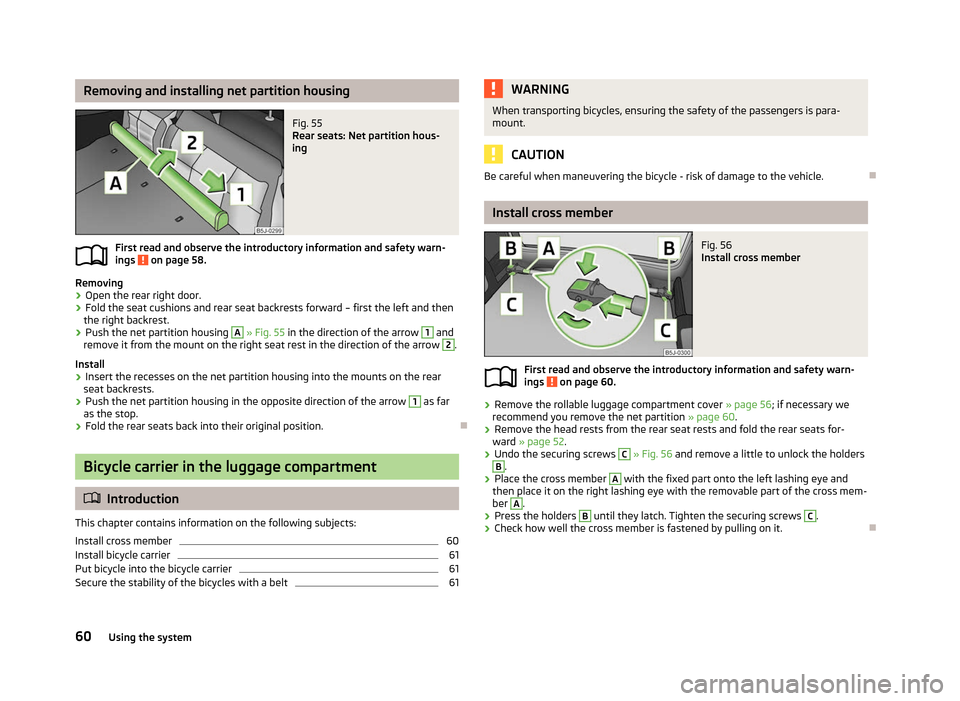

Page 62 of 196
Removing and installing net partition housing
Fig. 55
Rear seats: Net partition hous-
ing
First read and observe the introductory information and safety warn-
ings on page 58.
Removing
› Open the rear right door.
› Fold the seat cushions and rear seat backrests forward – first the left and then
the right backrest.
› Push the net partition housing A
» Fig. 55 in the direction of the arrow 1
and
remove it from the mount on the right seat rest in the direction of the arrow 2
.
Install
› Insert the recesses on the net partition housing into the mounts on the rear
seat backrests.
› Push the net partition housing in the opposite direction of the arrow 1
as far
as the stop.
› Fold the rear seats back into their original position. ÐBicycle carrier in the luggage compartment
ä
Introduction
This chapter contains information on the following subjects:
Install cross member 60
Install bicycle carrier 61
Put bicycle into the bicycle carrier 61
Secure the stability of the bicycles with a belt 61
ä WARNING
When transporting bicycles, ensuring the safety of the passengers is para-
mount. CAUTION
Be careful when maneuvering the bicycle - risk of damage to the vehicle. Ð Install cross member
Fig. 56
Install cross member
First read and observe the introductory information and safety warn-
ings on page 60.
›
Remove the rollable luggage compartment cover
» page 56; if necessary we
recommend you remove the net partition » page 60.
› Remove the head rests from the rear seat rests and fold the rear seats for-
ward » page 52.
› Undo the securing screws C
» Fig. 56 and remove a little to unlock the holders B
.
› Place the cross member A
with the fixed part onto the left lashing eye and
then place it on the right lashing eye with the removable part of the cross mem-
ber A
.
› Press the holders B
until they latch. Tighten the securing screws C
.
› Check how well the cross member is fastened by pulling on it. Ð
ä
60 Using the system
