display SKODA KAMIQ 2019 Owner´s Manual

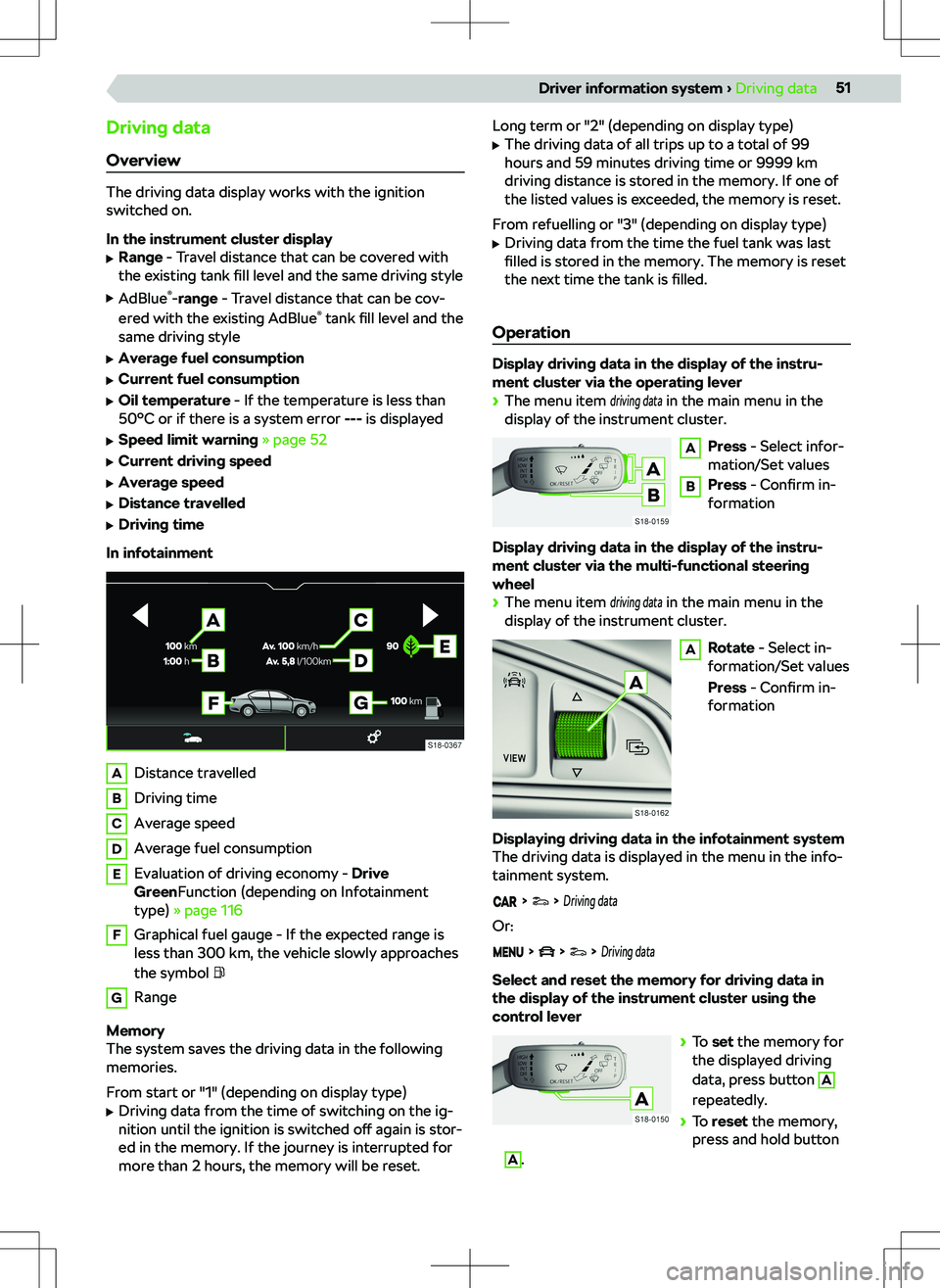

Driving data
Overview
The driving data display works with the ignition
switched on.
In the instrument cluster display

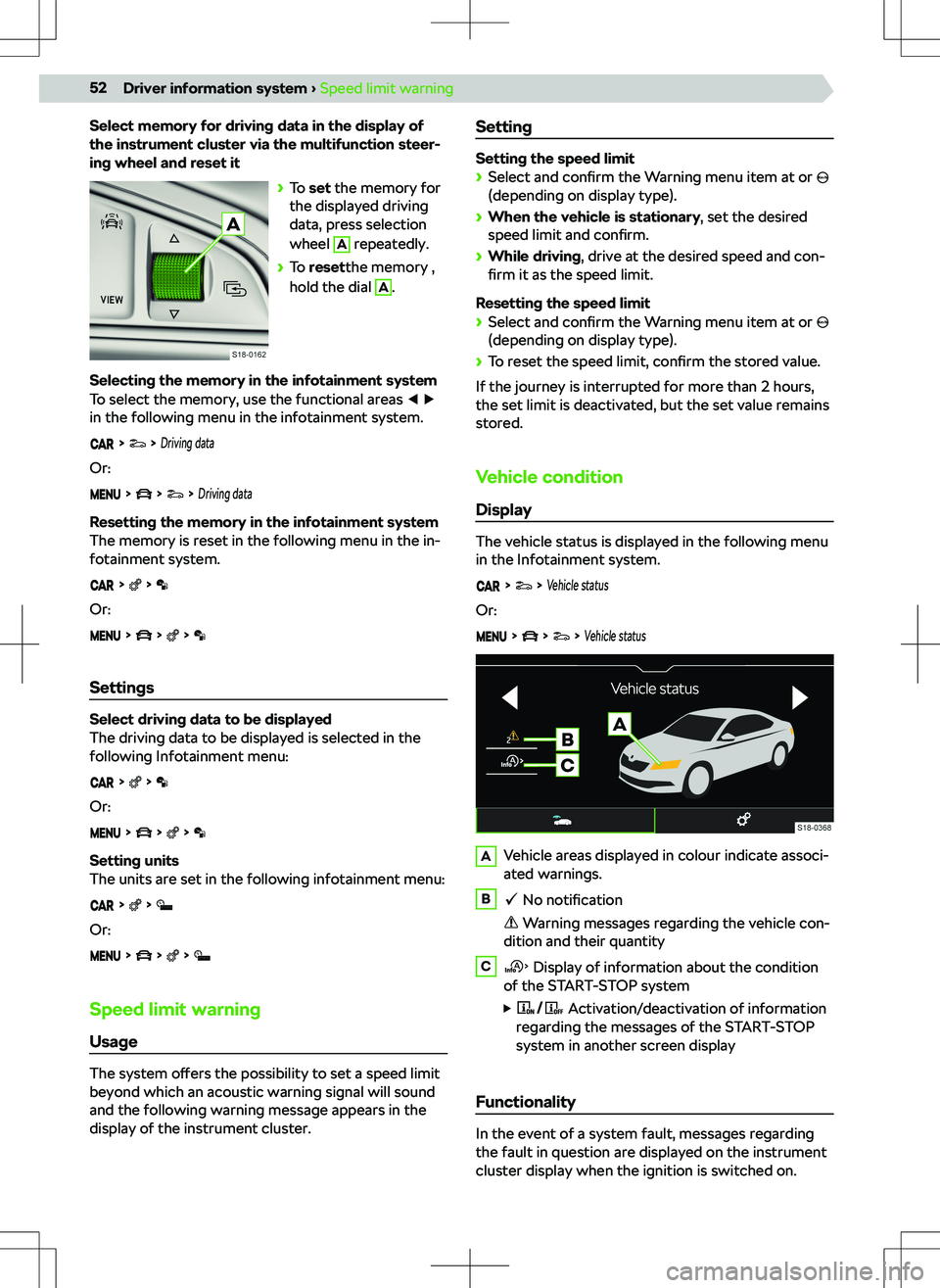

Select memory for driving data in the display of
the instrument cluster via the multifunction steer-
ing wheel and reset it

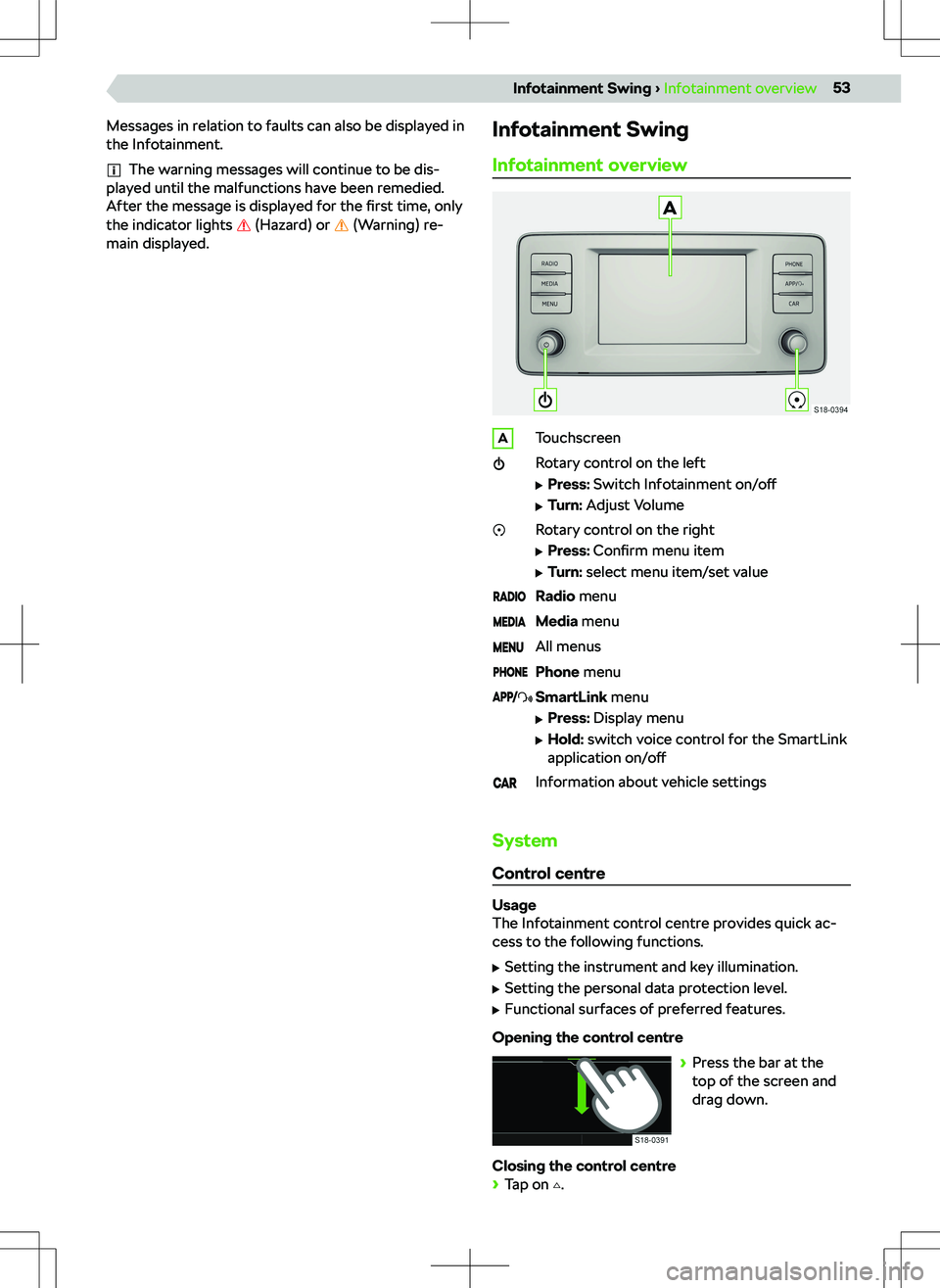

Messages in relation to faults can also be displayed in
the Infotainment.
The warning messages will continue to be dis-
played until the malfunctions have been remedied.
After the message is displayed for the first time, only
the indicator lights
(Hazard) or (Warning) re-
main displayed.
Infotainment Swing
Infotainment overviewATouchscreenRotary control on the left

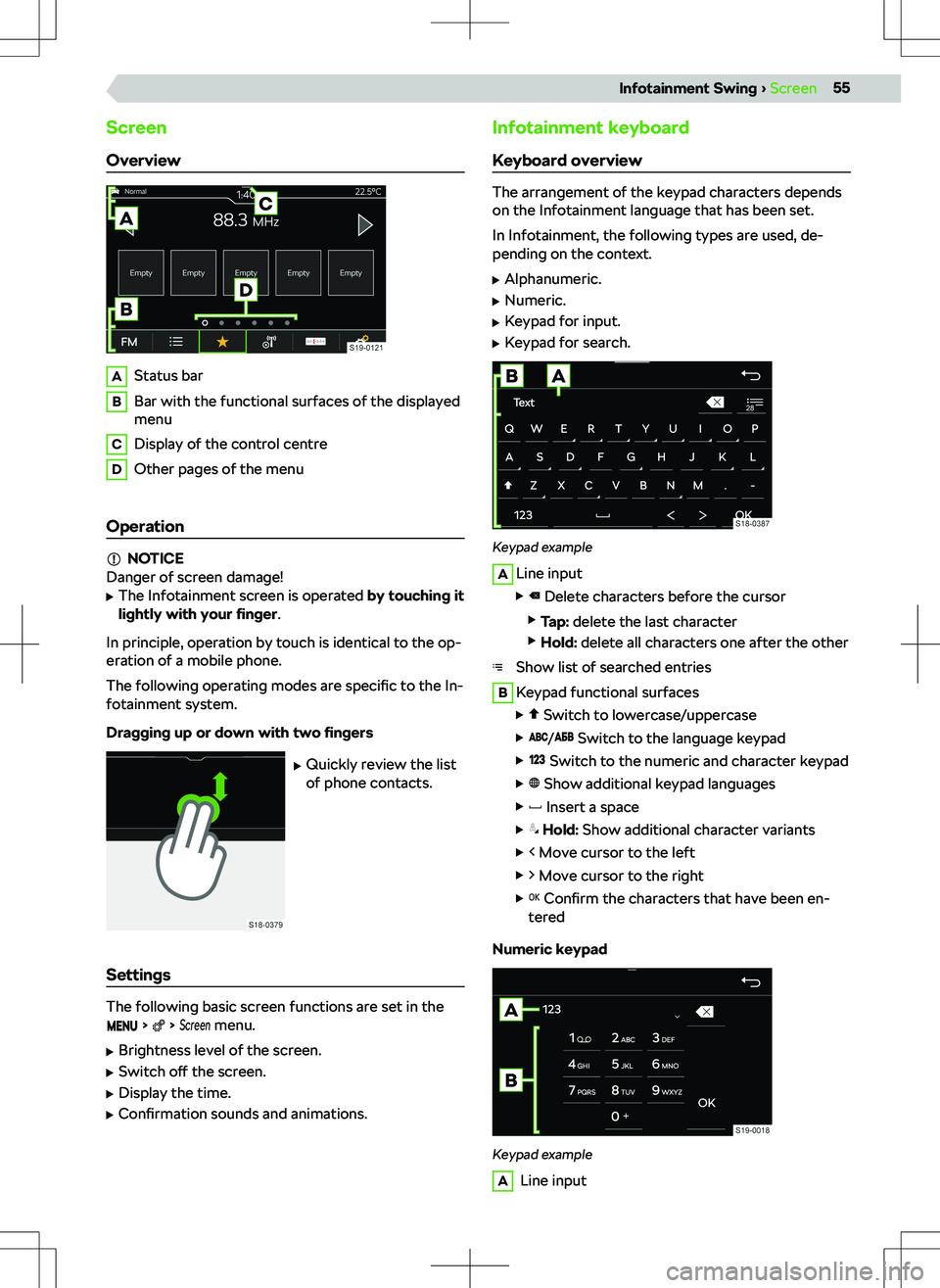

Screen
OverviewAStatus barBBar with the functional surfaces of the displayed
menuCDisplay of the control centreDOther pages of the menu
Operation
NOTICE
Danger of screen damage!

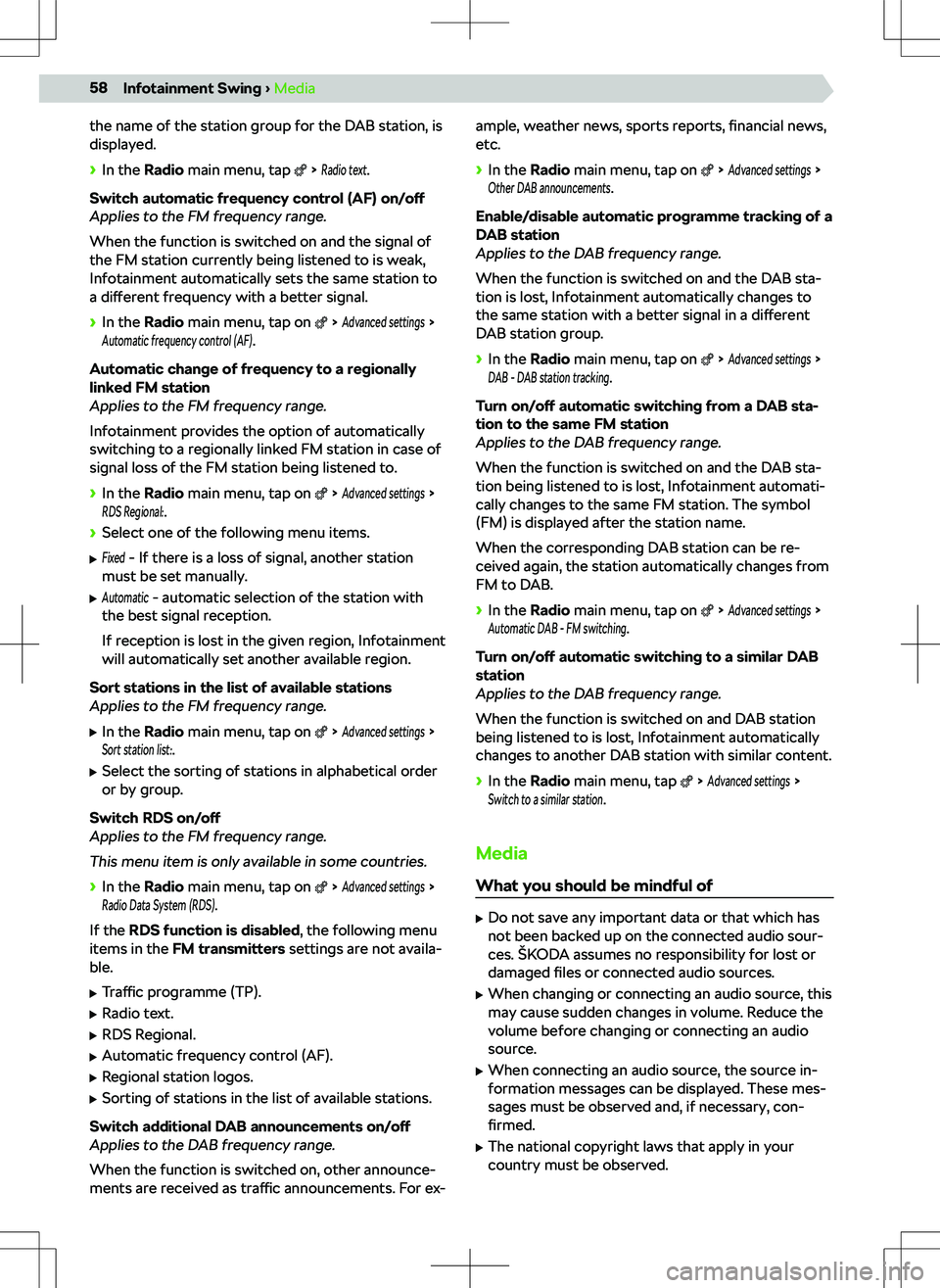

the name of the station group for the DAB station, is
displayed.

Overview
Display main menu

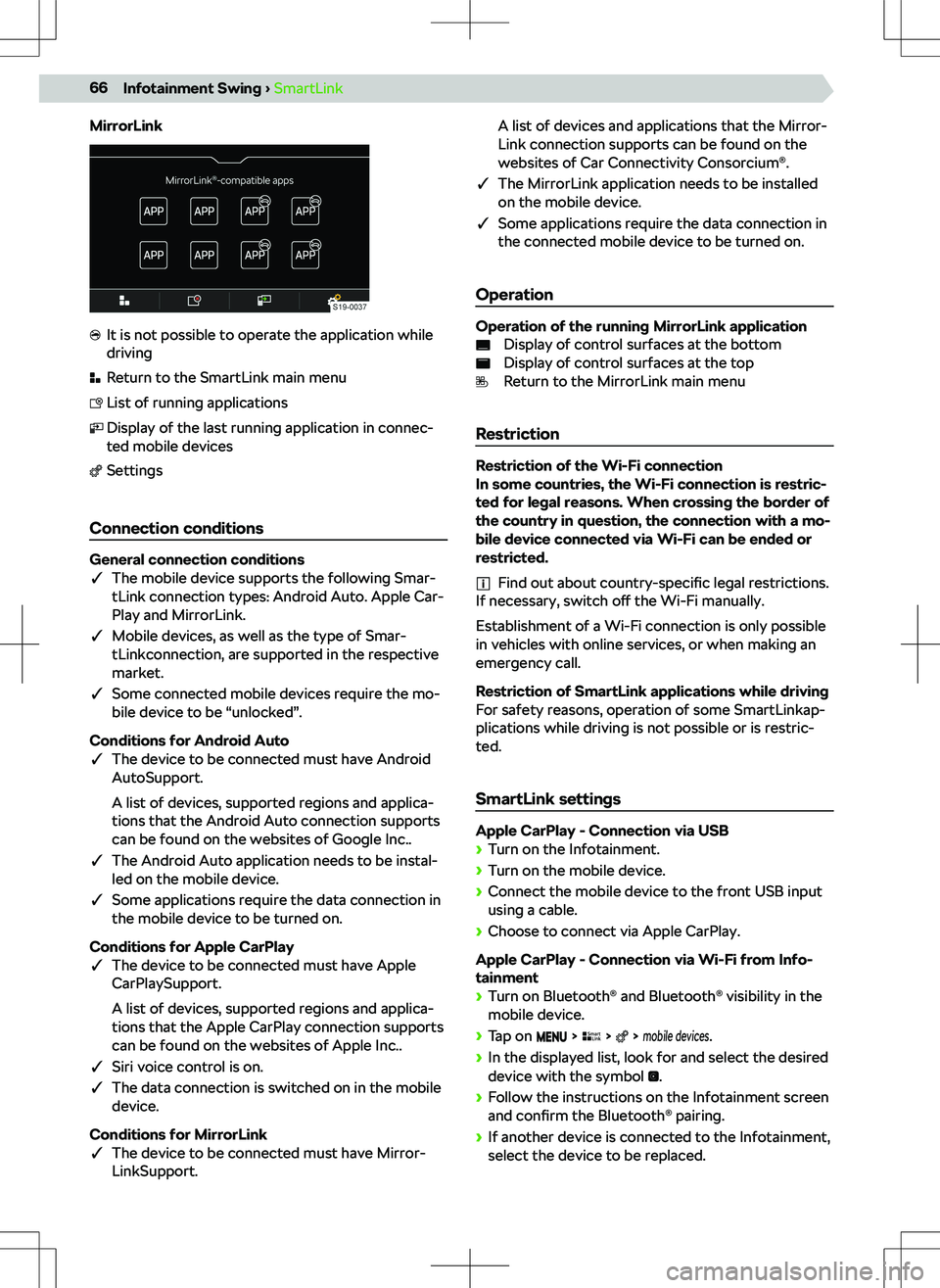

MirrorLinkIt is not possible to operate the application while
drivingReturn to the SmartLink main menuList of running applicationsDisplay of the last running application in connec-
ted mobile devicesSettings
Connection conditions
General connection conditions
q The mobile device supports the following Smar-
tLink connection types: Android Auto. Apple Car- Play and MirrorLink.
q Mobile devices, as well as the type of Smar-
tLinkconnection, are supported in the respective market.
q Some connected mobile devices require the mo-
bile device to be “unlocked”.
Conditions for Android Auto
q The device to be connected must have Android
AutoSupport.
A list of devices, supported regions and applica-
tions that the Android Auto connection supports can be found on the websites of Google Inc..
q The Android Auto application needs to be instal-
led on the mobile device.
q Some applications require the data connection in
the mobile device to be turned on.
Conditions for Apple CarPlay
q The device to be connected must have Apple
CarPlaySupport.
A list of devices, supported regions and applica-
tions that the Apple CarPlay connection supports can be found on the websites of Apple Inc..
q Siri voice control is on.
q The data connection is switched on in the mobile
device.
Conditions for MirrorLink
q The device to be connected must have Mirror-
LinkSupport.
A list of devices and applications that the Mirror- Link connection supports can be found on the
websites of Car Connectivity Consorcium

Screen
OverviewAStatus barBBar with the functional surfaces of the displayed
menuCDisplay of the control centreDOther pages of the menu
Operation
NOTICE
Danger of screen damage!

Overview
Display main menu

MirrorLinkIt is not possible to operate the application while
drivingReturn to the SmartLink main menuList of running applicationsDisplay of the last running application in connec-
ted mobile devicesSettings
Connection conditions
General connection conditions
q The mobile device supports the following Smar-
tLink connection types: Android Auto. Apple Car- Play and MirrorLink.
q Mobile devices, as well as the type of Smar-
tLinkconnection, are supported in the respective market.
q Some connected mobile devices require the mo-
bile device to be “unlocked”.
Conditions for Android Auto
q The device to be connected must have Android
AutoSupport.
A list of devices, supported regions and applica-
tions that the Android Auto connection supports can be found on the websites of Google Inc..
q The Android Auto application needs to be instal-
led on the mobile device.
q Some applications require the data connection in
the mobile device to be turned on.
Conditions for Apple CarPlay
q The device to be connected must have Apple
CarPlaySupport.
A list of devices, supported regions and applica-
tions that the Apple CarPlay connection supports can be found on the websites of Apple Inc..
q Siri voice control is on.
q The data connection is switched on in the mobile
device.
Conditions for MirrorLink
q The device to be connected must have Mirror-
LinkSupport.
A list of devices and applications that the Mirror- Link connection supports can be found on the
websites of Car Connectivity Consorcium
