SKODA KAMIQ 2020 Owner´s Manual

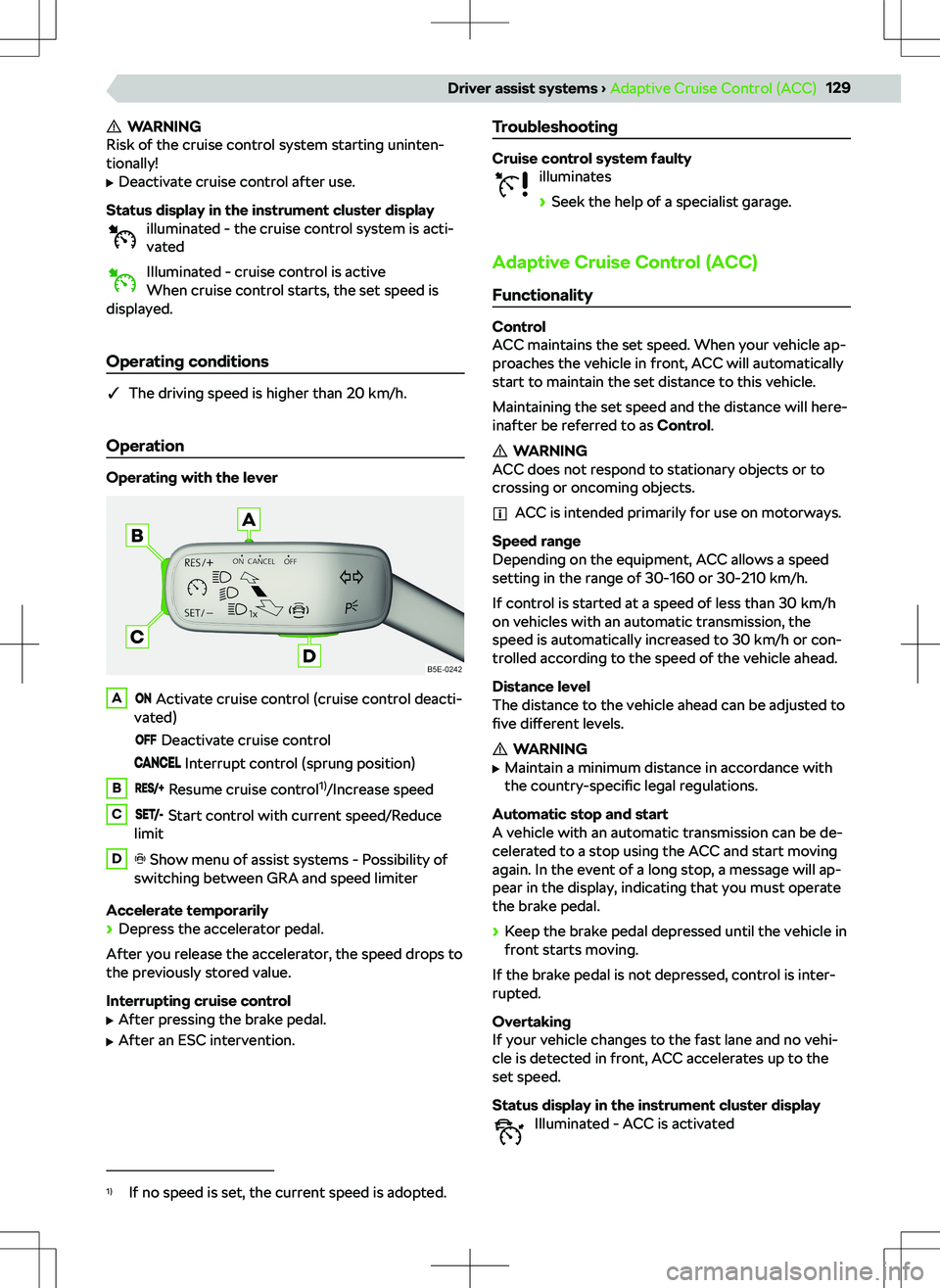

WARNING
Risk of the cruise control system starting uninten-
tionally!

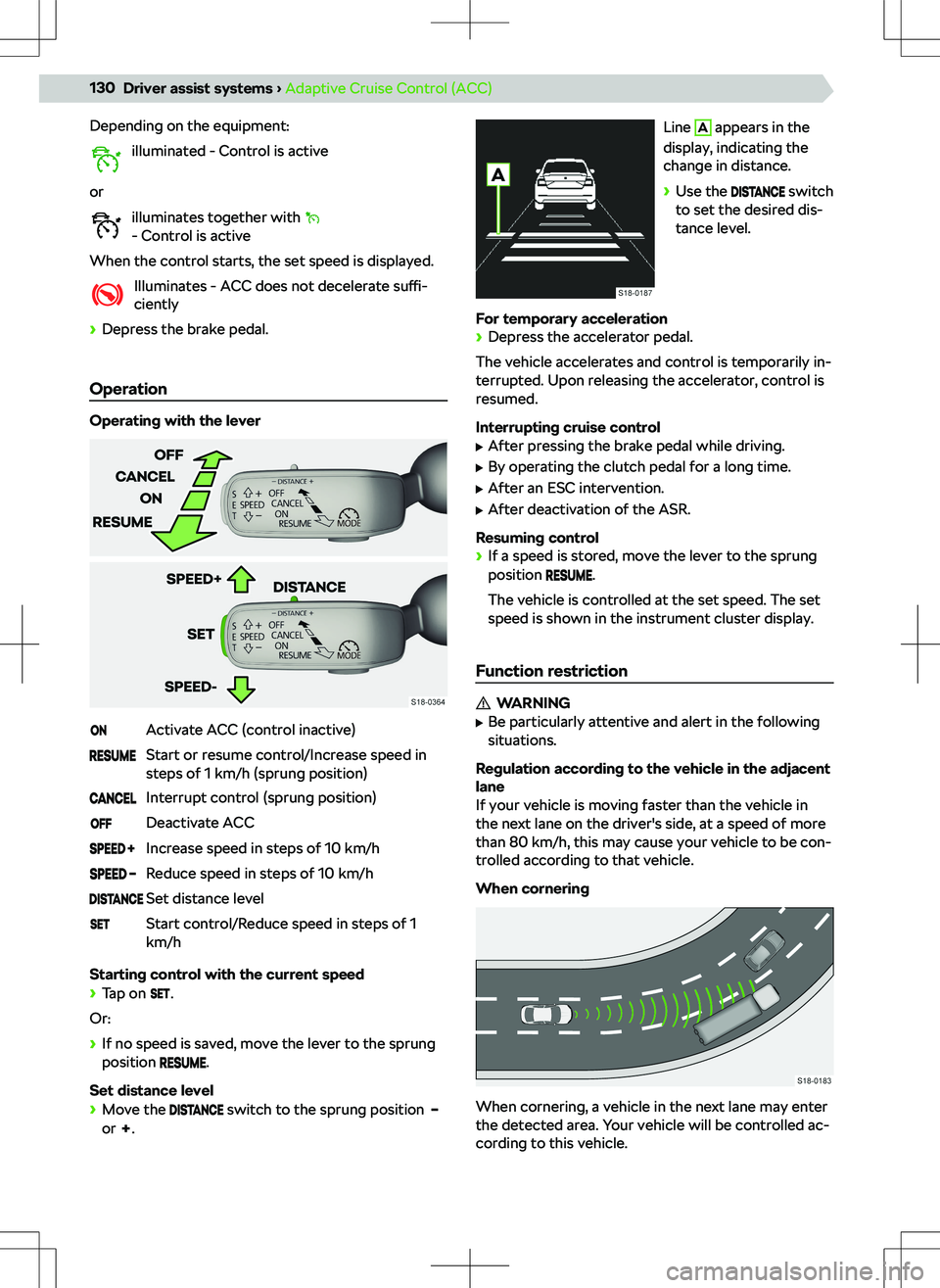

Depending on the equipment:illuminated - Control is active
or illuminates together with
- Control is active
When the control starts, the set speed is displayed. Illuminates - ACC does not decelerate suffi-
ciently

Narrow or staggered vehicle
ACC detects a narrow or staggered vehicle only
when it is in the area covered by the radar.
Lane change by another vehicle
A vehicle that changes to the lane a short distance
away may not be recognized by the ACC in time.
Stationary vehicle
If a vehicle in front turns and there is a stationary ve-
hicle in front of this vehicle, the ACC will not respond
to the stationary vehicle.
Vehicles with special load or special bodies
A load or superstructure that protrudes outside the
vehicle might not be detected by the ACC.
Settings
In the Infotainment system, in the menu:

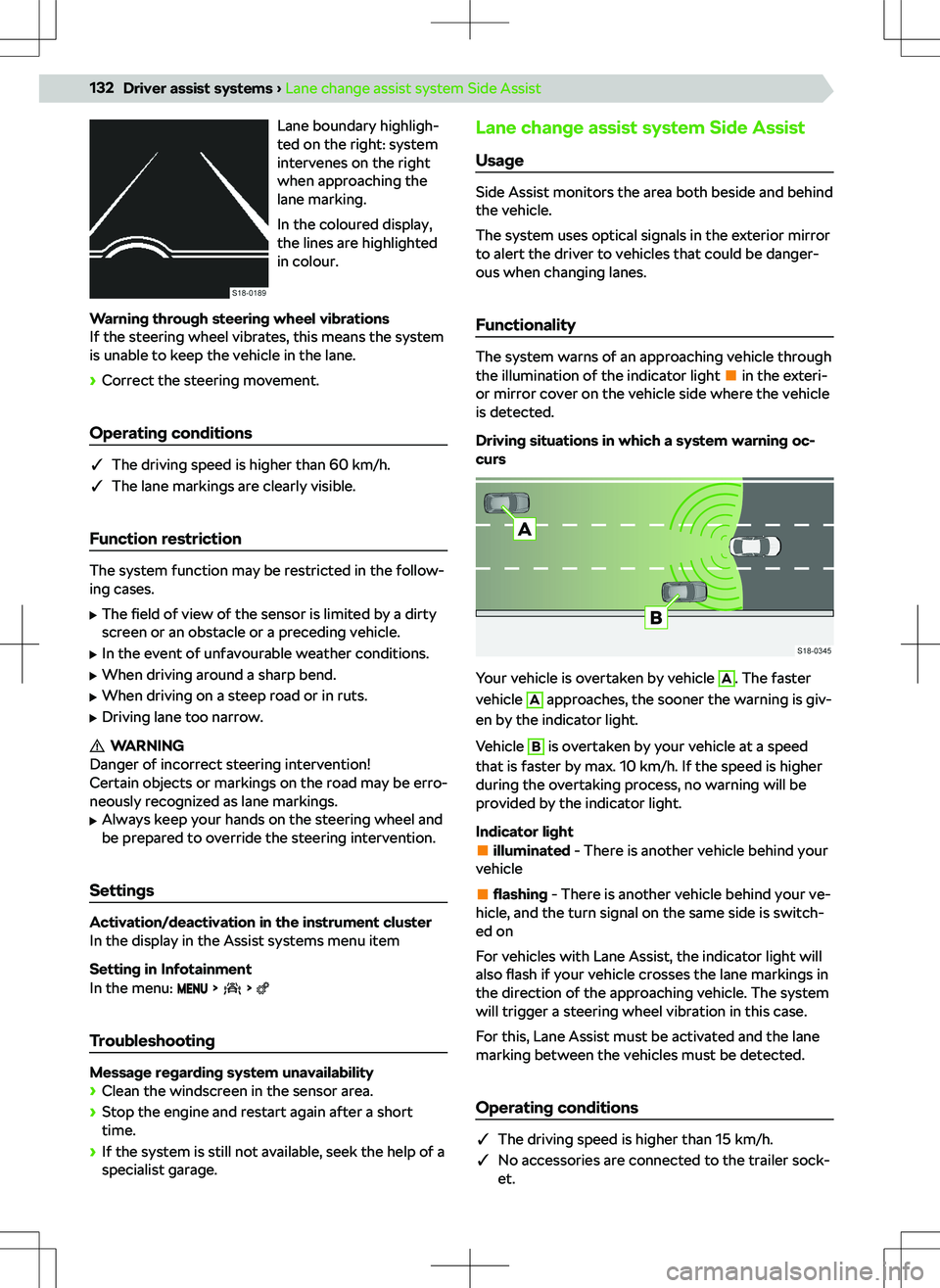

Lane boundary highligh-
ted on the right: system
intervenes on the right
when approaching the
lane marking.
In the coloured display,
the lines are highlighted
in colour.
Warning through steering wheel vibrations
If the steering wheel vibrates, this means the system
is unable to keep the vehicle in the lane.

Function restriction
The system cannot detect lane width. For this rea-
son, it may, for example, draw attention to a vehicle
in a distant lane in the following cases.

Park Assist systems
Park Pilot parking aid Functionality
If an obstacle is detected, the Infotainment will dis-
play a visible message and an audible signal will
sound.
The interval between the signals becomes shorter as
the clearance is reduced. At a distance of less than
30 cm from the obstacle, a continuous tone sounds.
If the driver does not respond to the warning, the
system triggers automatic emergency braking at
speeds below 8 km/h in order to reduce the impact.
Automatic braking can be activated and deactivated
in the infotainment.
Display
The recorded areas vary according to the equipment.
ARoute controlled at the current steering angleAcoustic signals on/o

Rear view camera
Functionality
When reversing, the area behind the vehicle is dis-
played in the Infotainment screen complete with ori-
entation lines.
The camera is equipped with a cleaning system.
Cleaning takes place automatically when the rear
window is washed.
Orientation lines and functional surfaces
Orientation lines
ADistance about 40 cmBDistance about 100 cmCDistance about 200 cm
The distance between the side lines corresponds ap-
proximately to the vehicle width including mirrors.
Function surfaces
Brightness, contrast and colour settings of the
screenTurns o

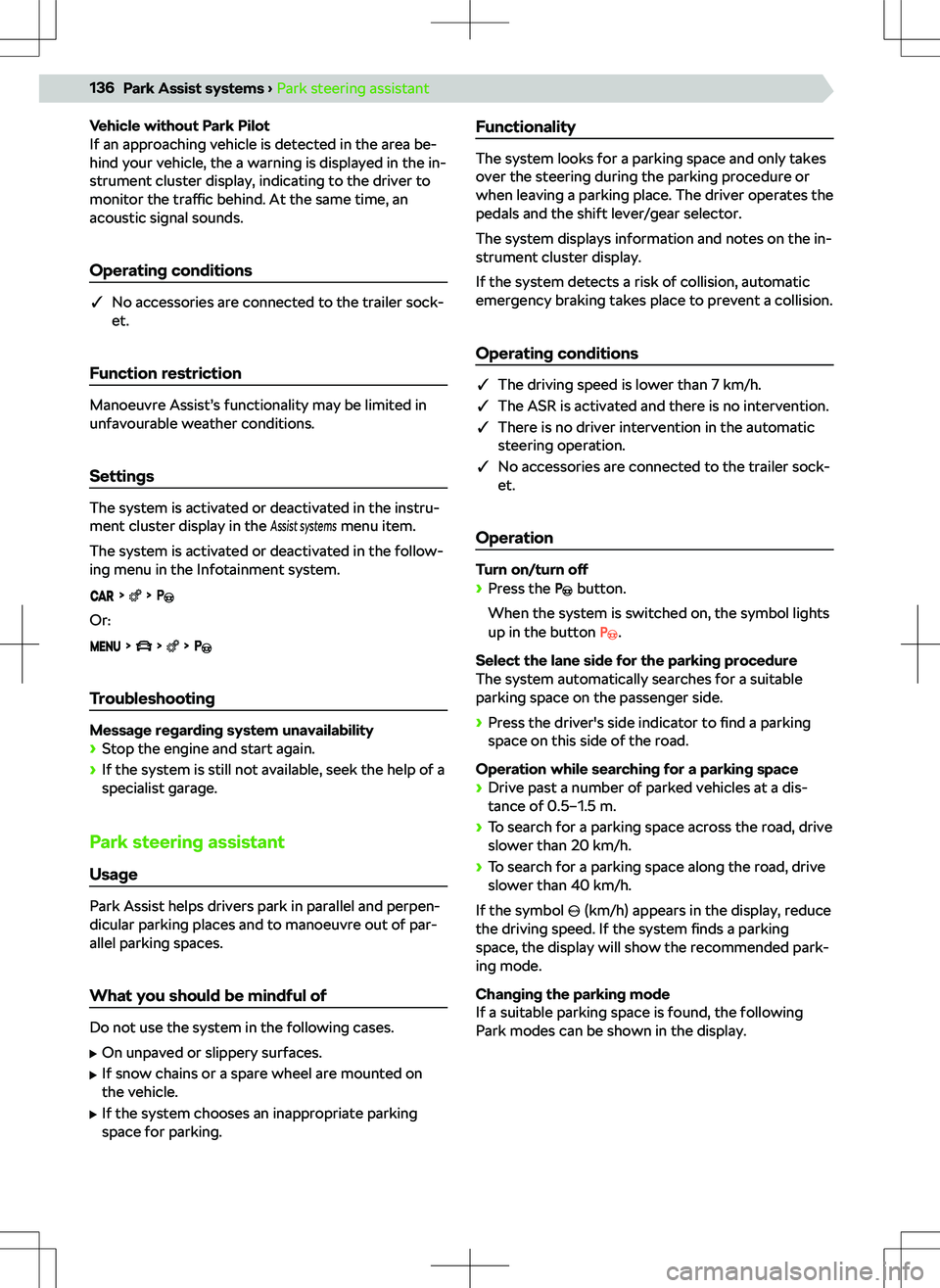

Vehicle without Park Pilot
If an approaching vehicle is detected in the area be-
hind your vehicle, the a warning is displayed in the in-
strument cluster display, indicating to the driver to
monitor the traffic behind. At the same time, an
acoustic signal sounds.
Operating conditions
q No accessories are connected to the trailer sock-
et.
Function restriction

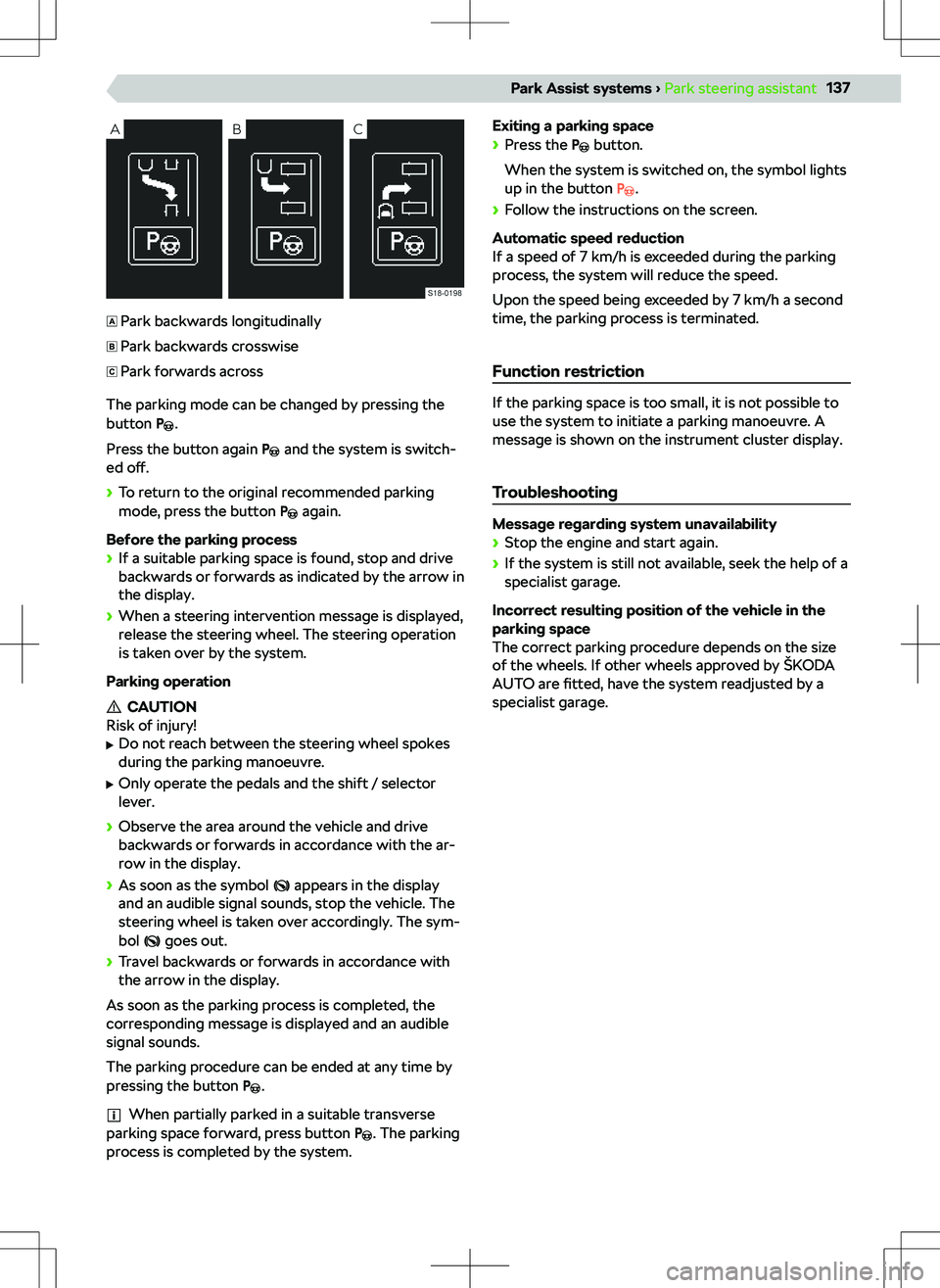

Manoeuvre Assist

Park backwards longitudinallyPark backwards crosswisePark forwards across
The parking mode can be changed by pressing the
button .
Press the button again
and the system is switch-
ed o

Engine, exhaust system and fuelBonnet
Opening the bonnet
Before opening
