Settings

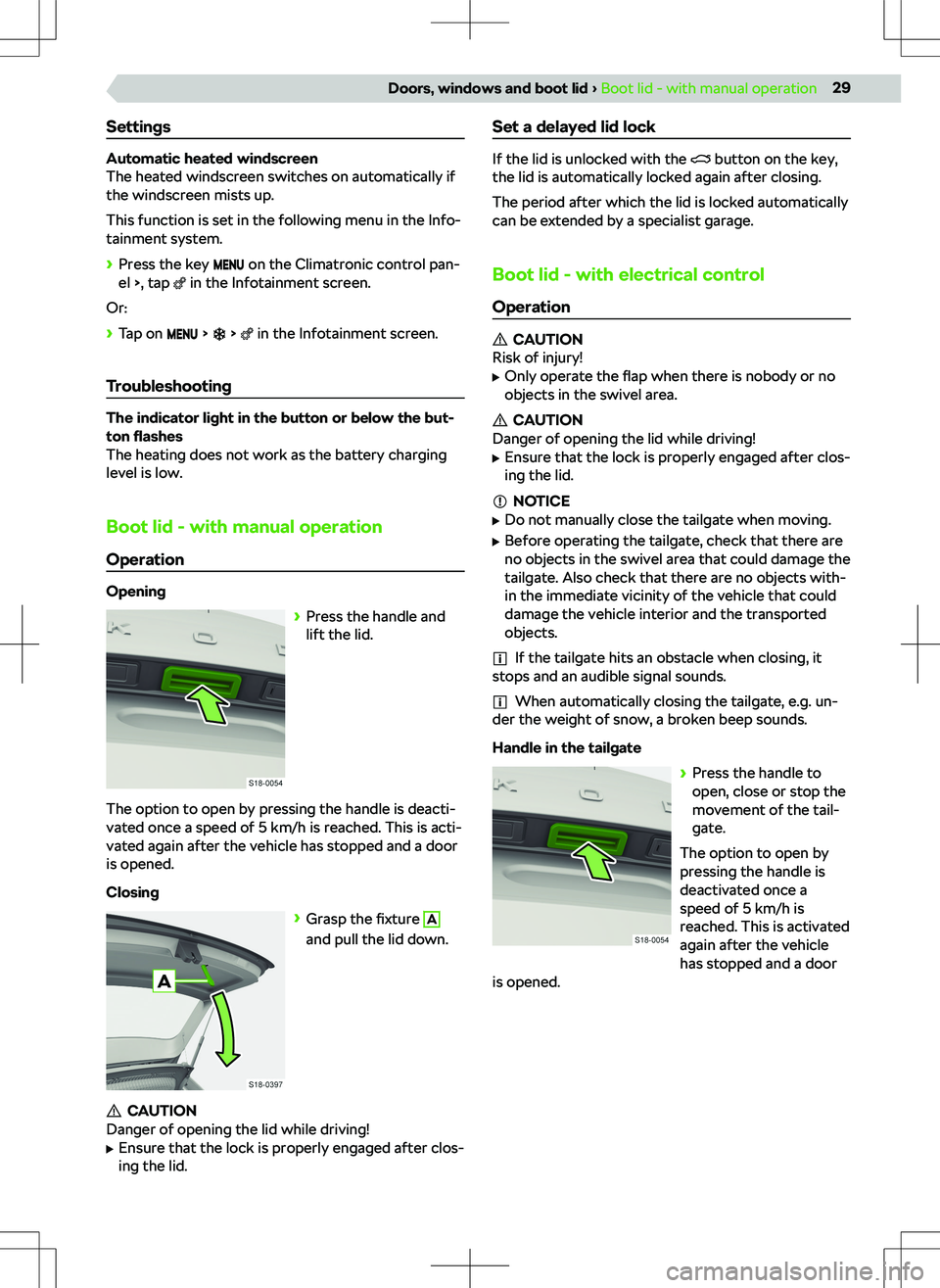

Automatic heated windscreen
The heated windscreen switches on automatically if
the windscreen mists up.
This function is set in the following menu in the Info-
tainment system.

Button in the tailgate

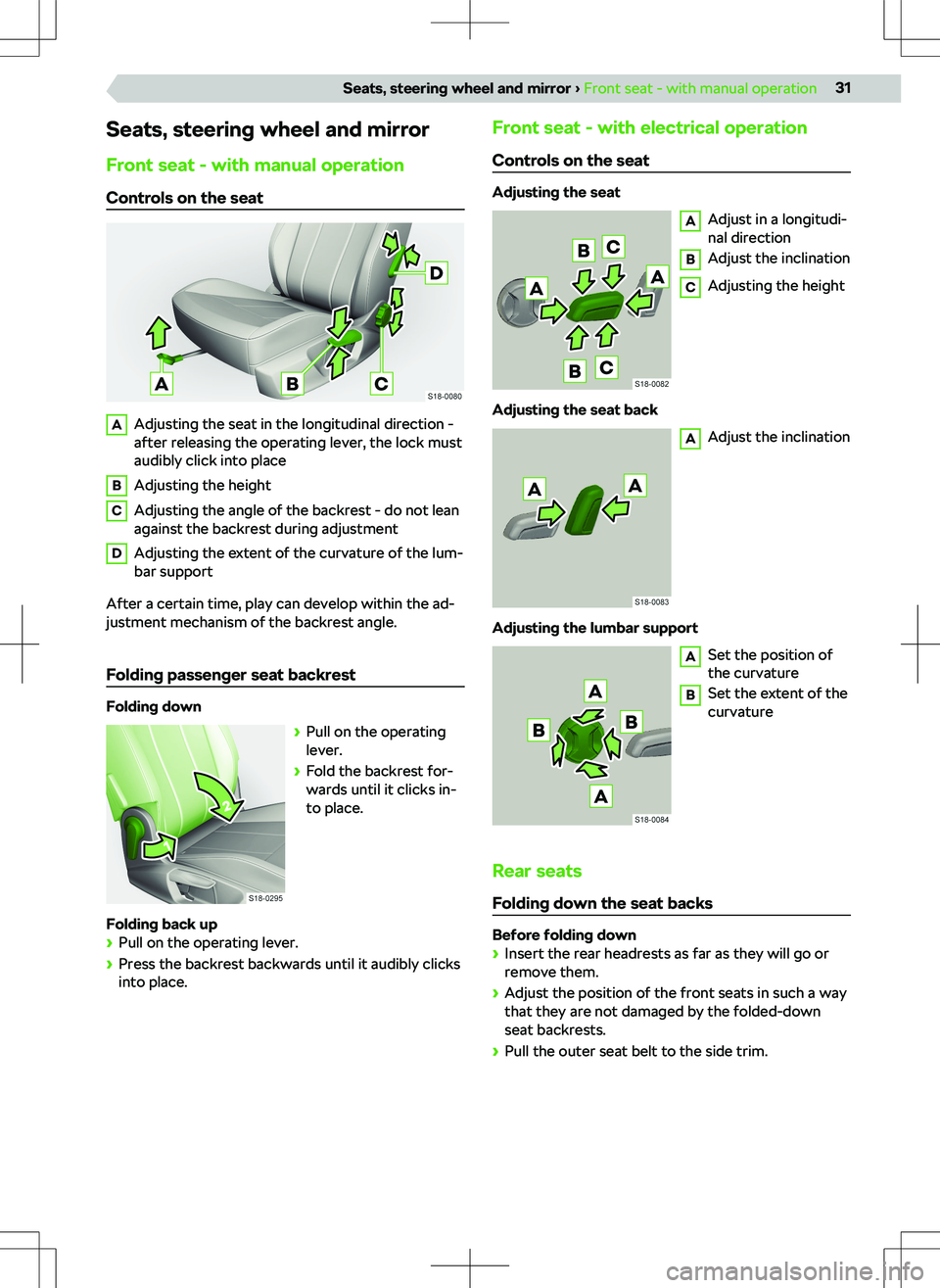

Seats, steering wheel and mirrorFront seat - with manual operation Controls on the seatAAdjusting the seat in the longitudinal direction -
after releasing the operating lever, the lock must audibly click into placeBAdjusting the heightCAdjusting the angle of the backrest - do not lean
against the backrest during adjustmentDAdjusting the extent of the curvature of the lum-
bar support
After a certain time, play can develop within the ad-
justment mechanism of the backrest angle.
Folding passenger seat backrest

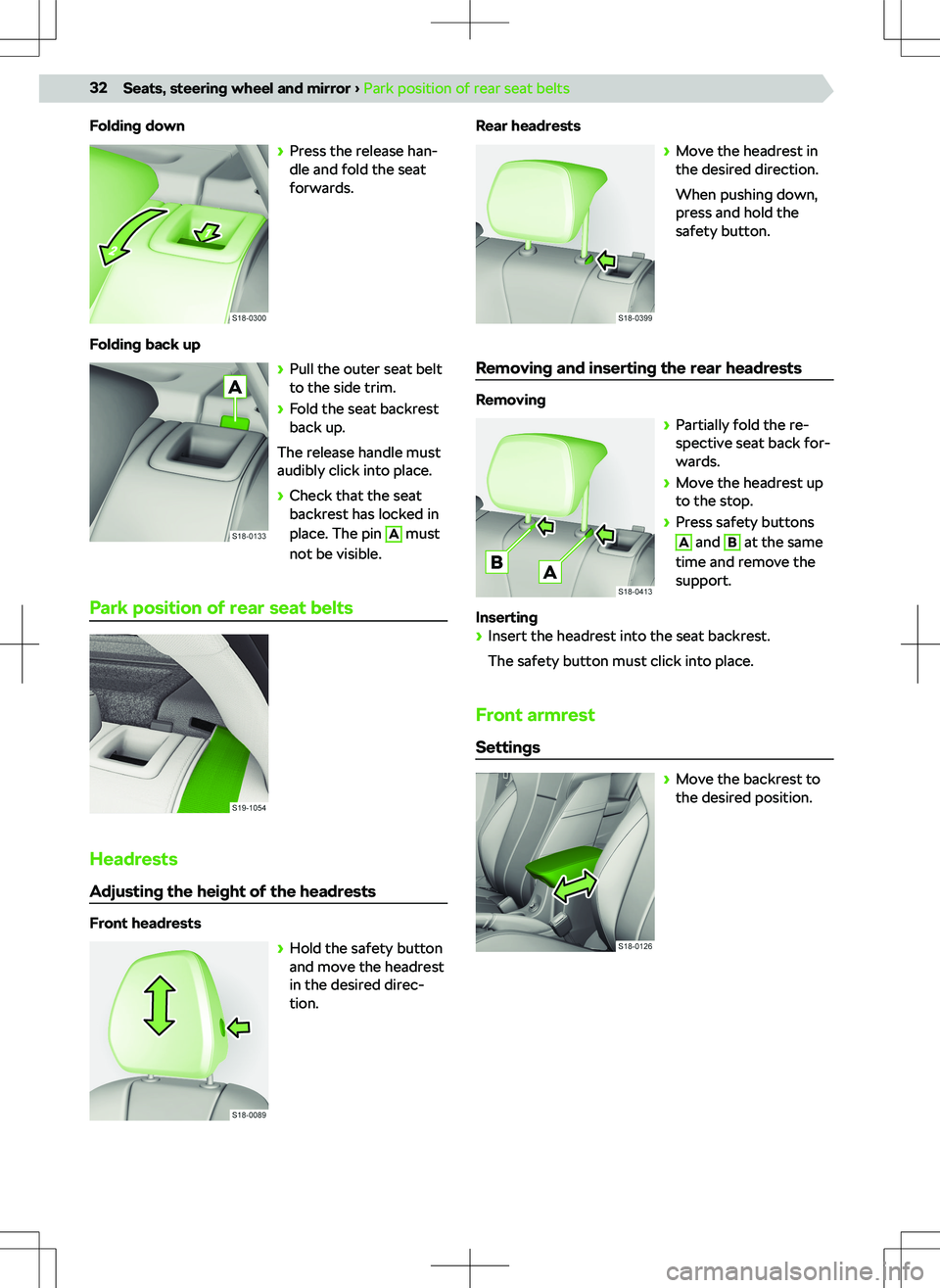

Folding down

Folding down

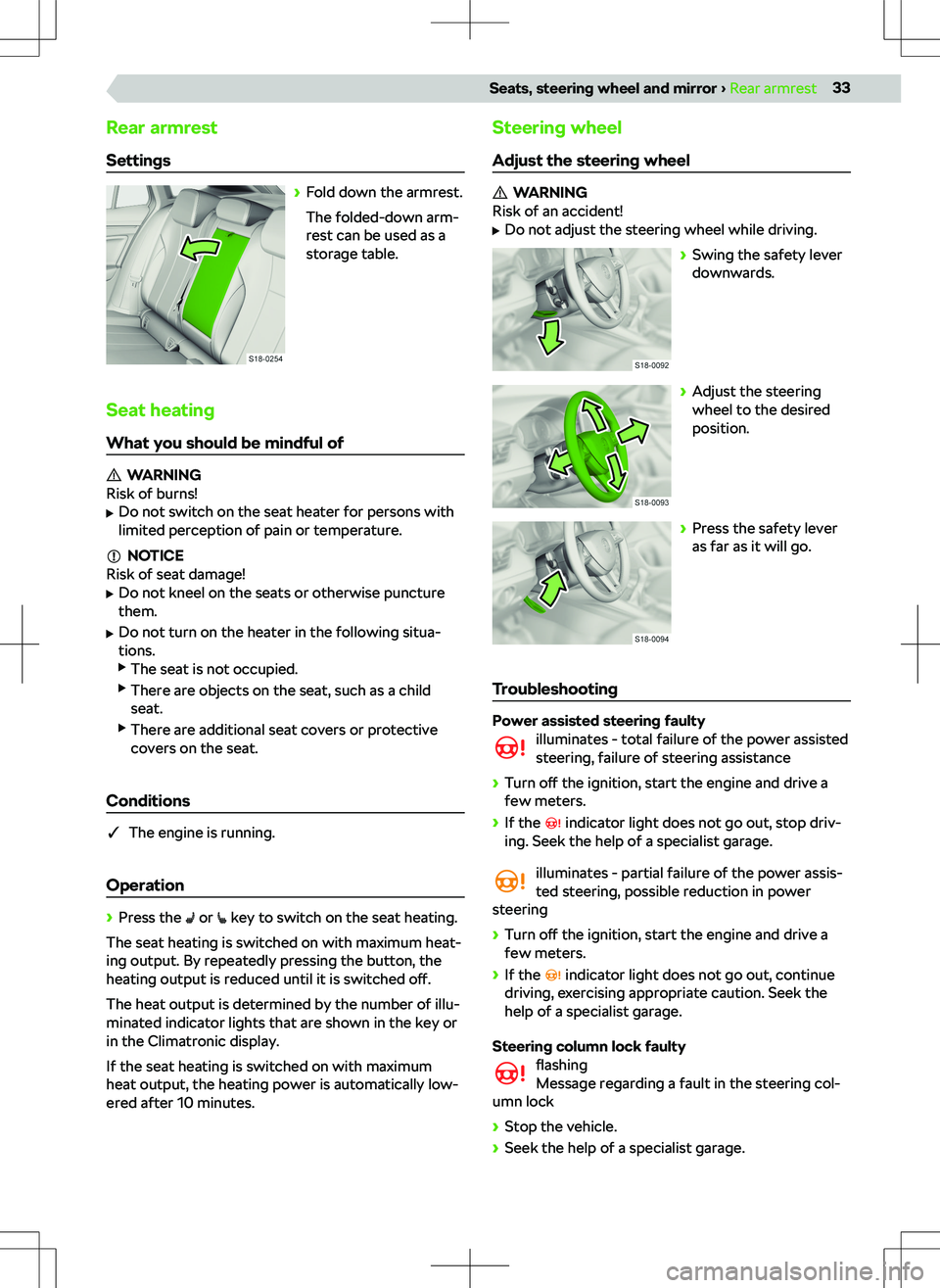

Rear armrestSettings

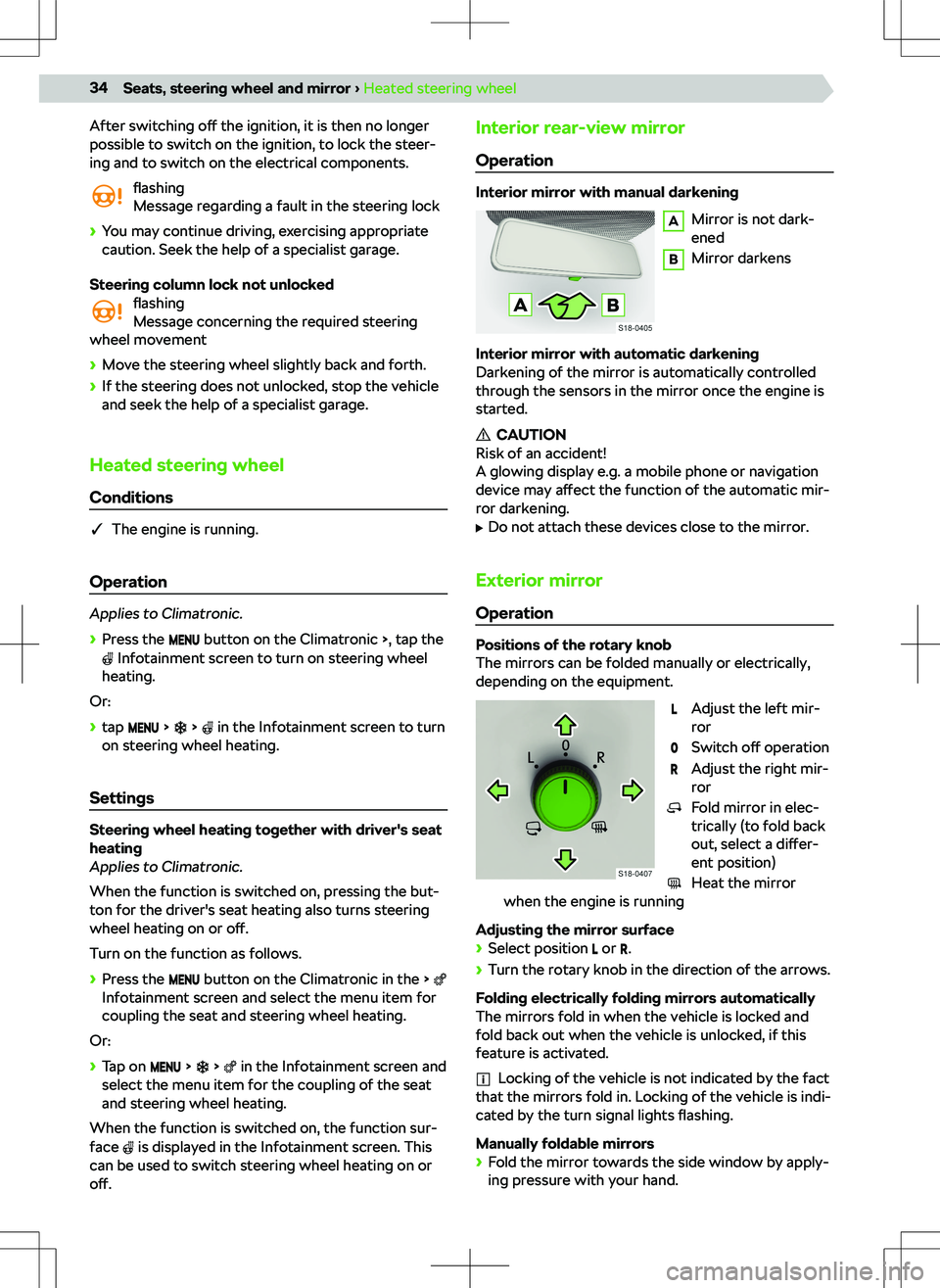

After switching o

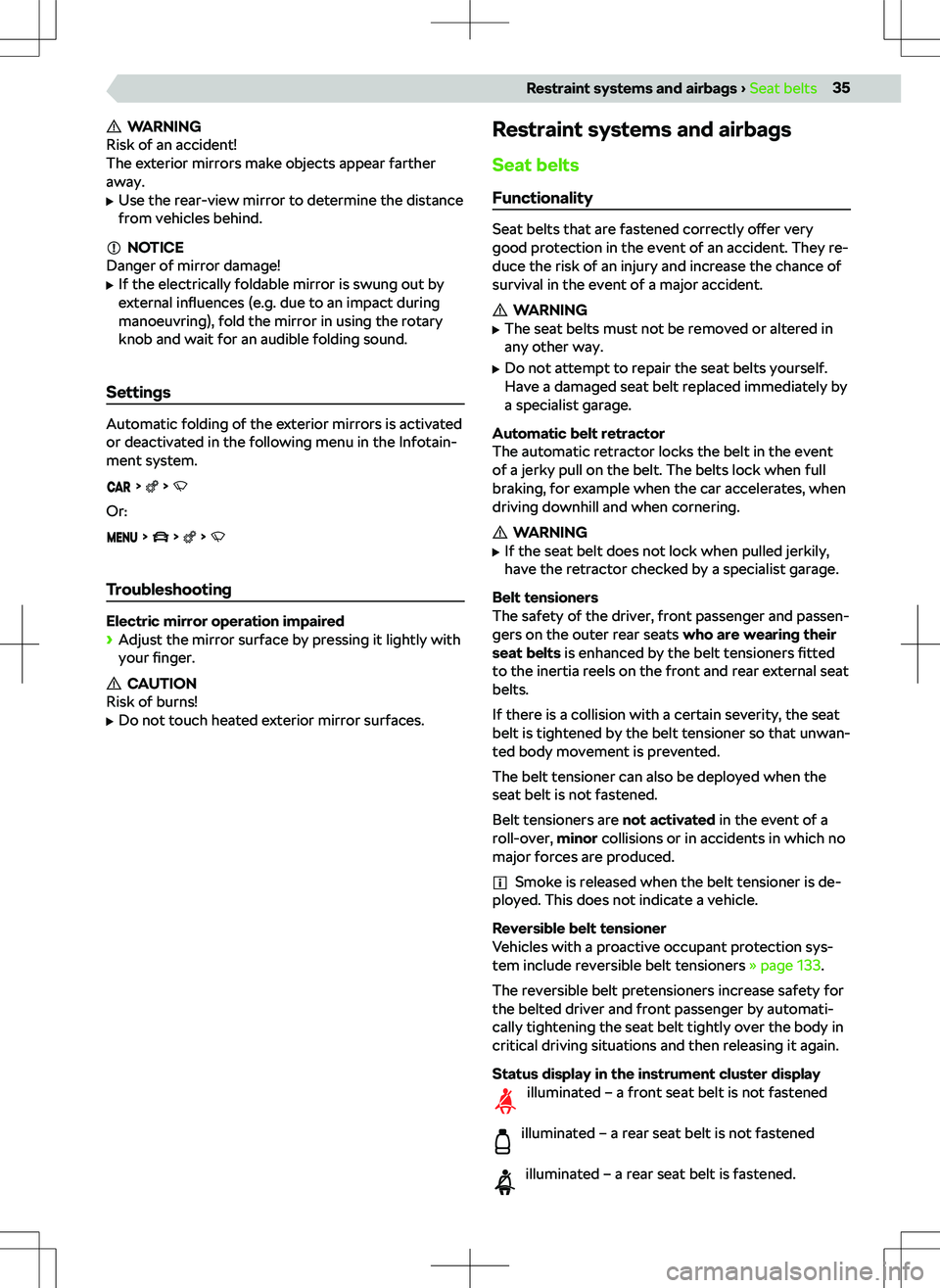

WARNING
Risk of an accident!
The exterior mirrors make objects appear farther
away.

Operation
Fastening the seat belt

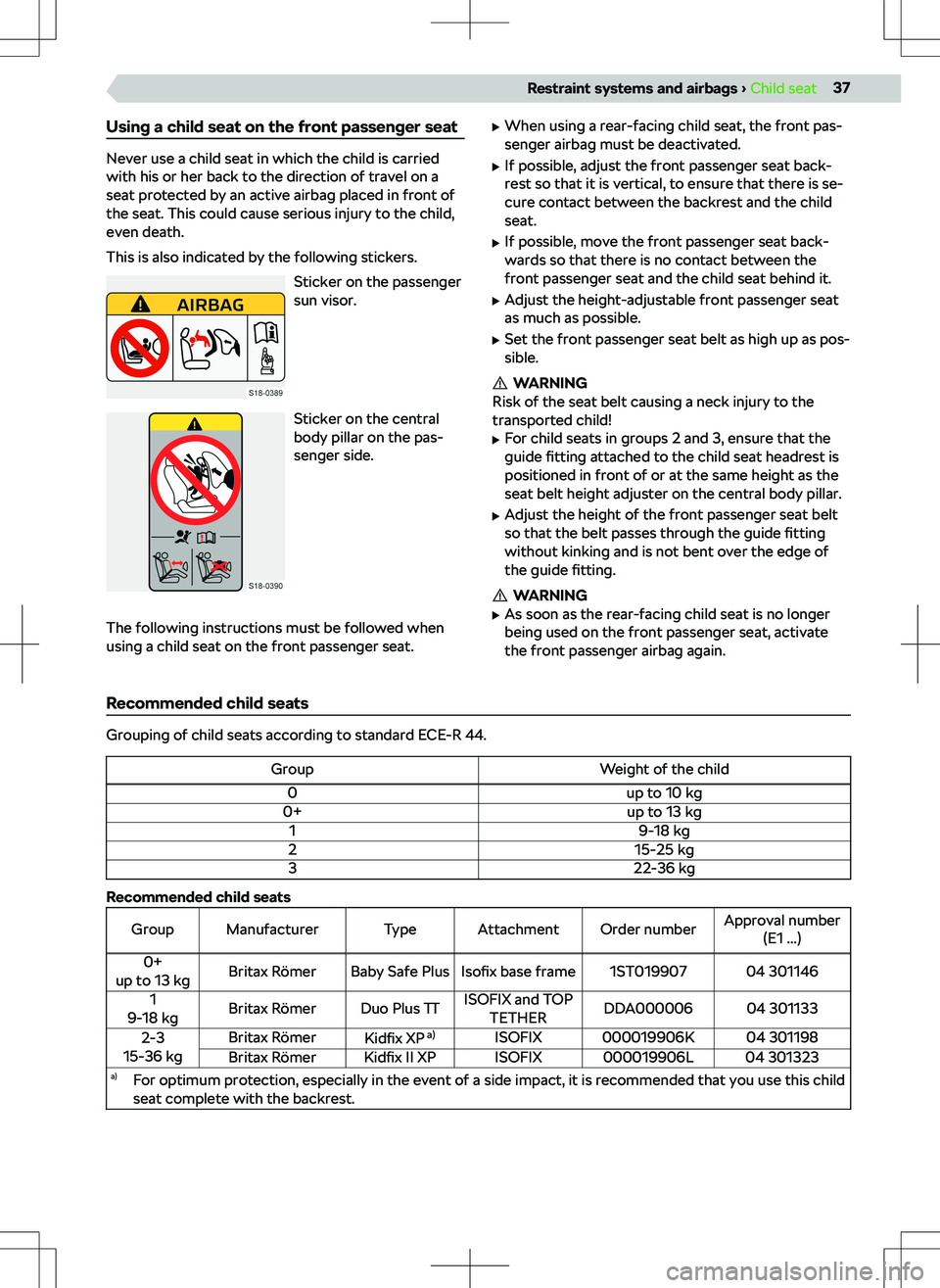

Using a child seat on the front passenger seat
Never use a child seat in which the child is carriedwith his or her back to the direction of travel on a
seat protected by an active airbag placed in front of
the seat. This could cause serious injury to the child,
even death.
This is also indicated by the following stickers. Sticker on the passenger
sun visor.
Sticker on the central
body pillar on the pas-
senger side.
The following instructions must be followed when
using a child seat on the front passenger seat.

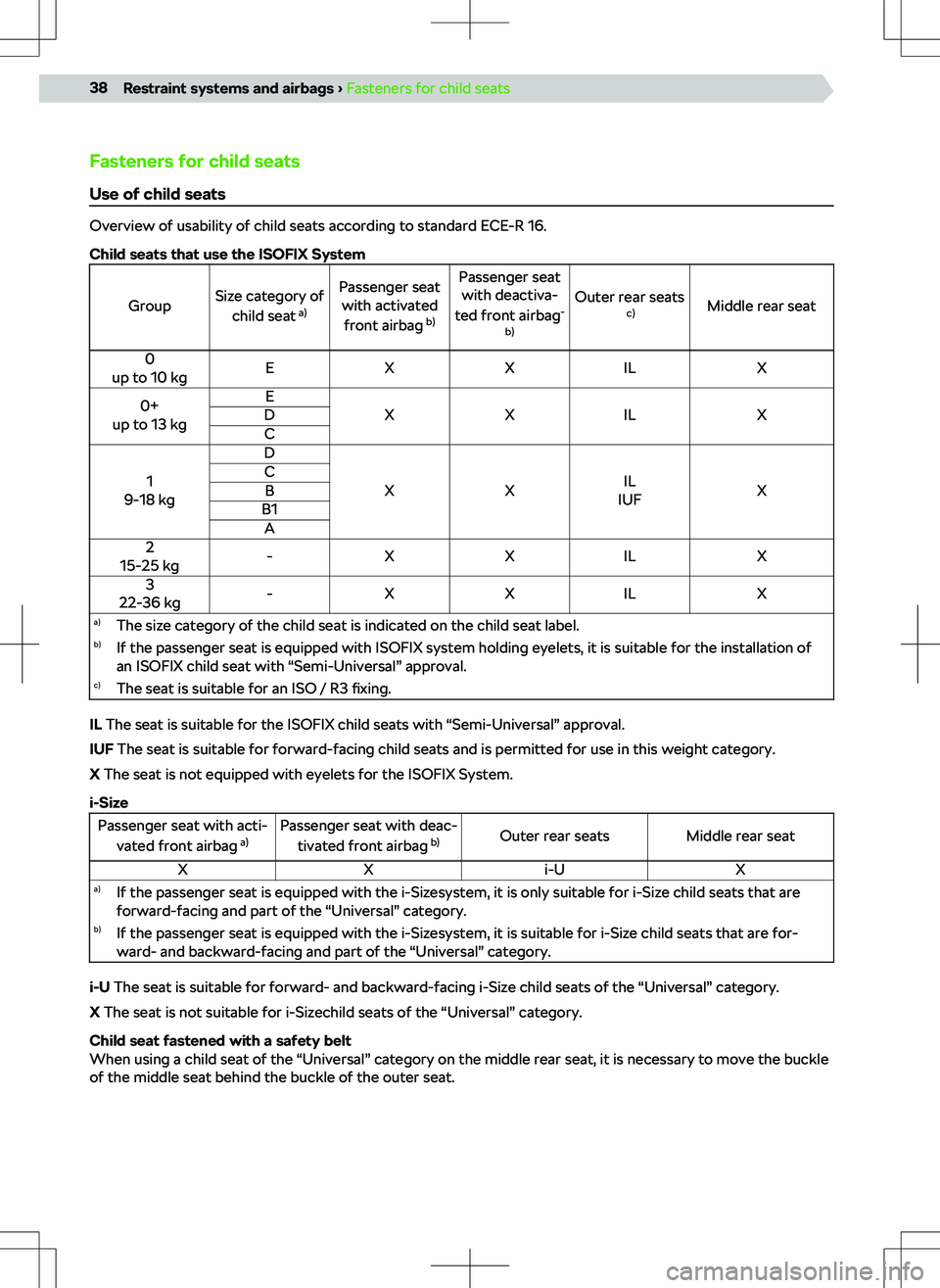

Fasteners for child seats
Use of child seats
Overview of usability of child seats according to standard ECE-R 16. Child seats that use the ISOFIX System
GroupSize category of child seat a)Passenger seat
with activated
front airbag b)Passenger seat
with deactiva-
ted front airbag -
b)
Outer rear seats c)Middle rear seat
0
up to 10 kgEXXILX0+
up to 13 kgEXXILXDC
1
9-18 kg
D
XXIL
IUFX
CBB1A2
15-25 kg-XXILX3
22-36 kg-XXILXa) The size category of the child seat is indicated on the child seat label.b)If the passenger seat is equipped with ISOFIX system holding eyelets, it is suitable for the installation of
an ISOFIX child seat with “Semi-Universal” approval.c) The seat is suitable for an ISO / R3 fixing.
IL The seat is suitable for the ISOFIX child seats with “Semi-Universal” approval.
IUF The seat is suitable for forward-facing child seats and is permitted for use in this weight category.
X The seat is not equipped with eyelets for the ISOFIX System.
i-Size
Passenger seat with acti- vated front airbag a)Passenger seat with deac-
tivated front airbag b)Outer rear seatsMiddle rear seatXXi-UXa)
If the passenger seat is equipped with the i-Sizesystem, it is only suitable for i-Size child seats that are
forward-facing and part of the “Universal” category.b) If the passenger seat is equipped with the i-Sizesystem, it is suitable for i-Size child seats that are for-
ward- and backward-facing and part of the “Universal” category.
i-U The seat is suitable for forward- and backward-facing i-Size child seats of the “Universal” category.
X The seat is not suitable for i-Sizechild seats of the “Universal” category.
Child seat fastened with a safety belt
When using a child seat of the “Universal” category on the middle rear seat, it is necessary to move the buckle of the middle seat behind the buckle of the outer seat.
38Restraint systems and airbags
