technical data SKODA KODIAQ 2016 1.G User Guide

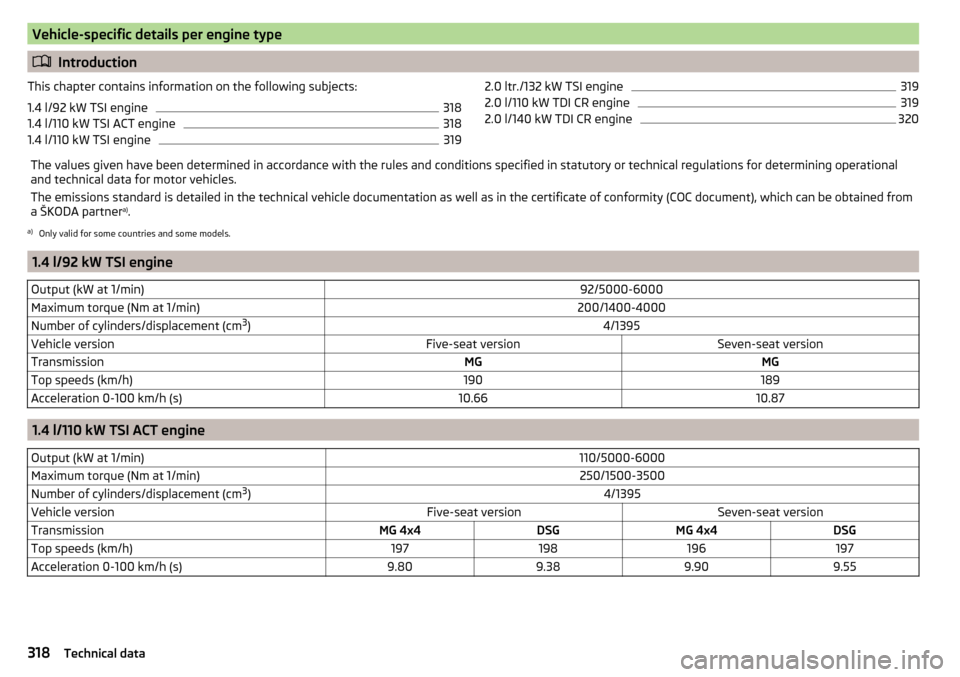

Vehicle-specific details per engine type
Introduction
This chapter contains information on the following subjects:
1.4 l/92 kW TSI engine318
1.4 l/110 kW TSI ACT engine
318
1.4 l/110 kW TSI engine
3192.0 ltr./132 kW TSI engine3192.0 l/110 kW TDI CR engine319
2.0 l/140 kW TDI CR engine
320The values given have been determined in accordance with the rules and conditions specified in statutory or technical regulations for determining operational
and technical data for motor vehicles.The emissions standard is detailed in the technical vehicle documentation as well as in the certificate of conformity (COC document), which can be obtained from a ŠKODA partner a)
.a)
Only valid for some countries and some models.
1.4 l/92 kW TSI engine
Output (kW at 1/min)92/5000-6000Maximum torque (Nm at 1/min)200/1400-4000Number of cylinders/displacement (cm 3
)4/1395Vehicle versionFive-seat versionSeven-seat versionTransmissionMGMGTop speeds (km/h)190189Acceleration 0-100 km/h (s)10.6610.87
1.4 l/110 kW TSI ACT engine
Output (kW at 1/min)110/5000-6000Maximum torque (Nm at 1/min)250/1500-3500Number of cylinders/displacement (cm 3
)4/1395Vehicle versionFive-seat versionSeven-seat versionTransmissionMG 4x4DSGMG 4x4DSGTop speeds (km/h)197198196197Acceleration 0-100 km/h (s)9.809.389.909.55318Technical data

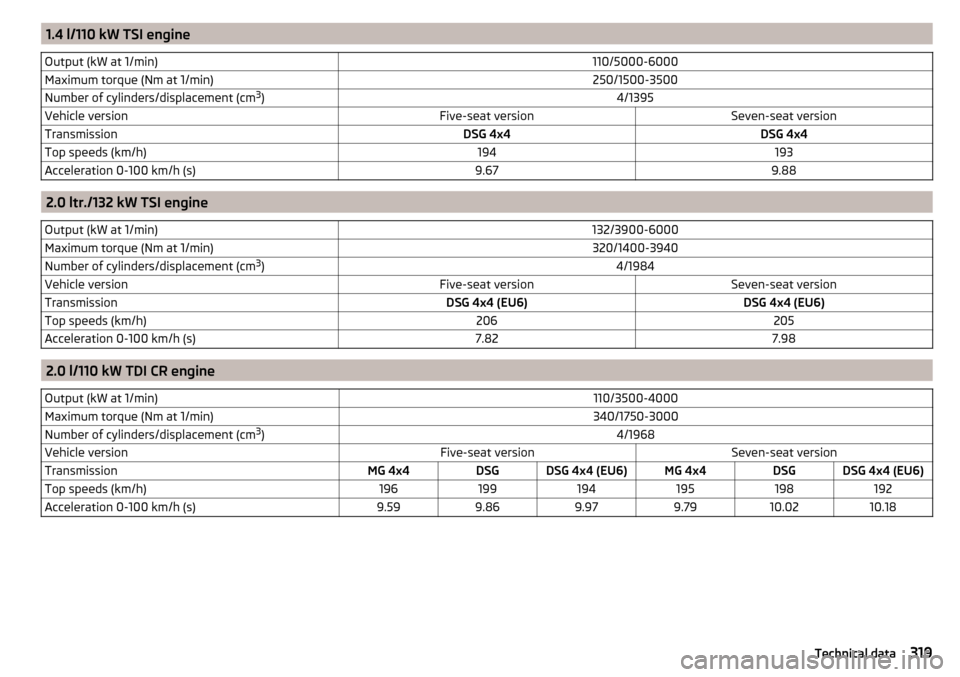

1.4 l/110 kW TSI engineOutput (kW at 1/min)110/5000-6000Maximum torque (Nm at 1/min)250/1500-3500Number of cylinders/displacement (cm3
)4/1395Vehicle versionFive-seat versionSeven-seat versionTransmissionDSG 4x4DSG 4x4Top speeds (km/h)194193Acceleration 0-100 km/h (s)9.679.88
2.0 ltr./132 kW TSI engine
Output (kW at 1/min)132/3900-6000Maximum torque (Nm at 1/min)320/1400-3940Number of cylinders/displacement (cm 3
)4/1984Vehicle versionFive-seat versionSeven-seat versionTransmissionDSG 4x4 (EU6)DSG 4x4 (EU6)Top speeds (km/h)206205Acceleration 0-100 km/h (s)7.827.98
2.0 l/110 kW TDI CR engine
Output (kW at 1/min)110/3500-4000Maximum torque (Nm at 1/min)340/1750-3000Number of cylinders/displacement (cm 3
)4/1968Vehicle versionFive-seat versionSeven-seat versionTransmissionMG 4x4DSGDSG 4x4 (EU6)MG 4x4DSGDSG 4x4 (EU6)Top speeds (km/h)196199194195198192Acceleration 0-100 km/h (s)9.599.869.979.7910.0210.18319Technical data

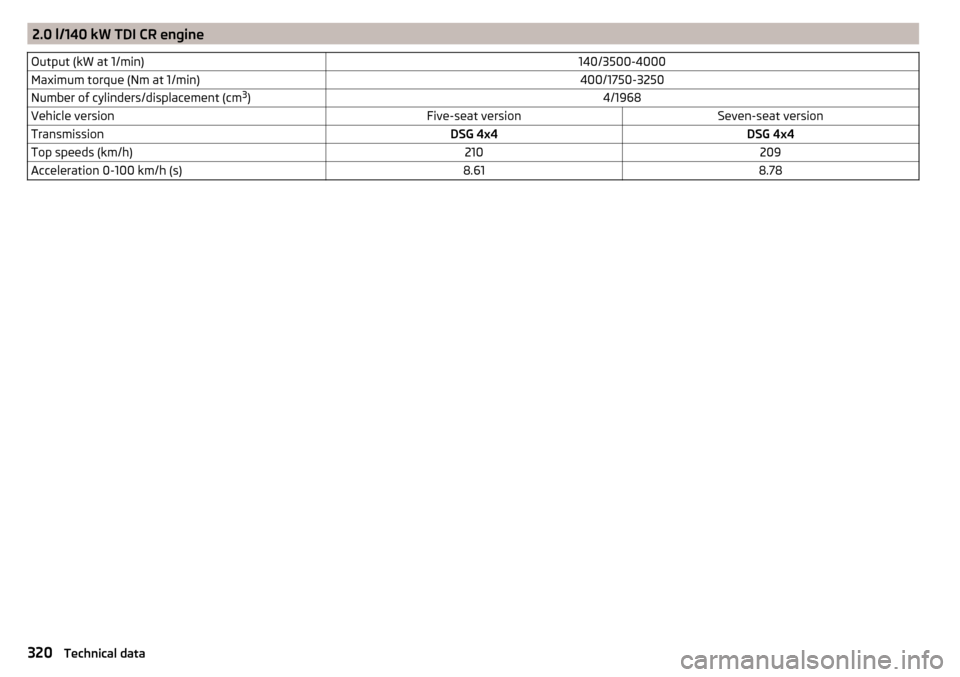

2.0 l/140 kW TDI CR engineOutput (kW at 1/min)140/3500-4000Maximum torque (Nm at 1/min)400/1750-3250Number of cylinders/displacement (cm3
)4/1968Vehicle versionFive-seat versionSeven-seat versionTransmissionDSG 4x4DSG 4x4Top speeds (km/h)210209Acceleration 0-100 km/h (s)8.618.78320Technical data
