SKODA KODIAQ 2018 Owner´s Manual

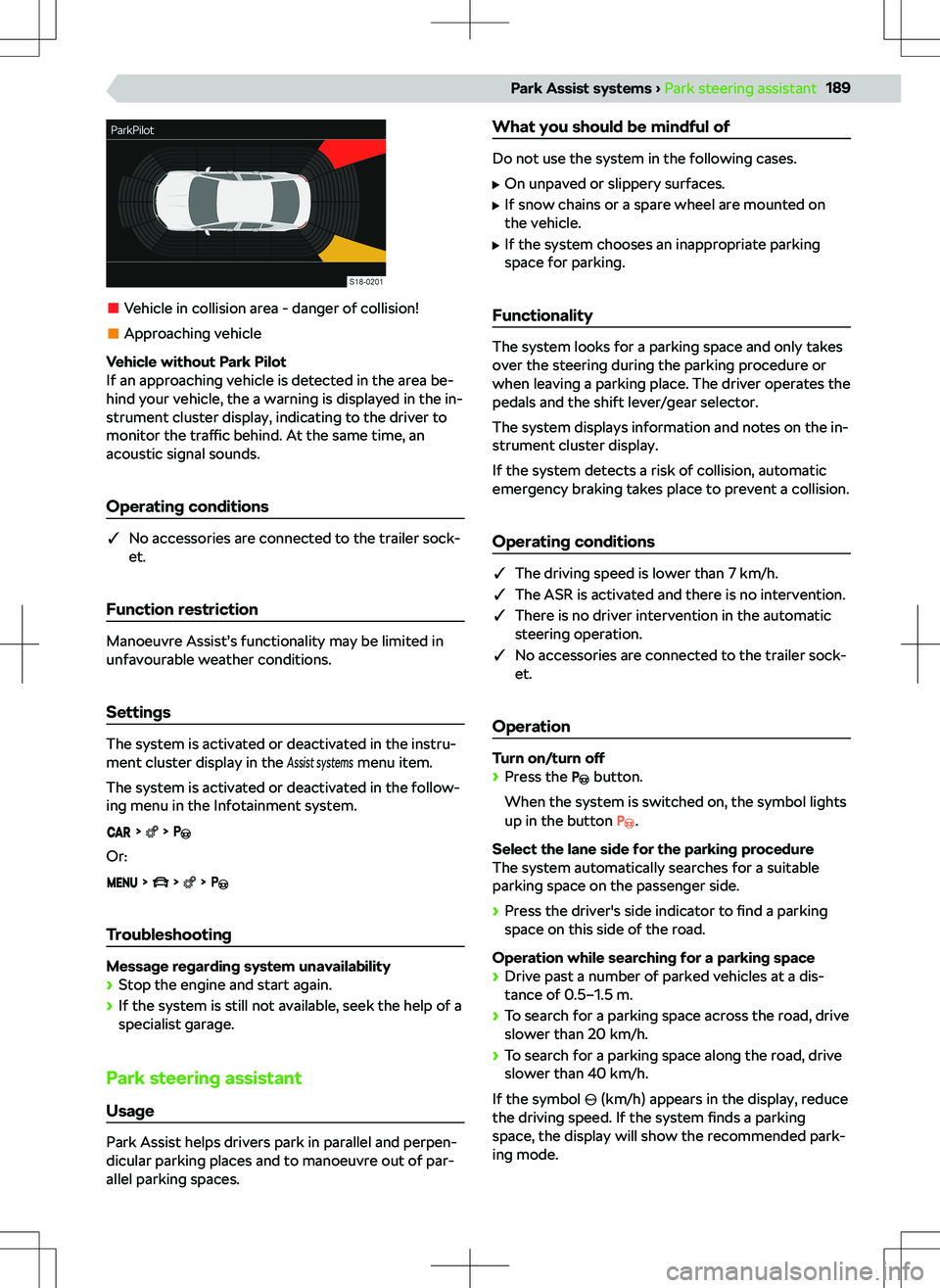

Vehicle in collision area - danger of collision!
Approaching vehicle
Vehicle without Park Pilot
If an approaching vehicle is detected in the area be-
hind your vehicle, the a warning is displayed in the in-
strument cluster display, indicating to the driver to
monitor the traffic behind. At the same time, an
acoustic signal sounds.
Operating conditions
q No accessories are connected to the trailer sock-
et.
Function restriction
Manoeuvre Assist

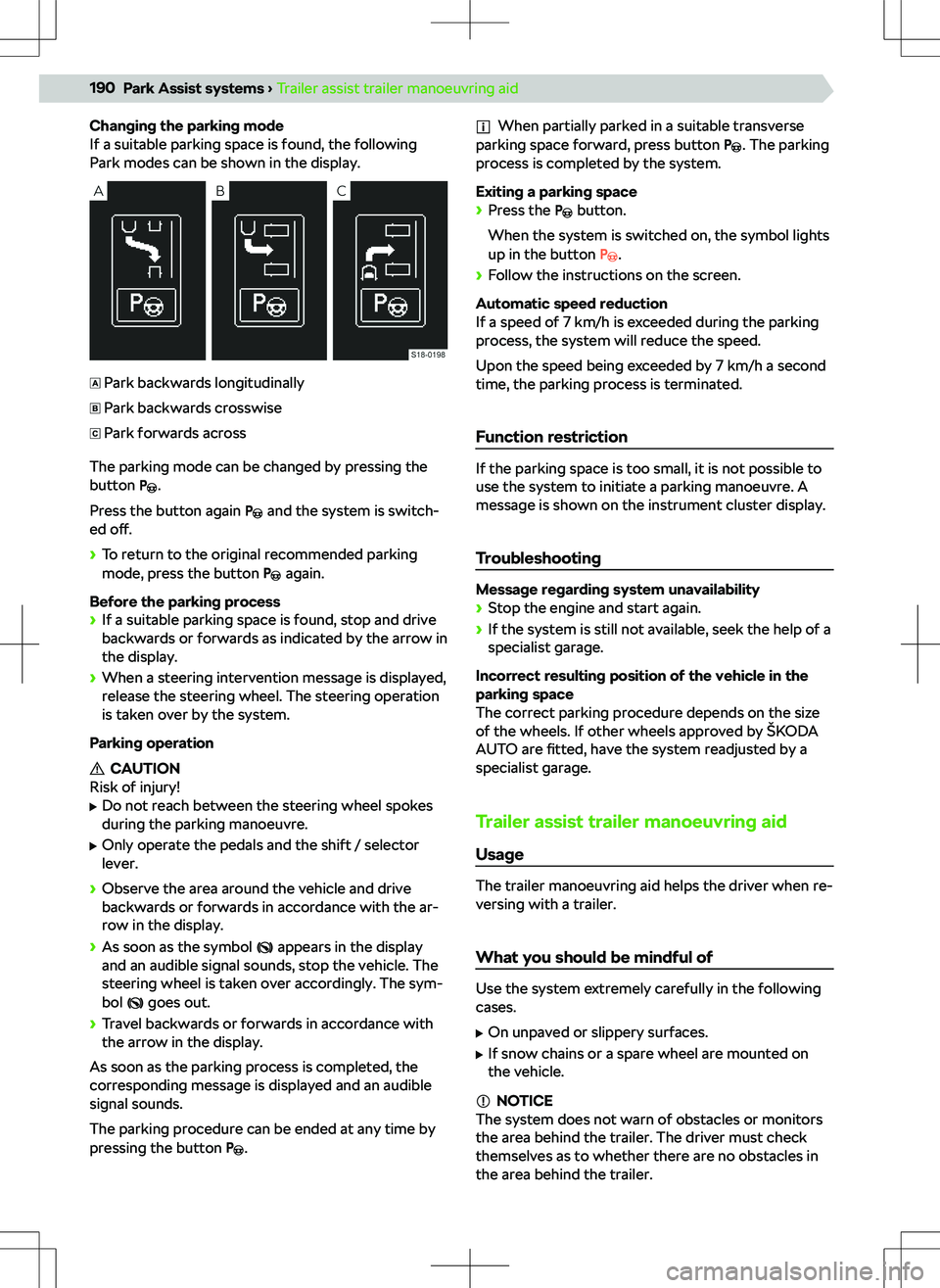

Changing the parking mode
If a suitable parking space is found, the following
Park modes can be shown in the display.Park backwards longitudinallyPark backwards crosswisePark forwards across
The parking mode can be changed by pressing the
button .
Press the button again
and the system is switch-
ed o

Functionality
The rear camera monitors the bending angle of the
trailer drawbar. The system executes appropriate
steering movements to position the trailer in the de-
sired direction. The driver operates the pedals and
the shift lever/gear selector.
The driver sets the desired direction with the exter-
nal mirror knob.
Operating conditions
q The driving speed is lower than 5 km/h.
q The ASR is activated and there is no intervention.
q The luggage compartment lid is closed.
q The driver

Engine, exhaust system and fuelBonnet
Opening the bonnet
Before opening

flashes, lights up at the same time

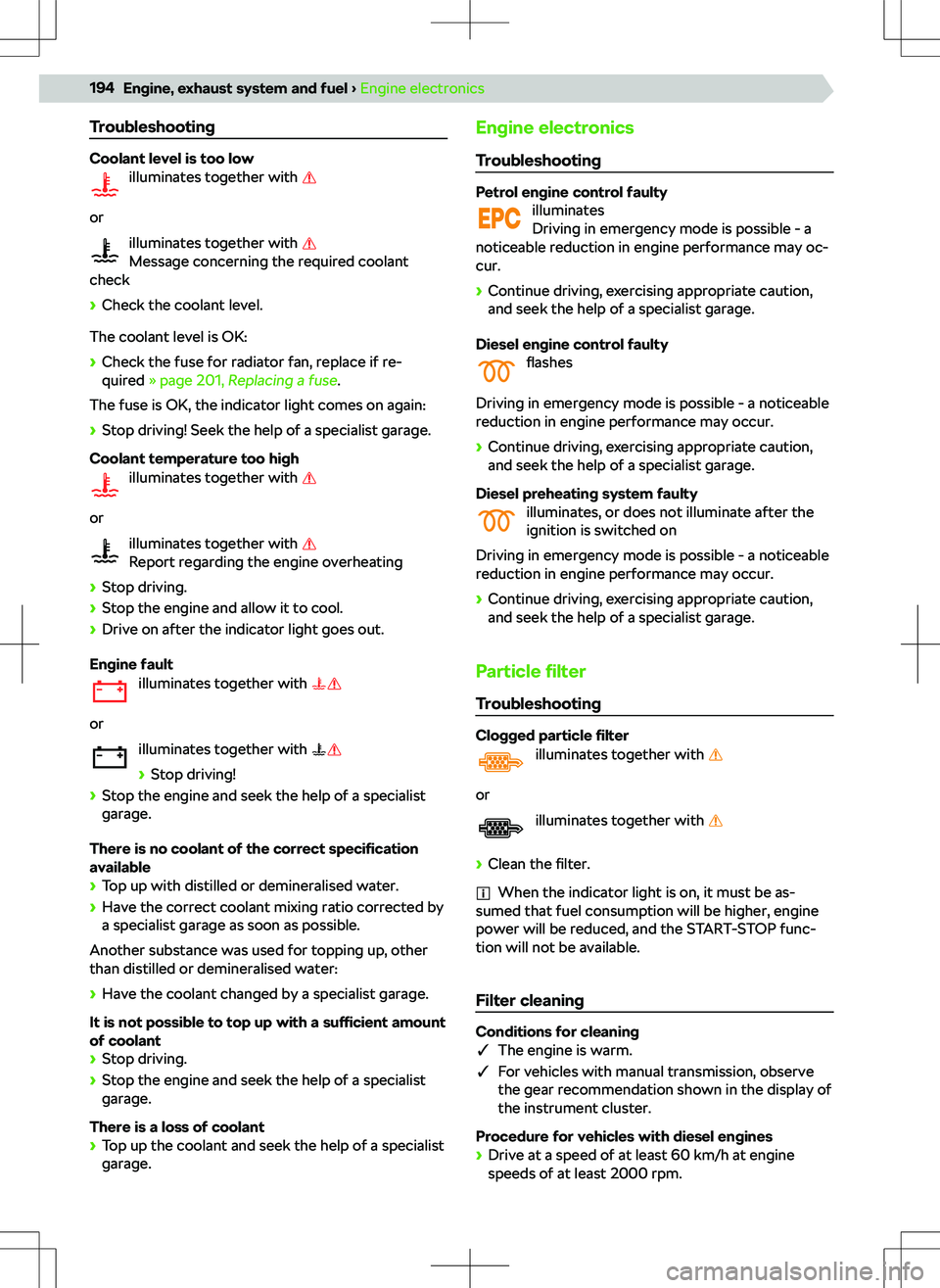

Troubleshooting
Coolant level is too lowilluminates together with
or
illuminates together with
Message concerning the required coolant
check

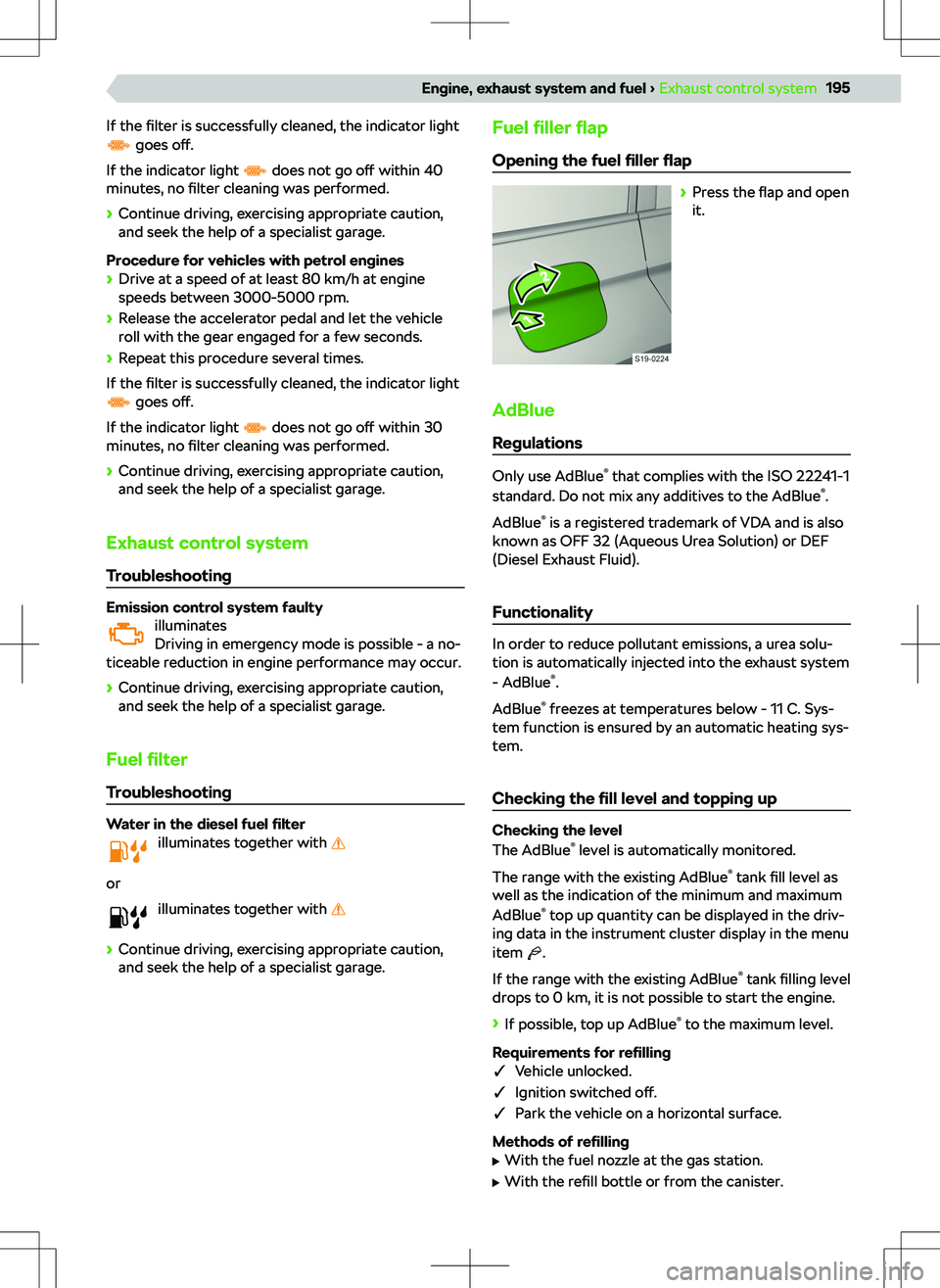

If the filter is successfully cleaned, the indicator light goes o

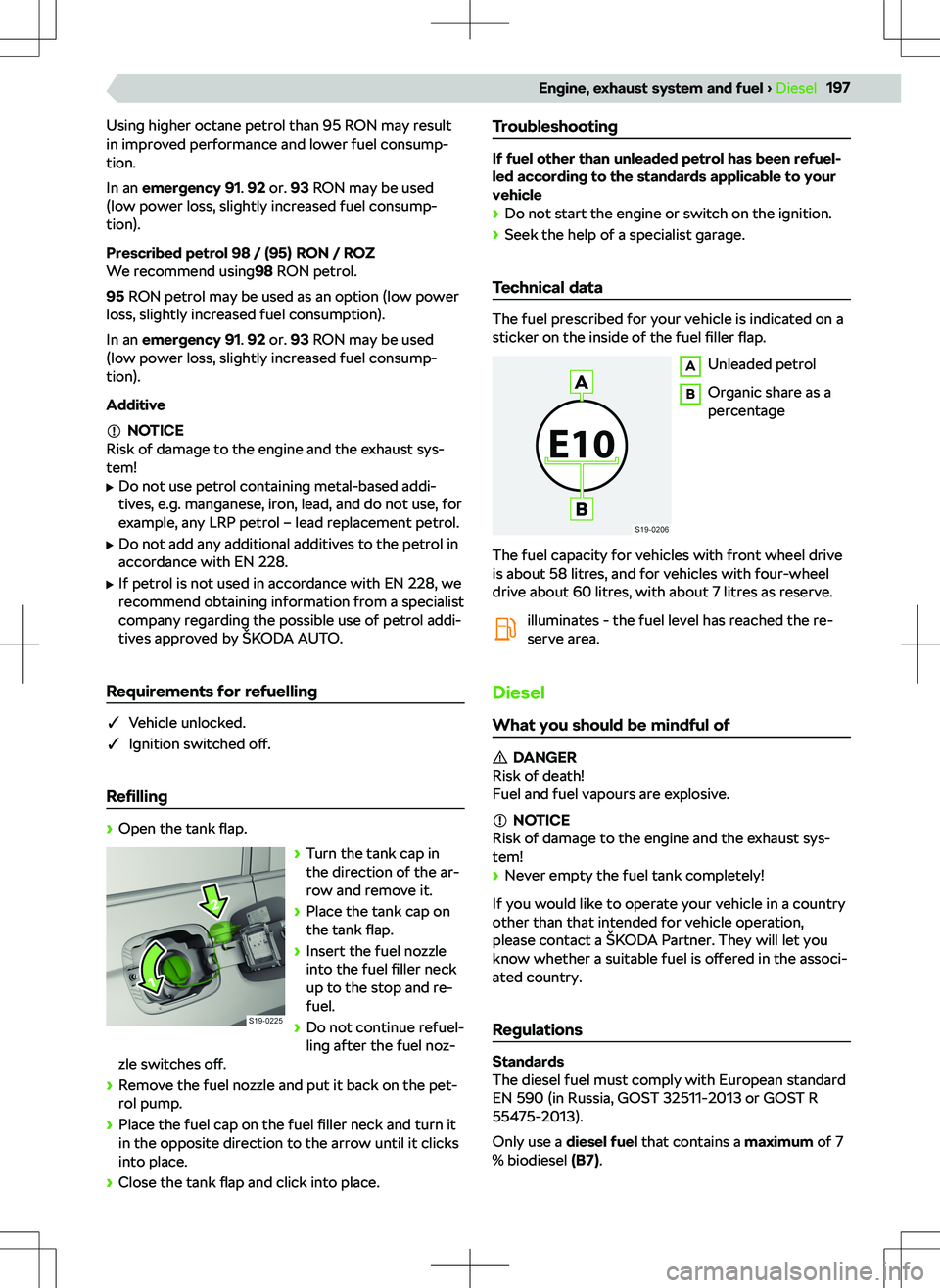

Using higher octane petrol than 95 RON may result
in improved performance and lower fuel consump-
tion.
In an emergency 91 . 92 or. 93 RON may be used
(low power loss, slightly increased fuel consump-
tion).
Prescribed petrol 98 / (95) RON / ROZ
We recommend using 98 RON petrol.
95 RON petrol may be used as an option (low power
loss, slightly increased fuel consumption).
In an emergency 91 . 92 or. 93 RON may be used
(low power loss, slightly increased fuel consump-
tion).
Additive
NOTICE
Risk of damage to the engine and the exhaust sys- tem!

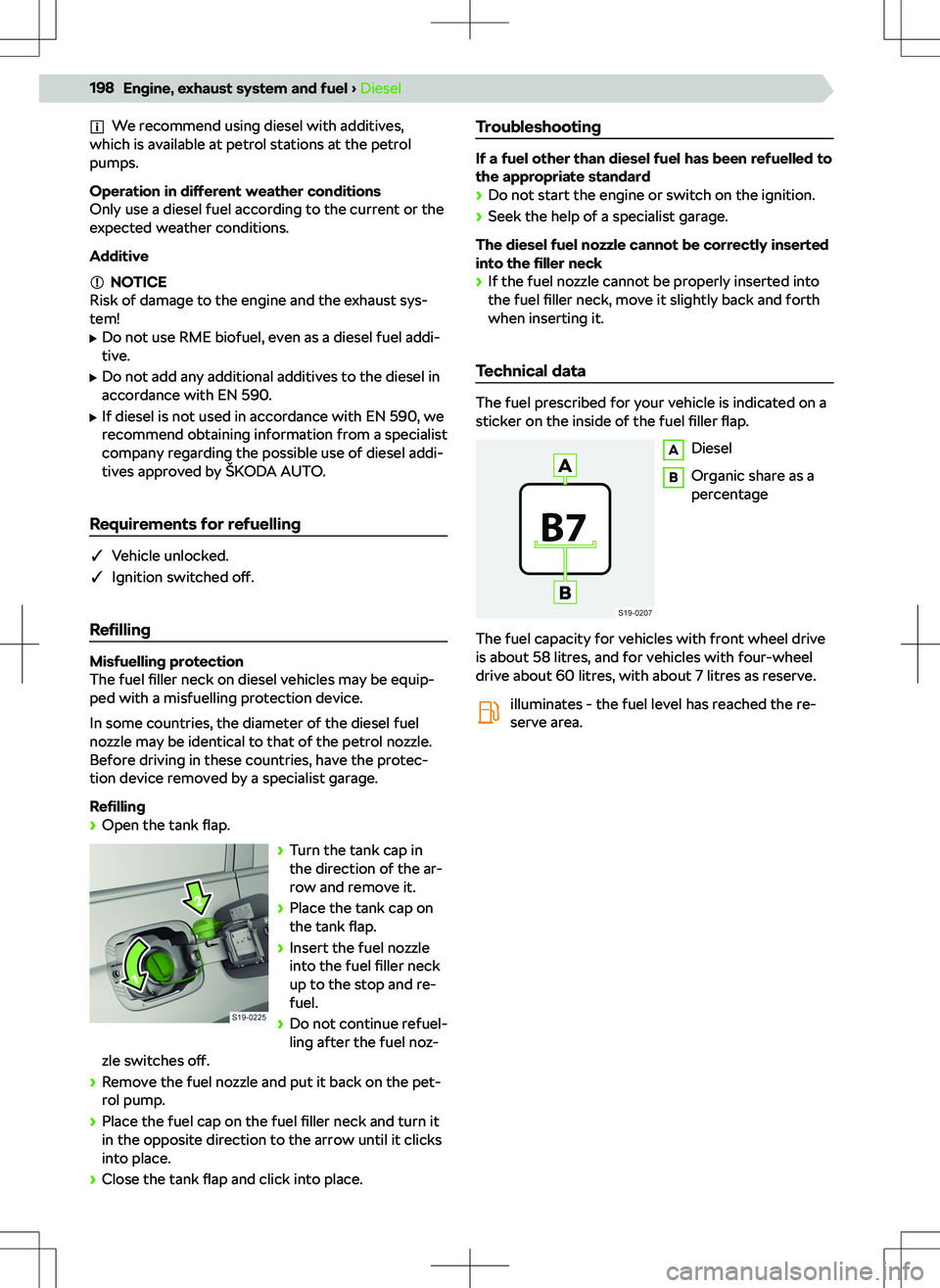

We recommend using diesel with additives,
which is available at petrol stations at the petrol
pumps.
Operation in different weather conditions
Only use a diesel fuel according to the current or the
expected weather conditions.
Additive
NOTICE
Risk of damage to the engine and the exhaust sys- tem!
