Unlock indicator: double flashing of the indicator
lights.
Lock indicator: single flashing of the indicator lights.
The warning light in the driver

Lighting, windscreen wipers and
washers
Exterior lighting Functionality
Unless otherwise stated, the light works when the
ignition is switched on.
Daylight running lights
The daytime running lights illuminate the area in
front of the vehicle.
For vehicles for certain markets, they also illumi-
nate the rear vehicle area.
Operating conditions
q The lights switch is in position
, or .
Switching the low beam on/off automatically
The low beam is automatically switched on or o

Fog lightPositions for pulling out
the light switch1
Fog lights - the
warning light in the
instrument cluster il-
luminates
2
Rear fog light - the
warning light in the
instrument cluster il-
luminates

Or:

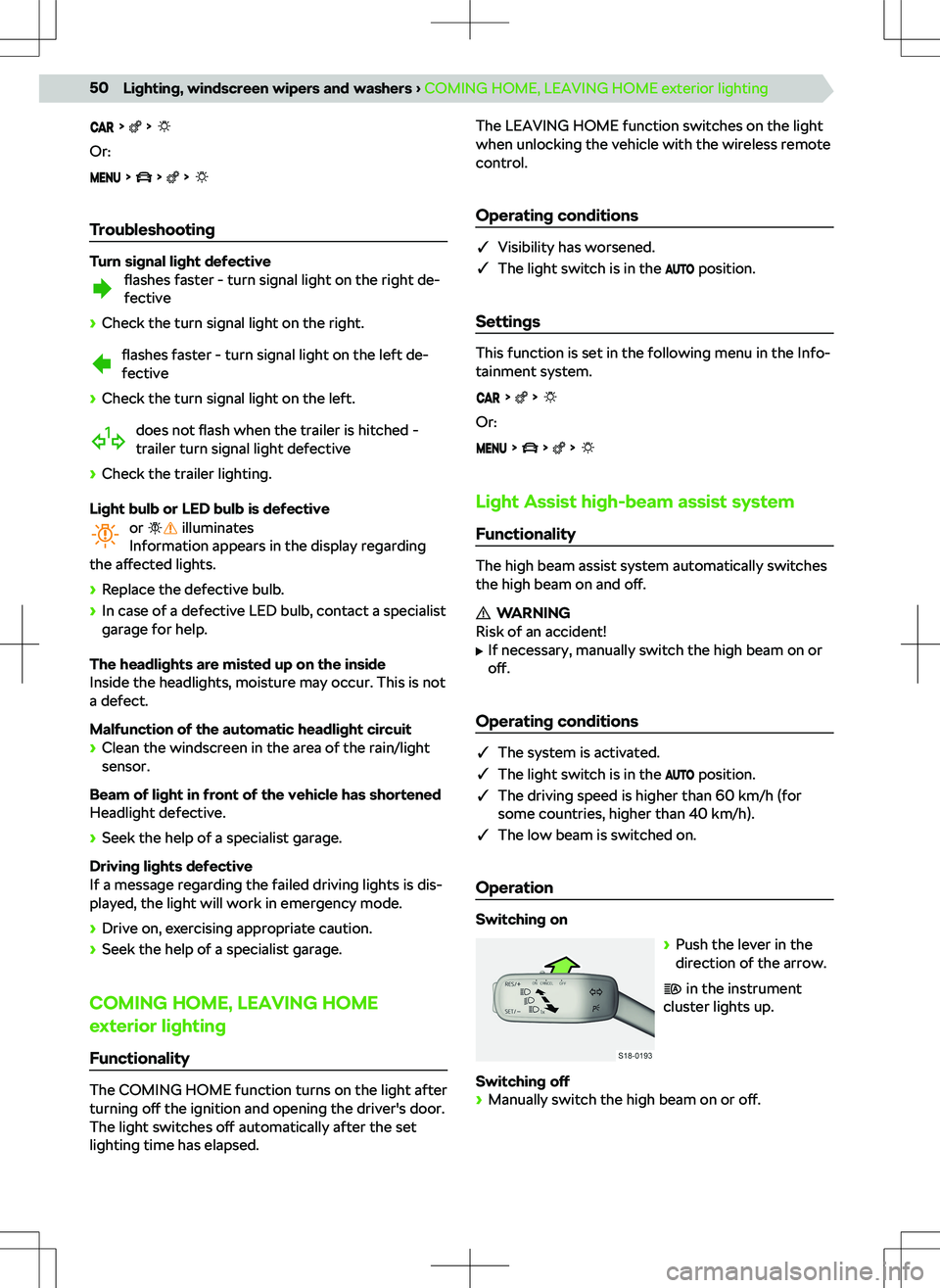

Troubleshooting
Turn signal light defectiveflashes faster - turn signal light on the right de-
fective

Settings
Activation/deactivation
The function is activated or deactivated in the fol-
lowing menu in the Infotainment system.

Or:

Replace light bulbs
What you should be mindful of
DIY replacement of the following bulbs is possible.
Have the remaining light sources replaced by a spe-
cialist garage.
The new bulb must conform to the specification of
the original light bulb. The name of the bulb is
marked on the bulb socket.
After changing a bulb in the low beam light, the main
beam or fog light, have the headlights adjusted by a
specialist garage.
CAUTION
Halogen lamps are pressurised and can burst during
replacement!

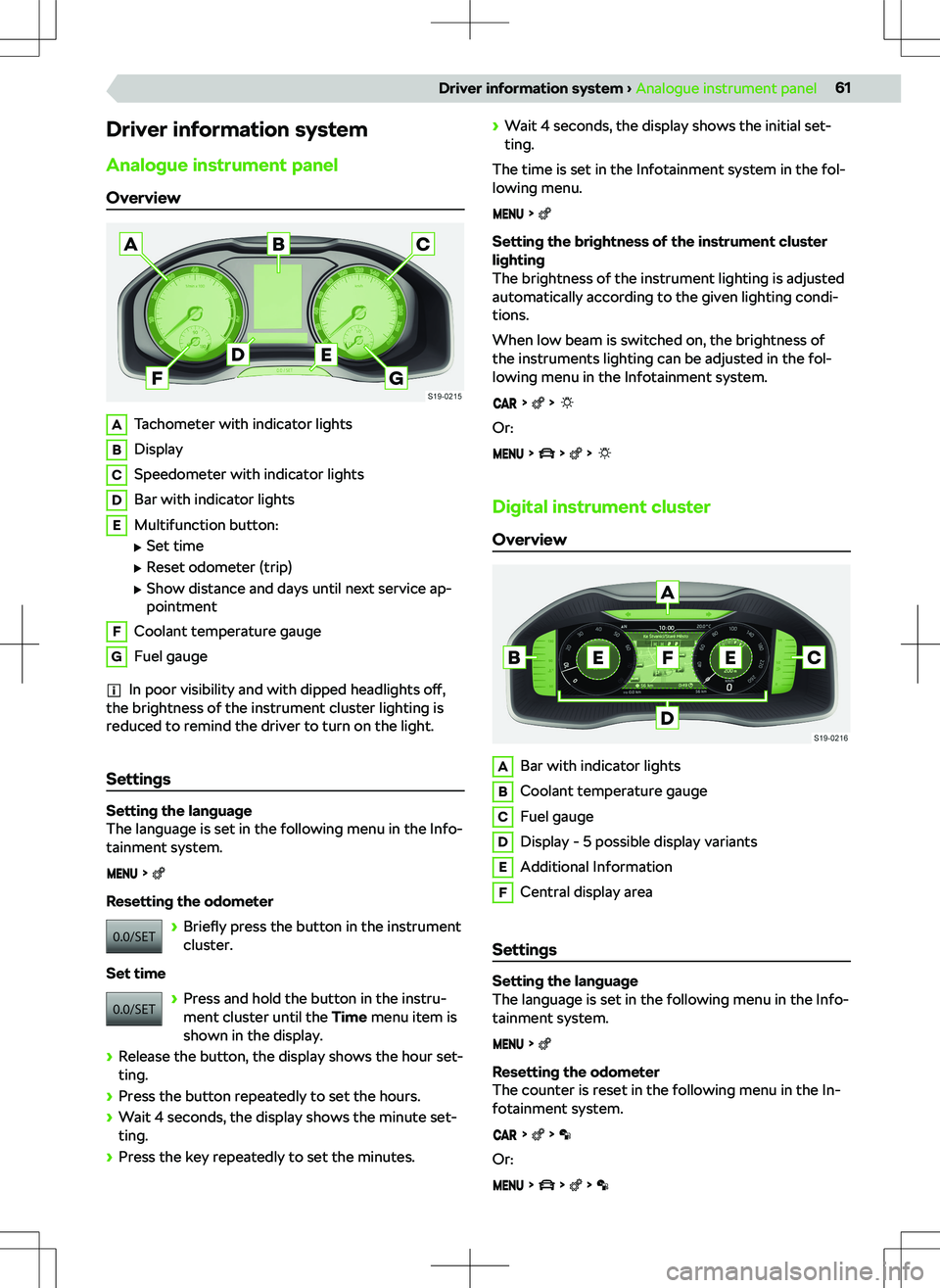

Driver information systemAnalogue instrument panel
OverviewATachometer with indicator lightsBDisplayCSpeedometer with indicator lightsDBar with indicator lightsEMultifunction button:

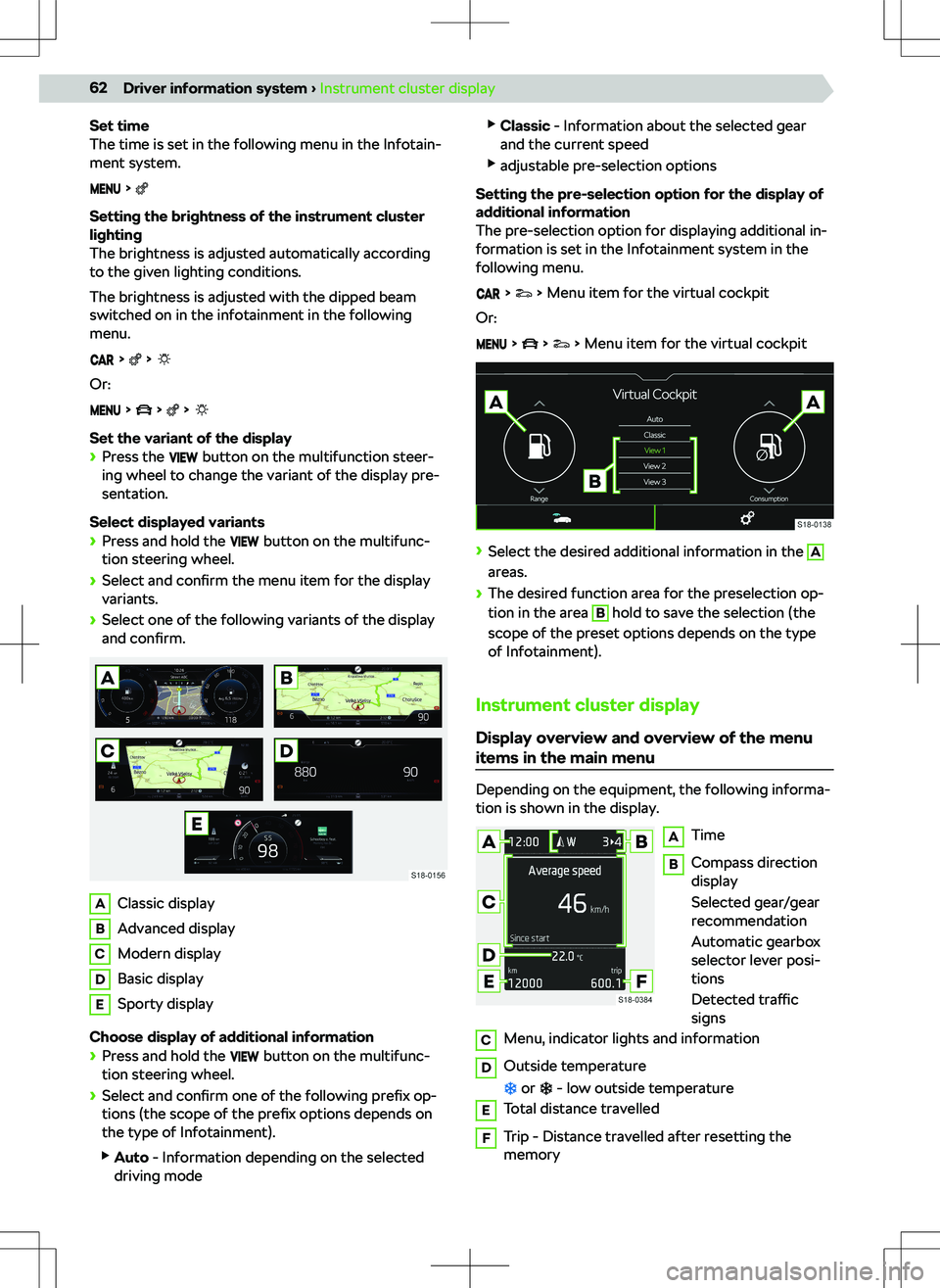

Set time
The time is set in the following menu in the Infotain-
ment system.

Setting the brightness of the instrument cluster
lighting
The brightness is adjusted automatically according
to the given lighting conditions.
The brightness is adjusted with the dipped beam
switched on in the infotainment in the following
menu.

Or:

Set the variant of the display

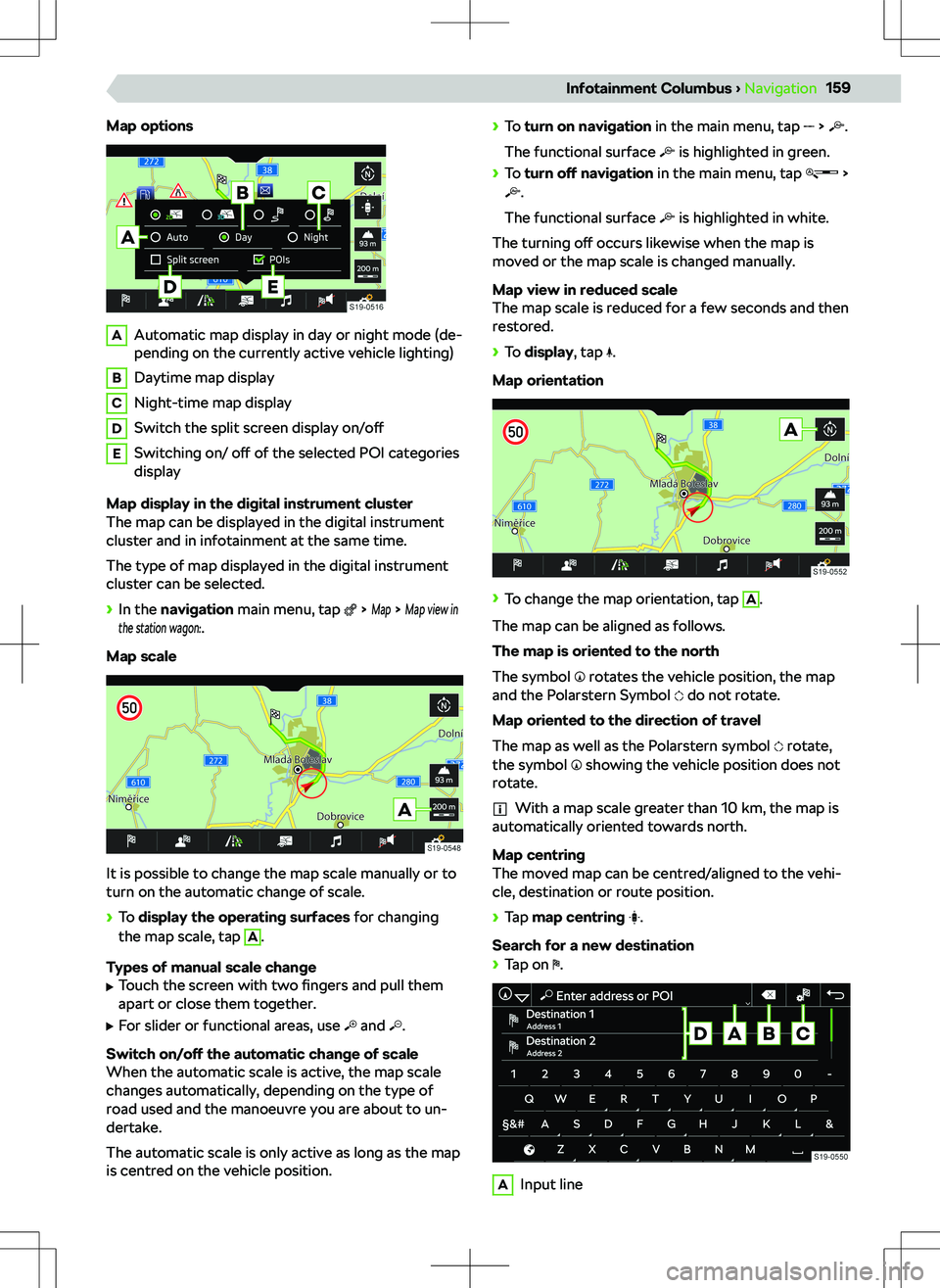

Map optionsAAutomatic map display in day or night mode (de-
pending on the currently active vehicle lighting)BDaytime map displayCNight-time map displayDSwitch the split screen display on/o

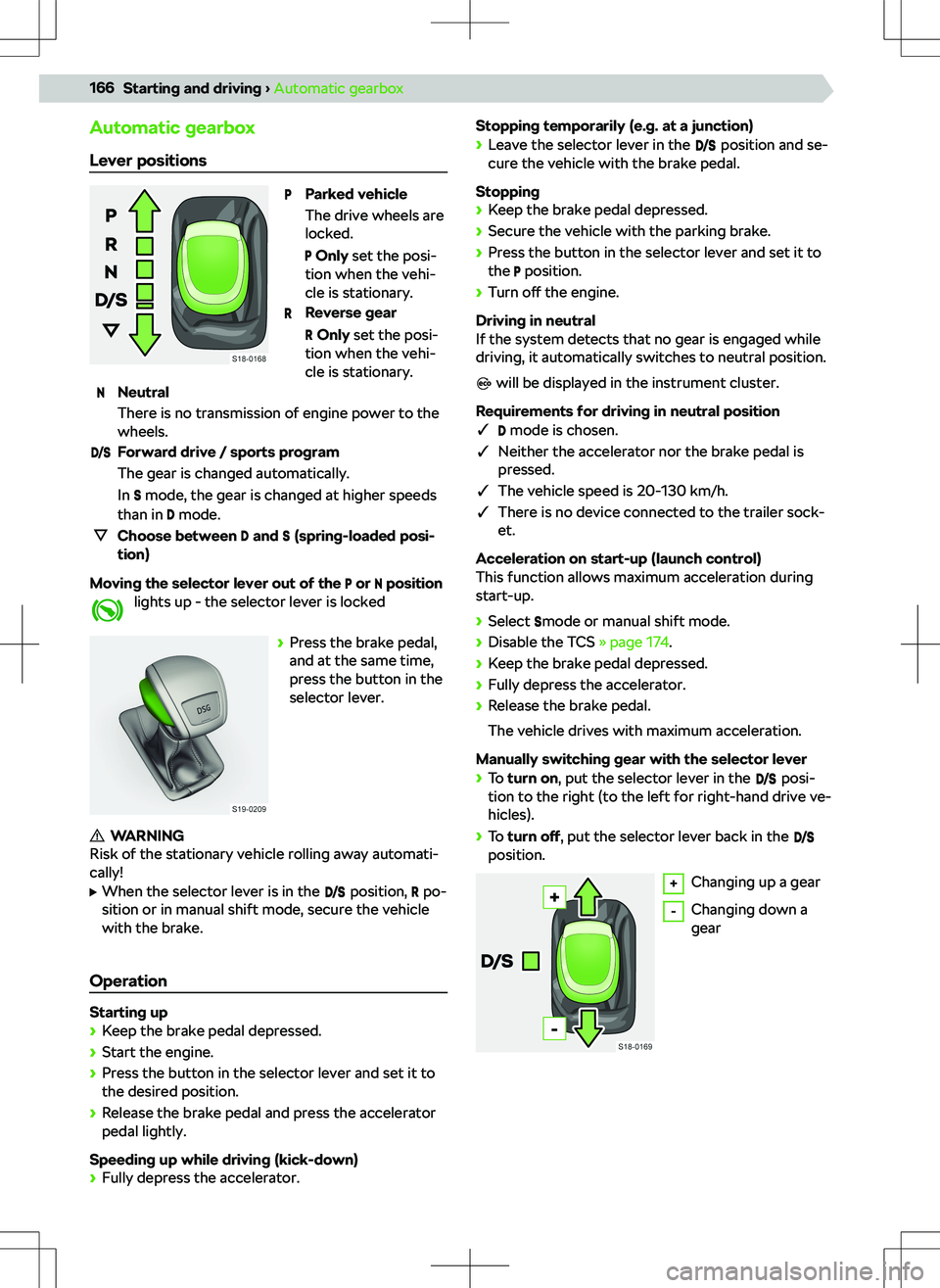

Automatic gearbox
Lever positions
Parked vehicle The drive wheels are
locked.
Only set the posi-
tion when the vehi- cle is stationary.
Reverse gear
Only set the posi-
tion when the vehi- cle is stationary.
Neutral
There is no transmission of engine power to the
wheels.
Forward drive / sports program
The gear is changed automatically.
In
mode, the gear is changed at higher speeds
than in mode.
Choose between and (spring-loaded posi-
tion)
Moving the selector lever out of the
or position
lights up - the selector lever is locked

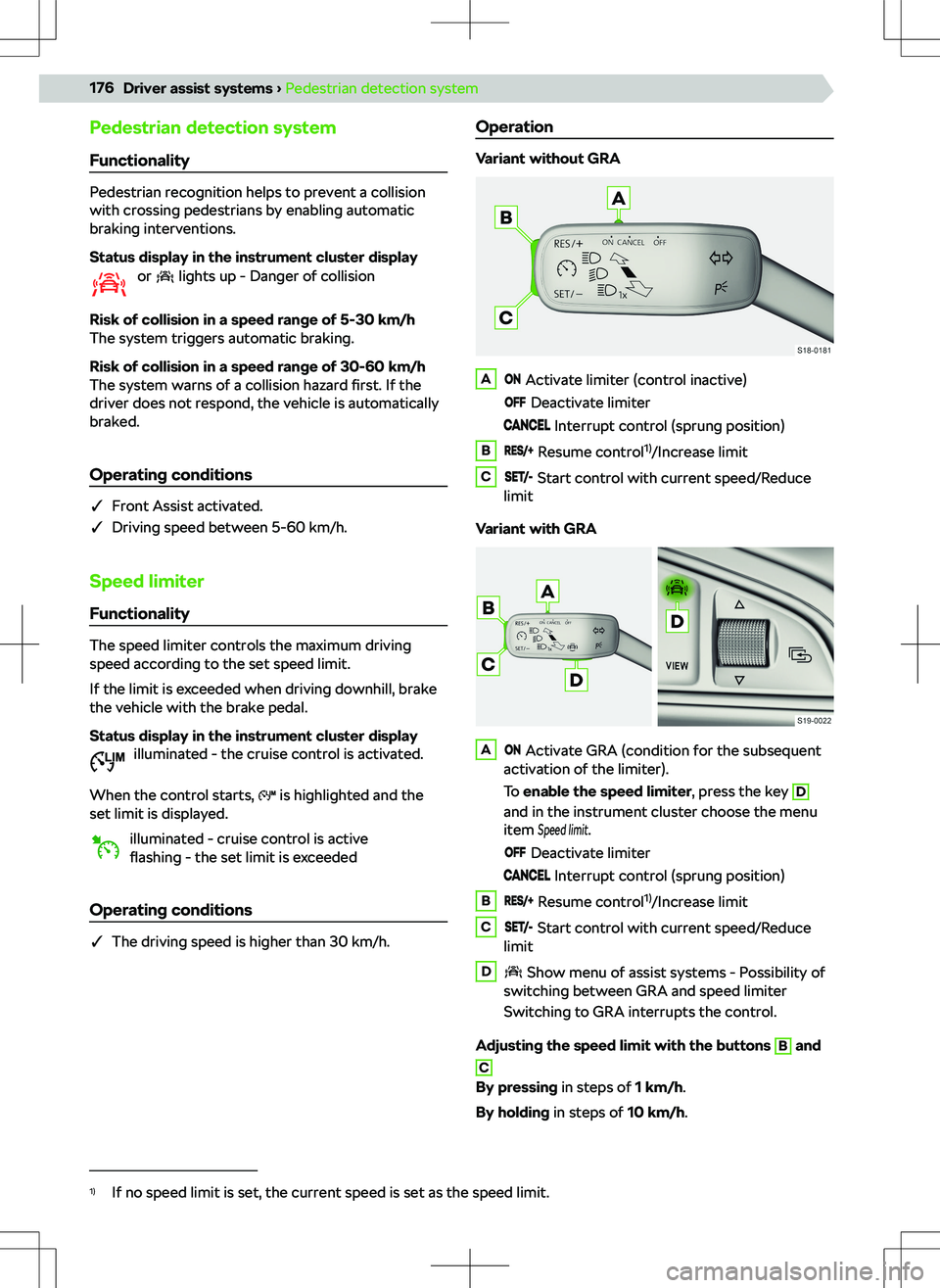

Pedestrian detection system
Functionality
Pedestrian recognition helps to prevent a collision
with crossing pedestrians by enabling automatic
braking interventions.
Status display in the instrument cluster display or
lights up - Danger of collision
Risk of collision in a speed range of 5-30 km/h
The system triggers automatic braking.
Risk of collision in a speed range of 30-60 km/h
The system warns of a collision hazard first. If the
driver does not respond, the vehicle is automatically
braked.
Operating conditions
q Front Assist activated.
q Driving speed between 5-60 km/h.
Speed limiter Functionality
The speed limiter controls the maximum driving
speed according to the set speed limit.
If the limit is exceeded when driving downhill, brake
the vehicle with the brake pedal.
Status display in the instrument cluster display illuminated - the cruise control is activated.
When the control starts,
is highlighted and the
set limit is displayed.
illuminated - cruise control is active
flashing - the set limit is exceeded
Operating conditions
q The driving speed is higher than 30 km/h.
Operation
Variant without GRA
A Activate limiter (control inactive)
Deactivate limiter
Interrupt control (sprung position)
B Resume control 1)
/Increase limitC Start control with current speed/Reduce
limit
Variant with GRA
A Activate GRA (condition for the subsequent
activation of the limiter).
To enable the speed limiter , press the key D
and in the instrument cluster choose the menu
item
Speed limit
.
Deactivate limiter
Interrupt control (sprung position)
B Resume control 1)
/Increase limitC Start control with current speed/Reduce
limitD Show menu of assist systems - Possibility of
switching between GRA and speed limiter
Switching to GRA interrupts the control.
Adjusting the speed limit with the buttons
B
and
C
By pressing in steps of 1 km/h.
By holding in steps of 10 km/h.
1)
If no speed limit is set, the current speed is set as the speed limit.
