SKODA KODIAQ 2020 Owner´s Manual

Multifunction holder
OverviewA
Cup holder
B
Storage compart-
ment for storing the
cover of the 12-volt
power outlet
C
Storage compart-
ment for the vehicle
key
D
Storage compart-
ment for coins and
card
E
Storage tray
The multifunction holder can be removed or rotated.
Ceiling
Remove and insert
The blanket is in a bag that can be attached to one of
the following locations.

Roof rack and hitchRoof rackOverview
The maximum weight of the load incl. roof rack is
75 kg.
Swivelling hitch
What you should be mindful of
WARNING
Risk of an accident!

Power supply of the trailer power network
In the electrical connection between the vehicle and
trailer, the trailer is powered by the vehicle.
NOTICE
Risk of damage to the vehicle electronics!
The total power consumption of all consumers con-
nected to the trailer power supply must not exceed
350 watts.
Troubleshooting
Trailer coupling error
The indicator light inside the switch does not light
up or flash, or the tow bar does not lock into place.

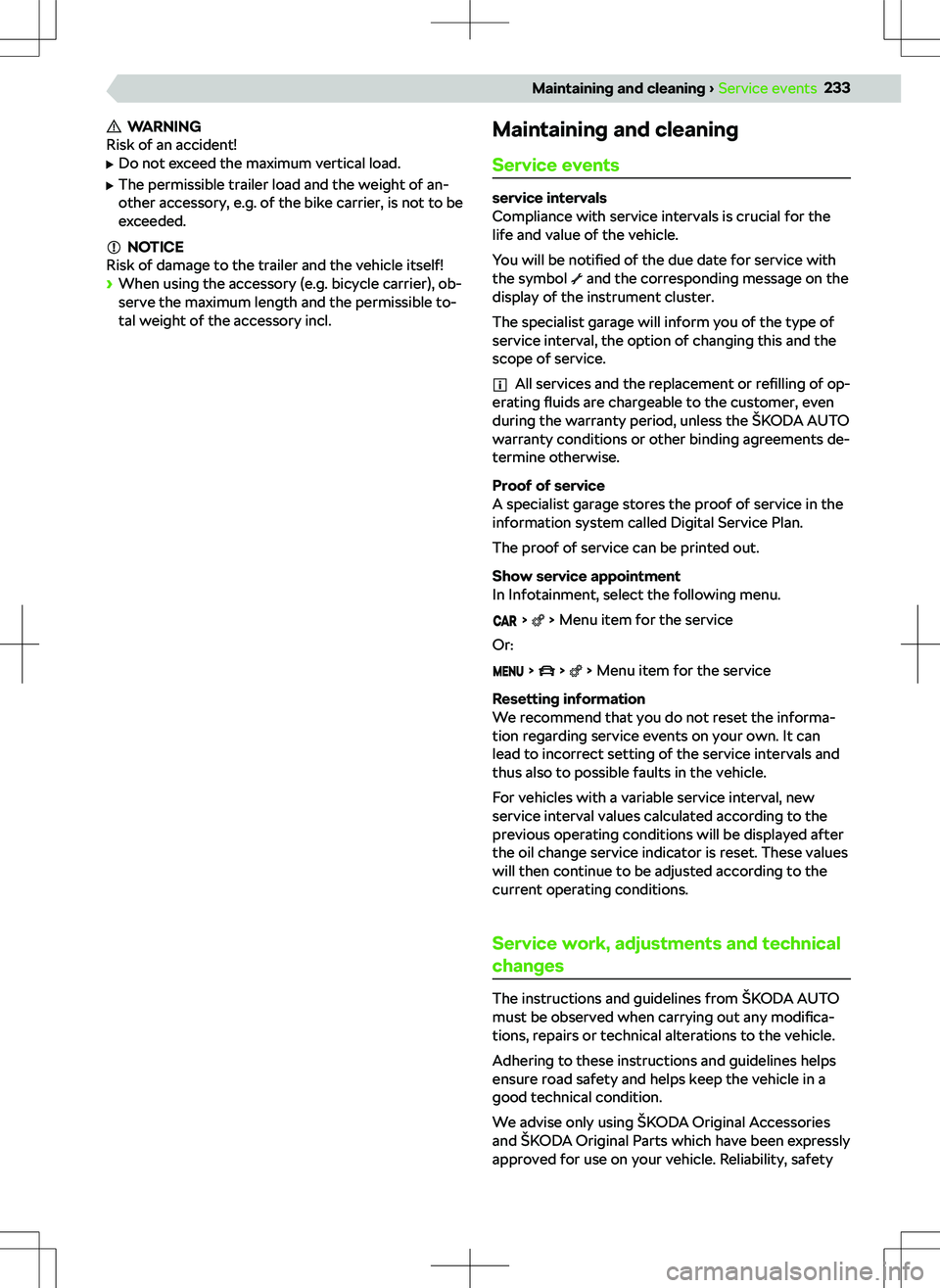

WARNING
Risk of an accident!

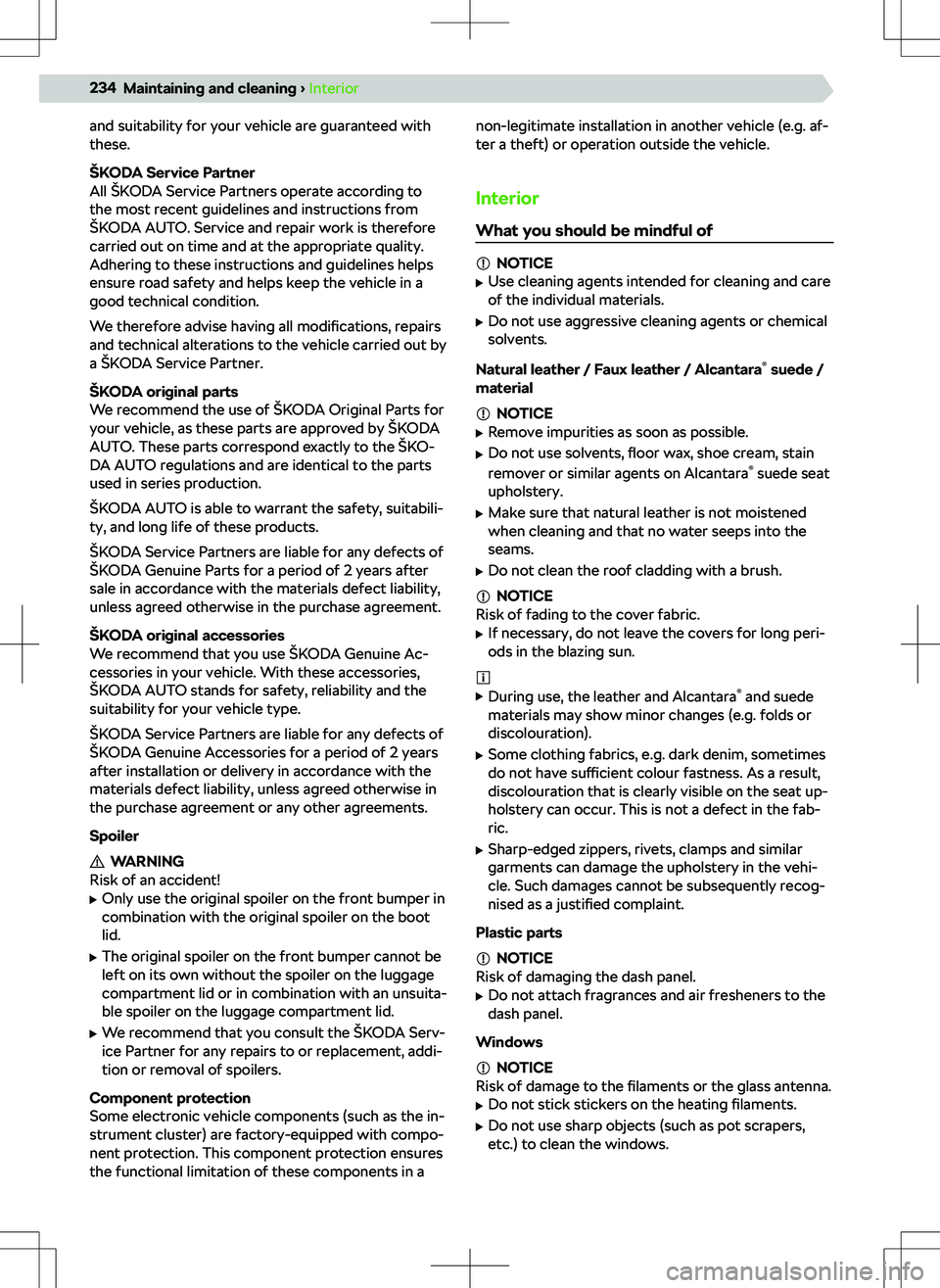

and suitability for your vehicle are guaranteed with
these.

Covers on electrically heated seats
NOTICE
Risk of damaging the heating system.

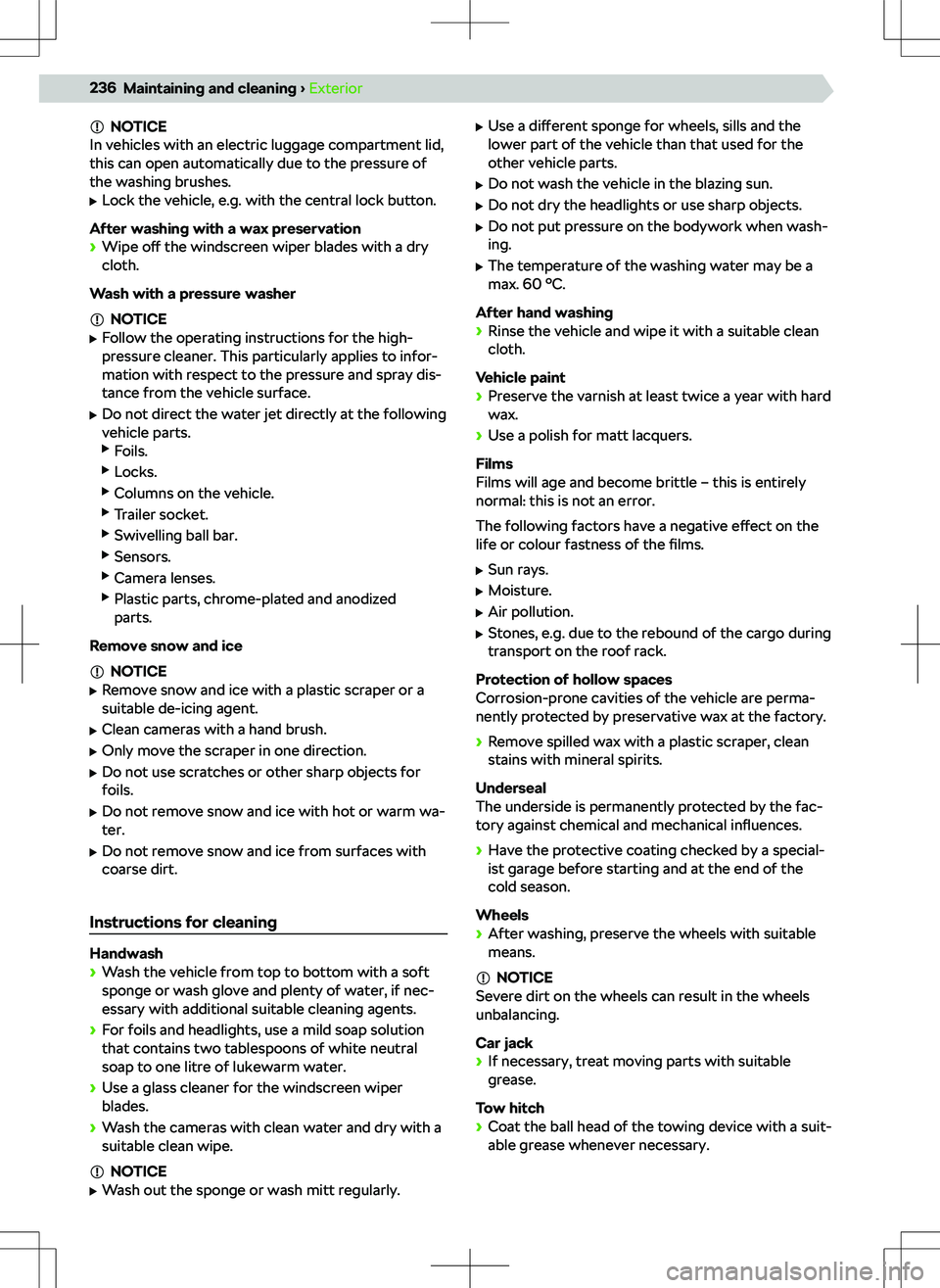

NOTICE
In vehicles with an electric luggage compartment lid,
this can open automatically due to the pressure of
the washing brushes.

Ice scraper on the fuel

VIN display
The display of VIN takes place in the infotainment
under the following menu item.
Menu item for the Service
Or:
Menu item for the Service
Engine number
The engine number is embossed on the engine block.
Maximum permissible weights
The maximum permissible weights are listed on the
nameplate.
The type plate is located at the bottom of the middle
body pillar of the vehicle.
AMaximum permissible gross weightBMaximum permissible towed weight (towing ve-
hicle and trailer)CMaximum permissible front axle loadDMaximum permissible rear axle load
Maximum permissible towed weight
The specified value is valid for altitudes up to 1000
m above sea level.
The engine output falls as the height increases, as
does the ability to climb.
Therefore, for every additional 1,000 m in height (or
part), the maximum permissible towed weight must
be reduced by 10 %.
The towed weight is made up of the actual weights
of the loaded towing vehicle and the loaded trailer.
Payloads
It is possible to calculate the approximate maximum
payload from the di
