Deactivation is to be carried out if the vehicle is,

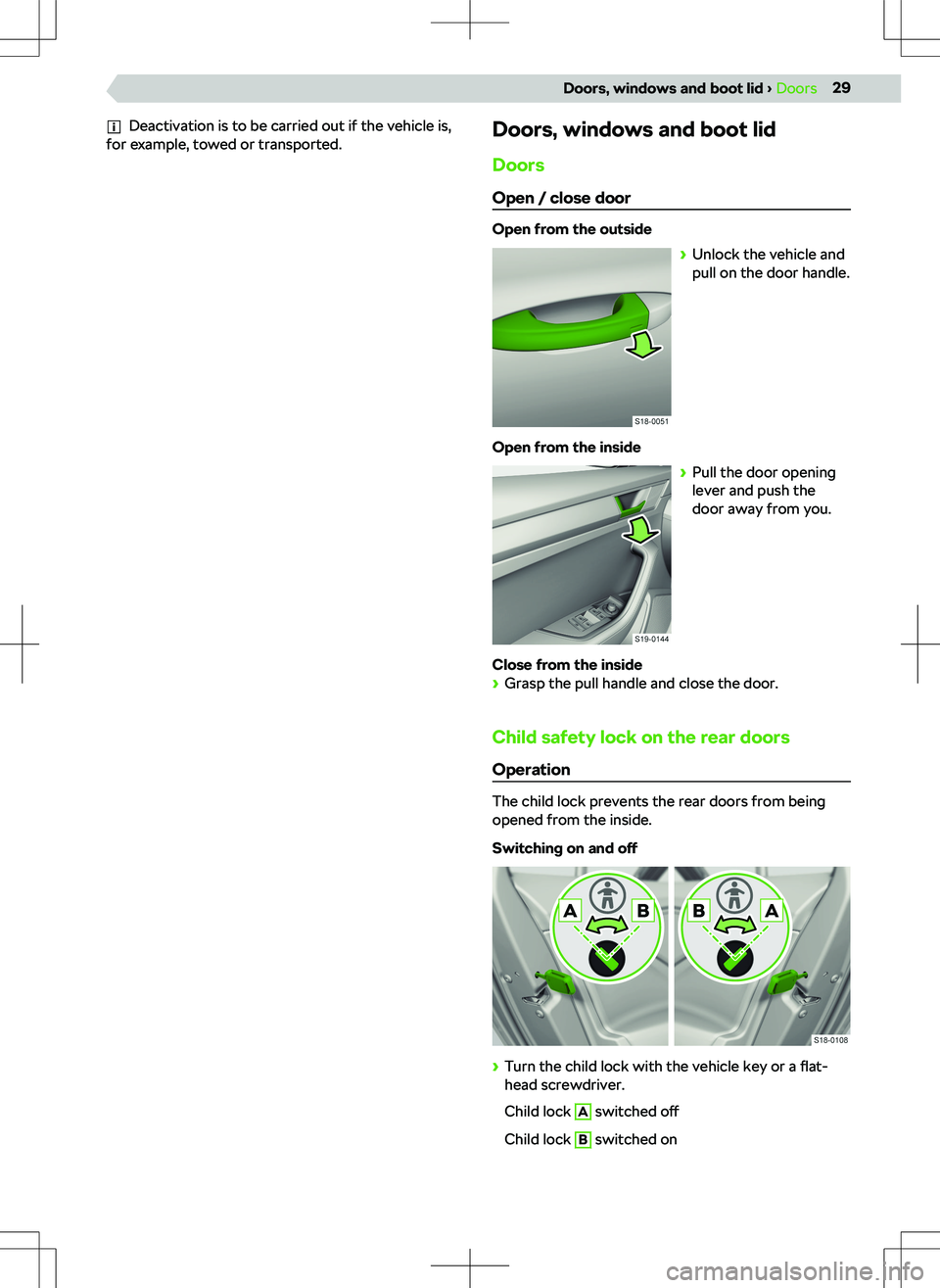

for example, towed or transported.Doors, windows and boot lid
Doors
Open / close door
Open from the outside

Towing eye and towing procedureTowing eye
Remove the grille

Storage compartment for the reflective vest
The storage compartment for the reflective vest is in
the storage compartment of the front door.
Fire extinguisher under the passenger seat
Tool kit
Depending on the equipment, not all of the following
components may be included in the tool kit.
AAttachment for the anti-theft wheel boltsBTowing lugCBracket for removing the full wheel coversDJack with sign and crankEWheel wrenchFRemoval clip for the wheel bolt cover capsGBreakdown set
The declaration of conformity is enclosed with the
jack or the logbook folder.
Storage compartment for the reflective
vest
Fasteners in the boot
Overview
Five-seater variant of the vehicle
A
Pocket hook
Max. load 7.5 kg
B
Hook for fastening the fastening nets
C
Lashing eyes for securing the load and the fas-
tening nets
Max. load 350 kg
Seven-seater variant of the vehicle
A
Pocket hook
Max. load 7.5 kg
B
Hook for fastening the fastening nets
C
Lashing eye for securing the load and the fasten-
ing nets
Max. load 350 kg
217Storage space and interior equipment

Power supply of the trailer power network
In the electrical connection between the vehicle and
trailer, the trailer is powered by the vehicle.
NOTICE
Risk of damage to the vehicle electronics!
The total power consumption of all consumers con-
nected to the trailer power supply must not exceed
350 watts.
Troubleshooting
Trailer coupling error
The indicator light inside the switch does not light
up or flash, or the tow bar does not lock into place.

VIN display
The display of VIN takes place in the infotainment
under the following menu item.
Menu item for the Service
Or:
Menu item for the Service
Engine number
The engine number is embossed on the engine block.
Maximum permissible weights
The maximum permissible weights are listed on the
nameplate.
The type plate is located at the bottom of the middle
body pillar of the vehicle.
AMaximum permissible gross weightBMaximum permissible towed weight (towing ve-
hicle and trailer)CMaximum permissible front axle loadDMaximum permissible rear axle load
Maximum permissible towed weight
The specified value is valid for altitudes up to 1000
m above sea level.
The engine output falls as the height increases, as
does the ability to climb.
Therefore, for every additional 1,000 m in height (or
part), the maximum permissible towed weight must
be reduced by 10 %.
The towed weight is made up of the actual weights
of the loaded towing vehicle and the loaded trailer.
Payloads
It is possible to calculate the approximate maximum
payload from the di

Trailer manoeuvring systemsee Trailer Assist194
Trailer stability assist177
Transport Transporting objects safely
21
Transporting tow hitch
231
Transporting the roof rack
231
Travel Assist184
TSA see trailer stability assist
177
Turn signal50
Type plate237
Tyre control display214
Tyre pressure monitor214, 215
tyres208
Breakdown set212
Tyres209
Pressure213
Snow chains209
Tyre control display214
U Umbrella
226
Unlock26
Unlocking27
Update Infotainment
Infotainment Amundsen
107
Infotainment Bolero85
Infotainment Columbus132
Infotainment Swing71
Updating the system and the Infotainment system see digital version of the manual
5
USB222, 223
User Account162
User Management160
User registration157
V
Variable loading floor in the boot
220
Vehicle battery202
Charging202
Checking the condition202
Discharge protection202
Disconnecting and connecting203
Error203
Safety19
Vehicle cleaning interior space
235
Vehicle dimensions239
Vehicle driving mode171
Eco171
Individual171
Normal171
