Page 26 of 256
Keys, locks and alarm system
Key
Key overview
The vehicle has one of the following keys. Key with fold-out key bit
Lock the vehicle
Operate the luggage
compartment lid
Unlock vehicle
A
Battery status indi-
cator light
B
Safety button for
opening and closing
the key bit
Key with removable key bit
Lock the vehicle
Operate the luggage
compartment lid
Unlock vehicle
A
Battery status indi-
cator light
B
Locking tab for re-
moving the key bit
NOTICE
Page 28 of 256
Central locking
Functionality
Central locking system
The system unlocks and locks all doors, the fuel filler
flap and the luggage compartment flap at the same
time.
Unlock indicator: the flashing lights flash twice.
Lock indicator: the flashing lights flash once.
The warning light in the driver
Page 29 of 256

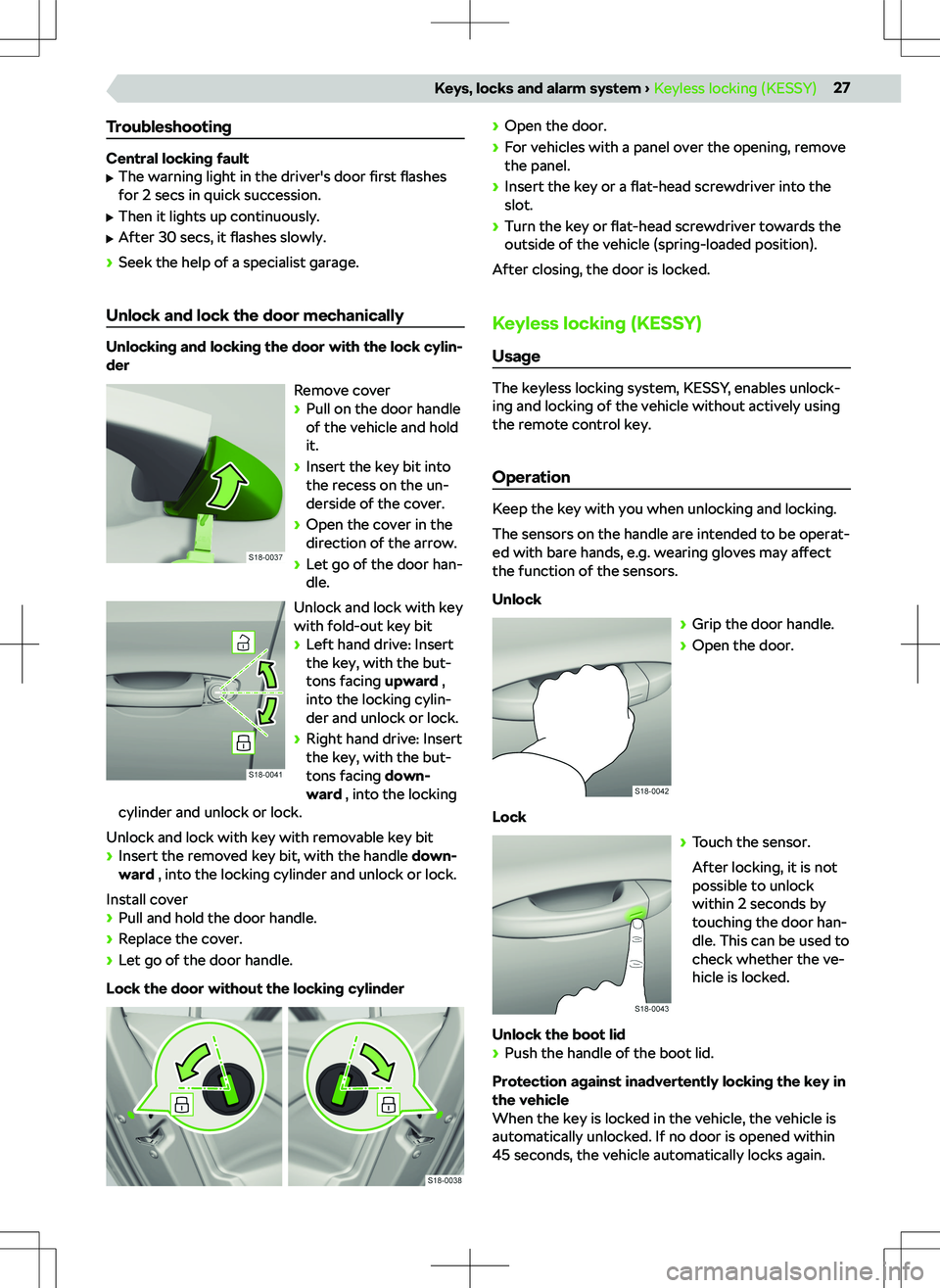

Troubleshooting
Central locking fault
Page 30 of 256
When the key is locked in the luggage compartment,
the luggage compartment lid is automatically un-
locked.
Settings
Deactivate keyless locking
Page 32 of 256
Electrically operated child lock
Page 38 of 256
Seats, steering wheel and mirrorFront seat - with manual operation Controls on the seatAAdjust lengthways - after releasing the operatinglever, the locking mechanism must audibly en-
gageBAdjust heightCAdjusting the angle of the backrest - do not lean
against the backrest during adjustmentDAdjust lumbar support: the extent of the curva-
ture
After a certain time, play can develop within the ad-
justment mechanism of the backrest angle.
Folding front passenger seat back
Fold up
Page 43 of 256
Steering column lock not unlockedflashes
Message regarding the necessary steering
wheel movement
Page 66 of 256

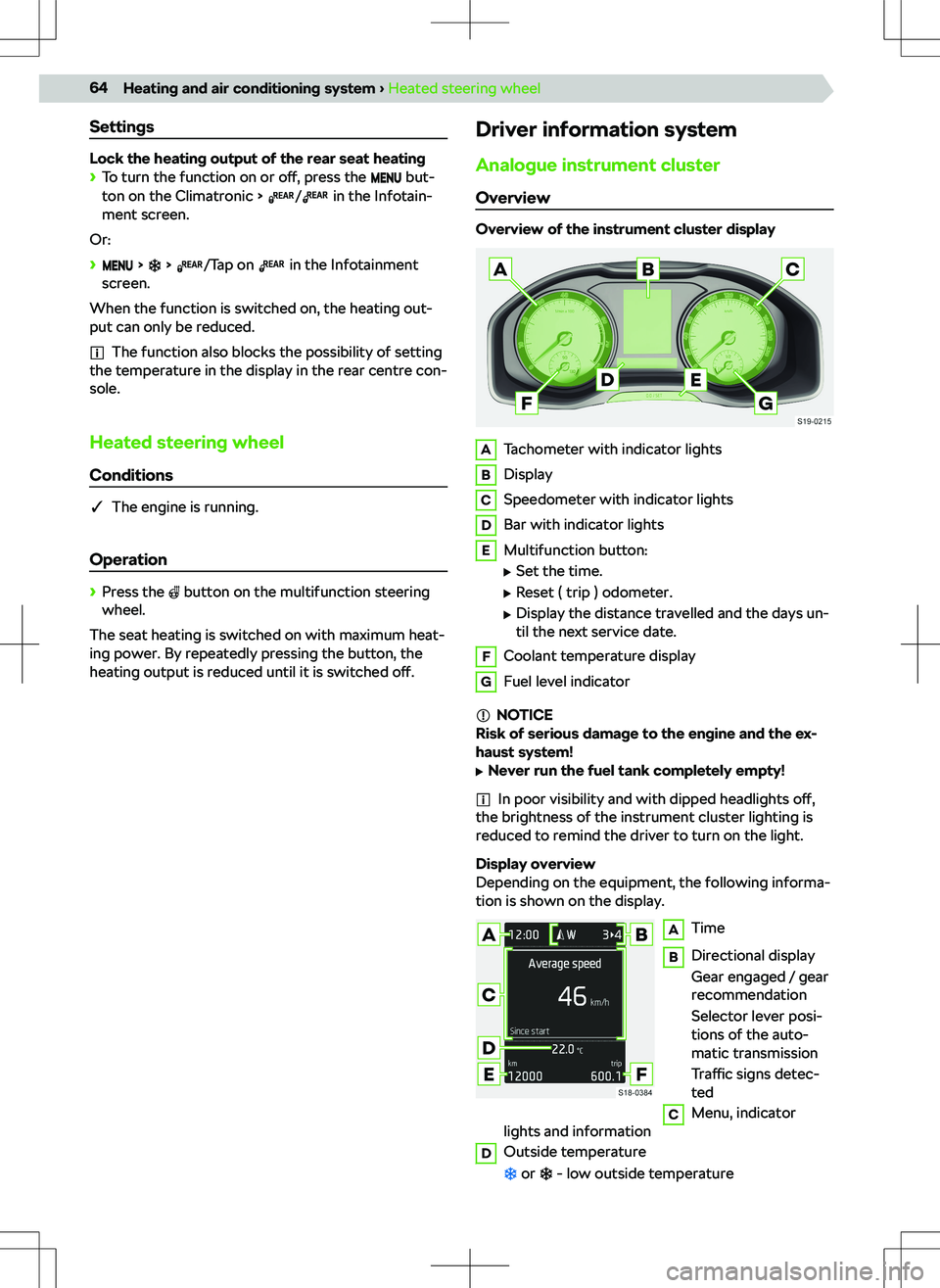

Settings
Lock the heating output of the rear seat heating
Page 85 of 256
MirrorLinkIt is not possible to operate the application while
drivingReturn to the SmartLink main menuList of running applicationsDisplay the last running application in the connec-
ted mobile deviceSettings
Connection conditions
General connection conditions
q The mobile device supports the following Smar-
tLink connection types: Android Auto. Apple Car- Play and MirrorLink.
q Mobile devices, as well as the type of Smar-
tLinkconnection, are supported in the respective market.
q Some connected mobile devices require the mo-
bile device to be “unlocked”.
Conditions for Android Auto
q The device to be connected must have Android
AutoSupport.
A list of devices, supported regions and applica-
tions that the Android Auto connection supports can be found on the websites of Google Inc..
q The Android Auto application needs to be instal-
led on the mobile device.
q Some applications require the data connection in
the mobile device to be turned on.
Conditions for Apple CarPlay
q The device to be connected must have Apple
CarPlaySupport.
A list of devices, supported regions and applica-
tions that the Apple CarPlay connection supports can be found on the websites of Apple Inc..
q Siri voice control is on.
q The data connection is switched on in the mobile
device.
Conditions for MirrorLink
q The device to be connected must have Mirror-
LinkSupport.
A list of devices and applications that the Mirror- Link connection supports can be found on the
websites of Car Connectivity Consorcium
Page 107 of 256
Connection conditions
General connection conditions
q The mobile device supports the following Smar-
tLink connection types: Android Auto. Apple Car- Play and MirrorLink.
q Mobile devices, as well as the type of Smar-
tLinkconnection, are supported in the respective market.
q Some connected mobile devices require the mo-
bile device to be “unlocked”.
Conditions for Android Auto
q The device to be connected must have Android
AutoSupport.
A list of devices, supported regions and applica-
tions that the Android Auto connection supports can be found on the websites of Google Inc..
q The Android Auto application needs to be instal-
led on the mobile device.
q Some applications require the data connection in
the mobile device to be turned on.
Conditions for Apple CarPlay
q The device to be connected must have Apple
CarPlaySupport.
A list of devices, supported regions and applica-
tions that the Apple CarPlay connection supports
can be found on the websites of Apple Inc..
q Siri voice control is on.
q The data connection is switched on in the mobile
device.
Conditions for MirrorLink
q The device to be connected must have Mirror-
LinkSupport.
A list of devices and applications that the Mirror- Link connection supports can be found on the
websites of Car Connectivity Consorcium
