Page 14 of 256
Warning lightsFunctionality
WARNING
Disregarding the lighting up of the warning lights and
the associated messages on the display of the instru-
ment cluster can lead to accidents, serious injuries or
damage to the vehicle.
The warning lights in the instrument cluster indicate
certain functions or faults.
The illumination of some of the indicator lights may
be accompanied by acoustic signals and messages in
the instrument cluster display.
Colour display of the indicator lights
Depending on the vehicle equipment, the colour
scheme of the indicator lights may vary. The coolant
indicator light can, e.g. be shown in colour as follows.
- colour display
- black and white display
Additional indicator lights
Depending on the meaning, the additional indicator
light will also light up in the display along with some
of the indicator lights.
- Hazard
- Warning
Warning lights overview
After switching on the ignition, some indicator lights
light up briefly as a function test of the vehicle sys-
tems. If the tested systems are in order, the respec-
tive indicator lights go out a few seconds after the
ignition is switched on or after the engine has been
started.
For further details
Page 28 of 256
Central locking
Functionality
Central locking system
The system unlocks and locks all doors, the fuel filler
flap and the luggage compartment flap at the same
time.
Unlock indicator: the flashing lights flash twice.
Lock indicator: the flashing lights flash once.
The warning light in the driver
Page 49 of 256
Holding eyes for instal-
ling the child seat using
the ISOFIX-System.
TOP TETHER
WARNING
Page 177 of 256
Brakes
What you should be mindful of
WARNING
Problems and faults with the brake system can ex-
tend the braking distance of the vehicle!
DANGER
Danger of a functional restriction of the brake boos-
ter!
Page 181 of 256
There was an unfounded warning or system inter-
vention
Page 183 of 256
Adaptive Cruise Control (ACC)Functionality
Control
ACC maintains the set speed. When your vehicle ap-
proaches the vehicle in front, ACC will automatically
start to maintain the set distance to this vehicle.
Maintaining the set speed and the distance will here-
inafter be referred to as Control.
WARNING
ACC does not respond to stationary objects or to
crossing or oncoming objects.
ACC is intended primarily for use on motorways.
Speed range
Depending on the equipment, ACC allows a speed
setting in the range of 30-160 or 30-210 km/h.
If control is started at a speed of less than 30 km/h
on vehicles with an automatic transmission, the
speed is automatically increased to 30 km/h or con-
trolled according to the speed of the vehicle ahead.
Distance level
The distance to the vehicle ahead can be adjusted to
five di
Page 187 of 256
The system warns of an approaching vehicle through
the warning light in the exterior mirror cover on
the side of the vehicle where the vehicle is recog-
nized.
Driving situations in which a system warning is
given
Your vehicle will be overtaken by vehicle
A.
The fast-
er the vehicle
A
approaches, the earlier the warning
light comes on.
Vehicle
B
is overtaken by your vehicle at a speed
that is faster by max. 10 km/h. If the speed is higher
during the overtaking process, no warning will be
provided by the indicator light.
Indicator light
illuminates - there is another vehicle behind your
vehicle
flashes - there is another vehicle behind your ve-
hicle, and the turn signal on the same side is switch-
ed on
For vehicles with Lane Assist The indicator light
flashes even if your vehicle crosses the boundary line
in the direction of the approaching vehicle. The sys-
tem will trigger a steering wheel vibration in this
case.
For this, Lane Assist must be activated and the boun-
dary line between the vehicles recognized.
Operating conditions
q The driving speed is higher than 15 km/h.
q No accessories are connected to the trailer sock-
et.
Function restriction
The system cannot detect lane width. For this rea-
son, it may, for example, draw attention to a vehicle
in a distant lane in the following cases.
Page 211 of 256
WARNING
Risk of accident!
Page 213 of 256
Lift the vehicle
WARNING
Always secure the jack
Page 215 of 256

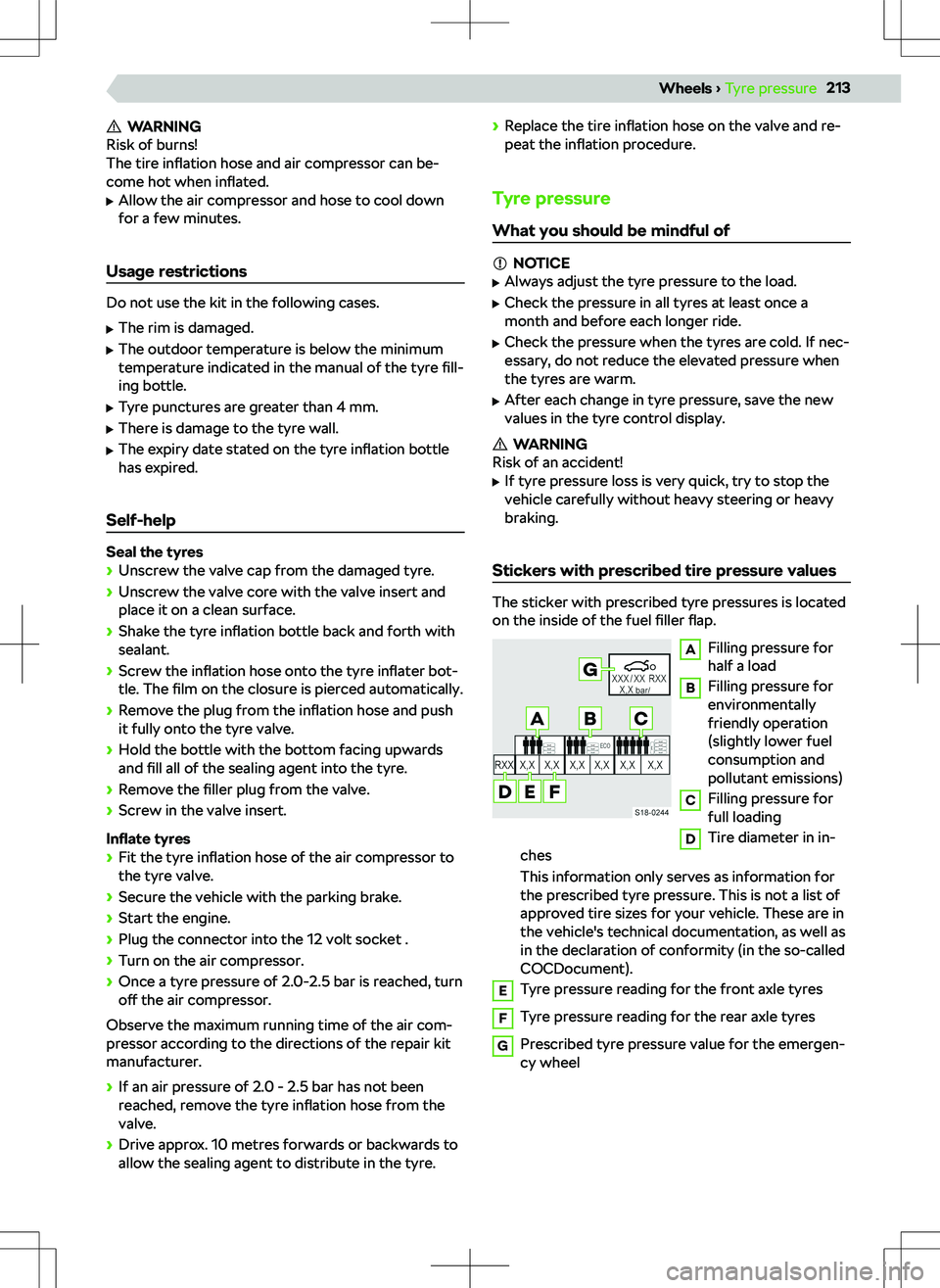

WARNING
Risk of burns!
The tire inflation hose and air compressor can be-
come hot when inflated.
