SKODA OCTAVIA 2005 1.G / (1U) Nexus Navigation System Manual

Navigation39
Announcement of navigation recommendations
Navigation recommendations are made as spoken
announcements and also in the display.
– Press the button Ÿ page 2, fig. 1 .
– Press if you want to hear the current navigation recom- mendation Ÿ.You will hear the first announcement after the route has been calculated.
Up to three announcements will be made before a turn has to be made to
ensure that you are informed in time. A proximity bar will be shown in the
display on the right-hand side of the turn arrow shortly before the last
announcement is made. The proximity bar shows how far away the
turning point is. The distance to the next change of direction will be shown
in the display after you have turned.
You will receive a recommendation for a lane on roads with more than one
lane that then separate off in different directions.
You will also be told which exit to use off a roundabout before you enter it,
e.g. that you should leave by the second exit. This announcement will then
be repeated when you are travelling round the roundabout.
An announcement will be made when you reach your destination. You will
be informed that you have reached your destination if it is on a digitalised
road. If it is not on a digitalised road, you will be informed that you have
reached the destination area. The latter may occur if you have entered the
destination using coordinates and it is not on a road.
WARNING
You, as the driver, must concentrate on the spoken announce-
ments and also on the traffic around you. The recommendations
made on the basis of the information on the CD may differ from
what you actually see due to incomplete data or a different road
layout (e.g. due to road works). Please keep to traffic regulations
and ignore the navigation recommendations if necessary.x
Traffic signs and legislation always have priority over the
recommendations made by the system.
Bra-0107
Fig. 47 Map display
Bra-0108
Fig. 48 Symbol display
MAP
A12
‡
sao.book Seite 39 Montag, 22. M‰ rz 2004 9:32 09

Navigation
40x
Please observe the important safety warnings Ÿpage 14,
“Safety”.Note
The direction arrow in the map display will be faded out if you are travelling
in the same direction for an extended period.
WARNING (continued)
sao.book Seite 40 Montag, 22. M‰ rz 2004 9:32 09

Information and system settings41
Information and system settingsInformationThe radio navigations system stores text and spoken
announcements made by the radio stations and draws up
a route list whilst the route guidance function is active.
– Press button Ÿpage 2, fig. 1 to enter the Info main
menu.Function keys in the Info main menu
The function keys TIM messages,Travel inform. ,Route list and TMC
stations are green if no further information is available.
– Plays back recorded traffic reports (Stop by pressing
Ÿ page 2, fig. 1 ).
The TIM messages are stored chronologically. The latest message is at
the top of the list. The selection bar will spring automatically to the next
message once the first message has been played. The system will return
to the main menu after the last message has been played and will then
reactivate the audio source that was being used. The oldest announce-
ment will be overwritten if the memory is full.
Route list
TMC stations
Travel inform.
Syst. settings System info
back with ESC
(3 TMC stations)
Set-up
Position displ.
TIM messages
(1 message)
(1 message)
Bra-0109
Fig. 49 Info main menu
Set-up
off
TIM time 1
TIM time 2
back with ESC
TIM standby offoff
Bra-0074
Fig. 50 Setting the TIM
time
INFO
A18
TIM messagesESC
A11
sao.book Seite 41 Montag, 22. M‰
rz 2004 9:32 09

Information and system settings
42
– Displays a list of receivable TMC stations. Select a station
whose traffic reports should be played if you happen to be listening to
another radio station. A different station will be chosen automatically if the
selected station can no longer be received.
– Displays a list of the latest traffic reports Ÿpage 35.
Ÿ page 42
– Displays the software version installed in the radio naviga-
tion system.
– Displays a list of the streets on the route to the destination.
Use the menu knob to page through the street lists that are on your navi-
gation route. Press if an entry is not fully displayed.
Ÿpage 37
x
TIM time 1 and TIM time 2 : Two different departure times can be
entered here, e.g. 7.00 a.m. and 5.30 p.m. The unit will start recording
traffic reports 1.5 hours before your departure. This means that you will
have up to date traffic information right from the start of your journey.
x
TIM standby – Traffic reports will be recorded for two hours after you
have switched off the unit.Note
The list of announcements cannot be opened whilst a traffic announce-
ment is being made, as it is also being recorded.
System settingsIn the system settings menu, you can select different
languages for the displays and spoken announcements,
and adjust the screen brightness.– In the Info main menu, press Ÿ page 41, fig. 49
to see which settings can be made. You can also call up the
system settings from the Radio main menu by pressing Ÿpage 6, fig. 4 or from the CD main menu
Ÿ page 10, fig. 9 .Function keys in the Settings menu
– Shows a list of available languages for display texts and
spoken announcements. Select a language by turning and pressing the
menu knob. You will see a display text in the chosen language. Do not
press any further keys until the loading sequence is finished.
TMC stationsTravel inform.Syst. settingsSystem InfoRoute list
±
Position displaySet-up
Language
Day / Night
back with ESC
Contrast night
Contrast day
manual
autom.Syst. settings
English
Time
Bra-0075
Fig. 51 System
settings
Syst. settings
Set-up
Language
sao.book Seite 42 Montag, 22. M‰ rz 2004 9:32 09

Information and system settings43
– You can set the screen brightness to be adjusted to suit the
light conditions when the headlights are switched on.
x
auto : The night display will automatically be selected when the head-
lights are switched on.
x
manual : Press Ÿpage 2, fig. 1 to switch between the day and
night displays.
and – Sets the screen settings for the day and
night display.
– The clock can be set here by turning and pushing the menu knob
if the time has not be taken over from the clock in the combi-instrument.
The data for the arrival time is oriented towards this time if the route guid-
ance function is active.Note
The language can only be changed if the navigation CD has been
inserted.Day / Night
r
A13
Contrast day
Contrast night
Time
sao.book Seite 43 Montag, 22. M‰ rz 2004 9:32 09

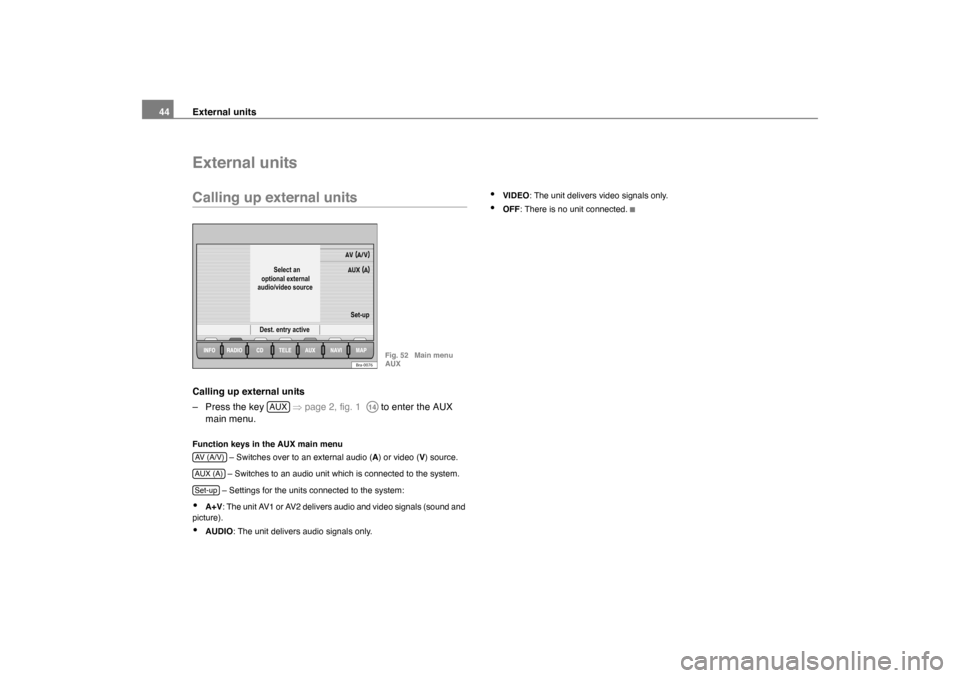

External units
44External unitsCalling up external unitsCalling up external units
– Press the key Ÿpage 2, fig. 1 to enter the AUX
main menu.Function keys in the AUX main menu
– Switches over to an external audio ( A) or video ( V) source.
– Switches to an audio unit which is connected to the system.
– Settings for the units connected to the system:x
A+V : The unit AV1 or AV2 delivers audio and video signals (sound and
picture).
x
AUDIO : The unit delivers audio signals only.
x
VIDEO: The unit delivers video signals only.
x
OFF: There is no unit connected.
audio/video sourceoptional external Select an
Set-up
Dest. entry active
Bra-0076
Fig. 52 Main menu
AUX
AUX
A14
AV ( A / V )AUX (A)Set-up
sao.book Seite 44 Montag, 22. M‰ rz 2004 9:32 09

Index45
Index
AAllocating the radio stations
Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
AM Medium wave . . . . . . . . . . . . . . . . . . . . . . . 7
Announcements . . . . . . . . . . . . . . . . . . . . . . 39
AS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Autozoom . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
AUX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
AV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44BBack/Forwards Radio station selection . . . . . . . . . . . . . . . . 8
Balance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Blocking stretches of the journey . . . . . . . . . 30CCD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Ejection . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Fast forward/reverse . . . . . . . . . . . . . . . . 10
Playing a CD from the CD changer . . . . . 11
Comfort Coding . . . . . . . . . . . . . . . . . . . . . . . . 5
Control elements . . . . . . . . . . . . . . . . . . . . . . . 2
Coordinates . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Crosshair . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
DDay/night display . . . . . . . . . . . . . . . . . . . . . . 42
Default settings . . . . . . . . . . . . . . . . . . . . . . . 13
Delete Destinations in the destination memory . . 26
Last destinations . . . . . . . . . . . . . . . . . . . 20
Letters, symbols, numbers . . . . . . . . . . . . 19
Demonstration . . . . . . . . . . . . . . . . . . . . . . . . 28
Destination . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Renaming . . . . . . . . . . . . . . . . . . . . . . . . . 24
Sorting . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Storing . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Destination entry . . . . . . . . . . . . . . . . . . . . . . 17 Destination memory . . . . . . . . . . . . . . . . . 20
Destination on the map . . . . . . . . . . . . . . 21
Intersection, centre . . . . . . . . . . . . . . . . . . 19
Last destinations . . . . . . . . . . . . . . . . . . . 19
Position destination . . . . . . . . . . . . . . . . . 22
Special destinations . . . . . . . . . . . . . . . . . 21
Town, street, house number . . . . . . . . . . 18
Destination memory . . . . . . . . . . . . . . . . . . . . 23EESC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
FFactory settings . . . . . . . . . . . . . . . . . . . . . . . 13
FM VHF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Function keys . . . . . . . . . . . . . . . . . . . . . . . . . . 3GGALA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12IINFO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Information . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Initial Autostore . . . . . . . . . . . . . . . . . . . . . . . . 7KKeys Quick reference guide . . . . . . . . . . . . . . . . 3LLanguage setting . . . . . . . . . . . . . . . . . . . . . . 42
Last destinations . . . . . . . . . . . . . . . . . . . . . . 19
Latitude . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
List of stations . . . . . . . . . . . . . . . . . . . . . . . . . 8
Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
sao.book Seite 45 Montag, 22. M‰ rz 2004 9:32 09

Index
46Longitude . . . . . . . . . . . . . . . . . . . . . . . . . . . 22MMain menu
AUX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
AV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Navigation . . . . . . . . . . . . . . . . . . . . . . . . 16
Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
MAP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Map Alignment . . . . . . . . . . . . . . . . . . . . . . . . 34
Map contents . . . . . . . . . . . . . . . . . . . . . . . . 36
Map display . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Display options . . . . . . . . . . . . . . . . . . . . 34
Map section . . . . . . . . . . . . . . . . . . . . . . . . . 35
Map type . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Menu knob . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Mix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Muting Navigation recommendations . . . . . . . . . 12
Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7NNavigation . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Navigation CD . . . . . . . . . . . . . . . . . . . . . . . . 15
Navigation recommendations . . . . . . . . . . . . 39
PParameters for route calculation . . . . . . . . . . 27
Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Position display . . . . . . . . . . . . . . . . . . . . . . . 37QQuick reference guide . . . . . . . . . . . . . . . . . . . 2RRadio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6Muting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Radio station selection . . . . . . . . . . . . . . . . 8, 9 From list . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
RDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Route guidance . . . . . . . . . . . . . . . . . . . . 29, 38
Route list . . . . . . . . . . . . . . . . . . . . . . . . . 36, 42
Route options . . . . . . . . . . . . . . . . . . . . . . . . 27SSafety code . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Scale . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Radio stations . . . . . . . . . . . . . . . . . . . . . . 6
Screen Darkened . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Setting the clock . . . . . . . . . . . . . . . . . . . . . . 42 Settings
Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Settings at time of delivery . . . . . . . . . . . . . . 13
Software version . . . . . . . . . . . . . . . . . . . . . . 42
Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Special characters . . . . . . . . . . . . . . . . . . . . . 19
Spoken announcements . . . . . . . . . . . . . . . . 41
Station keys . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Status bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Stopover destination . . . . . . . . . . . . . . . . . . . 17
Switching off . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Switching on . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Switch-on volume . . . . . . . . . . . . . . . . . . . . . 12
Symbol display . . . . . . . . . . . . . . . . . . . . . . . 33
System info . . . . . . . . . . . . . . . . . . . . . . . . . . 42
System settings . . . . . . . . . . . . . . . . . . . . . . . 42
TText reports . . . . . . . . . . . . . . . . . . . . . . . . . . 41
TIM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Time format . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Traffic Text announcements . . . . . . . . . . . . . . . . 35
Traffic information reports . . . . . . . . . . . . . . . . 7
Traffic jam function . . . . . . . . . . . . . . . . . . . . 30
Traffic reports Spoken announcements . . . . . . . . . . . . . 41
sao.book Seite 46 Montag, 22. M‰ rz 2004 9:32 09

Index47
UUnit card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5VVideo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12WWaveband
Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
sao.book Seite 47 Montag, 22. M‰ rz 2004 9:32 09

Škoda Auto is constantly working on the further development of all types
and models. Please understand that, for this reason, changes to the
scope of supply in terms of shape, equipment and engineering may be
introduced at any time. It is therefore not possible to derive any claims
from the information, illustrations and descriptions contained in this
Owner´s Manual.
Reprinting, reproduction, translation or any other use of this document, in
whole or in parts, is not permitted without the written consent of Škoda
Auto.Škoda Auto expressly reserves all rights in respect of copyright.
Subject to modification.
Published by ŠKODA AUTO a. s.
© ŠKODA AUTO a. s. 2004
For the sake of the environment
This paper was bleached without the use of chlorine.
sao.book Seite 3 Montag, 22. M‰
rz 2004 9:32 09
