SKODA OCTAVIA 2005 1.G / (1U) Owner's Manual

Automatic gearbox DSG
160
Dynamic shift programme
The automatic gearbox of your vehicle is controlled electronically. Shifting
up and down through the gears is performed automatically on the basis of
pre-defined driving programmes.
Adopting a moderate style of driving will cause the gearbox to select the
most economical driving programme. Shifting up into a higher gear as
soon as possible and shifting down as late as possible will have a favour-
able effect on your fuel consumption.
Adopting a sporty style of driving with rapid movements of the acceler-
ator pedal combined with sharp acceleration and frequent changes in
speed, exploiting the top speed of the car or depressing the accelerator
pedal (kickdown function), will cause the gearbox to switch over to this
style of driving and shift down earlier with frequent changes in gears in
comparison to the moderate style of driving.
Selecting the most appropriate driving programme for the particular style
of driving is a continuous process. Irrespective of this it is, however,
possible to switch or shift down into a dynamic shift programme by
depressing the accelerator rapidly. The gearbox shifts down into a lower
gear matching the speed of the car and this allows you to accelerate
rapidly (e.g. when overtaking) without having to depress the accelerator
pedal fully into the kickdown range. The original programme will be reac-
tivated to match your particular style of driving once the gearbox has
shifted up again.
When driving in hilly regions, the gears are selected to match uphill and
downhill sections. This avoids the gearbox frequently shifting up and down
when negotiating an uphill stretch. When driving downhill, it is possible to
shift down into the Tiptronic position, in order to exploit the engine brake
torque.
Tiptronic
The Tiptronic allows the driver to also shift gears manually.
Fig. 143 Selector
lever: Manual shifting
of gears
Fig. 144 Information
display: Manual
shifting of gears
s24s.book Page 160 Thursday, November 24, 2005 12:27 PM

Automatic gearbox DSG161
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Switching over to manual shifting
– Push the selector lever to the right out of position D. As soon
as the gearbox has switched over, 6 5 4 3 2 1 appears in the
display, with the gear engaged being highlighted ⇒page 160,
fig. 144.
Shifting up gears
– One-touch forward of the selector lever (in the Tiptronic posi- tion) ⇒page 160, fig. 143 .
Shifting down gears
– One-touch back of the selector lever (in the Tiptronic position) .
It is possible to switch over to manual both when the car is stationary and
also when driving.
When you accelerate, the gearbox shifts up automatically in gears 1, 2, 3,
4 and 5 into the next higher gear just before the maximum permissible
engine speed is reached.
If you select a lower gear, the automatic gearbox does not shift down until
there is no risk of the engine overrevving. (Does not apply for the shifting
from 2nd to 1st gear.)
If you operate the kickdown function, the gearbox shifts into a lower gear
in line with the vehicle speed and engine speed.
Emergency programme
An emergency programme exists in the event of a fault in
the system.
The gearbox operates in a corresponding emergency programme if there
are functional faults in the gearbox electronics. This is indicated by all of
the segments in the display lighting up or going out.
A functional fault can have the following effect:
•The gearbox only shifts into certain gears.
•The reverse gear R cannot be used.
•The manual shift programme (Tiptronic) is switched off in the emer-
gency mode.
If the gearbox has switched over to emergency mode, drive to the
nearest specialist garage in order to have the fault rectified.
A+
A-
s24s.book Page 161 Thursday, November 24, 2005 12:27 PM

Automatic gearbox DSG
162
Selector lever-emergency unlocking (DSG)
In case of interruption of the power supply (e.g. flat vehicle
battery, defective fuse) or defect of the selector lever lock, the
selector lever can no longer be shifted from the position P in the
normal way and the vehicle can no longer be moved. The
selector lever must be unlocked in case of emergency.
– Apply the handbrake firmly.
– Open the stowage compartment in front centre console* or the front ashtray.
– Carefully pull up the front left and right cover.
– Pull up rear cover.
– Press with a narrow object (e.g. ignition key) the yellow plastic hoop -arrow- to the left. – Simultaneously press the shiftlock button in the handle of the
selector lever in the position N
8).
Tow-starting and towing vehicle
Tow-starting a vehicle
It is not possible to tow-start vehicles fitted with automatic gearbox
⇒page 283.
you can use jump-start cables connected to the battery of another vehicle
for starting your car if the vehicle battery is flat ⇒page 281.
Towing a vehicle
Please pay attention to the following information if it comes necessary to
tow-in your car ⇒page 283.
Fig. 145 Selector
lever-emergency
unlocking
8)If the selector lever is moved again into the position P, it is once again blocked.
s24s.book Page 162 Thursday, November 24, 2005 12:27 PM

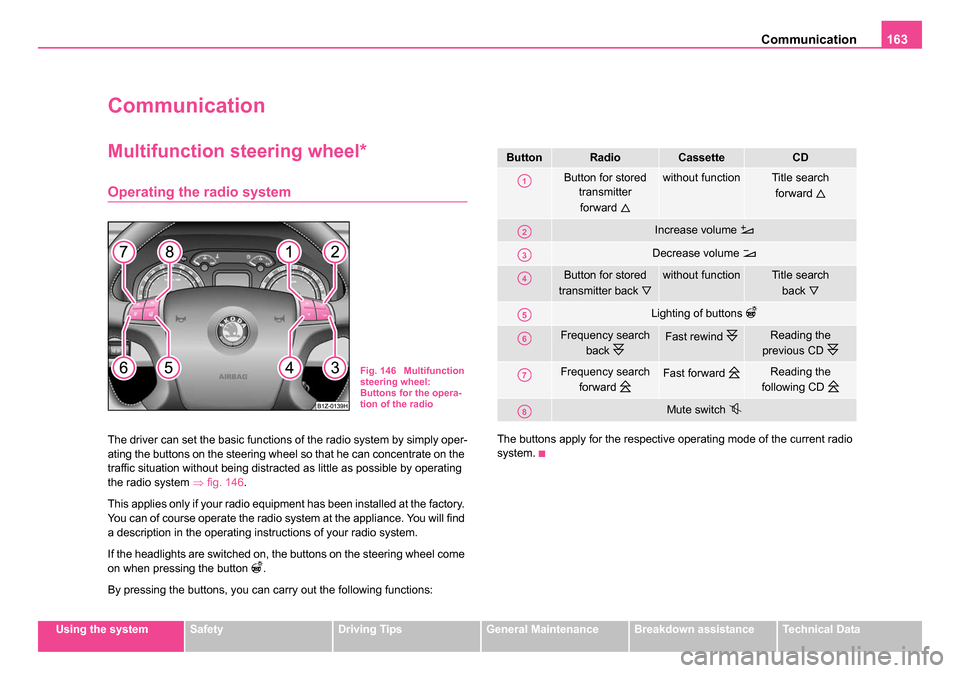

Communication163
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Communication
Multifunction steering wheel*
Operating the radio system
The driver can set the basic functions of the radio system by simply oper-
ating the buttons on the steering wheel so that he can concentrate on the
traffic situation without being distracted as little as possible by operating
the radio system ⇒fig. 146 .
This applies only if your radio equipment has been installed at the factory.
You can of course operate the radio system at the appliance. You will find
a description in the operating instructions of your radio system.
If the headlights are switched on, the buttons on the steering wheel come
on when pressing the button
.
By pressing the buttons, you can carry out the following functions: The buttons apply for the respective operating mode of the current radio
system.
Fig. 146 Multifunction
steering wheel:
Buttons for the opera-
tion of the radio
ButtonRadioCassetteCD
Button for stored
transmitter
forward

without functionTitle search forward

Increase volume 
Decrease volume 
Button for stored
transmitter back

without functionTitle search back

Lighting of buttons 
Frequency search back
Fast rewind Reading the
previous CD

Frequency search forward
Fast forward Reading the
following CD

Mute switch 
A1
A2
A3
A4
A5
A6
A7
A8
s24s.book Page 163 Thursday, November 24, 2005 12:27 PM

Communication
164
Radio and mobile phone operation
The driver can set the basic functions of the radio and mobile phone
system by simply operating the buttons on the steering wheel so that he
can concentrate on the traffic situation without being distracted as little as
possible by operating the radio and mobile phone system ⇒fig. 147 .
This applies only if your radio and mobile phone equipment has been
installed at the factory. You can of course operate the radio and mobile
system at the appliance. You will find a description in the operating
instructions of your radio system.
If the headlights are switched on, the buttons on the steering wheel come
on when pressing the button
.
By pressing the buttons, you can carry out the following functions:Fig. 147 Multifunction
steering wheel:
Buttons for the radio
and mobile phone
operation
ButtonRadioCassetteCDPhone
Button for stored
transmitter forward
without
functionTitle search
forward
without function
Increase volume 
Decrease volume 
Button for stored
transmitter back
without
functionTitle search
back
without function
Lighting of buttons 
without functionReject, end a call, reach one level higher in the menu 
Switching over between radio system and mobile phone Receive, accept a call, call up menu telephone, confirm menu selection

without functionActivation/deactivation button for voice control (button PTT)
A1
A2
A3
A4
A5
A6
A7
A8
s24s.book Page 164 Thursday, November 24, 2005 12:27 PM

Communication165
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
The buttons apply for the respective operating mode of the current radio
system.
Note
The operation of the mobile phone fitted with multifunction steering wheel
is only possible on certain models of mobile phone. More detailed infor-
mation is available from your Škoda dealer.
Universal telephone preinstallation with
voice control*
Description
The voice control is activated according to equipment installed on the
vehicle by pressing the button PTT (push to talk)  on the adapter
⇒
fig. 148 or the button
 on the multifunction steering wheel ⇒page 164,
fig. 147 .
A phone phonebook is part of the mobile phone preinstallation with voice
control. In the phone phonebook there are 50 free memory locations avail-
able. This phone phonebook is independent of the appliance used for the
mobile telephone.
For vehicles fitted with multifunction steering wheel, the operation is
performed via the function buttons on the steering wheel ⇒page 164.
Furthermore the volume can be changed individually at any time with the
button for setting the radio or on vehicles fitted with multifunction steering
wheel* with function buttons on the steering wheel.
If the system answers with the voice response “ Telephone is not ready”,
please check the operating state of the telephone as follows:
•Is the telephone switched on?
•Is the PIN code entered?
Dialogue
The period, in which the telephone system is ready to receive voice
commands and carry out the voice commands, is called DIALOGUE. The
system gives audible feedback and guides you if necessary through the
relevant functions. You can start or end the dialogue at any time by
pressing the PTT button. You can also end the dialogue with the voice
command CANCEL.
The dialogue is always automatically ended after carrying out an opera-
tion, e.g. after erasing the name from the phonebook.
The dialogue of the incoming call is immediately interrupted and you can
accept the call by pressing the button
.
If a voice command is not detected, the system answers with “ Pardon?”
and a new entry can be performed. After the 3rd error the answer
“ Cancel ” is given and the dialogue is ended.Fig. 148 Button for
switching on the voice
control
s24s.book Page 165 Thursday, November 24, 2005 12:27 PM

Communication
166
Optimum understanding of the voice commands depends on the
following factors:
•Speak with a normal tone of voice without intonation and excessive
voice pauses.
•Avoid insufficient articulation.
•Close the doors, windows and sliding roof, in order to reduce or stop
disturbing exterior noise.
•It is recommended to speak louder at higher speeds, so that the tone
of your voice is louder than the increased surrounding noise.
•During the dialogue avoid additional noise in the vehicle, e.g. simulta-
neously talking occupants.
•Do not speak, if the system makes an announcement.
•The hands-free microphone is directed to the driver position, therefore
the system should only be operated by the driver.
WARNING
Pay attention primarily to the traffic situation! As the driver you are
fully responsible for the traffic safety. Use the telephone system
only to such an extent, so that you are in full control of your vehicle
at any time.
Caution
Taking the mobile phone out of the adapter during the call can lead to
interruption of the connection. When taking out the mobile phone, the
connection to the factory-fitted antenna is interrupted, this reduces the
quality of the transmitting and receiving signal. This might result addition-
ally in harmful radiation from the mobile phone in the interior of the vehicle
and the charging of the telephone battery is interrupted.
Note
•Please also refer to the additional instructions ⇒page 175, “Mobile
phones and two-way radio systems”.
•Please contact your Škoda dealer If there are any points which are not
clear.
•The voice control of the telephone is only possible for adapters with
PTT button. Suitable adapters are available at your Škoda dealer.
Inserting the mobile phone and adapter
A telephone mount is factory-fitted. The mount is attached to the
centre console. The adapter “Cullmann” and the mobile phone is
supplied within the scope of delivery of the vehicle.
Fig. 149 Universal
preparation for the
mobile phone
s24s.book Page 166 Thursday, November 24, 2005 12:27 PM

Communication167
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Inserting the mobile phone and adapter
– First of all push the adapter in the direction of arrow
⇒page 166, fig. 149 up to the stop into the mount. Press the
adapter slightly downwards, until it locks securely into posi-
tion.
– Insert the mobile phone into the adapter (as specified in manufacturer's instructions).
Removing the mobile phone and adapter
– Press simultaneouly the side locks of the mount and remove the mobile phone and adapter ⇒page 166, fig. 149 .
This enables you to make full use of the advantages of a normal carphone
(“handsfree system” using a microphone integrated in the vehicle, optimal
transmission of signals using an external aerial etc.). The battery of the
mobile phone is also constantly charged.
Mobile phone operation
If you select the menu Phone in the information display and the phone is
not in the adapter, Insert phone is shown on the display.
After inserting the phone in the adapter, the system begins to load the
phone book from the phone into the information display. The following is
shown one after the other on the display: Please wait
Loading... last calls xxx
Loading... last calls xxx
Loading... missed calls xxx
Loading... phone book xxx
After the loading process has ended, the first three names out of the
phone book are shown.
Using the system
AA
AA
Fig. 150 Information
display: Controls
s24s.book Page 167 Thursday, November 24, 2005 12:27 PM

Communication
168
•You can scroll through the telephone memory for individual names or
menus by briefly pressing the rocker switch ⇒ page 167, fig. 150.
•You can scroll for letters alphabetically within the telephone memory
by pressing the rocker switch at the bottom for a lengthy period.
•You can always return to one level higher in the menu of the informa-
tion display by pressing the rocker switch at the top for a lengthy
period.
•The selected menu is displayed by briefly pressing the button .
Overview of the possible functions and read outs:
You can operate the mobile phone via the voice control ⇒page 165 or via
the buttons of the multifunction steering wheel ⇒page 164.
Voice commands
Voice commands for mobile phone operation
Voice commands for operating the phone phone book
ActivityRead out in display
Selected call
numberCalling... Name Number
accepted call
incoming call... Name
or
incoming call... Number
or
incoming call...
Accept
Refuse
Call termi-
natedTerminated
Number
engagedLine Busy
No service foundNo Service
Enter PIN
codeEnter PIN
AA
AA
AA
AB
Voice commandActivity
ENTER PIN/PIN CODEAfter this command the PIN code of the mobile
phone can be entered ⇒page 169.
DIAL NUMBERAfter this command a telephone number can
be entered which establishes a connection to
the requested partner ⇒page 170.
REDIALAfter this command the last selected telephone
number is selected again ⇒page 170.
Voice commandActivity
SAVE/STORE
NAME/NUMBERAfter this command a name with its telephone
number can be stored in the phone phone book
⇒ page 171.
SELECT
NAMES/NAMEAfter this command a telephone number which
was stored under its given name in the phone
phone book can be selected ⇒page 171.
DELETE
NAMES/NAMEAfter this command a name in the phone phone
book can be erased ⇒page 172.
LISTEN TO/PLAY
PHONEBOOKAfter this command you can listen-in to the
phone phone book ⇒page 172.
DELETE PHONE-
BOOKAfter this command the complete phone book
or a name can be erased ⇒page 172.
s24s.book Page 168 Thursday, November 24, 2005 12:27 PM

Communication169
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Other possible commands
Enter PIN code
A PIN code must be entered
before operating the system.
– Press the PTT button.
– Give the command ENTER PIN/PIN CODE after the signal
tone.
After this command the PIN code can be entered.
The entry of the PIN code is only possible if:
•The ignition and
•the mobile phone are switched on.
The digits zero to nine are permitted. The system detects no continuous
digit combinations such as twenty-three, but only individually spoken
digits (two, three). After each order of digits (separation through brief voice
pause) the detected digits are repeated.
Notes for entering the PIN code
•When entering a PIN code with more than 8 digits, the system indi-
cates “ The PIN is too long ”.
•When entering an incorrect PIN code, the system indicates “ The PIN
is incorrect ”.
•If the incorrect PIN code has been entered three times consecutively,
the card is blocked. With the aid of the personal unblocking code PUK
(Personal Unblock Key), the SIM card can be unblocked. The unblocking
code can only be entered via the phone keypad and not through the
voice control.
Example for entering the PIN code
Voice commandActivity
DIALThe telephone number is selected.
STOREThe name and the telephone number are
stored in the phone phonebook or the entered
PIN code is stored.
REPEAT
The entered name or the digits are repeated.
Then the system requests with voice response
“ please proceed ” the entry of further digits or
commands.
BACK
The entered name or the last entered order of
digits is erased. Previously entered groups of
digits are repeated. Then the system requests
with voice response “ please proceed” the entry
of further digits or commands.
DELETE
All entered digits are erased. Then the system
requests with voice response “ The number is
deleted. The number please ” the entry of fur-
ther digits or commands.
CANCELThe dialogue is ended.
Voice commandAnnouncement
ENTER PIN/PIN CODE“ The PIN please ”
e.g. ZERO ONE TWO THREE“Zero One Two Three ”
If no entry is put in, the following announcement is made after about 5
seconds.
“Possible commands are: store,
repeat, back, delete or more digits ”
STORE/SAVE“The PIN is saved ”
(end of dialogue)
s24s.book Page 169 Thursday, November 24, 2005 12:27 PM
