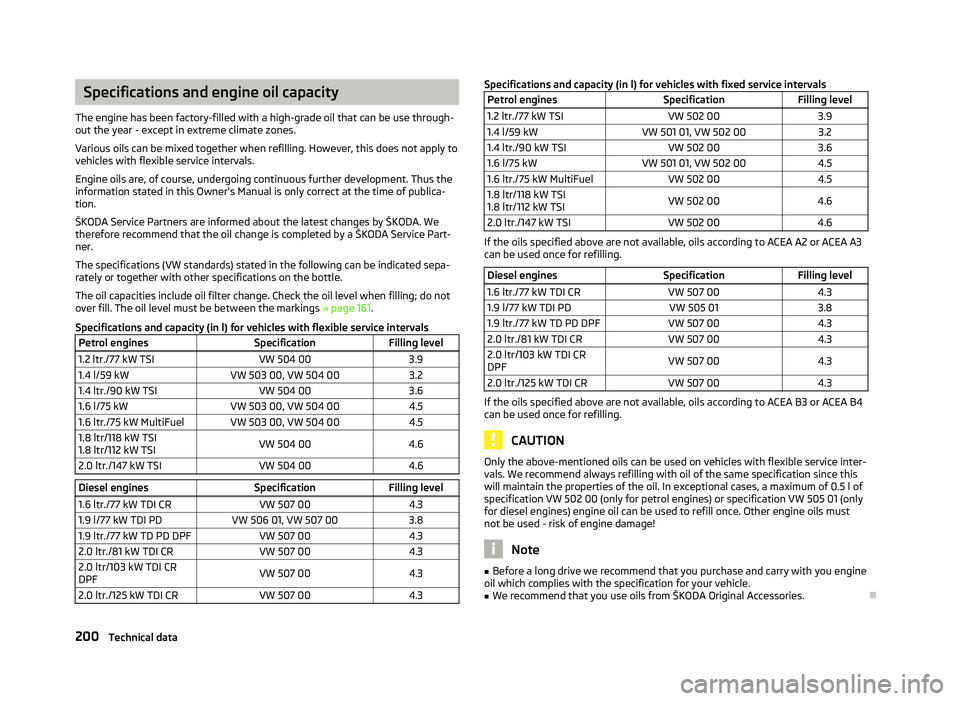

Specifications and engine oil capacity
The engine has been factory-filled with a high-grade oil that can be use through-
out the year - except in extreme climate zones.
Various oils can be mixed together when refilling. However, this does not apply to
vehicles with flexible service intervals.
Engine oils are, of course, undergoing continuous further development. Thus the
information stated in this Owner's Manual is only correct at the time of publica-
tion.
ŠKODA Service Partners are informed about the latest changes by
ŠKODA. We
therefore recommend that the oil change is completed by a ŠKODA Service Part-
ner.
The specifications (VW standards) stated in the following can be indicated sepa-
rately or together with other specifications on the bottle.
The oil capacities include oil filter change. Check the oil level when filling; do not
over fill. The oil level must be between the markings » page 161.
Specifications and capacity (in l) for vehicles with flexible service intervals Petrol engines SpecificationFilling level
1.2 ltr./77 kW TSI VW 504 003.9
1.4 l/59 kW VW 503 00, VW 504 00 3.2
1.4 ltr./90 kW TSI VW 504 003.6
1.6 l/75 kW VW 503 00, VW 504 00 4.5
1.6 ltr./75 kW MultiFuel VW 503 00, VW 504 00 4.5
1.8 ltr/118 kW TSI
1.8 ltr/112 kW TSI VW 504 00
4.6
2.0 ltr./147 kW TSI VW 504 004.6Diesel engines
SpecificationFilling level
1.6 ltr./77 kW TDI CR VW 507 004.3
1.9 l/77 kW TDI PD VW 506 01, VW 507 00 3.8
1.9 ltr./77 kW TD PD DPF VW 507 004.3
2.0 ltr./81 kW TDI CR VW 507 004.3
2.0 ltr/103 kW TDI CR
DPF VW 507 00
4.3
2.0 ltr./125 kW TDI CR VW 507 004.3 Specifications and capacity (in l) for vehicles with fixed service intervals
Petrol engines SpecificationFilling level
1.2 ltr./77 kW TSI VW 502 003.9
1.4 l/59 kW VW 501 01, VW 502 00 3.2
1.4 ltr./90 kW TSI VW 502 003.6
1.6 l/75 kW VW 501 01, VW 502 00 4.5
1.6 ltr./75 kW MultiFuel VW 502 004.5
1.8 ltr/118 kW TSI
1.8 ltr/112 kW TSI VW 502 00
4.6
2.0 ltr./147 kW TSI VW 502 004.6 If the oils specified above are not available, oils according to ACEA
A2 or ACEA A3
can be used once for refilling.
Diesel engines SpecificationFilling level
1.6 ltr./77 kW TDI CR VW 507 004.3
1.9 l/77 kW TDI PD VW 505 013.8
1.9 ltr./77 kW TD PD DPF VW 507 004.3
2.0 ltr./81 kW TDI CR VW 507 004.3
2.0 ltr/103 kW TDI CR
DPF VW 507 00
4.3
2.0 ltr./125 kW TDI CR VW 507 004.3 If the oils specified above are not available, oils according to ACEA
B3 or ACEA B4
can be used once for refilling. CAUTION
Only the above-mentioned oils can be used on vehicles with flexible service inter-
vals. We recommend always refilling with oil of the same specification since this
will maintain the properties of the oil. In exceptional cases, a maximum of 0.5

l of
specification VW 502 00 (only for petrol engines) or specification VW 505 01 (only
for diesel engines) engine oil can be used to refill once. Other engine oils must
not be used - risk of engine damage! Note
■ Before a long drive we recommend that you purchase and carry with you engine
oil which complies with the specification for your vehicle. ■ We recommend that you use oils from ŠKODA Original Accessories. Ð200
Technical data
