SKODA OCTAVIA 2009 2.G / (1Z) Blues Car Radio Manual
Manufacturer: SKODA, Model Year: 2009, Model line: OCTAVIA, Model: SKODA OCTAVIA 2009 2.G / (1Z)Pages: 14, PDF Size: 0.72 MB
Page 11 of 14

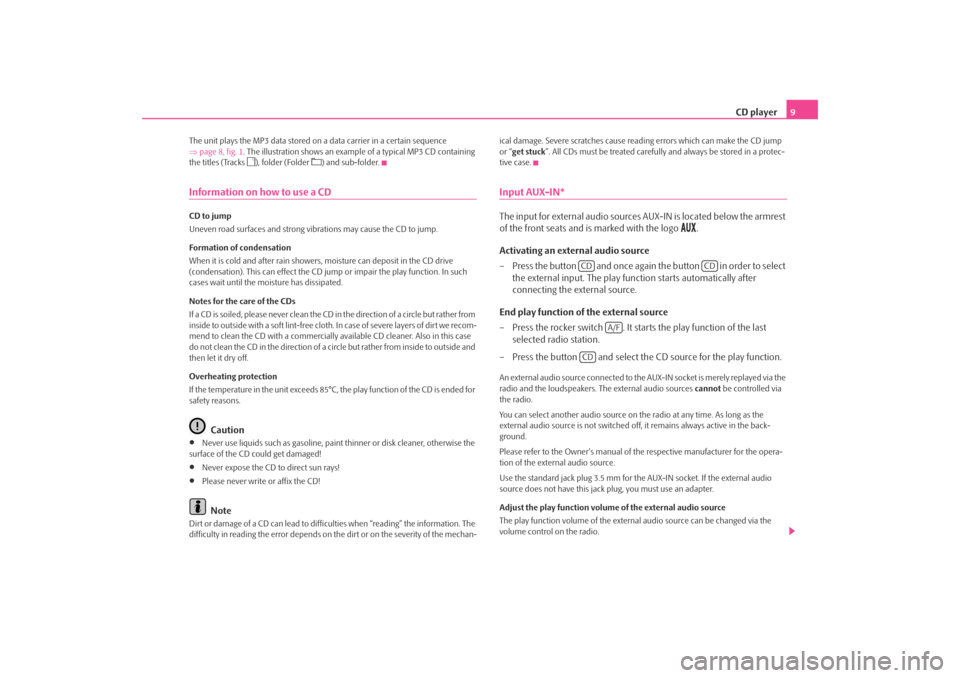

CD player
9
The unit plays the MP3 data stored on
a data carrier in a certain sequence
⇒ page 8, fig. 1
. The illustration shows an exampl
e of a typical MP3 CD containing
the titles (Tracks
), folder (Folder
) and sub-folder.
Information on how to use a CDCD to jump Uneven road surfaces and strong vibrations may cause the CD to jump. Formation of condensation When it is cold and after rain showers, moisture can deposit in the CD drive (condensation). This can effect the CD ju
mp or impair the play function. In such
cases wait until the moisture has dissipated. Notes for the care of the CDs If a CD is soiled, please never clean the CD
in the direction of a circle but rather from
inside to outside with a soft lint-free cloth. In case of severe layers of dir t we recom- mend to clean the CD with a commercially av
ailable CD cleaner. Also in this case
do not clean the CD in the direction of a circle but rather from inside to outside and then let it dry off. Overheating protection If the temperature in the unit exceeds 85°C, the play function of the CD is ended for safety reasons.
Caution
•
Never use liquids such as gasoline, paint thinner or disk cleaner, otherwise the
surface of the CD could get damaged!•
Never expose the CD to direct sun rays!
•
Please never write or affix the CD!Note
Dirt or damage of a CD can lead to diffic
ulties when “reading” the information. The
difficulty in reading the error depends on th
e dirt or on the severity of the mechan-
ical damage. Severe scratches cause reading errors which can make the CD jump or “
get stuck
”. All CDs must be treated carefully and always be stored in a protec-
tive case.Input AUX-IN*The input for external audio sources
AUX-IN is located below the armrest
of the front seats and is marked with the logo
.
Activating an external audio source – Press the button and once again the button in order to select
the external input. The play function starts automatically after connecting the external source.
End play function of the external source – Press the rocker switch . It starts the play function of the last
selected radio station.
– Press the button and select the CD source for the play function.An external audio source connected to the
AUX-IN socket is merely replayed via the
radio and the loudspeakers. The external audio sources
cannot
be controlled via
the radio. You can select another audio source on
the radio at any time. As long as the
external audio source is no
t switched off, it remains always active in the back-
ground. Please refer to the Owner's manual of the respective manufacturer for the opera- tion of the external audio source. Use the standard jack plug 3.5 mm for the AUX-IN socket. If the external audio source does not have this jack
plug, you must use an adapter.
Adjust the play function volume of the external audio source The play function volume of the external audio source can be changed via the volume control on the radio.
CD
CD
A/F
CD
s220.book Page 9 Tuesday, August 5, 2008 6:46 AM
Page 12 of 14

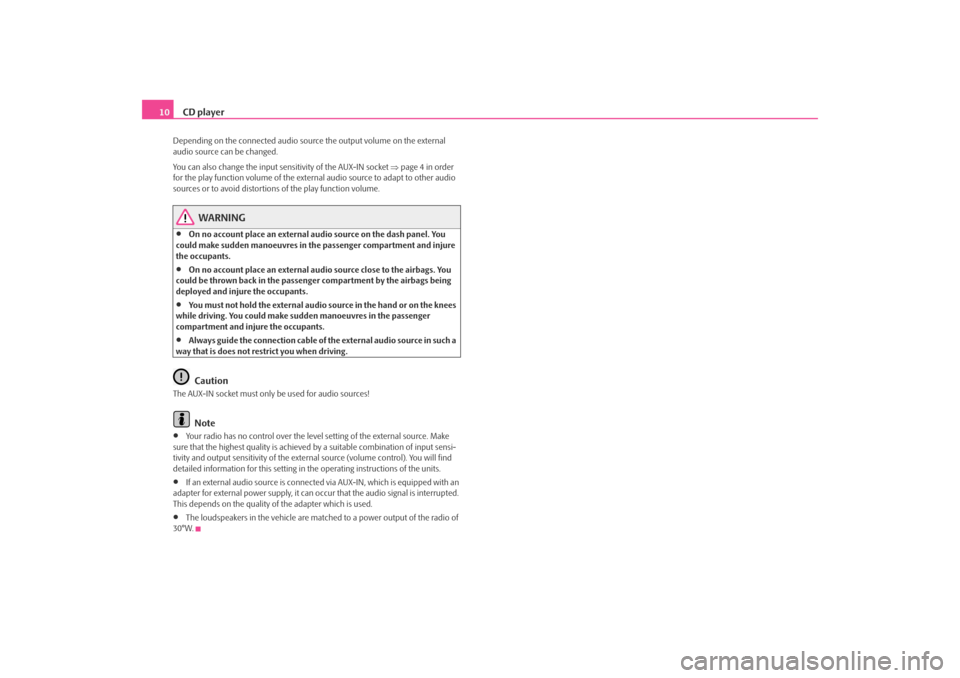

CD player
10
Depending on the connected audio source
the output volume on the external
audio source can be changed. You can also change the input sensitivity of the AUX-IN socket
⇒page 4 in order
for the play function volume of the extern
al audio source to adapt to other audio
sources or to avoid distortions of the play function volume.
WARNING
•
On no account place an external audio source on the dash panel. You
could make sudden manoeuvres in th
e passenger compartment and injure
the occupants.•
On no account place an external audio source close to the airbags. You
could be thrown back in the passen
ger compartment by the airbags being
deployed and injure the occupants.•
You must not hold the external audio source in the hand or on the knees
while driving. You could make su
dden manoeuvres in the passenger
compartment and injure the occupants.•
Always guide the connection cable of the external audio source in such a
way that is does not re
strict you when driving.
Caution
The AUX-IN socket must only be used for audio sources!
Note
•
Your radio has no control over the leve
l setting of the external source. Make
sure that the highest quality is achieved by a suitable combination of input sensi- tivity and output sensitivity of the extern
al source (volume control). You will find
detailed information for this setting in the operating instructions of the units.•
If an external audio source is connected
via AUX-IN, which is equipped with an
adapter for external power supply, it can occur that the audio signal is interrupted. This depends on the quality of the adapter which is used.•
The loudspeakers in the vehicle are matched to a power output of the radio of
30°W.s220.book Page 10 Tuesday, August 5, 2008 6:46 AM
Page 13 of 14

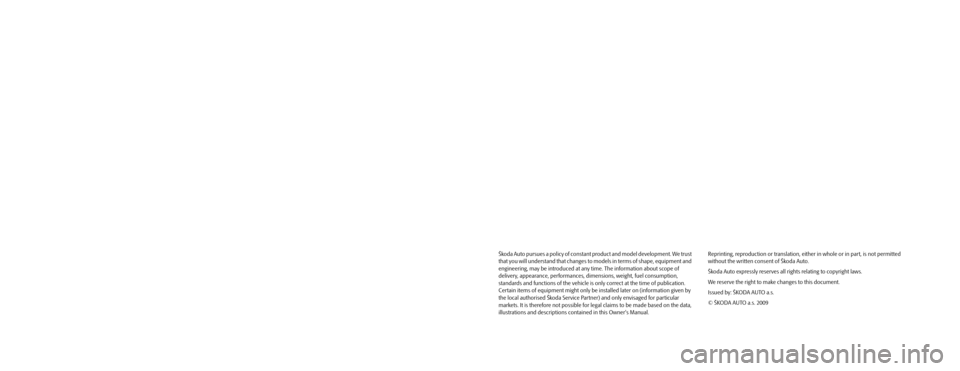

Škoda Auto pursues a policy of constant product and model development. We trust
that you will understand that changes to models in terms of shape, equipment and
engineering, may be introduced at any time. The information about scope of
delivery, appearance, performances, dimensions, weight, fuel consumption,
standards and functions of the vehicle is only correct at the time of publication.
Certain items of equipment might only be installed later on (information given by
the local authorised Škoda Service Partner) and only envisaged for particular
markets. It is therefore not possible for legal claims to be made based on the data,
illustrations and descriptions contained in this Owner's Manual.Reprinting, reproduction or translation, either in whole or in part, is not permitted
without the written consent of Škoda Auto.
Škoda Auto expressly reserves all rights relating to copyright laws.
We reserve the right to make changes to this document.
Issued by: ŠKODA AUTO a.s.
© ŠKODA AUTO a.s. 2009
Blues.indd 2Blues.indd 222.4.2009 14:01:3022.4.2009 14:01:30
