SKODA OCTAVIA 2009 2.G / (1Z) Owner's Manual

Communication
140
se0.1.book Page 140 Frida
y, April 10, 2009 3:19 PM

Communication
141
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Button
Action
Radio, traffic information
CD
The CD changer / MP3
Navigation

press briefly
Switch off/on tone

press button for a long period of time
switch off/on*
 turn upwards
Increase volume
 turn down- wards
Decrease volume
 press briefly
Changing to the next stored radio station Changing to the next stored traffic infor-
mation
Interrupting the traffic report
Changing to the next title

 press button for a long time
Interruption of the traffic report
fast forward

 press briefly
Changing to the previously stored radio
station
Changing to the previously stored traffic
information
Interrupting the traffic report
Changing to the previous title
 press button for a long time
Interruption of the traffic report
fast rewind

Changing the audio source
 press briefly
Calling up the main menu
 press button for a long timepress briefly
Interruption of the traffic report
without function
press button for a long period of time turn upwards
Display of the station list
scroll upwards
Interruption of the traffic reports
Changing to the previous title
without function
A1A1A1A1A2A2A3A3A4A5A5A6A6A6A6
se0.1.book Page 141 Frida
y, April 10, 2009 3:19 PM

Communication
142

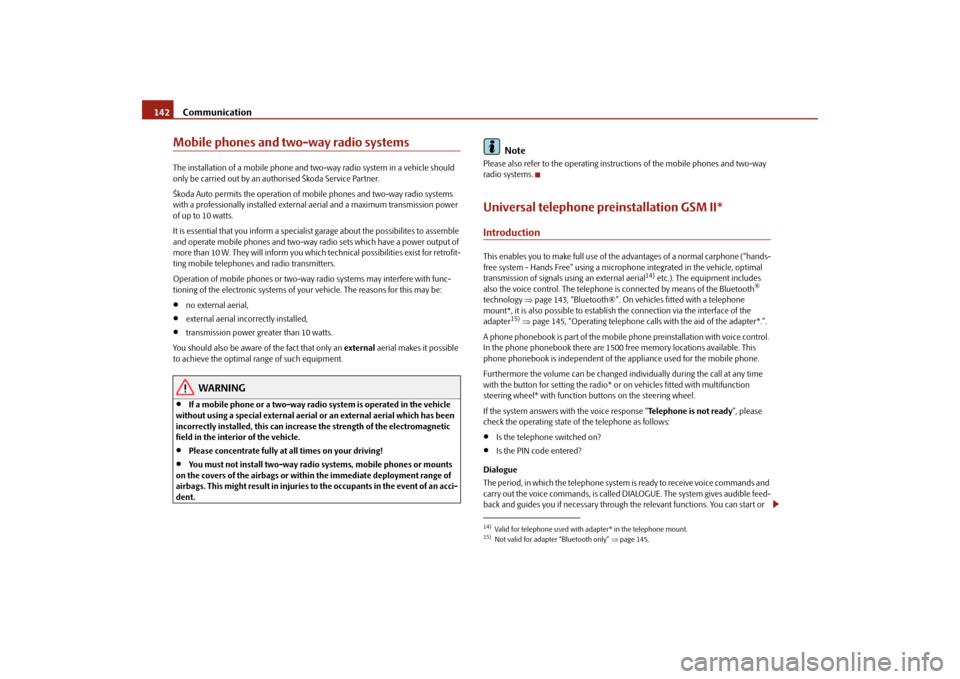

Mobile phones and two-way radio systemsThe installation of a mobile phone and two-way radio system in a vehicle should only be carried out by an authorised Škoda Service Partner. Škoda Auto permits the operation of mobile phones and two-way radio systems with a professionally installed external aerial and a maximum transmission power of up to 10 watts. It is essential that you inform a specialist garage about the possibilites to assemble and operate mobile phones and two-way radio sets which have a power output of more than 10 W. They will inform you which technical possibilities exist for retrofit- ting mobile telephones and radio transmitters. Operation of mobile phones or two-way radio systems may interfere with func- tioning of the electronic systems of your vehicle. The reasons for this may be:•
no external aerial,
•
external aerial incorrectly installed,
•
transmission power gr
eater than 10 watts.
You should also be aware of
the fact that only an
external
aerial makes it possible
to achieve the optimal range of such equipment.
WARNING
•
If a mobile phone or a two-way radio system is operated in the vehicle
without using a special external aerial
or an external aerial which has been
incorrectly installed, this can increase the strength of the electromagnetic field in the interior of the vehicle.•
Please concentrate fully at all times on your driving!
•
You must not install two-way radio systems, mobile phones or mounts
on the covers of the airbags or within the immediate deployment range of airbags. This might result in injuries to the occupants in the event of an acci- dent.
Note
Please also refer to the operating instru
ctions of the mobile phones and two-way
radio systems.Universal telephone preinstallation GSM II*IntroductionThis enables you to make full use of the
advantages of a norm
al carphone (“hands-
free system - Hands Free” using a micropho
ne integrated in the vehicle, optimal
transmission of signals using an external aerial
14) etc.). The equipment includes
also the voice control. The telephone is connected by means of the Bluetooth
®
technology
⇒page 143, “Bluetooth®”. On vehicl
es fitted with a telephone
mount*, it is also possible to establis
h the connection via the interface of the
adapter
15) ⇒page 145, “Operating telephone calls with the aid of the adapter*.”.
A phone phonebook is part of the mobile
phone preinstallation with voice control.
In the phone phonebook there are 1500 free
memory locations available. This
phone phonebook is independent of the appliance used for the mobile phone. Furthermore the volume can be changed indi
vidually during the call at any time
with the button for setting the radio* or
on vehicles fitted with multifunction
steering wheel* with function buttons on the steering wheel. If the system answers with the voice response “
Telephone is not ready
”, please
check the operating state of
the telephone as follows:
•
Is the telephone switched on?
•
Is the PIN code entered?
Dialogue The period, in which the telephone system is ready to receive voice commands and carry out the voice commands, is called DIALOGUE. The system gives audible feed-back and guides you if necessary through
the relevant functions. You can start or
14)Valid for telephone used with adapter* in the telephone mount.15)Not valid for adapter “Bluetooth only”
⇒page 145.
se0.1.book Page 142 Frida
y, April 10, 2009 3:19 PM

Communication
143
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
end the dialogue at any time by pres
sing the PTT button on the adapter*
⇒ page 145 or on the multifunction steering wheel*
⇒page 146.
The dialogue is always automatically ended after carrying out an operation, e.g. after erasing the name from the phonebook. When receiving an incoming call, the dialogue is immediately interrupted and you can accept the call by
pressing the button°
 on the multifunction steering wheel*
⇒ page 146 or by pressing the button for
receiving a call directly on your tele-
phone. If a voice command is not detected, the system answers with “
Sorry?
” and a new
entry can be performed. After the 2nd error
the system repeats the aid. After the 3rd
error the answer “
Cancel
” is given and the dialogue is ended.
Optimum understanding of the voice
commands depends on the following
factors:•
Speak with a normal tone of voice wi
thout intonation and excessive voice
pauses.•
Avoid insufficient articulation.
•
Close the doors, windows and sliding roof, in order to reduce or stop disturbing
exterior noise.•
It is recommended to speak louder at hi
gher speeds, so that the tone of your
voice is louder than the increased surrounding noise.•
During the dialogue avoid additional noise in the vehicle, e.g. simultaneously
talking occupants.•
Do not speak, if the system makes an announcement.
•
The microphone for voice control is directed to the driver and front passenger.
Therefore the driver and the front passenger can operate the equipment.
WARNING
Pay attention primarily to the traffic situation! As the driver you are fully responsible for road safety. Use the telephone system only to such an extent, so that you are in full control of your vehicle at any time.
Caution
Taking the mobile phone out of the adapter during the call can lead to interruption of the connection. When taking out th
e mobile phone, the connection to the
factory-fitted antenna is interrupted, this reduces the quality of the transmitting and receiving signal. The charging of the
mobile phone battery is also interrupted.
Note
•
Please also refer to the additional instructions
⇒page 142, “Mobile phones
and two-way radio systems”.•
Should you have any questions, please
contact an authorised Škoda Service
Par tner.Bluetooth
®
The Bluetooth
® technology serves as ca
bleless connection of a
mobile phone to a hands-free system of your vehicle.In order to connect a mobile phone with Bluetooth
® to the hands-free
system, it is necessary to adapt the phone and the hands-free system to each other. Detailed information on this is provided in the operating instructions of your mobile phone.
The following steps must be carried
out for the connection: – Switch on the ignition.– Select Bluetooth
® on the mobile phone and select the menu with
which the mobile phone searches for suitable Bluetooth
® devices.
– If the hands-free system on the display of the mobile phone
announces
Skoda UHV
, enter the PIN°
1234
within 30 seconds and
wait, until the connection is established.
16)
16)Some mobile phones have a menu, in which th
e authorization for establishing a Bluetooth
®
connection is performed via the input of a code. If the input for the authorization is neces- sary, it must always be performed when
re-establishing the Bluetooth connection.
se0.1.book Page 143 Frida
y, April 10, 2009 3:19 PM

Communication
144

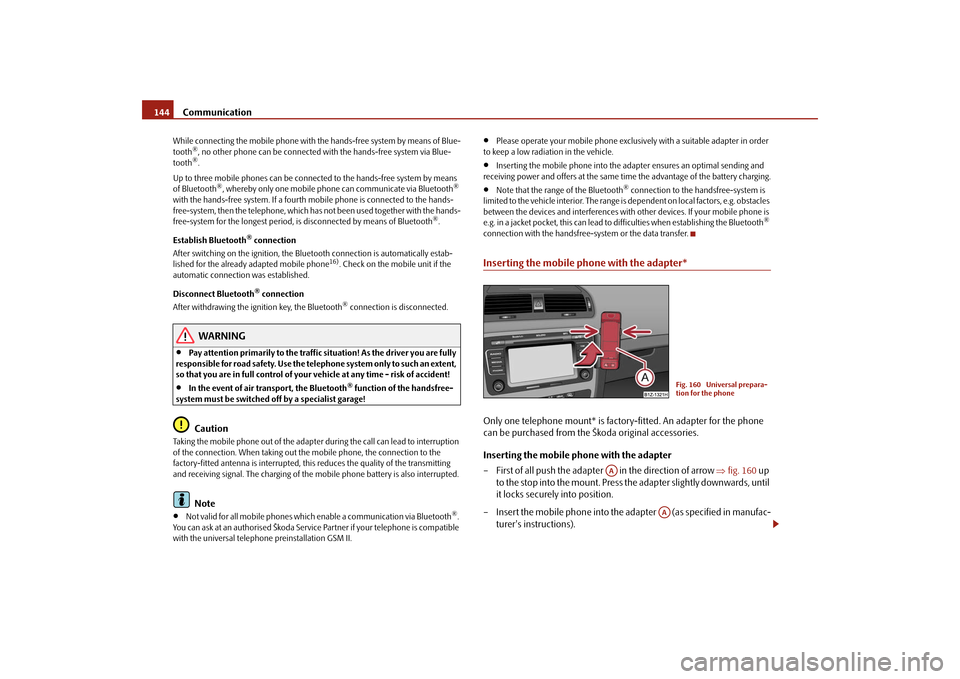

While connecting the mobile phone with the hands-free system by means of Blue- tooth
®, no other phone can be connected wi
th the hands-free system via Blue-
tooth
®.
Up to three mobile phones can be connect
ed to the hands-free system by means
of Bluetooth
®, whereby only one mobile phone can communicate via Bluetooth
®
with the hands-free system. If a fourth
mobile phone is connected to the hands-
free-system, then the telephone, which ha
s not been used together with the hands-
free-system for the longest period, is
disconnected by means of Bluetooth
®.
Establish Bluetooth
® connection
After switching on the ignition, the Blue
tooth connection is automatically estab-
lished for the already adapted mobile phone
16). Check on the mobile unit if the
automatic connection was established. Disconnect Bluetooth
® connection
After withdrawing the ignition key, the Bluetooth
® connection is disconnected.
WARNING
•
Pay attention primarily to the traffic situation! As the driver you are fully
responsible for road safety. Use the tele
phone system only to such an extent,
so that you are in full control of your vehicle at any time - risk of accident!•
In the event of air transport, the Bluetooth
® function of the handsfree-
system must be switched off by a specialist garage!
Caution
Taking the mobile phone out of the adapter
during the call can lead to interruption
of the connection. When taking out th
e mobile phone, the connection to the
factory-fitted antenna is interrupted, this reduces the quality of the transmitting and receiving signal. The charging of the
mobile phone battery is also interrupted.
Note
•
Not valid for all mobile phones which
enable a communication via Bluetooth
®.
You can ask at an authorised Škoda Service
Partner if your telephone is compatible
with the universal teleph
one preinstallation GSM II.
•
Please operate your mobile phone exclus
ively with a suitable adapter in order
to keep a low radiation in the vehicle.•
Inserting the mobile phone into the adapter ensures an optimal sending and
receiving power and offers at the same time the advantage of the battery charging.•
Note that the range of the Bluetooth
® connection to the handsfree-system is
limited to the vehicle interior. The range is dependent on local factors, e.g. obstacles between the devices and interferences with
other devices. If yo
ur mobile phone is
e.g. in a jacket pocket, this can lead to
difficulties when establishing the Bluetooth
®
connection with the handsfree-sy
stem or the data transfer.
Inserting the mobile phone with the adapter*Only one telephone mount* is factory-fitted. An adapter for the phone can be purchased from the Škoda original accessories. Inserting the mobile phone with the adapter – First of all push the adapter in the direction of arrow
⇒
fig. 160
up
to the stop into the mount. Press the adapter slightly downwards, until it locks securely into position.
– Insert the mobile phone into the adapter (as specified in manufac-
turer's instructions).
Fig. 160 Universal prepara- tion for the phone
AA
AA
se0.1.book Page 144 Frida
y, April 10, 2009 3:19 PM

Communication
145
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Removing the mobile phone with the adapter – Press simultaneouly the side l
ocks of the mount and remove the
mobile phone and adapter
⇒
page 144, fig. 160
.
Operating telephone calls with the aid of the adapter*.The voice control of the telephone is acti
vated by pressing the button PTT (button
push to talk)
 on the adapter
⇒fig. 161
or ⇒fig. 162
.
If you insert the adapter with the telephone in the telephone mount, the handsfree- system connects to the telephone by means of the interface of the adapter. If the
telephone is connected to the
handsfree-system via Bluetooth
®, this connection is
interrupted. Adapter “Bluetooth only” For the adapters which are marked with the “Bluetooth only” logo, the complete communication between the telephone and the handsfree-system of your vehicle is carried out only with the help of the Bluetooth
® technology. If an
adapter marked
in such a way is inserted in the telephone
mount, it only serves for recharging the
battery of the telephone and for transmit
ting the signal onto the outer vehicle
aerial. Aside from the button PTT, the button SOS can be found on certain adapters ⇒ fig. 162
. This button is without function.
Note
The adapters illustrated are only prime examples.
Fig. 161 Illustration image: Single-button adapterFig. 162 Illustration image: Two-button adapter
se0.1.book Page 145 Frida
y, April 10, 2009 3:19 PM

Communication
146
Operation of the telephone on the multifunction steering wheel*
The driver can set the basic functions of
the telephone by simply operating the
buttons located on the steering wheel so that he can concentrate on the traffic situ- ation without being distracted as little
as possible by operating the telephone
⇒ fig. 163
.
This applies only if your vehicle has be
en equipped with the telephone preinstalla-
tion at the factory. If the side lights are switched on, the bu
ttons on the multifunc
tion steering wheel
are illuminated. Overview of the different functions in contrast to the multifunction steering wheel without mobile phone operation
⇒page 139.
Fig. 163 Multifunction steering wheel: Control buttons for the telephone
Button
Action
Operation
press briefly
Activation and deactivation of the voice control°
(Button PTT - Push to talk)

 turn upwards
Increase volume

 turn downwards
Decrease volume

 press briefly
Accept call, terminate call, entry in the main
menu of the telephone, list of selected numbers

 press button for a long
time
Reject call, entry in the main menu of
the telephone, list of selected numbers

 press briefly
Reach one level higher in the menu (accordi
ng to the current position in the menu)

 press button for a long
time
Return in the main menu of the information display

press briefly
Confirm menu selection

press button for a long
period of time
Confirming the selected menu point, the fo
llowing initial letters in the telephone book

 turn upwards
The last chosen me
nu selection, name

 turn downwards
The next menu selection, name
A1A1A1A2A2A3A3A4A4A4A4
se0.1.book Page 146 Frida
y, April 10, 2009 3:19 PM

Communication
147
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
The buttons operate the functions for
the operating mode of the current
telephone.Operate the telephone via the information display* On vehicles which are factory-fitted with a navigation system* with voice control, it is only possible
to operate the voice control via the
navigation system*. The descript
ion on how to operate the voice
control can be found in the operatin
g instructions of your navigation
system*.If you select the menu point
Te l e p h o n e
on the information display with the aid of
the handwheel , you can chan
ge to the following menus:
„
Phone book
„
Last calls
„
Received calls
„
Missed calls
Phone book In the menu point
Phone book
is the list of the loaded contacts from the telephone
memory and the SIM card of the mobile
phone. In the phone phonebook there are
1500 free memory locations available.
Note
The display of texts in the menu
Te l e p h o n e
is only possible in German, English,
French, Italian, Spanish and Czech.
Voice commandsVoice commands for mobile phone operation Voice commands for operating the phone phone book
A4
Voice command
Activity
ENTER PIN/PIN CODE
After this command the PIN code of the mobile phone can be entered
⇒page 148.
DIAL NUMBER
After this command a telephone number can be entered which establishes a connection to the requested partner
⇒page 148.
REDIAL
After this command the last selected telephone number is selected again
⇒page 149.
Voice command
Activity
SAVE/STORE
NAMES/NAME/NUMBE
R
After this command a name with its telephone number can be stored in the phone phone book ⇒ page 149.
SELECT NAMES/NAME
After this command a telephone number which was stored under its given name in the phone phone book can be selected
⇒page 150.
DELETE NAMES/NAME
After this command a name in the phone phone book can be erased
⇒page 150.
LISTEN TO/PLAY PHONEBOOK
After this command you ca
n listen-in to the phone
phone book
⇒page 151.
DELETE PHONEBOOK
After this command the co
mplete phone book or a
name can be erased
⇒page 151.
se0.1.book Page 147 Frida
y, April 10, 2009 3:19 PM

Communication
148
Other possible commandsEnter PIN codeA PIN code must be entered before operating the system. – Press the PTT button.– Give the command
ENTER PIN/PIN CODE
after the signal tone.
After this command the PIN code can be entered. The entry of the PIN code is only possible if:•
the ignition is switched on,
•
the mobile phone is in the mount,
•
the mobile phone is switched on.
The digits
zero to nine
are permitted. The system
detects no continuous digit
combinations such as twenty-t
hree, but only individually spoken digits (two, three).
After each order of digits (separation through brief voice pause) the detected digits are repeated. Notes for entering the PIN code•
When entering a PIN code with more than 8 digits, the system indicates “
The
PIN is too long
”.
•
When entering an incorrect PIN code, the system indicates “
The PIN is incor-
rect
”.
•
If the incorrect PIN code has been entered three times consecutively, the card
is blocked. With the aid of the personal unblocking code PUK (Personal Unblock Key), the SIM card can be unblocked.
The unblocking code can only be entered
via the phone keypad and not through the voice control. Example for entering the PIN code You can interrupt the dialogue
at any time by pressing
the PTT button or with the
voice command
CANCEL
.
Dial number– Press the PTT button.
Voice command
Activity
DIAL
The telephone number is selected.
STORE
In addition to the name in the phone book, which is selected on the information display, a voice recording is stored to select with the help of the voice com- mands or the entered PIN code.
REPEAT
The entered name or the digits are repeated. Then the system requests with voice response “
please pro-
ceed
” the entry of further digits or commands.
BACK
The entered name or the last entered order of digits is erased. Previously entered groups of digits are repeated. Then the system requests with voice response “
please proceed
” the entry of further digits
or commands.
DELETE
All entered digits are erased. Then the system requests with voice response “
The number is
deleted. The number please
” the entry of further
digits or commands.
CANCEL
The dialogue is ended.
Voice command
Announcement
ENTER PIN/PIN CODE
“ The PIN please
”.
e.g.
ZERO ONE TWO THREE
“Zero One Two Three
”.
If no entry is put in, the following anno
uncement is made after about 5 seconds.“Possible commands are: store, repeat, correct, delete or more digits
”.
STORE
“The PIN is saved
”.
(end of dialogue)
se0.1.book Page 148 Frida
y, April 10, 2009 3:19 PM

Communication
149
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
– Give the command
DIAL NUMBER
after the signal tone.
After giving this command, the system requests the entry of a telephone number. The telephone number can be entered as an interconnected spoken row of digits (complete number), in the form of order of digits (separation through a brief voice pause) or through individually spoken digi
ts. After each order of digits (separation
through brief voice pause) the
detected digits are repeated.
The digits
zero to nine
are permitted. The system
detects no continuous digit
combinations such as twenty-three, but only individually spoken digits (two, three). If you enter more than 20 digi
ts, the system announces: “
The number is too long
”.
Additionally for international calls a
Plus (+)
has to be entered in front of the 20
digits. Example when entering a telephone number You can interrupt the dialogue at any time
by pressing the PTT button or with the
voice command
CANCEL
.
Repeat last call– Press the PTT button. – Give the command
REDIAL
after the signal tone.
After giving this command, th
e last number selected via voice input is selected
again. Example of redial You can interrupt the dialogue at any time
by pressing the PTT
button or with the
voice command
CANCEL
.
Phone voice phonebook*Store name– Press the PTT button. – Give the command
SAVE/STORE NAMES/NAME/NUMBER
after the
signal tone.
After giving this command, the system re
quests the entry of a name and a tele-
phone number which should be stored in the phone voice phonebook. In the phone voice phonebook up to 50 entries can be stored. The telephone number can be entered as an interconnected spoken row of digits (complete number), in the form of order of
digits (separation
through a brief voice
pause) or through individually
spoken digits. After each order of digits (separation
through brief voice pa
use) the detected digits are repeated.
The digits
zero to nine
are permitted. The system detects no continuous digit
combinations such as twenty-three, but only individually spoken digits (two, three). If you enter more than 20 digits, the system announces: “
The number is too long
”.
Additionally a
Plus (+)
has to be entered in front of the 20 digits.
The stored entry is shown on the information display* with an asterisk in front of the name. For similar names additional information (e.g. first names) should be stored.
Voice command
Announcement
DIAL NUMBER
“ The number please
”.
e.g.
ZERO SIX ZERO THREE
“Zero Six Zero Three
”.
If no entry is put in, the following anno
uncement is made af
ter about 5 seconds.
“Possible commands are: dial, repeat, correct, delete or more digits
”.
FIVE SEVEN TWO
“Five Seven Two
”.
DIAL
“The number is being dialed
”.
Voice command
Announcement
REDIAL
“The number is being dialed
”.
se0.1.book Page 149 Frida
y, April 10, 2009 3:19 PM
