Unlocking and locking
44
Child safety lockThe child safety lock prevents the
rear door from being opened from
the inside.The rear doors are equipped with a child safety lock. You can switch the child safety lock on and off using the vehicle key. Switching child safety lock on – Use the vehicle key to turn the slit in the rear door to the left in the
direction of the arrow
⇒
fig. 40
.
Switching child safety lock off – Use the vehicle key to turn the slit to the right against the direction of
the arrow.
So long as the child safety lo
ck is switched on it is no
t possible to open the door
from the inside with the door opening lever. In this case the door can be opened only from the outside.
Central locking systemDescriptionUnlocking or locking causes
all the doors and the fuel filler flap* to be unlocked or
locked at the same time by the central lockin
g system (as long as it is not set differ-
ently in the menu
Setup (settings)
- Convenience
information display*). The boot
lid is unlocked when opening. It can be op
ened by pressing the hand grip above the
licence plate
⇒page 48.
Operation of the central locking system is possible:•
from the outside using the vehicle key
⇒page 46,
•
using the button for the central locking system
⇒page 46,
•
by using the remote control
⇒page 50.
Indicator light in the driver's door on vehicles without anti-theft alarm system After the car is locked, the indicator light flashes after 2 seconds. After the car is locked with the deactivate
d safe securing system, the indicator light
flashes only after 30 seconds. Indicator light in the driver's door on vehicles with anti-theft alarm system After locking the vehicle the indicator light flashes for 2 seconds fast, then more slowly. If the vehicle is locked and the safe securing system
⇒page 45 is not operating, the
indicator light in the driver door flashes fo
r about 2 seconds fast, goes out and starts
to flash slowly after about 30 seconds. If the indicator light first of all flashes fast for about 2 seconds, afterwards lights up for about 30 seconds and then flashes slowly
, there is a fault in the system of the
central locking or the interior monitor*
⇒page 51. Visit a specialist garage to
obtain assistance. Convenience operation of windows One can open and close the electrically
powered windows when unlocking and
locking the vehicle
⇒page 54.
Fig. 40 Child safety locks on the rear doors
se0.1.book Page 44 Friday, April 10, 2009 3:19 PM

Unlocking and locking
46
Unlocking the vehicle using the key– Turn the key in the lock of the driver
's door in the direction of travel
(opening position)
⇒
fig. 41
.
– Pull on the door handle and open the door.•
All the doors (only the driver's door on vehicles with anti-theft alarm system)
and the fuel filler flap* are unlocked.•
The boot lid is then unlocked.
•
The switched on interior lights come on over the door contact.
•
The safe securing system is deactivated.
•
The windows are opened provided the key
is held
in the opening position*. On
vehicles fitted with anti-theft alarm system
the window operation is only possible
45 seconds after deactivation of the warning system.•
The indicator light in the driver's door stops flashing if the vehicle is not fitted
with an anti-theft alarm system*
⇒page 51.
Note
If the vehicle is equipped with an anti-t
heft alarm system*, you must unlock the
vehicle by inserting the key into the driver door you then have to insert the key into the ignition lock and switch the ignition
on within 15 seconds after opening the
door. The
alarm will be triggered
if you do
not switch on
the ignition within 15
seconds.Closing the vehicle with the key– Turn the key in the lock of the driver's door in the opposite direction of
travel (closing position)
⇒
fig. 41
.
•
The doors, the boot lid and the fuel filler flap* are locked.
•
The switched on interior lights wi
ll switch off over the door contact.
•
The windows and the electric sliding/tilting roof* are closed provided the key is
held
in the locking position.
•
The safe securing system is activated immediately.
•
The indicator light in the driver door begins flashing.Note
The opened driver door cannot be locked. It
must be locked separately after closing
it.Button for the central locking system
Fig. 41 Turning the key for unlocking and locking the vehicle
AA
AB
Fig. 42 Centre console: Buttons for central locking
se0.1.book Page 46 Friday, April 10, 2009 3:19 PM

Unlocking and locking
52
Switch off the interior monitor and towing protection monitoring – Switch off the ignition. – Open the driver door. – Press the button

at the centre column on the driver side
⇒
page 51, fig. 48
, the symbol

which lights up in the button
changes from red to orange.
– Lock the vehicle within 30 seconds.The interior monitor and the towing protec
tion monitoring are switched on again
automatically the next ti
me the car is locked.
Note
•
You can switch the interior monitor and th
e towing protection monitoring off if
there is a possibility that movements from (e.g. children or animals) inside the vehicle interior or if the vehicle must be transported (e.g. by train or ship) or towed, might trigger the alarm.•
The opened storage compartment for spectacles reduces the effectiveness of
the interior monitor. In order to ensure the function of the interior monitor to be fully operational, always close the stor
age compartment for spectacles before
locking the vehicle.
Power windows*Buttons on the driver's doorThe power windows operate only when ignition is switched on. Opening a window – A window is opened by pressing lightly on the respective button in the
door. The process stops when one releases the button.
– Additionally you can open the window automatically (fully opened) by
pressing the button up to the stop. Renewed pressing of the button causes the window to stop immediately.
Closing a window – A window is closed through pulling lightly on the respective button in
the door. The closing process stops when one releases the button.
– Additionally you can close the window automatically (fully closed) by
pulling the button up to the stop. Renewed pulling of the button causes the window to stop immediately.
The buttons for the individual windows are located in the armrest of the driver's door
⇒fig. 49
, front passenger door and in the rear doors*
⇒page 53.
Fig. 49 Buttons on the driver's door
se0.1.book Page 52 Friday, April 10, 2009 3:19 PM

Unlocking and locking
53
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Buttons for the power windows in the armrest for the driver Button for the power window in the driver's door Button for the power window in the front passenger's door Button for the power window in the rear door on the right* Button for the power window in the rear door on the left* Safety pushbutton* Safety pushbutton* You can deactivate the switches for power
windows at rear door
s by pressing the
safety pushbutton
⇒page 52, fig. 49
. The buttons for power windows at rear
doors are activated again by pressing the safety pushbutton again. If the buttons for the rear doors are deactivated, the indicator light
 in the safety
switch lights up.
WARNING
•
If you lock the vehicle from the outside, do not leave any person in the
vehicle since it is no long
er possible to open the windows from the inside in
an emergency.•
The system is fitted with a force limiter
⇒page 54. If there is an obstacle,
the closing process is stopped and the
window goes down by several centim-
eters. You should then take particular care when closing the windows! You may otherwise suffer severe injuries
as a result of getting an arm, for
example, jammed in the window!•
It is recommended to deactivate
the electrically operated power
windows in the rear doors (safety pushbutton)
⇒page 52, fig. 49
when
children are being transported on the rear seats.
Note
•
After switching the ignition off, it is still possible to open or close the windows
for a further 10 minutes. During this time the automatic closing and opening func-tions of the window will operate. The po
wer windows are switched off completely
once you open the driver or front passenger door.
•
When driving always use the existing he
ating, air conditioning and ventilation
system for ventilating the interior of the vehicle. If the windows are opened, dust as well as other dirt can get into the vehicle and in addition the wind noise is more at certain speeds.Button in front passenger door and in rear doorsA button for the relevant window is provided in these doors. Opening a window – Lightly press the appropriate switch
down
and hold it until the
window has moved into the desired position.
– Additionally you can open the window
automatically (fully opened) by
pressing the switch
down
up to the stop. Renewed pressing of the
button causes the window to stop immediately.
Closing a window – Lightly press the appropriate switch
up and hold it until the window
has moved into the desired position.
AAABACADAS
AS
AS
AS
AS
Fig. 50 Position of button in front passenger door
se0.1.book Page 53 Friday, April 10, 2009 3:19 PM

Lights and Visibility
58
Lights and VisibilityLightsSwitching lights on and off

Switching on side lights – Turn the light switch into position

.
Switching on the low beam and main beam – Turn the light switch into position

.
– Press the main beam lever forward in order to switch on the main
beam
⇒
page 64, fig. 60
.
Switching off lights (except daylight driving lights) – Turn the light switch into position°0.Low beam comes on only if the ignition is switched on. After switching off the igni- tion, the low beam is switched off automati
cally and only the side lights come on.
For vehicles which are equipped with
the function Comi
ng/Leaving-Home*
⇒ page 60, the side lights also go out.
On models fitted with
right-hand steering
the position of certain switches differs
from that shown in
⇒fig. 54
. The symbols which mark the switch positions are
identical, however.
WARNING
Never drive with side lights on - risk of accident! The side lights are not bright enough to light up the road sufficiently in front of you or to be seen by other oncoming traffic. In this case, always switch on the low beam when it is dark or if visibility is poor.
Note
•
An audible warning will sound if you withdraw the ignition key and open the
driver's door when the vehicle lights are still on.•
The acoustic warning signal is switched off over the door contact when the
driver's door is closed (ignition off). The
vehicle can be parked with the side lights
on.•
If the car is parked for a lengthy period
, we recommend switching off all lights,
or leaving only the parking lights switched on.•
The switching on of the described lights
should only be undertaken in accord-
ance with the legal requirements.•
If a fault occurs in the light switch, the low beam comes on automatically
•
In the event of cool or humid weather co
nditions, the headligh
ts can be misted
up from inside.
− The temperature difference between interior and external area of the head- light lenses is decisive. − When the driving lights are switched on, the light outlet surfaces are free from mist after a short period. The headli
ght lenses can possib
ly mist up at the
border areas. − It also concerns reverse light and turn signal lights. − This mist has no influence on th
e life of the lighting system.

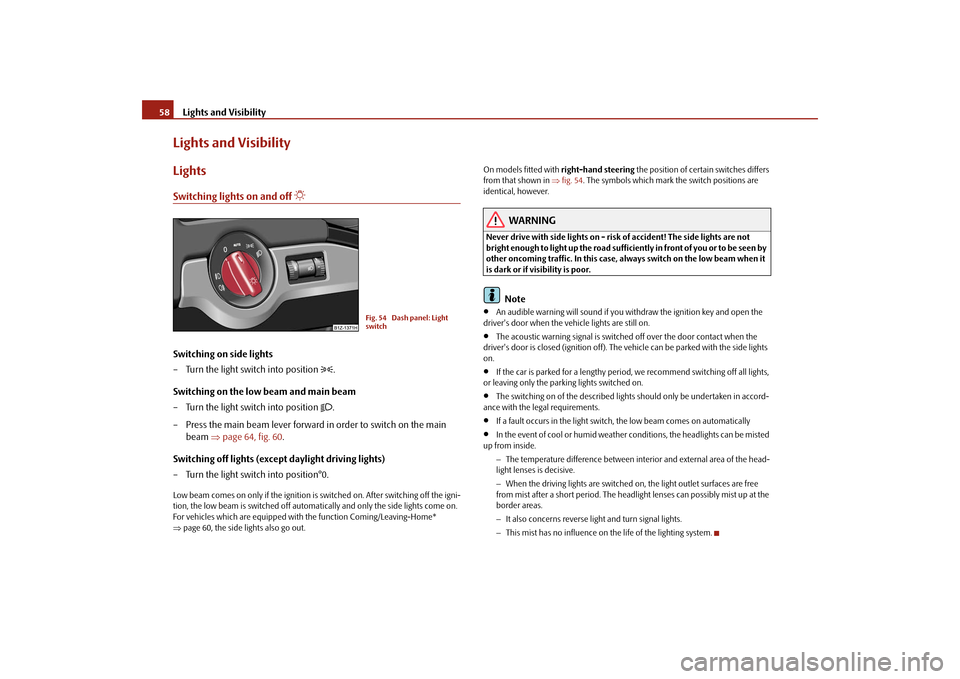

Fig. 54 Dash panel: Light switch
se0.1.book Page 58 Friday, April 10, 2009 3:19 PM

Lights and Visibility
61
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
The function Coming Home is controlled wi
th the light sensor in the mount of the
interior rear mirror. If the light intensity is higher than the set value of the light sensor, the Coming Home Function is not switched on after switching off the igni-tion.
Note
•
If the Coming Home Function is switch
ed on constantly, the battery will be
heavily discharged particular
ly in short-haul traffic.
•
The switching on of the described lights
should only be undertaken in accord-
ance with the legal requirements.•
You can change the illumination period
for the Coming Home Function by
means of the information display*.Leaving Home FunctionThis function makes it possible to switch on the lights when approaching the vehicle. Switching on Leaving Home Function – Unlock the vehicle with the radio remote control - the lights come on.Depending on equipment fitted the function Leaving Home switches on the following lights:•
Parking lights,
•
Low beam,
•
Entry lighting in the exterior mirrors,
•
Licence plate light.
Leaving Home Function The function Leaving Home is controlled wi
th the light sensor in the mount of the
interior rear mirror. If the light intensity is higher than the set value of the light sensor, the Leaving Home Function is not
switched on after unlocking the vehicle
with the radio remote control.
After unlocking the vehicle with the radio re
mote control, the lights come on for 10
seconds. The Leaving Home Function is also switched off after the ignition is switched on and after locking the vehicle. If no door is opened within 30 seconds,
the lights go out and the vehicle is locked
automatically.
Note
•
If the Leaving Home Function is switch
ed on constantly, the battery will be
heavily discharged particular
ly in short-haul traffic.
•
The switching on of the described lights
should only be und
ertaken in accord-
ance with the legal requirements.•
You can change the illumination period
for the Leaving Home Function by
means of the information display*.To u r i s t l i g h t *This mode makes it possible to drive in
countries with opposing traffic system,
driving on the left/right, without dazzling the oncoming vehicles. When the mode “tourist light” is active, the side to side swivel of the headlights is deactivated. The mode “tourist light” is activated / deac
tivated via the information display* in the
menu:„
SETUP (Settings)
„
Tra v e l m o d e„
Off
„
On
se0.1.book Page 61 Friday, April 10, 2009 3:19 PM

Lights and Visibility
65
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Headlight flasher

– Pull the lever towards the steering wheel (spring-tensioned position)
- the main beam and warning light

in the instrument cluster come
on.
Parking light

– Switch off the ignition. – Push the lever up or down - the ri
ght-hand or left-hand parking light
is switched on.
Information concerning the function of the lights.•
The
turn signal system
only operates when the ignition is switched on. The
corresponding indicator light
 or  in the instrument cluster also flashes.
•
The turn signal is automatically cancelled after negotiating a curve.
•
The indicator light flashes at twice its normal
ra te if a bulb of the turn s ignal lig ht
fails.•
The side light and rear light on the appropriate side of the vehicle are switched
on when the
parking light
is selected. The parking light only operates if the ignition
is switched off.
Caution
Use main beam or the headlight flasher only
if this does not risk dazzling other road
users.
Note
•
If you have switched on the right or left
turn signal light and you switch off the
ignition, the parking light is
not automatically switched on.
•
Use only in accordance with the legal
requirements the described lighting and
signal systems.
Interior lightingvehicle interior lighting front and rear*The same principles apply for the lighti
ng of the front and rear part of the
vehicle. Switching the interior light on – Press the switch to the left, the symbol

⇒
fig. 61
appears.
Switching the interior light off – Press the switch into the middle position
O.
– On the version without reading lights press the switch to the right,
the symbol
O appears.
Door contact setting – Press the switch to the right, the symbol

appears.
– On the version without reading lights press the switch into the
middle position

.
Fig. 61 Detail of the head- liner: Front and rear interior lighting
AAAA
AA
AA
AA
se0.1.book Page 65 Friday, April 10, 2009 3:19 PM

Lights and Visibility
66
Reading lights* – Press on one of the switches in order to switch the right or left
reading light on or off.
The interior light comes on as soon as you unlock the car or open a door or when the ignition key has been removed. The li
ght goes out again about 30 seconds after
all the doors have been closed. The interior
lighting is switched off when you lock
the car or switch the ignition on. This on
ly applies when the switch for the corre-
sponding interior lights is stan
ding n the door contact setting.
The interior lighting goes off after about
10 minutes when a door has been left open
in order to avoid discharging the battery of the vehicle. If the switch is in the position
 (permanent lights), the interior lighting goes off at
the latest after 10 minutes in order to avoid discharging the battery of the vehicle.
Note
We recommend having these bulbs re
placed by a specialist garage.
Lighting of the storage compartment on front passenger side*– When opening the flap of the st
orage compartment on the front
passenger side the lighting in the storage compartment comes on.
– The light switches on automatically
when the parking light is switched
on and goes out when the flap is closed.
Front door warning light*The warning light is located in the door trim panel below
⇒fig. 62
.
The warning light goes on every time the door is opened. The light goes out about 10 minutes after opening the d
oor in order to avoid discharging the battery of the
vehicle. There is a reflector installed on some vehicles instead of the warning light.Luggage compartment light*The lighting comes on automatically when
the boot lid is opened. The luggage
compartment lighting will switch off agai
n automatically if the boot lid remains
open for more than about 30 minutes.Entry lighting*The lighting is positioned on the bottom edge of the exterior mirror. The light beam is directed towards the entry area of the front door.The light comes on after the doors have been
locked or on opening the boot lid. The
light goes out after switching on the ignition
or up to 30 seconds after closing all the
doors, the bonnet and the boot lid.
AB
Fig. 62 Front door: Warning light
se0.1.book Page 66 Friday, April 10, 2009 3:19 PM

Lights and Visibility
72
•
Replace the wiper blades once or twice a year for safety reasons. These
can be bought from an authorised Škoda Service Partner.Replacing the wiper blade on
the rear window wiper
Taking off the wiper blade – Fold windscreen wiper arm out from the windscreen and position the
wiper blade at right angles to the wiper arm
⇒
fig. 70
.
– Hold the window wiper arm at the top end with one hand. – With the other hand unlock the locking button in the direction of
arrow and remove the wiper blade.
Attaching a wiper blade – Position the wiper blade onto the wiper arm and lock the locking
button .
– Check whether the wiper bl
ade is correctly attached.
The same remarks apply here as for
⇒page 71.
Rear-view mirrorManual dimming interior rear-view mirrorBasic setting – Pull the lever on the bottom edge of the mirror forward. Dimming mirror – Pull the lever on the bottom edge of the mirror back.Automatic dimming interior mirror*Switching on the automatic dimming– Press the button - the warning light lights up
⇒
fig. 71
.
Switching off the automatic dimming – Press again the button - the warning light goes out .If the automatic dimming is switched on, the mirror dims
automatically

depending on the light striking the mirror from the rear. The mirror has no lever on the bottom edge of the mirror. When the
interior lights are switched on or the
reverse gear is engaged, the mirror alwa
ys moves back into the basic position.
WARNING (continued)
Fig. 70 Wiper blade for rear windowAA
AA
Fig. 71 Automatic dimming interior mirror
AB
AA
AB
AA
se0.1.book Page 72 Friday, April 10, 2009 3:19 PM
