Range selector key PHONE
59
Call lists are always assigned to a user profile and are only displayed once the corre- sponding SIM card is connected agai
n with the mobile phone preparation.
Shortcut keysAt the time of the first connection with th
e SIM card of your mobile telephone all
shortcut keys have still not been assign
ed after the first call from the main menu
PHONE
.
Assigning free shortcut keys– If you press briefly on a non-assigned shortcut key the menu
Speed dial
will open
to enable a name and phone number to be entered.
– If you press the function key , an input mask will open to enable a name to
be assigned.
– If you press the function key a mask
will open to enable a number to be
assigned.
– Press the function key or to accept a call number for
these shortcut keys from
the correspo
nding list.
– Press the function key to erase all entries in all entry lines at once after confir-
mation with .
– If you have completed your entries in the Menu
Speed dial
, press the function key
.
– The entered name will be displayed in
the shortcut key of the main menu
PHONE
.
The call number entered will be assigned to a shortcut key.
Calling up a connection via the shortcut key–Briefly press an
assigned
shortcut key to establish th
e connection to the assigned
call number.
Modifying assigned shortcut keys– If the assignment of a shortcut key is
to be modified, keep
pressing the corre-
sponding shortcut key until the menu
Speed dial
has opened for modification.
The assignment of the shortcut keys remains stored in the unit and will only be displayed again when the corresponding SIM
card is connected again to the mobile
phone preparation program. Shortcut key The shortcut key has not yet been assigned a call number in the factory, as this depends upon the
corresponding mobile phone
company and country. The
name for this shortcut key has, however, been specified and cannot be changed. You should now store your mail box number so th
at you can quickly check your voice mail.
Editing field: further input possibilities - changes from upper case to lower case and vice versa. - opens the editing field for the entry of digits and special characters. The button
changes to . Press on , to change again to the letter editing field.
- space key for entering spaces. or - moves the cursor in the entry line to the left or right. - deletes characters in the entry line from
right to left, starting from the position of
the cursor.Phone conversationIf you have started the process of connecti
ng to a call number or accepted a call, the
main menu
PHONE
will change to the display
Phone conversation
.
Incoming phone call– An incoming phone call will be
displayed on the display by “
Incoming call
”
followed by the call number of the caller. If
the number of the caller is stored in the
telephone book, the name of the caller will be displayed instead of the call number.
– Press the function key to accept the call.– Press the function key to reject the call.
NameNumber
Call lists
Telephone book
<
OK
OK
Voice mailboxVoice mail box
: ;
A-Z
A-Z
‚
b
^
s32k.a.book Page 59 Friday, September 18, 2009 1:54 PM
Page 62 of 71
Range selector key PHONE
60 During a phone conversation– If you press the function key during
a phone conversation the current conver-
sation will be switched to “mute” (Display: “
Call being held
”). This means that the
connection remains intact while the audio transmission is interrupted.
– If you press the function key , agai
n the conversation can be continued.
– If you press the function key , during
a phone conversation, the connection to
the current call number will
be terminated and the unit
will change to the main
menu
PHONE
.
Carrying out an additional phone conversation– Press on the function key during a phone conversation to put the current
conversation on “hold” as described above.
– Select a new call number or
select a stored call number.
– If you are holding an additi
onal conversation, you can switch between both parties
(“alternate”).
“Call waiting” and changing be
tween two parties (Alternate)
– If you are called while holding a conversation, the number and the name of the
caller will appear below the current conver
sation on the touch-screen (Function:
“Call waiting”).
– Press on the function key in the line “
Incoming call
” to reject the second call.
– Press on the function key in the line “
Incoming call
” to accept the second call.
The connection to the first party will be
interrupted but not broken (Display: “
Call
being held
”).
– If you press the function key in the line “
Call being held
”, the conversation with
this party will continue and the other part
y will be “put on hold”. In this way you
can alternate between two parties.
– Press the function key , to break the co
nnection to the call
number displayed in
this line.
DTMF key tones A particular DTMF key tone is assigned to each each key of a phone. DTMF key tones are used, for example, for the input of a password via the phone or for choosing a colleague in a “Call center”. If a DTMF key tone has to be entered duri
ng a conversation, you
can open the keypad
field by pressing the function key at the bo
ttom left and follow the instructions (for
example: “For a private conversation with
one of our co-workers, please press ”).
You can store a longer DTMF key tone on your
mobile phone. If, during a conversation,
this DTMF key tone has to be entered, call
up the corresponding entry from the tele-
phone book as described. If you press in the input mask on the function key , the displayed character sequence in the entry line will be played as DTMF key tone sequence. Please note that in a DTMF key tone sequence the character “+” must not appear, as it interrupts the playing of a DTMF key tone.
^ ^
^
3
DTMF
s32k.a.book Page 60 Friday, September 18, 2009 1:54 PM
Page 63 of 71
Voice control of the radio navigation system
61
Voice control of the radio navigation systemGeneral informationIntroductionThanks to this equipment, you can operate
a few functions of your radio navigation
system via the microphone installed in the vehicle; a so-called “
Speak what you see
on the touch-screen
” system.
You can use the voice control in the operating modes
RADIO, MEDIA, PHONE, MAP
and NAV
.
You can change the volume any time during
the call with the control button of the
unit
⇒page 3.
Switch on voice control (dialogue)•
By briefly pressing the button on the unit.
Switching off voice control (dialogue)•
By pressing the button on the unit for at least 5 seconds.
•
By briefly pressing the button on the
unit, when the system is waiting to
pronounce a new command.•
By pressing one of the buttons which are located on the side of the touch-screen
of the unit or by touching the touch-screen
(if the button is not pressed in the
help display).•
By pronouncing the command “
Cancel
”.
•
If the system does not receive a command or does not recognise the command
while the dialogue is switched on, it answers with the question “
Pardon?
” and thus
makes it possible to pronounce a new co
mmand. If the system does not receive a
second voice command, you will be offered help
. If the system does not receive a third
voice command, you receive the message “
Cancel
” and the voice control switches off.
Optimum understanding of the commands depends on several factors:•
Speak with a normal tone of voice wi
thout intonation and excessive pauses.
•
Avoid a bad pronunciation.
•
Do not use any abbreviations - al
ways pronounce the full command.
•
Do not speak, if the system makes an announcement. As long as the system has not
finished the announcement, it will
not react to an additional command.
•
Close the doors, windows and sliding roof, in order to avoid disturbing influences
of the environment on the understanding of the commands.•
We re c o m m e n d t o s p e a k l o u d e r a t h i g h e r s p e e d s ; b u t w i t h a c a l m v o i c e , s o th a t t h e
increased surrounding noise does not drown out the command.•
During the dialogue limit additional noise in the vehicle, e.g. simultaneously talking
occupants.•
The microphone for voice control is directed
to the driver as well as to the front
passenger. Therefore the driver and the front passenger can operate the unit.DialogueThe period of time in which the system
is ready to receive voice commands and to
carry them out is call
ed a dialogue. The system reacts
with an audible feedback and
guides you through the individual functions. Selecting long and short dialogue The nature of the dialogue can be set by
pressing the button on the unit and by
pronouncing the command “
long dialogue
” or “
short dialogue
”.
The nature of the dialogue can also be
set manually in the operating mode
SETUP
-
- or .
If you select the short dialogue, the system shortens some messages or replaces them by an audible si
gnal (gong), thus the operation is accelerated.
If you select the long dialogue, the system
gives the whole message without shortening
it. The entered voice commands are the same for the long and short dialogue. Interrupt messages The message just given can be ended by br
iefly pressing the button on the unit.
Thus, it is possible to pronounce
an additional voic
e command sooner.
A1
Fa d e o u t
Voice control
Long dialogue
Short dialogue
s32k.a.book Page 61 Friday, September 18, 2009 1:54 PM
Page 64 of 71
Voice control of the radio navigation system
62Voice commandsThe voice control is only possible in the following languages:
Czech, English, German, French.
Due to the large number of possible voice
commands, we give here only a few exam-
ples. Therefore, please observe the system guidelines when entering voice commands. The system only recognises 30 000 entries (i.e, it will only recognise 30 000 of the largest cities for the selected country
, for example, in the operating mode
NAV
. If the
desired city is not included
in the 30 000 entries, it cannot be pronounced normally,
but it must be entered by spelling it out. Call up the general information for the voic
e control by briefly pressing the button
on the unit and by pronouncing the command “
Instructions
”. Then you hear a
message that the instructions are divided into seven parts. If you want more detailed information about individual parts of th
e instructions, pronounce for example the
command “
Tutorial part 2
”.
Call up the general help for individual oper
ating modes by briefl
y pressing the button
on the unit and by pronouncing the command “
Help Quick Commands
”.
Changing between the operating modes If you wish to change between the operating modes after switching on the voice control, always pronounce the name of th
e operating mode in which you wish to
change. This means, if you are in the operating mode
RADIO
and you wish to change
into the operating mode
MEDIA
pronounce the command “
Media
”. Always
pronounce the names of the operating modes
PHONE, MAP, NAV
as “
Telephone,
map, navigation
”.
Voice command “Help” Help can be called up by pronouncing the command “
Help
”. Depending on the oper-
ating mode in which you are, the help given wi
ll offer different possibilities. If the possi-
bilities offered are not sufficient, pronounce the command “
further options
”.
If you pronounce the command “
Help
”, you can hear a mess
age on how the command
should be correctly pronounced (e.g. “
auto Zoom
”).
Help display If you want the help to be displayed on the touch-screen of the unit, you must only activate it (then deactive it) manually in the operating modes
SETUP
, and
.
The help display can be set separately for
each operating mode in the system (this
means, if you only set the help display for the operating mode
MAP
, it is only displayed
in this operating mode). The help display includes so-called global and local commands. The range of these commands is indicated in
the pop-up window
Possible commands are
:
•
Global commands - commands which can al
so be used for another operating
mode than the one you are currently in, this means if you are in the operating mode RADIO
and you pronounce the command “
New dest.
”, the system changes over into
the operating mode
NAV
,
•
Local commands - commands which can only be used in the operating mode in
which you are currently in and are always shown in brackets. If you do not wish the help display to be
shown when the dialogue is switched on,
pronounce the command “
Block out
” while you are in the help display or press the
function key . The help display is show
n again after repeatedly switching on
the dialogue. Voice recording In the operating modes
PHONE
, NAV
and
RADIO
a short voice recording can be set up;
after pronouncing the recorded term the de
sired command is carried out (e.g. in the
operating mode
PHONE
, a voice recording can be set up besides a telephone contact
and after pronouncing it the system carries out the selection procedure.Further voice commandsIf you wish to scroll through the lists in the operating modes
MEDIA, PHONE, NAV,
RADIO
(e.g. in the operating mode
RADIO
in the list of the radio station), you must
pronounce the command “
next page
” or “
previous page
”.
If you are in a list in which the details are shown (e.g. in the operating modes
NAV
,
, ), pronounce the command “
Options for entry
” and then
select a number by pronouncing the command “
Options for entry 3
” or “
Details for
entry 3
”.
Voice control
Visual help
Fa d e o u t
New dest.
Last destinations
s32k.a.book Page 62 Friday, September 18, 2009 1:54 PM
Page 65 of 71
Voice control of the radio navigation system
63
Certain voice commands in the operating mode RADIO If you pronounce the command “
Read station list
”, the system reads the list of the
radio stations. The desired selected radio stat
ion can be selected by
briefly pressing the
button on the unit during the message, then the system offers selection possibili- ties for the selected entry. If you directly pronounce a station name,
the system switches over to the desired
station. Examples for voice commands in order to op
erate buttons on the touch-screen of the
unit:•
“ next station
”
•
“previous station
”
Certain voice commands in
the operating mode MEDIA
Examples for voice commands in order to op
erate buttons on the touch-screen of the
unit or examples for voice commands fo
r which no help display is indicated:
•
“Back
” - return one step back and end the dialogue (function key can also
occur in other operating modes),•
“ Up” ,
•
“Next title
” ,
•
“Previous title
” ,
•
“Pause
” ,
•
“Play
” ,
•
“Bluetooth audio
” .
Certain voice commands in the operating mode PHONE The digits
zero to nine
are permitted. The system does
not detect any digit combina-
tions such as twenty-three You can enter the telephone number as a contin
uous row, as individually spoken digits
(the whole number at once) or in the form of
digital blocks (separated by short pauses).
After each digital block (separated by a sh
ort pause) the system repeats the detected
digits. Before entering the digits, you ca
n enter additionally a symbol “
Plus (+)
” for interna-
tional calls.
If you pronounce the command “
Read phone book
”, the system reads out the tele-
phone book. The desired telephone contact can be selected by briefly pressing the button on the unit during the message,
then the system offers selection possibili-
ties for the selected entry. Certain voice commands in the operating mode MAP Examples for voice commands in order to operate buttons on the touch-screen of the unit or examples for voice commands fo
r which no help display is indicated:
•
“Direction of travel
” 9 and “
North
” - changes the orientation of the map,
•
“Move map
” - moves the map, then pronounce the command “
to the left
”, “to the
right
”, “up”, “down
”,
•
“Position map
” or “
Reset view
” - if the display of the current position
9 on the
map has moved with the complete map from th
e centred position to both sides, to the
top or to the bottom, the map is again centred.•
“ Orientation zoom
”, “Rocket zoom
” - briefly switches the map display to the
overview display (small scale). It returns again to the last display (large scale) after a few seconds,•
“ Zoom in
” or “
zoom out
” - enlarges or reduces the map scale.
•
“Show info
” - shows info (e.g GPS coordinates) of the entry which was displayed
in the map.•
“ Save
” - if you wish to save for example the selected route in the operating
mode
NAV
.
Certain voice commands in the operating mode NAV If you pronounce the name of the desired ci
ty and the system is not sure about the
entry made or the name of the city is identical
to other cities, it offers a list of cites with
the utmost probability. You can scroll through the commands “
next page
” or
“ previous page
” in the list, then chose the desired city by pronouncing the command
e.g. “
Number 1
” or “
1”.
While in the operating mode
NAV
, the system does not allow you to enter post codes.
„
ƒ
y
y
F
L
M
N b
/
+
-
º
,
s32k.a.book Page 63 Friday, September 18, 2009 1:54 PM
Page 66 of 71

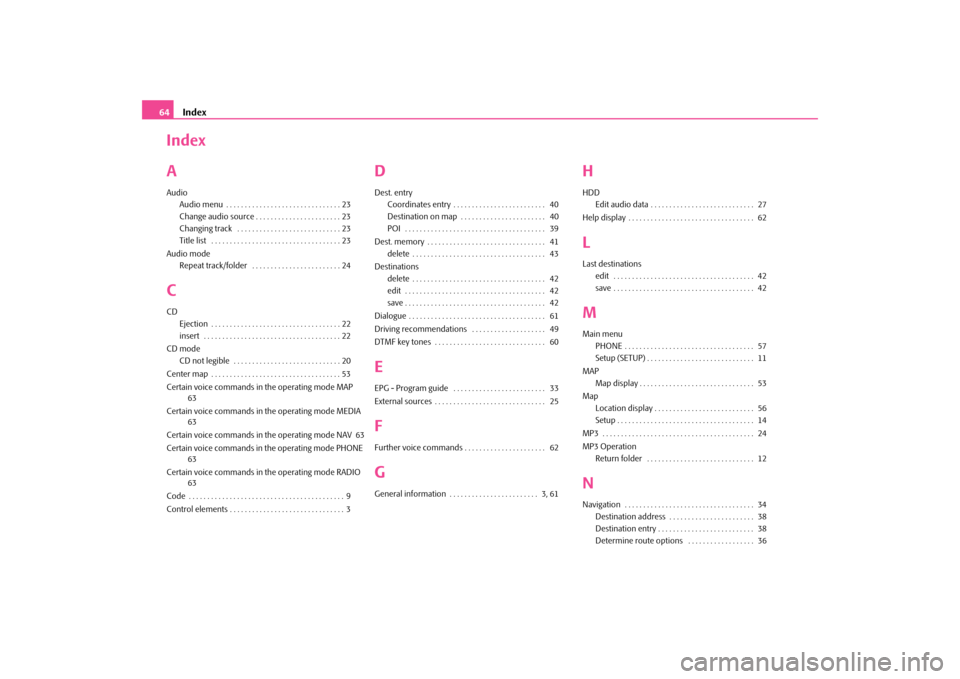

Index
64Index AAudio
Audio menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23Change audio source . . . . . . . . . . . . . . . . . . . . . . . 23Changing track . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23Title list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Audio mode
Repeat track/folder . . . . . . . . . . . . . . . . . . . . . . . . 24
CCD
Ejection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22insert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
CD mode
CD not legible . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Center map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53Certain voice commands in the operating mode MAP
63
Certain voice commands in
the operating mode MEDIA
63
Certain voice commands in
the operating mode NAV 63
Certain voice commands in the operating mode PHONE
63
Certain voice commands in
the operating mode RADIO
63
Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Control elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
DDest. entry
Coordinates entry . . . . . . . . . . . . . . . . . . . . . . . . . 40Destination on map . . . . . . . . . . . . . . . . . . . . . . . 40POI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Dest. memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
delete . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Destinations
delete . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42edit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42save . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Dialogue . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61Driving recommendations . . . . . . . . . . . . . . . . . . . . 49 DTMF key tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60EEPG - Program guide . . . . . . . . . . . . . . . . . . . . . . . . . 33External sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25FFurther voice commands . . . . . . . . . . . . . . . . . . . . . . 62GGeneral information . . . . . . . . . . . . . . . . . . . . . . . . 3, 61
HHDD
Edit audio data . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Help display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62LLast destinations
edit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42save . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
MMain menu
PHONE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57Setup (SETUP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
MAP
Map display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Map
Location display . . . . . . . . . . . . . . . . . . . . . . . . . . . 56Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
MP3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24MP3 Operation
Return folder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
NNavigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Destination address . . . . . . . . . . . . . . . . . . . . . . . 38Destination entry . . . . . . . . . . . . . . . . . . . . . . . . . . 38Determine route options . . . . . . . . . . . . . . . . . . 36
s32k.a.book Page 64 Friday, September 18, 2009 1:54 PM
Page 67 of 71
Index
65
main menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Manoeuvre list . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51Manually block . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52New dest. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38Route list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51Save destinations . . . . . . . . . . . . . . . . . . . . . . . . . . 41Save/edit home address . . . . . . . . . . . . . . . . . . . 43Set flagdest. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36Tour mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43Waypoint nav. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Navigation DVD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34OOperation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6When driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
PPark distance control (PDC)
Volume decrease . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Phone
Adapt a call number . . . . . . . . . . . . . . . . . . . . . . . 58Enter call number . . . . . . . . . . . . . . . . . . . . . . . . . 57
RRadio
Adjust station manually . . . . . . . . . . . . . . . . . . . . 16Delete preset list . . . . . . . . . . . . . . . . . . . . . . . . . . 12Save station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16saved station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Random play function MIX
CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Range selector key
MAP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53MEDIA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20PHONE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57RADIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11TONE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10TRAFFIC (TMC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Route guidance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
SSaved destination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Scan
Automatic play . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16Automatic play audio mode . . . . . . . . . . . . . . . . 24
Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5Setup
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13Main menu SETUP . . . . . . . . . . . . . . . . . . . . . . . . . 11Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13Telephone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12Traffic programme . . . . . . . . . . . . . . . . . . . . . . . . . 15Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15Voice control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Sound settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Speed dependent volume adjustment
GALA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Station name
RDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Switching the system off . . . . . . . . . . . . . . . . . . . . . . . . 9 Switching the system on . . . . . . . . . . . . . . . . . . . . . . . . 9TTelephone
Call number from the tele
phone book . . . . . . . 57
Entry from the telephone book . . . . . . . . . . . . . 57Telephone book . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
TMC
Dynamic route guidance . . . . . . . . . . . . . . . . . . . 50Select TMC station . . . . . . . . . . . . . . . . . . . . . . . . . 12
Tour mode
Call up tour . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45Compose tour . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44Edit tour . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 Enter a stopover . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 Leave . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44Save tour . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
TP (TMC Program)
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17Traffic report . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
TRAFFIC (TMC)
TMC traffic reports . . . . . . . . . . . . . . . . . . . . . . . . . 19
TV mode
Choose TV station . . . . . . . . . . . . . . . . . . . . . . . . . 31Display video text . . . . . . . . . . . . . . . . . . . . . . . . . . 32Explanation of the technical terms . . . . . . . . . . 30Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30Preset list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
s32k.a.book Page 65 Friday, September 18, 2009 1:54 PM
Page 68 of 71
Index
66
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Television mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
VVideo text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Voice command - Help . . . . . . . . . . . . . . . . . . . . . . . . 62 Voice commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62 Voice control - introduction . . . . . . . . . . . . . . . . . . . . 61voice control of the radio navigation system . . . . . 61WWarranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3s32k.a.book Page 66 Friday, September 18, 2009 1:54 PM
Page 69 of 71
Notes
67
s32k.a.book Page 67 Friday, September 18, 2009 1:54 PM
Page 70 of 71
Škoda Auto pursues a policy of constant product and model development. We trust
that you will understand that changes to models in terms of shape, equipment and
engineering, may be introduced at any time. The information about scope of delivery,
appearance, performances, dimensions, weight, fuel consumption, standards and
functions of the vehicle is only correct at the time of publication. Certain items of
equipment might only be installed later on (information given by the local authorised
Škoda Service Partner) and only envisaged for particular markets. It is therefore not
possible for legal claims to be made based on the data, illustrations and descriptions
contained in this Owner's Manual.Reprinting, reproduction or translation, either in whole or in part, is not permitted
without the written consent of Škoda Auto.
Škoda Auto expressly reserves all rights relating to copyright laws.
We reserve the right to make changes to this document.
Issued by: ŠKODA AUTO a.s.
© ŠKODA AUTO a.s. 2009s32k.a.book Page 68 Friday, September 18, 2009 1:54 PM
