Page 32 of 268

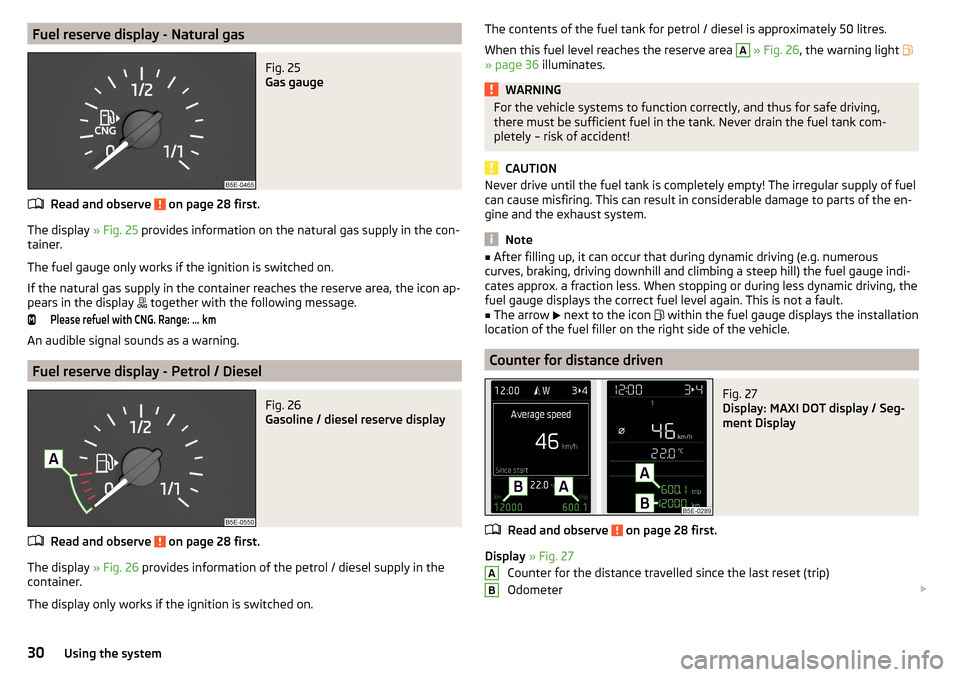

Fuel reserve display - Natural gasFig. 25
Gas gauge
Read and observe on page 28 first.
The display » Fig. 25 provides information on the natural gas supply in the con-
tainer.
The fuel gauge only works if the ignition is switched on.
If the natural gas supply in the container reaches the reserve area, the icon ap- pears in the display together with the following message.
Please refuel with CNG. Range: ...
km
An audible signal sounds as a warning.
Fuel reserve display - Petrol / Diesel
Fig. 26
Gasoline / diesel reserve display
Read and observe on page 28 first.
The display
» Fig. 26 provides information of the petrol / diesel supply in the
container.
The display only works if the ignition is switched on.
The contents of the fuel tank for petrol / diesel is approximately 50 litres. When this fuel level reaches the reserve area A
» Fig. 26 , the warning light
» page 36 illuminates.
WARNINGFor the vehicle systems to function correctly, and thus for safe driving,
there must be sufficient fuel in the tank. Never drain the fuel tank com-
pletely – risk of accident!
CAUTION
Never drive until the fuel tank is completely empty! The irregular supply of fuel
can cause misfiring. This can result in considerable damage to parts of the en-
gine and the exhaust system.
Note
■ After filling up, it can occur that during dynamic driving (e.g. numerous
curves, braking, driving downhill and climbing a steep hill) the fuel gauge indi-
cates approx. a fraction less. When stopping or during less dynamic driving, the
fuel gauge displays the correct fuel level again. This is not a fault.■
The arrow
next to the icon
within the fuel gauge displays the installation
location of the fuel filler on the right side of the vehicle.
Counter for distance driven
Fig. 27
Display: MAXI DOT display / Seg-
ment Display
Read and observe on page 28 first.
Display » Fig. 27
Counter for the distance travelled since the last reset (trip)
Odometer
AB30Using the system
