If the tyre inflation pressure is 1.3 bar or more›Set the tyre pressure back to the correct value » page 261.›
Continue driving carefully to the nearest specialist garage at a maximum
speed of 80 km/h (50 mph).
WARNINGA tyre filled with sealant has the same driving characteristics as a standard
tyre. The following guidelines must therefore be observed.■
Do not drive faster than 80 km/h (50 mph).
■
Avoid accelerating at full throttle, sharp braking and fast cornering.
Jump-starting
 Introduction
This chapter contains information on the following subjects:
Jump-starting using the battery from another vehicle
272WARNING■ The following instructions must be followed at all times when working on
the engine compartment » page 252.■
When handling the vehicle battery, the following warnings must be ob-
served » page 258 .
■
A discharged vehicle battery may already freeze at temperatures just be-
low 0 °C. If the battery is frozen, do not carry out a jump start with the bat-
tery of another vehicle –There is a risk of explosion and injury!
■
Never jump-start vehicle batteries with an electrolyte level that is too low
– There is a risk of explosion and caustic burns!

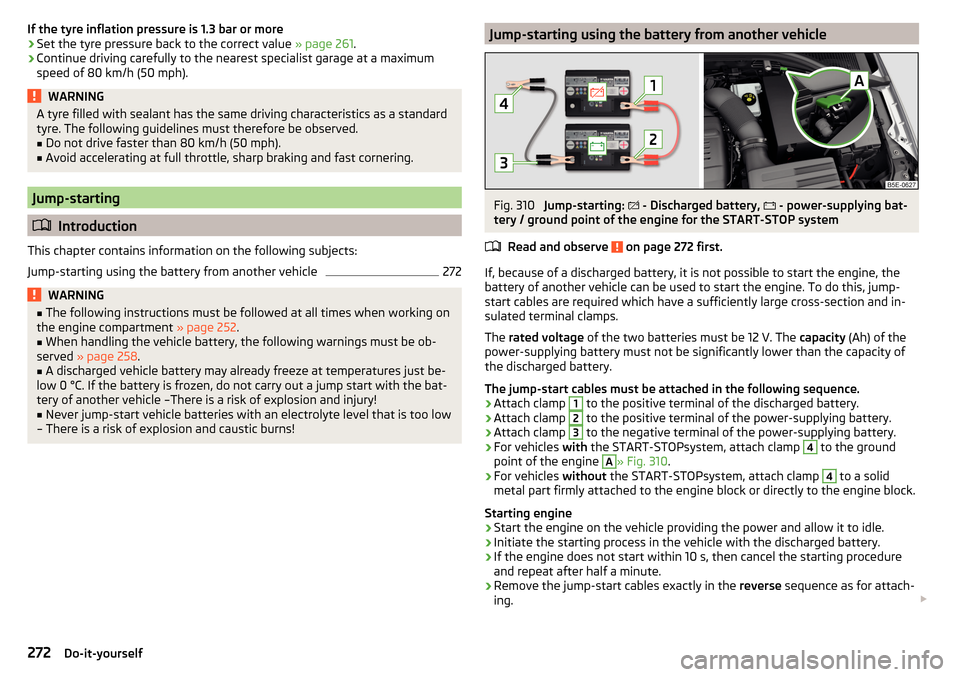

Jump-starting using the battery from another vehicleFig. 310
Jump-starting: 
- Discharged battery, 
- power-supplying bat-
tery / ground point of the engine for the START-STOP system
Read and observe
on page 272 first.
If, because of a discharged battery, it is not possible to start the engine, the
battery of another vehicle can be used to start the engine. To do this, jump-
start cables are required which have a sufficiently large cross-section and in-
sulated terminal clamps.
The rated voltage of the two batteries must be 12 V. The capacity (Ah) of the
power-supplying battery must not be significantly lower than the capacity of
the discharged battery.
The jump-start cables must be attached in the following sequence.
›
Attach clamp
1
to the positive terminal of the discharged battery.
›
Attach clamp
2
to the positive terminal of the power-supplying battery.
›
Attach clamp
3
to the negative terminal of the power-supplying battery.
›
For vehicles with the START-STOPsystem, attach clamp
4
to the ground
point of the engine
A
» Fig. 310 .
›
For vehicles without the START-STOPsystem, attach clamp
4
to a solid
metal part firmly attached to the engine block or directly to the engine block.
Starting engine
›
Start the engine on the vehicle providing the power and allow it to idle.
›
Initiate the starting process in the vehicle with the discharged battery.
›
If the engine does not start within 10 s, then cancel the starting procedure
and repeat after half a minute.
›
Remove the jump-start cables exactly in the reverse sequence as for attach-
ing. 
272Do-it-yourself

Fuse assignment in the dashboardFig. 327
Fuses
Read and observe and on page 278 first.
No.Consumer1Not assigned2Not assigned3Voltage stabilizer for taxi vehicles4Not assigned5Databus6Sensor Alarm7Air conditioning, heating, recipient of the wireless remote control
for auxiliary heating, selector lever of the automatic transmission8Light switch, rain sensor, diagnostic socket9All-wheel drive10Infotainment screen11Belt tensioner - driver's side12Infotainment13Heated rear seats14Air blower for air conditioning,heating15Electric steering lock16Phonebox, Wireless phone charging17Instrument cluster, emergency call18Reversing camera19KESSY20Operating lever underneath the steering wheelNo.Consumer21Adaptive Shock absorber22Trailer device - electrical outlet23Light - right24Panoramic tilt / slide sunroof25Central locking- front left door, window - left, exterior mirrors -
Heating, fold-in function, setting the mirror surface26Heated front seats27Music amplifier28Towing hitch - left lighting29CNG relay30Not assigned31Light - left32Parking aid (Park Assist)33Airbag switch for hazard warning lights34TCS, ESC, Tyre Pressure Loss Indicator, air conditioning, reversing
light switch, mirror with automatic blackout, START-STOP, heated
rear seats, 230 volt plug, Sport sound generator35Headlamp levelling, diagnostic connector, camera, radar36Headlight right37Headlight left38Towing hitch - right lighting39Central - front right door, window lifter - right, right Mirrors - Heat-
ing, fold-in function, setting the mirror surface4012-Volt power socket41Belt tensioner - front passenger side42Central - rear doors, headlamp washers, washer43Xenon headlights, ambient lighting44Trailer device - electrical outlet45Electrically adjustable seats46230 volt power outlet47Rear window wiper48Not assigned49Engine starting, clutch pedal switch 280Do-it-yourself

Index
A
A2DP/AVRCP
153
Abort route guidance181
ABS Operation
201
Warning light34
ACC214
Settings in Infotainment214
Acceptance and recycling of used vehicles242
Accessories240
Active steering assist (DSR)202
Adaptive Chassis Control Warning light
40
Adaptive Chassis Control (DCC)221
Adaptive cruise control Set/change desired speed
217
Warning light33, 40
Adaptive Cruise Control214
automatic stopping and starting215
Malfunctions218
Operation215
Operation overview216
Overtaking218
Radar sensor199
Set the clearance level217
Settings in Infotainment214
Special driving conditions217
Start control216
Stop/resume control216
Trailer towing218
Adaptive headlight see xenon headlight
66
Additional keyboard languages123, 130
Additional windows Manoeuvre
180
Adjusting Steering wheel
13
Adjusting seats manually76
Adjusting the seats12
Advice on tyre/wheel usage260
AHL see xenon headlight
66
Air-conditioning system Air outlet vents
108
air bag18
Airbag Adjustments and impairments to the airbagsystem
241
Deactivation21
Deployment19
Warning light35
Airbag system18
Air conditioning104
Air distribution control107
Climatronic105
Manual air conditioning105
Air distribution control107
Air outlet vents108
Alarm55
Trailer239
All-year tyres263
Alphanumeric keyboard117
Alternative routes128
Android Auto166
Connection establishment166
Disconnection166
Home Page166
Anti-lock braking system (ABS)201
Anti-theft alarm system55
Trailer239
Anti-theft wheel bolts268
APN124
Apple CarPlay167
Connection establishment167
Disconnection167
Main menu167
Armrest Front79
Rear80
Ashtray91
Assembling the bar ball, Step 1
232
bar ball, Step 2233
Assist systems199
AT THE133
Audio source139
Auto check control42
Automatic consumer shutdown258
Automatic drive Selector lever
194
Automatic driving light control66
Automatic gearbox Disengage selector lever
195
Kickdown196
Launch control196
Malfunction37
Manual shifting on the multifunction steering wheel
195
Selector lever-emergency unlocking277
Selector lever lock195
Start and drive196
Tiptronic195
Warning light37
Automatic transmission194
AUX85, 141
Settings126
Auxiliary heating (auxiliary heating and ventila- tion)
108
Avoiding damage to your vehicle198
B
ball bar ready position
232
301Index

Digital Service Plan244
Dipped beam64
Dipstick256
display natural gas supply
31
Petrol / diesel storage31
Display Cardinal points
41
Coolant temperature31
Gear changes42
In the instrument cluster41
Service intervals48
Display MAXI DOT46
Disposal Acceptance and recycling of used vehicles
242
Distance warning219
Warning light40
Diverting calls126
Door Child safety lock
54
Emergency locking276
Emergency locking of the driver's door276
Opening/ Closing54
Door warning41
double hooks96
Drive Driving through water
198
DriveGreen197
Driving Emissions
291
Fuel consumption291
Maximum speed296
through water198
Driving data Show
45
Driving mode221
Adaptive Chassis Control (DCC)221
Comfort222
Eco221
Individual222
Individual mode settings223
Mode selection and Infotainment display223
Normal222
Offroad222
Sports222
Driving Mode Selection221
DSR202
DVD139
DVD video Compatible sources
146
Supported file formats146
Dynamic Road Sign Display Additional display
228
Operation227
Dynamic route switch on / off
186
E
Economical driving
197
ECO TIP41
Eco tips41
Edit route181
EDS201
Electrical boot lid set the top position of the lid
58
Electric boot lid Force limiter
57
Manual operation57
Open/close58
Electric power windows59, 61
Malfunctions61
Electric tailgate Malfunctions
58
Electric Windows Button in driver’s door’
60
Electronic Differential Lock (EDL, XDS)201
Electronic immobiliser188
Elevation169
emergency Jump-starting272
Starting the engine / stopping at the push of a button
190
Emergency Hazard warning light system
68
Jump-starting272
Lever-release277
Starting the engine / stopping the push of a button
189
Towing the using the tow hitch275
Towing the vehicle273
Tyre repair270
Unlocking/locking the door276
Unlocking / locking the door276
Emergency call157
Emergency equipment Fire extinguisher
265
First aid kit265
Jack266
Reflective vest265
Vehicle tool kit266
Warning triangle265
Emergency spare Removing / stowing
267
Emission control system35
Emissions291
Engine Information messages
38
Run in196
Engine compartment252
Brake fluid257
Coolant256
Engine oil255
Overview254
Vehicle battery258
Windscreen washer fluid254
Engine drag torque control (MSR)201
Engine number288
304Index

High beam assistantWarning light39
Hill Start Assist (HHC)202
hitch235
Hitch230
home address128
Home address174
Home Page Android Auto
166
Hook96
horn29
I
I-PAD holder
92
Ignition lock189
Images Display
126
Main menu144
Operation144
safe removal of the data source124
Select Image Source144
Set to126
Image viewer144
Immobiliser188
Import contacts126, 132
Import destinations175
Import my destinations175
In an emergency Changing a wheel
266
Inertia reels17
Information about the towing process273
Information call157
Information system41
Auto Check Control41
Door alarm41
Eco tips41
Gear recommendation42
Lap timer47
MAXI DOT display46
Multifunction display44
Service interval display48
Stop watch47
Infotainment Auxiliary heating (auxiliary heating and ventila-tion)
110
connect to the telephone152
Restart117
Software update122
Infotainment display Driving data
45
Infotainment Hotspot163
Infotainment language123, 130
Infotainment menu CAR
187
Media (video)145
Sound122
Infotainment menus118
Infotainment operation116
Infotainment screen116
Infotainment operation using an application in the external device
119
Infotainment screen123, 130
Areas116
Important information115
keyboard117
Maintenance115
Operation116
Input screen Language characters
130
Input screen with keyboard117
Instrument cluster30
Auto check control42
Warning lights32
interior light69, 70
Interior monitor56
Intermediate target179
ISOFIX25
J
Jack
266
Jukebox141
Jump-starting272
K
KESSY Unlocking / locking
52
key Starting / stopping the engine
189
Switch on/off ignition189
Key Change battery
275
Lock51
Unlock51
keyboard117
L
L-band
126
Lamp failure Warning light
39
Lamps Warning light
39
Lane Assist Malfunctions
226
See lane departure warning224
Settings in Infotainment225
Warning light36
Lane Departure Warning224
Activation / deactivation226
Operation225
Settings in Infotainment225
Lane recommendation180
Language characters123
Lap timer47
Last destinations173
Latitude169
LEAVING HOME68
306Index

Road sign178
Show POI176
|Alignment177
MAXI DOT See MAXI DOT display
46
MAXI DOT display Assist systems menu item
47
Audio menu item46
Lap timer47
Main menu46
Navigation menu item46
Operation43
Stop watch47
Telephone menu item47
Maximum speed296
MCB202
Mechanical window lifter open/close
59
media Compatible sources
142, 143
file formats142, 143
Requirements and Restrictions142, 143
Media Audio source
139
AUX85, 141
Bluetooth Audio141
Browser138
CD / DVD139
Foreword136
Jukebox141
List138
Main menu136
Multimedia database139
Operation136
Playback operation137
safe removal of the data source124
Safe removal of the data source130
SD card140
Select audio source137
Settings126
Set to132
USB85, 140
Voice control119
WLAN142
Media Command Control
148
Main menu147
Supported formats148
Memory45
Memory Function for the seat77
Menu Setup
122, 130
Mirror73
Vanity71
MirrorLink®167
Connection establishment168
Disconnection168
Function issues168
Main menu168
Operation168
MODE button See driving mode
221
Modes of the automatic transmission194
Modifications and technical alterations240
Most common routes181
MSR201
Multi-function pocket100
Multi-media AUX
141
Multicollision brake (MCB)202
Multifunction display Data
44
Functions44
Memory45
Multifunction pocket95
Multifunction steering wheel43
Multimedia USB
140
Multimedia database139
Multimedia holder86
Mute118
My destinations175
My POIs175
N
N1
100
Nameplate288
Natural gas operation Warning light
37
navigation Map orientation
177
Start the route guidance179
Navigation Abort route guidance
181
Advanced settings129
Alternative routes128
Contacts174
Demo mode129, 180
Destination address172
Destination details179
Destination memory174
Destination on the map173
Destination presentation in the split screen178
Destination representation176
Dynamic route128
Edit route181
Favourites174
Final destinations173
Finish route guidance181
Foreword169
Fuel options129
GPS169
Graphical driving recommendations180
Home address174
Image with GPS176
Import destination175
Imported destinations128
Intermediate target179
Main menu170
308Index

START-STOP190
Jump-starting272
manually activate/ deactivate system191
Operation190
Warning light39
START-STOP system190
Start engine Immobiliser
188
Jump-starting272
Starter button Lock / unlock the steering lock
188
Problems with the engine start190
Starting / stopping the engine189
Switch on/off ignition189
Starting engine Jump-starting
272
Starting the engine Key
189
Starter button189
Start the route guidance179
Station See main menu
133
Station logos Update
122
status line Navigation
129
Status line116, 170
Telephone151
Steering lock (KESSY system) Warning light
33
Steering wheel Buttons
43
Proper posture13
Setting13
Stopping see Parking
193
Stopping the engine Key
189
Starter button189
Stop watch47
Storage82
Storage compartment Glasses compartment
87
in the front centre console84
in the rear centre console88
on the driver's side83
on the front passenger side87
under the front arm rest86
Storage compartments82
Stored destinations Destination memory
174
Final destinations173
Store destination179
Storing seats
77
Storing skis89
Stowage compartments in the doors
83
Subwoofer122
Sunblind for the tilt / slide sunroof63
Sun visors71
Supported sources media
142, 143
Surround122
Switch Car battery
260
Switching the lights on and off64
Switch off Alarm
55
Switch off ignition189
Key189
Switch on ignition189
Key189
System information122, 125, 131
T
Tablet holder
92
Tailgate56
TCS Deactivate/activate201
Function201
Warning light34
TCS - off Warning light
34
Technical data288
telephone conditions for pairing
152
Telephone Additional telephone
149
Adjust text messages126
Bluetooth profile153
Breakdown call157
Call list159
Clear calls126
Conference call160
Connection types149
Connect to Infotainment152
Dialling the telephone number157
Diverting calls126
Emergency call157
Enter telephone number157
Functions157
Import contacts126, 132
Information service157
Main menu151
Main telephone149
Manage favourites132
Manage Favourites126
Operation151
Pair152
Pairing process153
Preferred contacts159
Premium126
rSAP149
Set132
Settings call126
set to126
SIM card149
313Index
