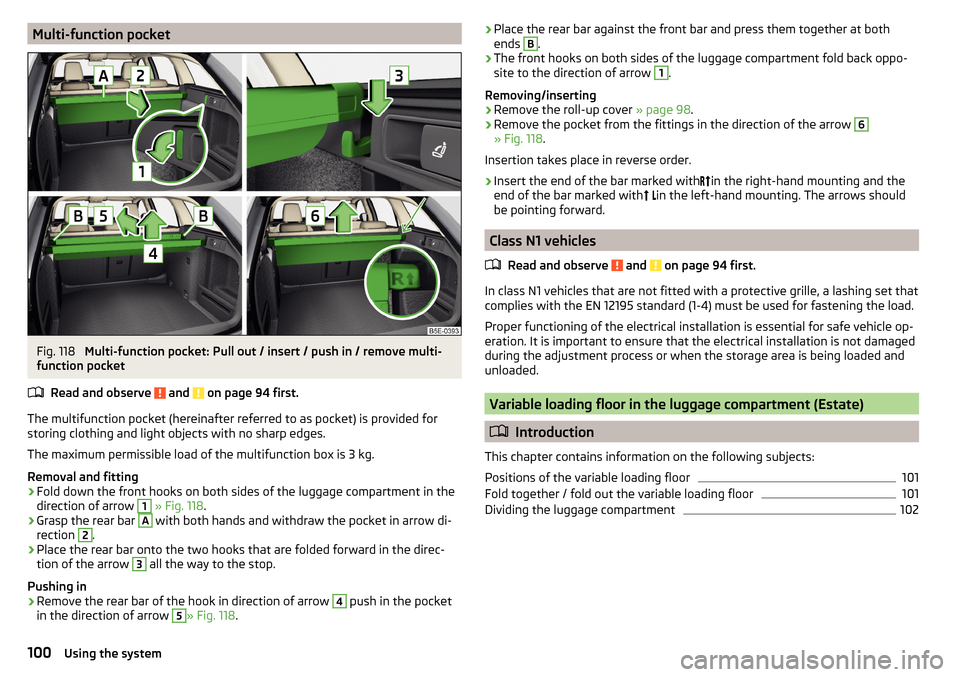

Multi-function pocketFig. 118
Multi-function pocket: Pull out / insert / push in / remove multi-
function pocket
Read and observe
and on page 94 first.
The multifunction pocket (hereinafter referred to as pocket) is provided for
storing clothing and light objects with no sharp edges.
The maximum permissible load of the multifunction box is 3 kg.
Removal and fitting
›
Fold down the front hooks on both sides of the luggage compartment in the
direction of arrow
1
» Fig. 118 .
›
Grasp the rear bar
A
with both hands and withdraw the pocket in arrow di-
rection
2
.
›
Place the rear bar onto the two hooks that are folded forward in the direc-
tion of the arrow
3
all the way to the stop.
Pushing in
›
Remove the rear bar of the hook in direction of arrow
4
push in the pocket
in the direction of arrow
5
» Fig. 118 .
›Place the rear bar against the front bar and press them together at both
ends B.›
The front hooks on both sides of the luggage compartment fold back oppo-
site to the direction of arrow
1
.
Removing/inserting
›
Remove the roll-up cover » page 98.
›
Remove the pocket from the fittings in the direction of the arrow
6
» Fig. 118.
Insertion takes place in reverse order.
›
Insert the end of the bar marked with
in the right-hand mounting and the
end of the bar marked with
in the left-hand mounting. The arrows should
be pointing forward.
