90CONTROLS AND EQUIPMENT

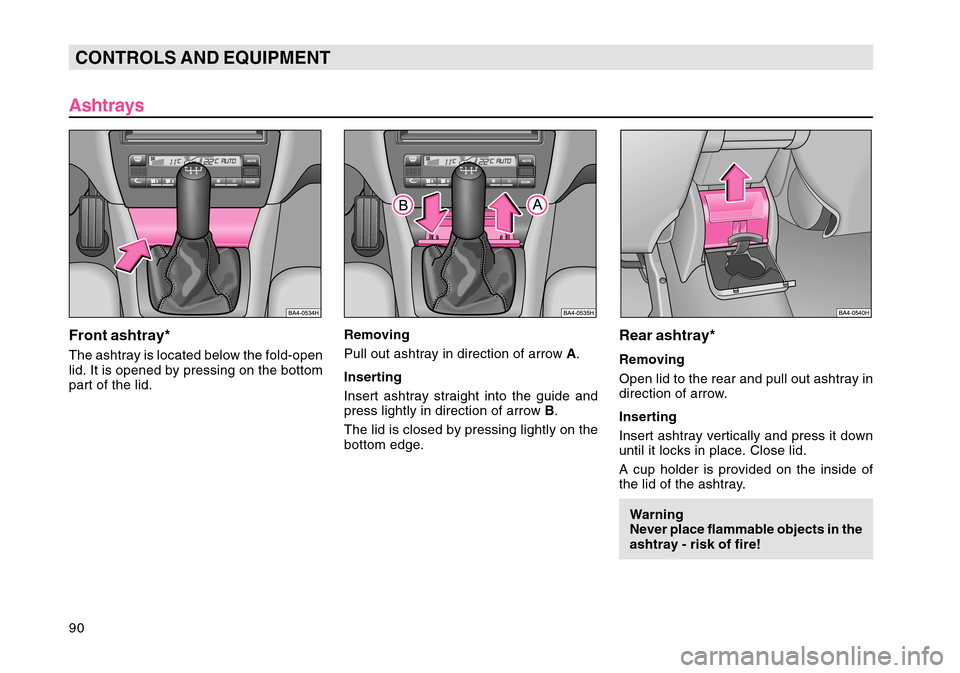

AshtraysFront ashtray*The ashtray is located below the fold-open
lid. It is opened by pressing on the bottom
part of the lid.
Removing
Pull out ashtray in direction of arrow A.
Inserting
Insert ashtray straight into the guide and
press lightly in direction of arrow B.
The lid is closed by pressing lightly on the
bottom edge.
Rear ashtray*Removing
Open lid to the rear and pull out ashtray in
direction of arrow.
Inserting
Insert ashtray vertically and press it down
until it locks in place. Close lid.
A cup holder is provided on the inside of
the lid of the ashtray.
Warning
Never place flammable objects in the
ashtray - risk of fire!
Page 92 of 189
91
CONTROLS AND EQUIPMENT

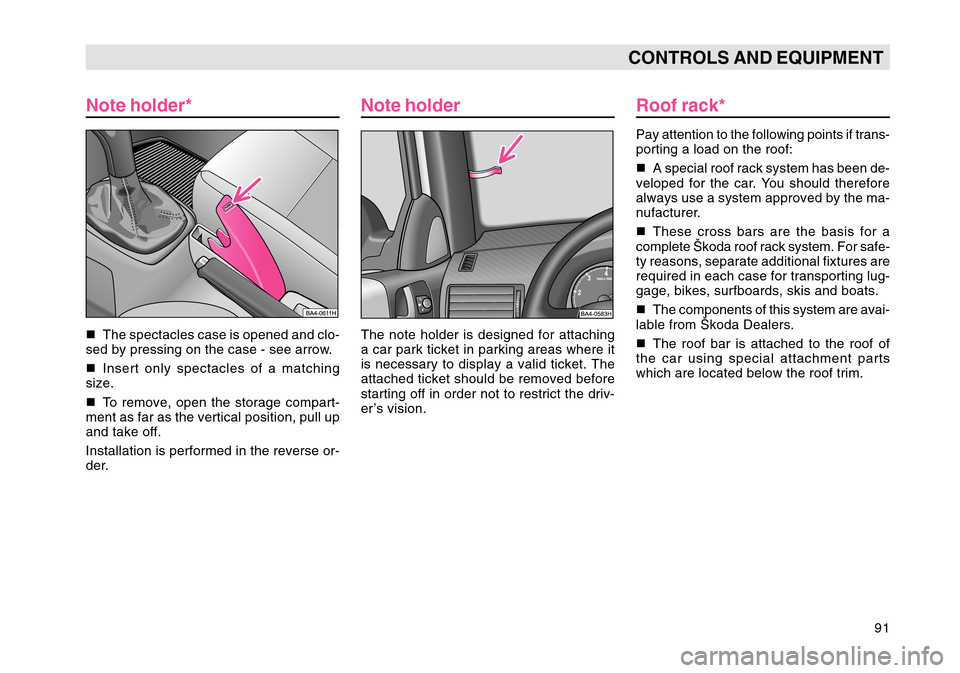

Note holder*
The spectacles case is opened and clo-
sed by pressing on the case - see arrow.
Insert only spectacles of a matching
size.
To remove, open the storage compart-
ment as far as the vertical position, pull up
and take off.
Installation is performed in the reverse or-
der.
Note holder Roof rack*
Pay attention to the following points if trans-
porting a load on the roof:
A special roof rack system has been de-
veloped for the car. You should therefore
always use a system approved by the ma-
nufacturer.
These cross bars are the basis for a
complete Škoda roof rack system. For safe-
ty reasons, separate additional fixtures are
required in each case for transporting lug-
gage, bikes, surfboards, skis and boats.
The components of this system are avai-
lable from Škoda Dealers.
The roof bar is attached to the roof of
the car using special attachment parts
which are located below the roof trim.
The note holder is designed for attaching
a car park ticket in parking areas where it
is necessary to display a valid ticket. The
attached ticket should be removed before
starting off in order not to restrict the driv-
er’s vision.
Page 93 of 189

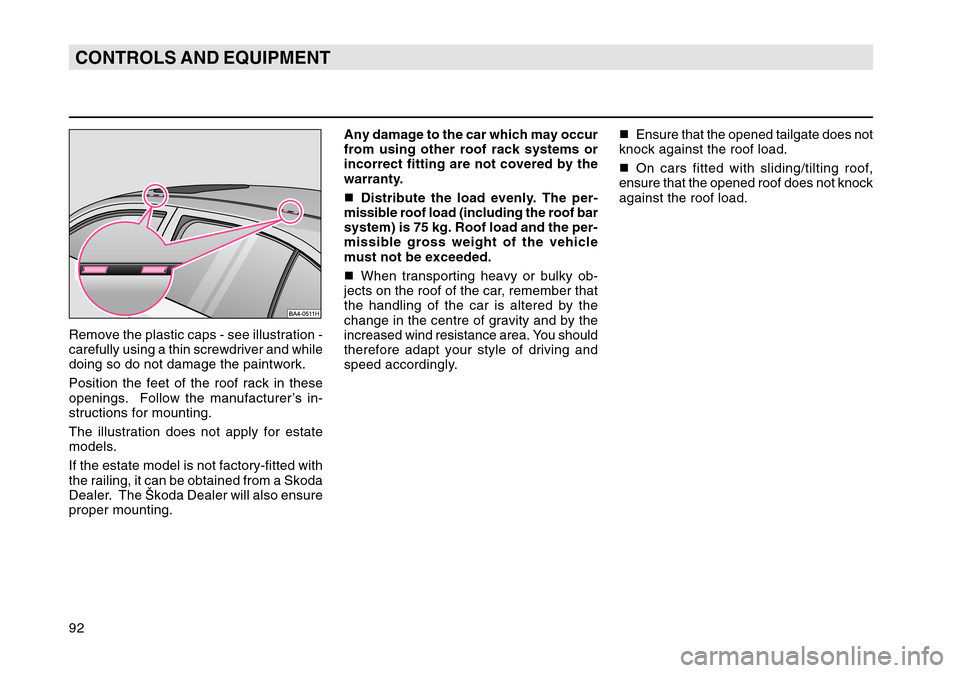

92CONTROLS AND EQUIPMENTRemove the plastic caps - see illustration -
carefully using a thin screwdriver and while
doing so do not damage the paintwork.
Position the feet of the roof rack in these
openings. Follow the manufacturer’s in-
structions for mounting.
The illustration does not apply for estate
models.
If the estate model is not factory-fitted with
the railing, it can be obtained from a Skoda
Dealer. The Škoda Dealer will also ensure
proper mounting.Any damage to the car which may occur
from using other roof rack systems or
incorrect fitting are not covered by the
warranty.
Distribute the load evenly. The per-
missible roof load (including the roof bar
system) is 75 kg. Roof load and the per-
missible gross weight of the vehicle
must not be exceeded.
When transporting heavy or bulky ob-
jects on the roof of the car, remember that
the handling of the car is altered by the
change in the centre of gravity and by the
increased wind resistance area. You should
therefore adapt your style of driving and
speed accordingly.
Ensure that the opened tailgate does not
knock against the roof load.
On cars fitted with sliding/tilting roof,
ensure that the opened roof does not knock
against the roof load.
Page 94 of 189
93

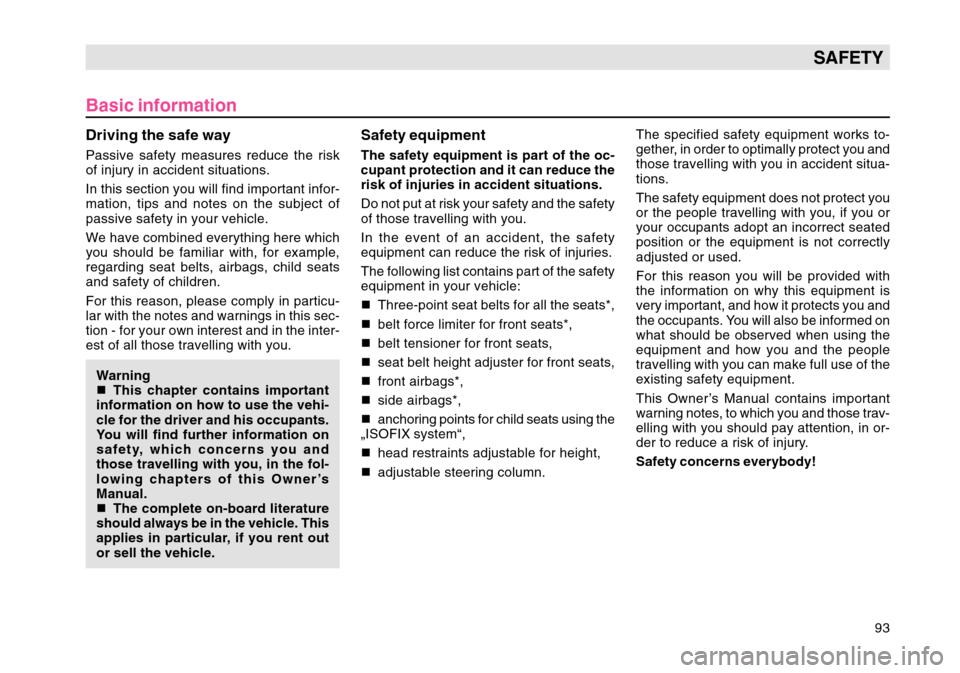

SAFETY
Driving the safe wayPassive safety measures reduce the risk
of injury in accident situations.
In this section you will find important infor-
mation, tips and notes on the subject of
passive safety in your vehicle.
We have combined everything here which
you should be familiar with, for example,
regarding seat belts, airbags, child seats
and safety of children.
For this reason, please comply in particu-
lar with the notes and warnings in this sec-
tion - for your own interest and in the inter-
est of all those travelling with you.Warning
This chapter contains important
information on how to use the vehi-
cle for the driver and his occupants.
You will find further information on
safety, which concerns you and
those travelling with you, in the fol-
lowing chapters of this Owner’s
Manual.
The complete on-board literature
should always be in the vehicle. This
applies in particular, if you rent out
or sell the vehicle.
Safety equipmentThe safety equipment is part of the oc-
cupant protection and it can reduce the
risk of injuries in accident situations.
Do not put at risk your safety and the safety
of those travelling with you.
In the event of an accident, the safety
equipment can reduce the risk of injuries.
The following list contains part of the safety
equipment in your vehicle:
Three-point seat belts for all the seats*,
belt force limiter for front seats*,
belt tensioner for front seats,
seat belt height adjuster for front seats,
front airbags*,
side airbags*,
anchoring points for child seats using the
„ISOFIX system“,
head restraints adjustable for height,
adjustable steering column. The specified safety equipment works to-
gether, in order to optimally protect you and
those travelling with you in accident situa-
tions.
The safety equipment does not protect you
or the people travelling with you, if you or
your occupants adopt an incorrect seated
position or the equipment is not correctly
adjusted or used.
For this reason you will be provided with
the information on why this equipment is
very important, and how it protects you and
the occupants. You will also be informed on
what should be observed when using the
equipment and how you and the people
travelling with you can make full use of the
existing safety equipment.
This Owner’s Manual contains important
warning notes, to which you and those trav-
elling with you should pay attention, in or-
der to reduce a risk of injury.
Safety concerns everybody!
Basic information
Page 95 of 189
94SAFETYBefore setting offThe driver is always fully responsible for
his occupants and for the operating
safety of the vehicle.
For your own safety and the safety of the
people travelling with you, please pay at-
tention to the following points before set-
ting off:
Ensure that the lighting and the turn sig-
nal system are functioning properly.
Inspect the tyre inflation pressure.
Ensure that all the windows offer a good
visibility to the outside.
Safely attach the items of luggage - see
page 27.
Ensure that no objects can obstruct the
pedal.
Adjust the mirror, the front seat and the
head restraint to match your body size.
Point out to your occupants that the head
restraints must be adjusted to match their
body size.
Protect the children in suitable child
seats with correctly fastened seat belts -
see page 111.
Adopt the correct seated position. Also
inform your occupants to adopt the correct
seated position.
Fasten the seat belt correctly. Also in-
form your occupants to properly fasten the
seat belts - see page 98.
What influences the driving safety?The driving safety is primarily deter-
mined by the style of driving and the
personal behaviour of all the occupants.
The driver is fully responsible for himself
and his occupants. If your driving safety is
effected, you place yourself and the oncom-
ing traffic at risk. Please refer to the follow-
ing guidelines.
Do not get distracted from concentrat-
ing on the traffic situation, e.g. by your oc-
cupants or mobile phone calls.
Never drive when your driving ability is
impaired, e.g. through medication, alcohol,
drugs.
Keep to the traffic regulations and the
permissible speed limit.
Adjust the driving speed at all times to
the road condition as well as to the traffic
and weather conditions.
Take regular breaks on long journeys -
at the latest every two hours.
Correct seated position for the driverCorrect seated position for the driver is
important for safe and relaxed driving.
For your own safety as well as to reduce
the risk of injury in the event of an accident,
we recommend the following setting.
Adjust the steering wheel so that the dis-
tance between the steering wheel and your
chest is at least 25 cm - see illustration.
Position the driver seat in the forward/
back direction so that you are able to press
the pedals with your legs at a slight angle.Correct seated position
Page 96 of 189
95
SAFETY
Adjust the backrest so that you are able
to reach the highest point of the steering
wheel with your arms at a slight angle.
Adjust the head restraint so that the top
edge of the head restraint is at the same
level as the upper part of your head - see
illustration.
Fasten the seat belt correctly - see page
100.
Driver seat adjustment - see page 19. Warning
The front seats and the head re-
straints must always be adjusted to
match the body size of the seat oc-
cupant. The seat belts must always
be correctly fastened in order to pro-
vide an optimal protection for you
and your occupants.
The driver must maintain a distance
of at least 25 cm to the steering wheel -
see illustration on page 94.
If you do not maintain this minimum
distance, the airbag system will not
be able to protect you - hazard!
When driving, hold the steering
wheel with both hands firmly on the
outer edge in the 9 o’clock and 3
o’clock position.
Never hold the steering wheel firmly
in the 12 o’clock position or in an-
other way (e.g. in the middle of the
steering wheel or at the inner steer-
ing wheel edge).
When driving, the backrests must
not be angled too far back, otherwise
this will affect proper operation of the
seat belts and of the airbag system -
risk of injury!
Correct seated position for the
front passengerThe front passenger must maintain a
distance of at least 25 cm from the dash
panel so that the airbag offers the great-
est possible safety when an airbag is
deployed.
For the safety of the front passenger and
to reduce the risk of injury in the event of
an accident, we recommend the following
setting:
Adjust the front passenger seat as far
as possible to the rear.
Adjust the head restraint so that the top
edge of the head restraint is at the same
level as the upper part of your head - see
illustration on page 95.
Fasten the seat belt correctly - see page
100.
In exceptional cases the front passenger
airbag can be deactivated - see page 107.
Front passenger seat adjustment - see
page 19.
Page 97 of 189

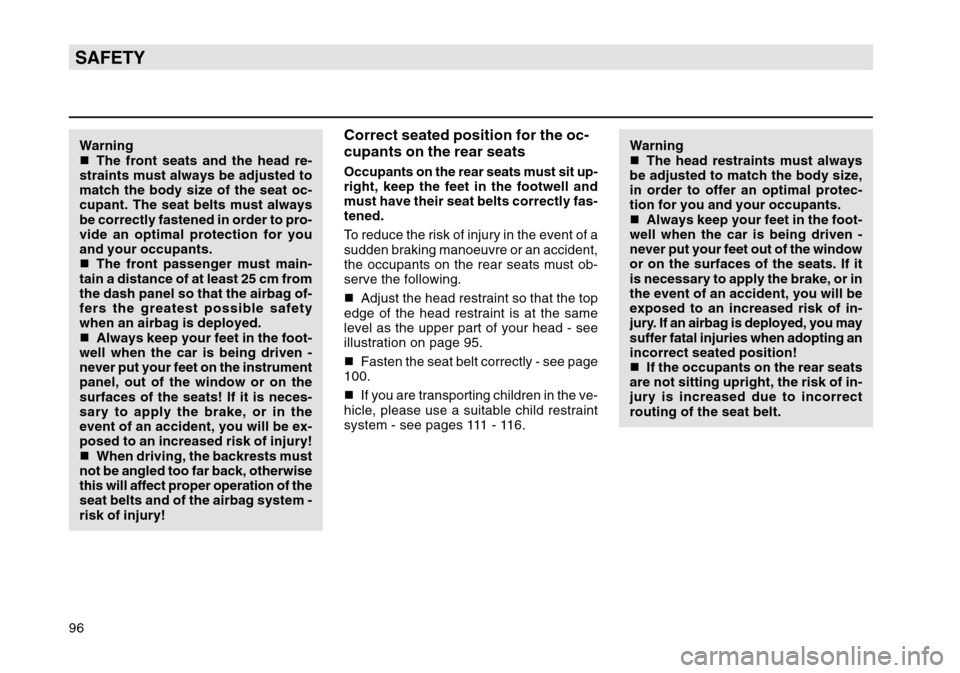

96SAFETYWarning
The front seats and the head re-
straints must always be adjusted to
match the body size of the seat oc-
cupant. The seat belts must always
be correctly fastened in order to pro-
vide an optimal protection for you
and your occupants.
The front passenger must main-
tain a distance of at least 25 cm from
the dash panel so that the airbag of-
fers the greatest possible safety
when an airbag is deployed.
Always keep your feet in the foot-
well when the car is being driven -
never put your feet on the instrument
panel, out of the window or on the
surfaces of the seats! If it is neces-
sary to apply the brake, or in the
event of an accident, you will be ex-
posed to an increased risk of injury!
When driving, the backrests must
not be angled too far back, otherwise
this will affect proper operation of the
seat belts and of the airbag system -
risk of injury!
Correct seated position for the oc-
cupants on the rear seatsOccupants on the rear seats must sit up-
right, keep the feet in the footwell and
must have their seat belts correctly fas-
tened.
To reduce the risk of injury in the event of a
sudden braking manoeuvre or an accident,
the occupants on the rear seats must ob-
serve the following.
Adjust the head restraint so that the top
edge of the head restraint is at the same
level as the upper part of your head - see
illustration on page 95.
Fasten the seat belt correctly - see page
100.
If you are transporting children in the ve-
hicle, please use a suitable child restraint
system - see pages 111 - 116. Warning
The head restraints must always
be adjusted to match the body size,
in order to offer an optimal protec-
tion for you and your occupants.
Always keep your feet in the foot-
well when the car is being driven -
never put your feet out of the window
or on the surfaces of the seats. If it
is necessary to apply the brake, or in
the event of an accident, you will be
exposed to an increased risk of in-
jury. If an airbag is deployed, you may
suffer fatal injuries when adopting an
incorrect seated position!
If the occupants on the rear seats
are not sitting upright, the risk of in-
jury is increased due to incorrect
routing of the seat belt.
Page 98 of 189
97
SAFETY

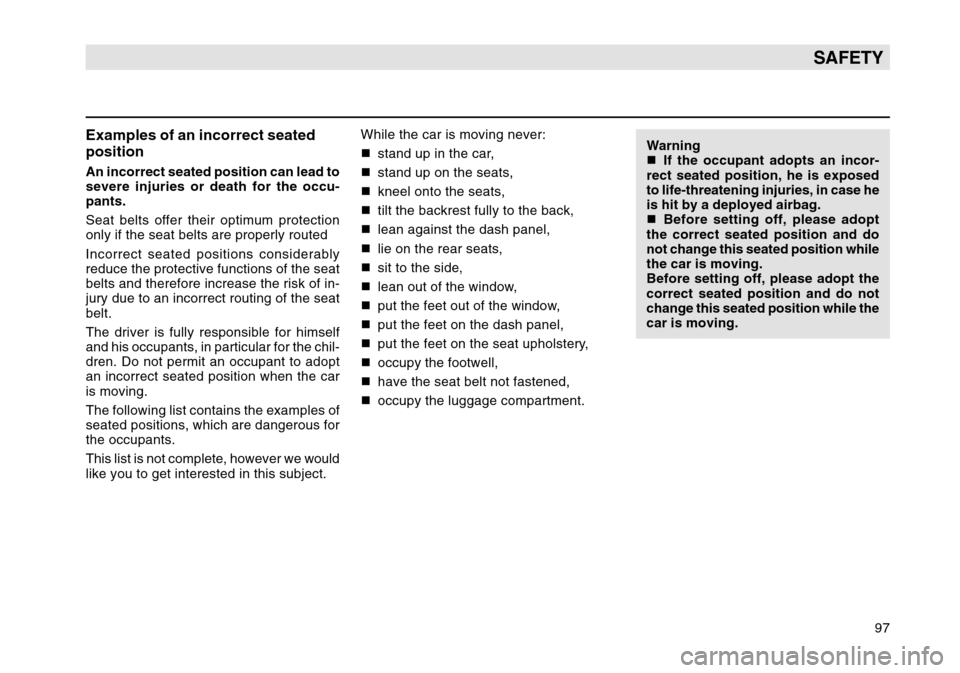

Examples of an incorrect seated
positionAn incorrect seated position can lead to
severe injuries or death for the occu-
pants.
Seat belts offer their optimum protection
only if the seat belts are properly routed
Incorrect seated positions considerably
reduce the protective functions of the seat
belts and therefore increase the risk of in-
jury due to an incorrect routing of the seat
belt.
The driver is fully responsible for himself
and his occupants, in particular for the chil-
dren. Do not permit an occupant to adopt
an incorrect seated position when the car
is moving.
The following list contains the examples of
seated positions, which are dangerous for
the occupants.
This list is not complete, however we would
like you to get interested in this subject.While the car is moving never:
stand up in the car,
stand up on the seats,
kneel onto the seats,
tilt the backrest fully to the back,
lean against the dash panel,
lie on the rear seats,
sit to the side,
lean out of the window,
put the feet out of the window,
put the feet on the dash panel,
put the feet on the seat upholstery,
occupy the footwell,
have the seat belt not fastened,
occupy the luggage compartment. Warning
If the occupant adopts an incor-
rect seated position, he is exposed
to life-threatening injuries, in case he
is hit by a deployed airbag.
Before setting off, please adopt
the correct seated position and do
not change this seated position while
the car is moving.
Before setting off, please adopt the
correct seated position and do not
change this seated position while the
car is moving.
Page 99 of 189

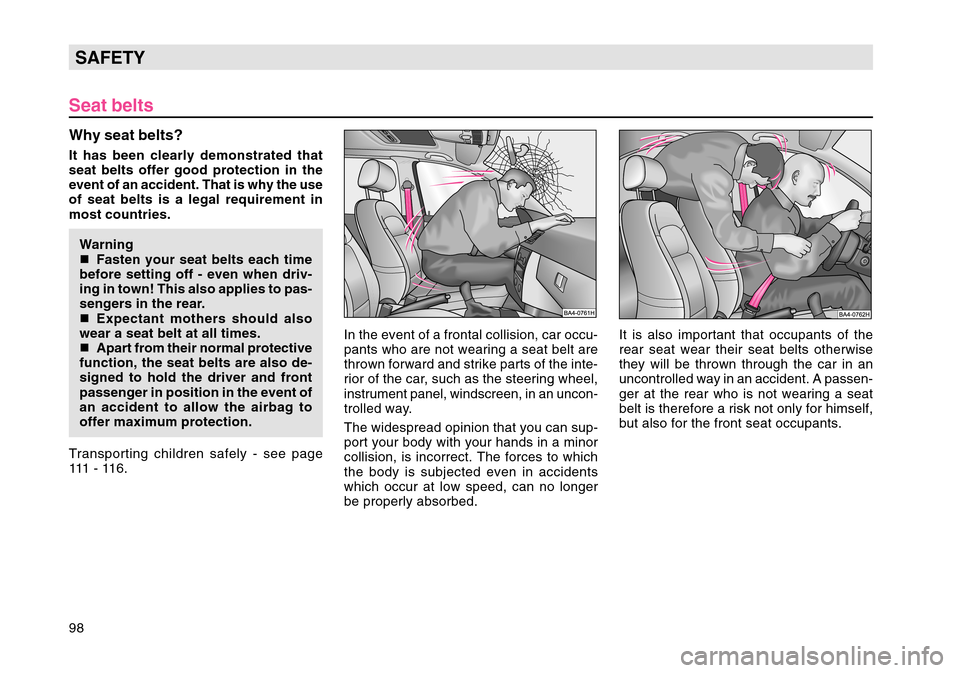

98SAFETYSeat beltsWhy seat belts?It has been clearly demonstrated that
seat belts offer good protection in the
event of an accident. That is why the use
of seat belts is a legal requirement in
most countries.Warning
Fasten your seat belts each time
before setting off - even when driv-
ing in town! This also applies to pas-
sengers in the rear.
Expectant mothers should also
wear a seat belt at all times.
Apart from their normal protective
function, the seat belts are also de-
signed to hold the driver and front
passenger in position in the event of
an accident to allow the airbag to
offer maximum protection.
Transporting children safely - see page
111 - 11 6 . In the event of a frontal collision, car occu-
pants who are not wearing a seat belt are
thrown forward and strike parts of the inte-
rior of the car, such as the steering wheel,
instrument panel, windscreen, in an uncon-
trolled way.
The widespread opinion that you can sup-
port your body with your hands in a minor
collision, is incorrect. The forces to which
the body is subjected even in accidents
which occur at low speed, can no longer
be properly absorbed.It is also important that occupants of the
rear seat wear their seat belts otherwise
they will be thrown through the car in an
uncontrolled way in an accident. A passen-
ger at the rear who is not wearing a seat
belt is therefore a risk not only for himself,
but also for the front seat occupants.
Page 100 of 189
99
SAFETY

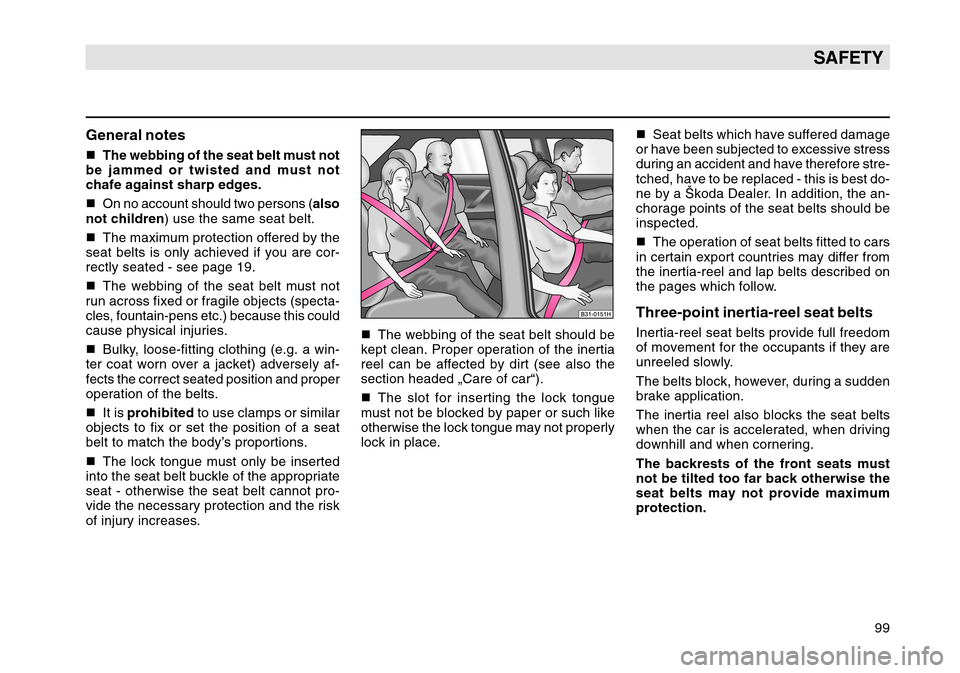

General notesThe webbing of the seat belt must not
be jammed or twisted and must not
chafe against sharp edges.
On no account should two persons ( also
not children ) use the same seat belt.
The maximum protection offered by the
seat belts is only achieved if you are cor-
rectly seated - see page 19.
The webbing of the seat belt must not
run across fixed or fragile objects (specta-
cles, fountain-pens etc.) because this could
cause physical injuries.
Bulky, loose-fitting clothing (e.g. a win-
ter coat worn over a jacket) adversely af-
fects the correct seated position and proper
operation of the belts.
It is prohibited to use clamps or similar
objects to fix or set the position of a seat
belt to match the body’s proportions.
The lock tongue must only be inserted
into the seat belt buckle of the appropriate
seat - otherwise the seat belt cannot pro-
vide the necessary protection and the risk
of injury increases.
The webbing of the seat belt should be
kept clean. Proper operation of the inertia
reel can be affected by dirt (see also the
section headed „Care of car“).
The slot for inserting the lock tongue
must not be blocked by paper or such like
otherwise the lock tongue may not properly
lock in place.
Seat belts which have suffered damage
or have been subjected to excessive stress
during an accident and have therefore stre-
tched, have to be replaced - this is best do-
ne by a Škoda Dealer. In addition, the an-
chorage points of the seat belts should be
inspected.
The operation of seat belts fitted to cars
in certain export countries may differ from
the inertia-reel and lap belts described on
the pages which follow.
Three-point inertia-reel seat beltsInertia-reel seat belts provide full freedom
of movement for the occupants if they are
unreeled slowly.
The belts block, however, during a sudden
brake application.
The inertia reel also blocks the seat belts
when the car is accelerated, when driving
downhill and when cornering.
The backrests of the front seats must
not be tilted too far back otherwise the
seat belts may not provide maximum
protection.
