10CONTROLS AND EQUIPMENTNote
If the car is locked and the Safe lock is
deactivated, it is possible to open the doors
from the inside as follows:

The door is unlocked by pulling the door
opening handle.

The door is opened by once again pul-
ling the handle.Convenience systemWhen unlocking and locking the car, it is
also possible to open and close the power
windows (only to close the sliding/tilting
roof) as follows:

Hold the key in the unlocking or locking
position until all the windows are opened
or closed. The opening or closing operati-
on is stopped immediately once the key is
released.
The rollback protection is not active if
the convenience system is used. Refer
to p. 16 for further information.
Warning

If the vehicle is locked from the
outside, make sure no persons or
animals are left behind. As locked
doors make outside emergency as-
sistance difficult, never leave chil-
dren or animals unattended in the
car.

Locking the doors will prevent their
opening unintentionally in excep-
tional circumstances (accident).
Locked doors also prevent unauthor-
ized access e.g. while waiting at traf-
fic lights. However, they do make it
more difficult for emergency workers
to provide assistance inside the car.

Check the locking process visu-
ally to ensure the locking knobs are
down.

The car is unlocked automatically
if the airbag system is activated.
Storage compartmentsAn overview
You will find the following storage facilities
in your vehicle:

Storage compartment on the front pas-
senger side - see page 87

Storage compartment below the steer-
ing wheel - see page 4

Storage compartment in the middle of
the dash panel - see page 4

Storage compartment in the door panel
- see page 4
Warning


Please do not place anything on top
of the dash panel. Such objects might
slide or fall down when driving (when
accelerating or cornering) and may
distract you from concentrating on the
traffic situation - risk of accident!

Use the storage compartments in
the door panels only for small items,
which do not project out of the com-
partment in order to avoid any inter-
ference with the proper operation of
the side airbags.

Ensure that when driving no ob-
jects from the centre console of from
other storage possibilities may get
into the footwell of the driver.
You would then no longer be able to
apply the brakes, operate the clutch
or accelerator - risk of accident!

11
CONTROLS AND EQUIPMENT
TailgateTo unlock and open the tailgate:
Insert key into the lock with the slot in the
vertical position, turn to the left and release.
Raise tailgate handle slightly and lift tail-
gate open. The handle is located between
the licence plate lights. The tailgate is held
in the top position by a gas strut.
To lock the tailgate:
Pull the tailgate down and close with a slight
swing.
Turn the key to the right and remove it from
the lock.
The tailgate is maintained in the top posi-
tion by a gas strut.
The tailgate is properly closed when the key
slot is vertical. Note
On models fitted with central locking sy-
stem* the tailgate is automatically unlocked
and locked together with the other locks.
On models fitted with anti-theft alarm sy-
stem* the tailgate can only be unlocked with
the remote control because the alarm is
triggered after it is unlocked with key.
Warning

Please observe the correct proce-
dure for unlocking and opening the
tailgate. If you unlock tailgate with
the key and at the same time raise the
handle, this can result in the open-
ing mechanism being blocked. A
blocked mechanism can be released
by leaving the handle and locking the
tailgate with the key. Please always
follow the correct procedure to avoid
damaging the opening mechanism.

After closing the tailgate, always
pull on the tailgate to check that it is
properly locked - the tailgate might
otherwise open suddenly when driv-
ing even if the lock has been prop-
erly closed.

Never drive with the tailgate slight-
ly ajar or even open otherwise the
exhaust gases will be drawn into the
car!

Do not press on the rear window
when closing the boot lid, it could
crack - risk of injury!

If you find that the slot of the key
is not vertical, an attempt has been
made to break into the car. We rec-
ommend checking the vehicle equip-
ment. Turn the slot of the key into the
vertical position to ensure that the
lock closes properly. As a check, lock
the car once and then unlock it. If it
is not possible to insert the key into
the lock, the lock has been damaged.
Have it repaired at a Škoda Dealer.

12CONTROLS AND EQUIPMENT
The remote control integrated in the key
can be used to operate the central locking
and the anti-theft warning system - see
pages 8 and 13.
The central locking and anti-theft warning
systems can be operated from a distance
of up to 10 metres. If the batteries have lost
power, the range of the remote control is
reduced.
Remote control*To unlock the car briefly press button
(pos. 1).
To lock the car briefly press button (pos. 2).
To open the key - press button (pos. 3).
To close the key - press button (pos. 3) and
fold the key together.
Note
The illustration shows the remote control
with the folding key. The functions of Un-
lock, Lock, etc. are the same as for the re-
mote control without folding key - refer to
the appropriate text.
Unlocking and locking carTo unlock the car, briefly press the button
(item 2).
To lock the car, briefly press the button
(item 1).
If the button (item 1) is pressed twice within
2 seconds when locking the car, the safe
lock and the interior motion sensor are
deactivated.
Note
After pressing one of the two buttons, the
indicator light in the key flashes. If the light
does not flash, the batteries in the key
may be discharged . Have the batteries
checked at a Škoda dealer and replaced,
if necessary.
The remote control can be used to acti-
vate the anti-theft alarm system and to lock
the car or to deactivate the anti-theft alarm
system and to unlock the car. If the car is
unlocked without the doors being opened
(e.g. by pressing the button of the remote
control accidentally), the car is automati-
cally locked again after 30 seconds.
The Safe lock and the anti-theft alarm are
not operational during these 30 seconds,
however.

13
CONTROLS AND EQUIPMENT

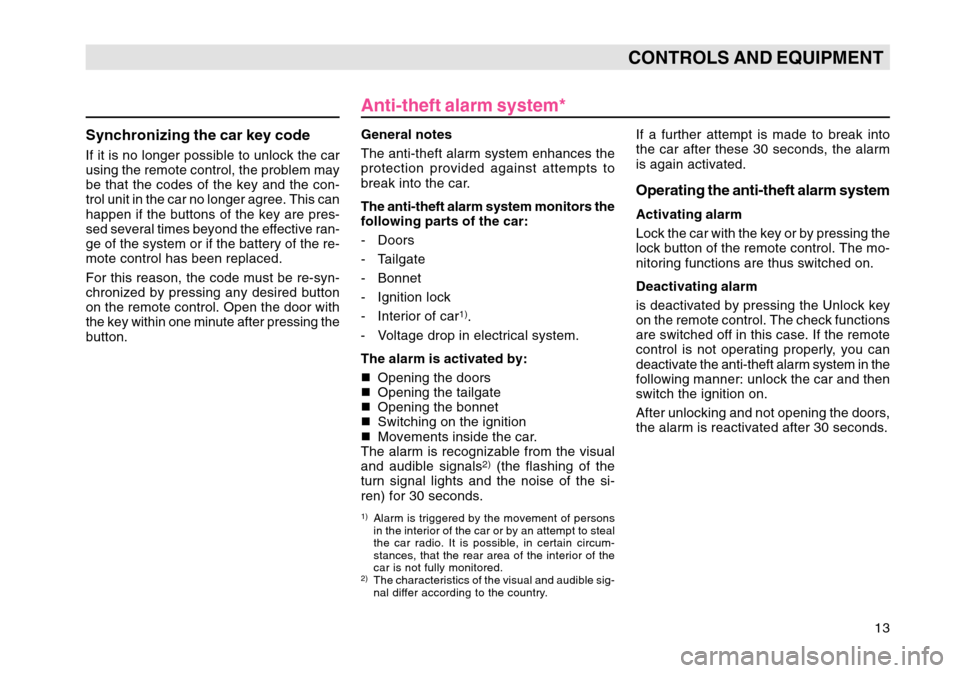

Synchronizing the car key codeIf it is no longer possible to unlock the car
using the remote control, the problem may
be that the codes of the key and the con-
trol unit in the car no longer agree. This can
happen if the buttons of the key are pres-
sed several times beyond the effective ran-
ge of the system or if the battery of the re-
mote control has been replaced.
For this reason, the code must be re-syn-
chronized by pressing any desired button
on the remote control. Open the door with
the key within one minute after pressing the
button.
Anti-theft alarm system*General notes
The anti-theft alarm system enhances the
protection provided against attempts to
break into the car.
The anti-theft alarm system monitors the
following parts of the car:
- Doors
- Tailgate
- Bonnet
- Ignition lock
- Interior of car
1).
- Voltage drop in electrical system.
The alarm is activated by:

Opening the doors

Opening the tailgate

Opening the bonnet

Switching on the ignition

Movements inside the car.
The alarm is recognizable from the visual
and audible signals2) (the flashing of the
turn signal lights and the noise of the si-
ren) for 30 seconds.
1)Alarm is triggered by the movement of persons
in the interior of the car or by an attempt to steal
the car radio. It is possible, in certain circum-
stances, that the rear area of the interior of the
car is not fully monitored.2)The characteristics of the visual and audible sig-
nal differ according to the country.
If a further attempt is made to break into
the car after these 30 seconds, the alarm
is again activated.Operating the anti-theft alarm systemActivating alarm
Lock the car with the key or by pressing the
lock button of the remote control. The mo-
nitoring functions are thus switched on.
Deactivating alarm
is deactivated by pressing the Unlock key
on the remote control. The check functions
are switched off in this case. If the remote
control is not operating properly, you can
deactivate the anti-theft alarm system in the
following manner: unlock the car and then
switch the ignition on.
After unlocking and not opening the doors,
the alarm is reactivated after 30 seconds.

14CONTROLS AND EQUIPMENTThe radio remote control can be used to
activate the anti-theft alarm system and to
lock the car, or to deactivate the anti-theft
alarm system and to unlock the car.Switching off interior motion sensorThe procedure for switching the interior mo-
tion sensor off and on is the same as for
switching off the Safe lock - see page 9.
This function makes it possible, for examp-
le, to leave animals in the car.
Switching off alarm
If the alarm has been triggered, press and
hold the Unlock button of the remote con-
trol for about one second in order to switch
off the alarm. The alarm is then switched
off and the car is unlocked. You can also
switch off the alarm by unlocking the car
with the key and the switching the ignition
on. The anti-theft alarm system is re-acti-
vated by once again pressing the button
(lock car).
General notes
The life of the siren source is 5 years.
Further information is available from
your Škoda Dealer.

The frequency coding of the remote con-
trol and the receiver means that it is not
possible to use the remote control of other
cars.

If the key and remote control are lost,
please contact your Škoda Dealer.

The power for the remote control is sup-
plied by batteries. If the anti-theft alarm
system does not react to the remote con-
trol until you are less than 3 metres from
the car or if the indicator light in the key
does not flash when the button is pressed,
the batteries have to be replaced. This is
best done at a Škoda Dealer.

15
CONTROLS AND EQUIPMENT
Power windows*
The switches for the individual windows are
located in the armrest of the driver door, of
the front passenger door and in the rear
doors*.
The power windows can also be operated
when the ignition is switched off.
If the ignition is switched off, the power win-
dows can continue to be operated for about
10 minutes, but not anymore if the door is
opened and closed.
The buttons in the rear doors* can be de-
activated using the safety switch* 1. The
windows should be closed in this case. Af-
ter this, it is only possible to operate the
windows in the rear doors with the switches
in the armrest. After the safety switch has
been pressed once again the rear switches
again operate.
Opening and closing windows by
means of buttons on the driver’s
doorOpening versions

The window is opened by applying slight
pressure to the relevant switch in the door.
The opening operation is stopped when the
switch is released.

The front windows are automatically
opened fully if the switch is pressed as far
as the stop.
The window stops immediately when the
switch is again pressed.
Closing

The window is closed by pulling up the
relevant switch slightly.
The closing operation is immediately
stopped when the switch is released.

The front windows are automatically fully
closed if the switch is pulled up as far as
the stop.
The window stops immediately if the switch
is pulled once again. Notes


The two switches for the rear windows
each have only one closing and one open-
ing position. The switch has to be pressed
and held during the entire closing or open-
ing operation.

It is only possible to automatically fully
open and close the two front windows us-
ing the switches in the driver’s door.

If the battery is re-connected, the top
position of the closed window has to be set
(system activated):
- Close all the windows with the conve- nience closing system.
- release the key
- After closing the window, hold the key in the closed position for a further 3 sec-
onds or so.

16CONTROLS AND EQUIPMENTDriving in winterIn winter, the closing operation of the win-
dow may be stopped because of the higher
friction resistance, caused for example by
ice, and the window then returns to its ini-
tial position.
In such a case, the window must be closed
in the following way:

Pull the switch (press switch at front
passenger door and at the rear doors) and
hold until the window is closed.

If closing is interrupted, repeat the op-
eration.Convenience operation of windowsWhen the car is unlocked and locked, it is
possible to open and close the power win-
dows (only to close the sliding/tilting roof),
as follows:

Hold the key in the lock in the opening
or closing position until all the windows are
opened or closed. The opening or closing
operation is interrupted immediately when
the key is released.
The rollback protection is not active if
the convenience system is used. Refer
to the following text for more detailed
information. Warning


The system is equipped with a
safety device to prevent injuries from
bruises. If, for example, a person’s
arm becomes jammed in the window
as it closes, the closing operation is
interrupted and the window opens
again a short distance. Despite this,
take care when closing the windows.
Persons may suffer injuries if the
windows are closed inattentively or
in an uncontrolled way.

No person should be left in the car
if it is locked from the outside. It is
not possible to open the windows
after about 10 minutes, or if the driv-
er’s door is opened and closed when
the ignition is switched off.

It is important to always pay atten-
tion when the windows are closing
to avoid anyone being injured.
Adjusting mirrorsThe rear-view mirrors should always be
adjusted properly before moving off so as
to ensure good vision to the rear.
Anti-dazzle inside mirror
The lever on the lower edge of the mirror
should be pointing forward when the basic
setting is made.
Pull lever to the rear to set the anti-dazzle
position.Rear-view mirrors

17
CONTROLS AND EQUIPMENT
Electrically adjustable exterior mir-
rors*are set by a rotary knob in the trim panel of
the driver’s door. The mirror is set to the
desired position by moving the rotary knob
in the desired direction with the ignition
switched on.
Position
Heating exterior mirror (applies only to mo-
dels with power windows)
Position L
- left-hand and right-hand mirrors at thesame time (applies to models with con-
venience system)
- left-hand mirror (applies to models wit- hout convenience system) Position R
Adjusting the right-hand mirror
If the electrical adjustment of the mirrors
fails, the mirrors can be adjusted by hand
by pressing on the edge of the surface of
the mirror.
Exterior mirror heating(applies only to models not fitted with power
windows)
When the ignition is switched on, the exte-
rior mirrors are heated provided the rear
window heater is also operating.
Note for using convex or aspherical ex-
terior mirrors:
Convex
exterior mirrors (curved outwards)
enlarge the field of view but they make ob-
jects look smaller.
These mirrors are only of limited use in
estimating how far away a following ve-
hicle is.
Aspherical exterior mirrors have a mirror
surface with different curvature. This wide-
angle mirror increases the field of view even
more so than conventional convex mirrors.
These mirrors are also only of limited
use in estimating how far away a follow-
ing vehicle is.
Warning
Use whenever possible the interior
rear mirror, for estimating the dis-
tance to the following vehicles.

18CONTROLS AND EQUIPMENTThe head restraints can be adjusted for an-
gle and height and should be set to match
the size of the seat occupant. Head re-
straints which are correctly adjusted offer
effective protection together with the seat
belts.Head restraints
Adjusting height
Grasp the side of the head restraint with
both your hands and pull it up or down in
direction of arrow A.

The best protection is obtained if the
upper edge of the head restraint is roughly
at eye level or higher.
Warning
In case the head restraints are not
correctly adjusted or when driving
without head restraints, you are ex-
posed to a risk of injury.Adjusting angle
The head restraints can be tilted in the
direction of arrow B and can be matched
to head height in the desired position to
provide enhanced comfort for the occupant.
Removing and installingPull the head restraint out of the backrest
as far as the stop. Press the locking button
in direction of arrow and pull the head re-
straint out of the backrest.
To install again, push the head restraint
rods into the guides until the locking but-
ton is heard to engage.

19
CONTROLS AND EQUIPMENT
Front seatsCorrect seat adjustment is important for:
- reliably and quickly reaching the controlsand switches,
- relaxed, fatigue-free body position,
- maximum protection from the seat belts.
Warning

For this reason, the front seats
should not be pushed too close to
the steering wheel or the instrument
panel.

Each occupant must correctly fas-
ten the seat belt belonging to the
seat. Children must be fastened with
a suitable restraint system - see page
111 .

The front seats and the head re-
straints must always be adjusted to
match the body size of the seat oc-
cupant. The seat belts must always
be correctly fastened in order to pro-
vide an optimal protection for you
and your occupants.

Always keep your feet in the foot-
well when the vehicle is moving - ne-
ver rest them on the instrument panel
or seats.

Never transport more occupants
than the maximum seating in the ve-
hicle.
1 - To move seat forward and back
Pull up the lever located below the seat and
move seat into the desired position. Then,
release lever and move seat further until
the lock engages.
The driver’s seat should be adjusted so that
the pedals can be fully depressed with the
legs slightly angled. Warning
For safety reasons the driver’s seat
must only be moved forward or back
when the vehicle is stationary!
2 - Adjusting seat height*
Move the lever repeatedly up and down in
the top position in order to raise the seat.
Move the lever repeatedly up and down in
the bottom position in order to lower the
seat. Warning
For safety reasons the height of the
driver’s seat must only be adjusted
when the vehicle is stationary!
