168DO-IT-YOURSELFFuse assignment
No. Electrical component A
1 - Mirror and spray nozzle heater,relay for cigarette lighter
el. seats ........................................ 10
2 - Turn signal lights .......................... 10
3 - Stowage compartment light ............ 5
4 - Licence plate lights ......................... 5
5 - Seat heaters, Climatronic, Navi- gation system, recirculated air
flap, multifunction steering
wheel, exterior mirror heaters ..... 7.5
6 - Central locking control unit ............. 5
7 - Reversing lights, parking aid ........ 10
8 - Mobile phone .................................. 5
9 - ABS/ESP ......................................... 5
10 - Petrol engine: control unit ............ 20
Diesel engine: control unit .............. 5No. Electrical component A
11 - Dash panel insert, selector lever
lock solenoid (automatic
gearbox) .......................................... 5
12 - Power supply for diagnosis, mobile phone ............................... 7.5
13 - Brake lights ................................... 10
14 - Interior light, central locking ......... 10
Interior light (without central
locking) ......................................... 10
15 - Instrument cluster, automatic gearbox, steering lock angle
sensor, rear-view mirrors ................ 5
16 - Air conditioning, electric water pump ............................................. 10
17 - Police .............................................. 5
18 - Right main beam .......................... 10
19 - Left main beam ............................. 10
20 - Right low beam, headlight range control ................................. 15
21 - Left low beam ............................... 15
22 - Right parking light ........................... 5
23 - Left parking light ............................. 5
24 - Wiper system, washer pump ........ 20
25 - Heater fan ..................................... 25
26 - Rear window heater ...................... 25
27 - Rear window wiper ....................... 15
28 - Fuel pump ..................................... 15
29 - Petrol engine - engine electronics, ignition ....................... 15
Diesel engine - engine
electronics .................................... 10 No. Electrical component A
30 - Power sliding/tilting roof
............... 20
31 - Automatic gearbox ........................ 20
Haldex coupling .............................. 5
32 - Petrol engine - injectors ............... 10
Diesel engine - injection pump,
control unit .................................... 30
33 - Headlight cleaning system ........... 20
34 - Petrol engine - engine electronics .................................... 10
Diesel engine - engine
electronics .................................... 10
35 - Trailer socket, socket in luggage compartment ............... 30
36 - Fog lights ...................................... 15
37 - S contact
1)................................... 10
38 - Luggage compartment light, central locking, remote fuel
filler flap release ........................... 15
39 - Hazard warning signals ................ 15
40 - Horn .............................................. 20
41 - Cigarette lighter ............................ 15
42 - Radio ............................................. 15
43 - Petrol engine: engine electronics .................................... 10
Diesel engine: engine
electronics .................................... 10
44 - Seat heaters ................................. 15
1)For electrical components which can be oper-
ated after switching off the ignition provided the
ignition key is not withdrawn, e.g. radio.

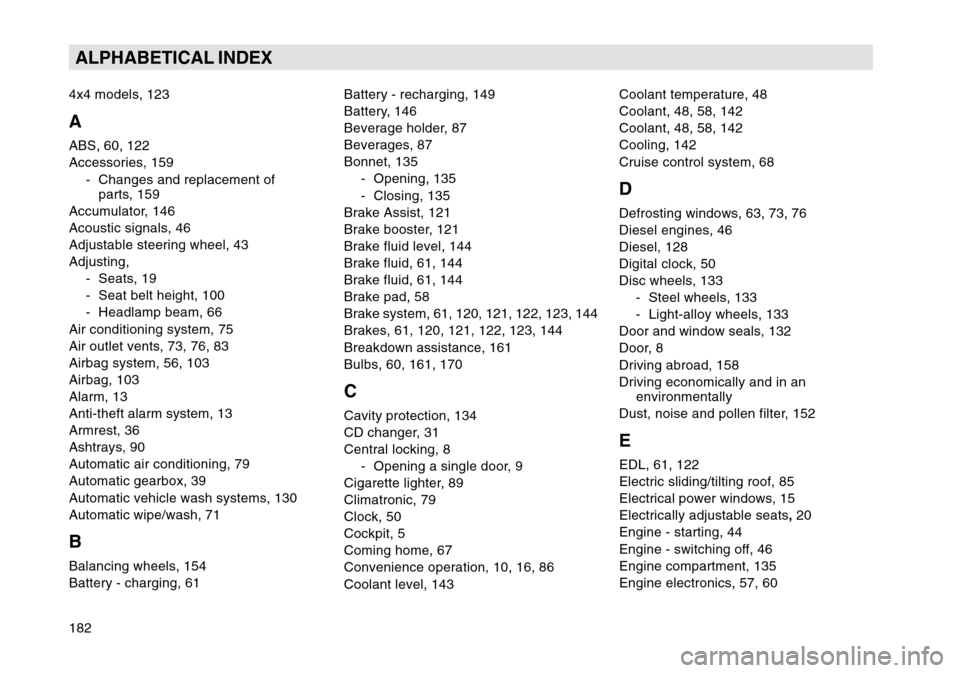

182ALPHABETICAL INDEX4x4 models, 123AABS, 60, 122
Accessories, 159- Changes and replacement ofparts, 159
Accumulator, 146
Acoustic signals, 46
Adjustable steering wheel, 43
Adjusting, - Seats, 19
- Seat belt height, 100
- Headlamp beam, 66
Air conditioning system, 75
Air outlet vents, 73, 76, 83
Airbag system, 56, 103
Airbag, 103
Alarm, 13
Anti-theft alarm system, 13
Armrest, 36
Ashtrays, 90
Automatic air conditioning, 79
Automatic gearbox, 39
Automatic vehicle wash systems, 130
Automatic wipe/wash, 71BBalancing wheels, 154
Battery - charging, 61 Battery - recharging, 149
Battery, 146
Beverage holder, 87
Beverages, 87
Bonnet, 135
- Opening, 135
- Closing, 135
Brake Assist, 121
Brake booster, 121
Brake fluid level, 144
Brake fluid, 61, 144
Brake fluid, 61, 144
Brake pad, 58
Brake system, 61, 120, 121, 122, 123, 144
Brakes, 61, 120, 121, 122, 123, 144
Breakdown assistance, 161
Bulbs, 60, 161, 170
CCavity protection, 134
CD changer, 31
Central locking, 8 - Opening a single door, 9
Cigarette lighter, 89
Climatronic, 79
Clock, 50
Cockpit, 5
Coming home, 67
Convenience operation, 10, 16, 86
Coolant level, 143 Coolant temperature, 48
Coolant, 48, 58, 142
Coolant, 48, 58, 142
Cooling, 142
Cruise control system, 68
DDefrosting windows, 63, 73, 76
Diesel engines, 46
Diesel, 128
Digital clock, 50
Disc wheels, 133
- Steel wheels, 133
- Light-alloy wheels, 133
Door and window seals, 132
Door, 8
Driving abroad, 158
Driving economically and in an environmentally
Dust, noise and pollen filter, 152EEDL, 61, 122
Electric sliding/tilting roof, 85
Electrical power windows, 15
Electrically adjustable seats , 20
Engine - starting, 44
Engine - switching off, 46
Engine compartment, 135
Engine electronics, 57, 60
