Cockpit
9
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
CockpitOverviewThis overview will help you to quickly familiarise yourself with the displays and the control elements.
Electric exterior mirror adjustment* . . . . . . . . . . . . . . . . . . . . . . . . . Air outlet vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Lever for the multi-functional switch: − Turn signal light, headlight and parking light, headlight flasher − Cruise control system* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Instrument cluster: Instrum
ents and indicator lights . . . . . . . . . . .
Lever for the multi-functional switch: − Multi-functional indicator* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . − Windshield wiper and wash system . . . . . . . . . . . . . . . . . . . . . . . Switch for rear window heater Depending on equipment fitted: − Switch for the ESP* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . − Switch for the TCS* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Switch for hazard warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Control dial for heating on the driver and front passenger seat* Open fuel filler cap from the inside* . . . . . . . . . . . . . . . . . . . . . . . . . Front passenger airbag* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Storage compartment in the front door Central locking switch and power windows* . . . . . . . . . . . . . . . . . . Bonnet release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Light switch, headlamp beam adjustment . . . . . . . . . . . . . . . . . . . . Storage compartment below steering wheelSteering wheel: − with horn − with driver airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Lever for adjusting the steering wheel . . . . . . . . . . . . . . . . . . . . . . . .
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ashtrays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Gearshift lever (manual gearbox) . . . . . . . . . . . . . . . . . . . . . . . . . . . . Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Depending on equipment fitted: − Operating controls for the heating . . . . . . . . . . . . . . . . . . . . . . . . − Operating controls for the air conditioning system* . . . . . . . . − Operating controls for Climatronic* . . . . . . . . . . . . . . . . . . . . . . . Storage compartment in the midd
le part of the dash panel
Radio* Storage compartment on the front passenger side . . . . . . . . . . . . Note
•
Equipment which is marked * is only standard on certain vehicle model
versions or only suppliable as op
tional equipment for certain models.
•
Vehicles with factory-fitted radio, mobi
le phone etc, are supplied with separate
instructions for operating such equipment.•
The arrangement of the controls and swit
ches and the location of some items
on right-hand drive models may differ from that shown in
⇒page 8, fig. 1
. The
symbols on the controls and switches are the same as for left-hand drive models.
A1
58
A2
83
A3
52 98
A4
16
A5
1956
A6A7
131133
A8
52
A9
67
A10
156
A11
116
A12A13
40, 44
A14
159
A15
49, 51
A16A17
116
A18
93
A19
94
A20
77
A21
96
A22
97
A23
838589
A24A25A26
80
s2g8.b.book Page 9 Tuesday, April 7, 2009 8:53 AM
Page 15 of 224

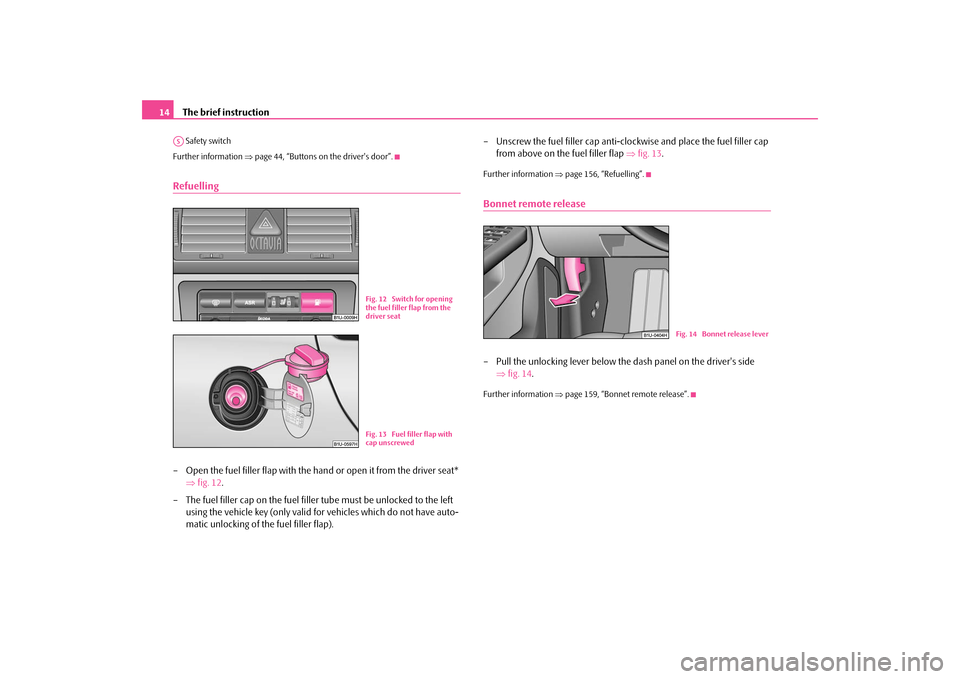

The brief instruction
14
Safety switch Further information
⇒page 44, “Buttons on the driver's door”.
Refuelling– Open the fuel filler flap with the hand or open it from the driver seat*
⇒
fig. 12
.
– The fuel filler cap on the fuel fille
r tube must be unlocked to the left
using the vehicle key (only valid for
vehicles which do not have auto-
matic unlocking of the fuel filler flap).
– Unscrew the fuel filler cap anti-clo
ckwise and place the fuel filler cap
from above on the fuel filler flap
⇒
fig. 13
.
Further information
⇒page 156, “Refuelling”.
Bonnet remote release– Pull the unlocking lever below the dash panel on the driver's side
⇒
fig. 14
.
Further information
⇒page 159, “Bonnet remote release”.
AS
Fig. 12 Switch for opening the fuel filler flap from the driver seatFig. 13 Fuel filler flap with cap unscrewed
Fig. 14 Bonnet release lever
s2g8.b.book Page 14 Tuesday, April 7, 2009 8:53 AM
Page 29 of 224
Instruments and Indicator/Warning Lights
28
WARNING
•
If you do not pay attention to the wa
rning lights coming on and the corre-
sponding descriptions and warning notes, this may result in severe body injuries or major vehicle damage.•
The engine compartment of your car is
a hazardous area. There is a risk
of injuries, scalding, accidents and
fire when working in the engine
compartment, e.g. inspecting and replenis
hing oil and other fluids. It is also
essential to obse
rve all warnings
⇒page 160.
Note
•
Arrangement of the indicator lights depends on the model and model version.
The symbols shown in the following function
al description are to be found as indi-
cator lights in the instrument cluster.•
Operational faults are shown in the inst
rument cluster as red symbols (priority
1 - danger) or yellow symbols (priority 2 - warning).Turn signal system
Either the left
or right
indicator light flashes depending on the position of the
turn signal lever. The indicator light flashes at twice its normal rate if a turn signal light fails. This does not apply when towing a trailer. Switching off the hazard warning light system is switched on will cause all of the turn signal lights as well as both indicator lights to flash. Further information about the turn signal system
⇒page 52.
Turn signal system for vehicles towing a trailer
*
The warning light
flashes together with the other turn signal lights only if the
vehicle is towing a trailer. The indicator light does not flash if a turn si
gnal light on the trailer or on the vehicle
is not operating.
Airbag system*
⇒ page 30
Coolant temperature/coolant level
⇒page 30
Brake pad wear*
⇒page 31
Fuel reserve
⇒page 31
Engine oil
⇒page 31
Open door*
⇒page 32
Fluid level in windshield washer system*
⇒page 31
Antilock brake system (ABS)*
⇒page 32
Traction control system (TCS)*
⇒page 33
Electronic stability programme (ESP)*
⇒page 33
Dynamo
⇒page 34
Brake system
⇒page 34
Seat belt warning light*
⇒page 34
WARNING (continued)
s2g8.b.book Page 28 Tuesday, April 7, 2009 8:53 AM
Page 33 of 224
Instruments and Indicator/Warning Lights
32
Do not continue your journey
if for some reason it is not possible under the
conditions prevailing
to top up with oil.
Keep the engine switched off
and obtain
professional assistance from a specialist garage, otherwise it could lead to severe engine damage. Do not drive any further
if the warning light remains on even if the oil is at the
correct level. Do not run the engine not at
idling speed either. Contact the nearest
specialist garage to obtain professional assistance. The following text will be displayed in the information display*:
STOP! OIL PRESS. STOP MOTOR! SERVICE MANUAL
The warning light
lights up yellow* (oil quantity too low)
If the warning light lights up yellow, there is not the correct quantity of oil in the engine. Check as soon as possible the oil level or top up
⇒page 163 with engine
oil. A peep sounds as an additional warning signal.The following text will be displayed in the information display*:
CHECK OIL LEVEL
When opening the bonnet, the warning light
goes out. If no engine oil has been
replenished, the warning light will come on again after driving about 100 km. The warning light
flashes yellow* (engine oil level sensor faulty)
A fault on the engine oil level sensor is in
dicated additionally by
an audible signal
and the warning light coming on several times after the ignition has been switched on. In this case have the engine inspecte
d without delay by a specialist garage.
The following text will be displayed in the information display*:
OIL SENSOR WORKSHOP!
WARNING
•
If you must stop for technical reasons, then park the vehicle at a safe
distance from the traffic and switch off the engine and switch on the hazard warning light system
⇒page 52.
•
The red oil pressure light
is not an oil level indicator! One should
therefore check the oil level at regular
intervals, preferably after every refu-
eling stop.Open door*
The warning light
comes on, if one or several doors are opened.
The warning light on vehicles fitted with information display comes on when switching the ignition off. If a door or the boot lid is opened. The warning light on vehicles fitted with information display goes out after switching the ignition off.Antilock brake system (ABS) *
The warning light
shows the functionality of the ABS and the Electronic Differ-
ential Lock (EDL)*. The warning light comes on for a few seconds after the ignition has been switched on or when starting the engine. The warnin
g light goes out after an automatic check
sequence has been completed. A fault in the ABS The system is not functioning properly if the ABS warning light
does not go out
within a few seconds after switching on the ig
nition, does not light up at all or lights
up while driving. The vehicle
will only be braked by th
e normal brake system. Visit
a specialist garage as quickly as possible and adjust your style of driving to take account of the fault in the meantime since
you will not know the extent of the fault
and in how far the effect of the antilock brakes is affected. Further information about ABS
⇒page 135, “Antilock brake system (ABS)*”.
WARNING (continued)
s2g8.b.book Page 32 Tuesday, April 7, 2009 8:53 AM
Page 38 of 224

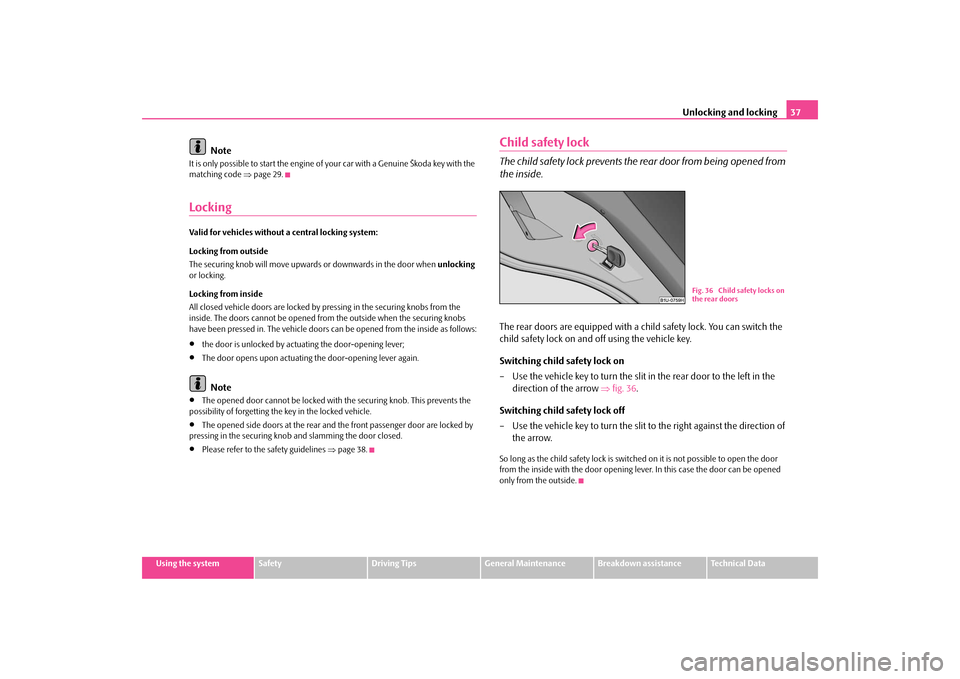

Unlocking and locking
37
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Note
It is only possible to start the engine of your car with a Genuine Škoda key with the matching code
⇒page 29.
LockingValid for vehicles without a central locking system: Locking from outside The securing knob will move upwards or downwards in the door when
unlocking
or locking. Locking from inside All closed vehicle doors are
locked by pressing in the securing knobs from the
inside. The doors cannot be opened from the outside when the securing knobs have been pressed in. The vehicle doors ca
n be opened from the inside as follows:
•
the door is unlocked by actu
ating the door-opening lever;
•
The door opens upon actuating the door-opening lever again.Note
•
The opened door cannot be
locked with the securing
knob. This prevents the
possibility of forgetting th
e key in the locked vehicle.
•
The opened side doors at the rear and the front passenger door are locked by
pressing in the securing knob
and slamming the door closed.
•
Please refer to the safety guidelines
⇒page 38.
Child safety lockThe child safety lock prevents the
rear door from being opened from
the inside.The rear doors are equipped with a child safety lock. You can switch the child safety lock on and off using the vehicle key. Switching child safety lock on – Use the vehicle key to turn the slit
in the rear door to the left in the
direction of the arrow
⇒
fig. 36
.
Switching child safety lock off – Use the vehicle key to turn the slit to the right against the direction of
the arrow.
So long as the child safety lock is switched
on it is not possible to open the door
from the inside with the door opening leve
r. In this case the door can be opened
only from the outside.
Fig. 36 Child safety locks on the rear doors
s2g8.b.book Page 37 Tuesday, April 7, 2009 8:53 AM
Page 39 of 224
Unlocking and locking
38
Central locking system*DescriptionUnlocking or locking the vehicle causes
all doors to be unlocked or locked at the
same time by the central locking system. The boot lid is unlocked when opening. It can be opened by pressing the hand grip above the licence plate
⇒page 41, fig. 39
.
Operation of the central locking system is possible:•
from the outside using the vehicle key
⇒page 39,
•
using the button for the central locking system
⇒page 40,
•
by using the remote control
⇒page 42.
•
with the securing knobs in the doors
⇒page 40, fig. 38
- only for vehicles which
are not fitted with electrically operated power windows (only for locking). Warning light and securing knobs in the doors All the securing knob
s move upwards when
unlocking
.
The driver door must be closed when
locking
. Other doors can also be closed after
locking. All the securing knobs move downwards when
locking
. If this is not the case, the
relevant door must be opened
once again and properly closed.
The
warning light
flashes in the driver door, next to the securing knob, to confirm
that the vehicle has been correctly locked.
The warning light will not flash if the safe
securing system is deactivated
⇒page 38.
This is not the case, however, for vehicles
with an anti-theft alarm system* since the
indicator light is showing that the system is active. Convenience operation of windows One can open and close the electrically
powered windows when unlocking and
locking the vehicle
⇒page 45, “Window convenience operation”.
Opening a single door* This function makes it possible to only unlock the driver's door. The other doors remain locked and are only unlock
ed when the command is repeated.
If you wish, you can have a specialist garage
activate the function of the single door
opening mode.
WARNING
Locking the doors prevents involuntary
opening in an exceptional situation
(an accident). Locked doors prevent unwanted entry into the vehicle from outside, for example at road crossings. Locked doors do, however, make it m ore difficult for rescuers to get into
the vehicle in an emergency - danger to
life!
Note
•
In the event of an accident in which the airbags are deployed, the locked doors
are automatically unlocked in order to enable
rescuers to gain access to the vehicle.
•
Only the front doors can be unlocked and locked using the key if the central
locking system fails. You can lock or unlo
ck manually the other doors and the boot
lid.•
Emergency locking of the door
⇒page 40.
•
After locking the vehicle via the central locking system, optically check if all the
doors have been locked - posi
tion of the securing knobs.
Safe securingThe central locking system is equipped with a
safe securing
system. Locking the
vehicle from the outside causes the door lock
s to be automatically
blocked. It is not
possible to open the doors with the door ha
ndle either from the inside or from the
outside. This acts as an effective deterrent for attempts to break into your vehicle. If you lock the vehicle with a key or a remo
te control key, you can deactivate the safe
securing system by locking
two times within 2 seconds.
The warning light in the driver door will not
flash if the safe securing system is deac-
tivated. This is not the case, however,
for vehicles with an anti-theft alarm system* since the
indicator light is showing that the system is active.
s2g8.b.book Page 38 Tuesday, April 7, 2009 8:53 AM

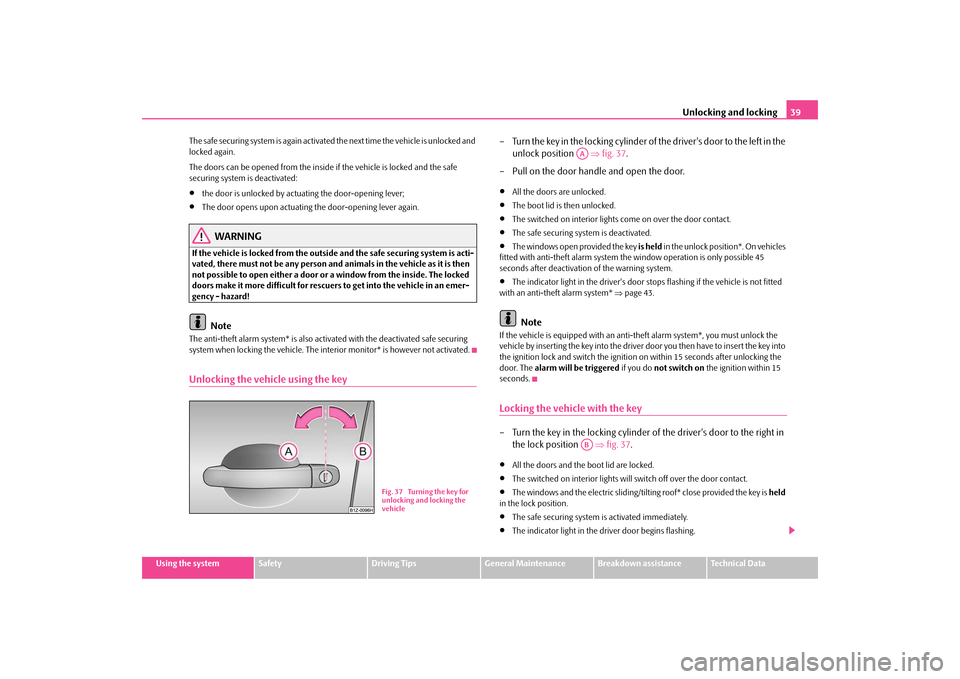

Page 40 of 224
Unlocking and locking
39
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
The safe securing system is again activated
the next time the vehicle is unlocked and
locked again. The doors can be opened from the inside
if the vehicle is lo
cked and the safe
securing system is deactivated:•
the door is unlocked by actu
ating the door-opening lever;
•
The door opens upon actuating the door-opening lever again.
WARNING
If the vehicle is locked from the outside and the safe securing system is acti- vated, there must not be any person and
animals in the vehicle as it is then
not possible to open either a door or a window from the inside. The locked doors make it more difficult for rescuers to get into the vehicle in an emer- gency - hazard!
Note
The anti-theft alarm system* is also activated with the deactivated safe securing system when locking the vehicle. The interior monitor* is however not activated.Unlocking the vehicle using the key
– Turn the key in the locking cylinder of
the driver's door to the left in the
unlock position
⇒
fig. 37
.
– Pull on the door handle and open the door.•
All the doors are unlocked.
•
The boot lid is then unlocked.
•
The switched on interior lights
come on over the door contact.
•
The safe securing system is deactivated.
•
The windows open provided the key
is held
in the unlock position*. On vehicles
fitted with anti-theft alarm system the window operation is only possible 45 seconds after deactivation of the warning system.•
The indicator light in the driver's door stops flashing if the vehicle is not fitted
with an anti-theft alarm system*
⇒page 43.
Note
If the vehicle is equipped with an anti-theft alarm system*, you must unlock the vehicle by inserting the key into the driver door you then have to insert the key into the ignition lock and switch the ignition
on within 15 seconds after unlocking the
door. The
alarm will be triggered
if you do
not switch on
the ignition within 15
seconds.Locking the vehicle with the key– Turn the key in the locking cylinder of
the driver's door to the right in
the lock position
⇒
fig. 37
.
•
All the doors and the boot lid are locked.
•
The switched on interior lights will
switch off over the door contact.
•
The windows and the electric sliding/tilting roof* close provided the key is
held
in the lock position.•
The safe securing system is activated immediately.
•
The indicator light in the driver door begins flashing.
Fig. 37 Turning the key for unlocking and locking the vehicle
AAAB
s2g8.b.book Page 39 Tuesday, April 7, 2009 8:53 AM

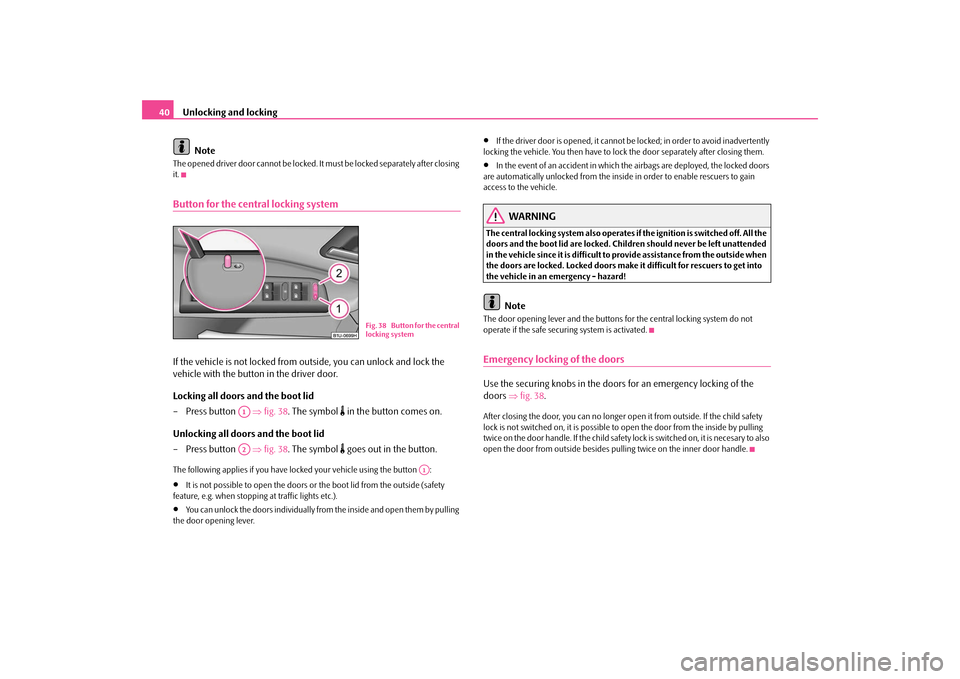

Page 41 of 224
Unlocking and locking
40
Note
The opened driver door cannot be locked. It
must be locked sepa
rately after closing
it.Button for the central locking systemIf the vehicle is not locked from outside, you can unlock and lock the vehicle with the button in the driver door. Locking all doors and the boot lid – Press button
⇒
fig. 38
. The symbol
in the button comes on.
Unlocking all doors and the boot lid – Press button
⇒
fig. 38
. The symbol
goes out in the button.
The following applies if you have lo
cked your vehicle using the button :
•
It is not possible to open the doors or the boot lid from the outside (safety
feature, e.g. when stopping at traffic lights etc.).•
You can unlock the doors individually from the inside and open them by pulling
the door opening lever.
•
If the driver door is opened, it cannot
be locked; in order to avoid inadvertently
locking the vehicle. You then have to lock
the door separately
after closing them.
•
In the event of an accident in which the airbags are deployed, the locked doors
are automatically unlocked from the inside in order to enable rescuers to gain access to the vehicle.
WARNING
The central locking system al
so operates if the ignition is switched off. All the
doors and the boot lid are locked. Children should never be left unattended in the vehicle since it is difficult to
provide assistance from the outside when
the doors are locked. Locked doors make it difficult for rescuers to get into the vehicle in an emergency - hazard!
Note
The door opening lever and the buttons for the central locking system do not operate if the safe securing system is activated.Emergency locking of the doorsUse the securing knobs in the doors for an emergency locking of the doors
⇒
fig. 38
.
After closing the door, you can no longer open it from outside. If the child safety lock is not switched on, it is possible to
open the door from the inside by pulling
twice on the door handle. If the child safety lock is switched on, it is necesary to also open the door from outside besides pu
lling twice on the inner door handle.
Fig. 38 Button for the central locking system
A1A2
A1
s2g8.b.book Page 40 Tuesday, April 7, 2009 8:53 AM

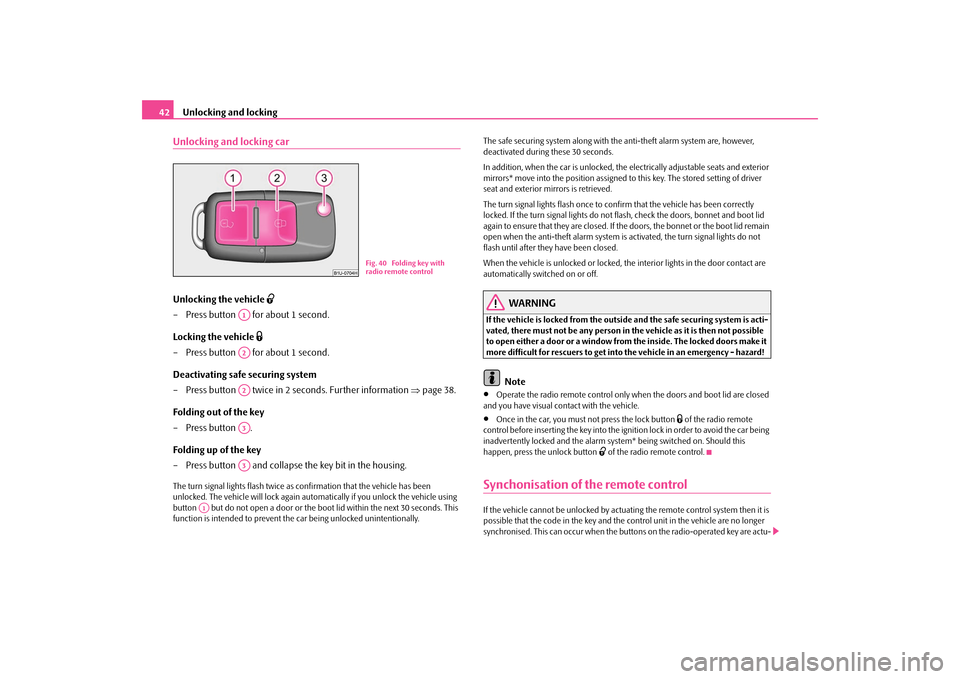

Page 43 of 224
Unlocking and locking
42
Unlocking and locking carUnlocking the vehicle
– Press button for about 1 second. Locking the vehicle
– Press button for about 1 second.Deactivating safe securing system – Press button twice in 2 seconds. Further information
⇒
page 38.
Folding out of the key – Press button . Folding up of the key – Press button and collapse the key bit in the housing.The turn signal lights flash twice as
confirmation that the vehicle has been
unlocked. The vehicle will lock again auto
matically if you unlock the vehicle using
button but do not open a door or the
boot lid within the next 30 seconds. This
function is intended to prevent the car being unlocked unintentionally.
The safe securing system along with the anti-theft alarm system are, however, deactivated during these 30 seconds. In addition, when the car is unlocked, the el
ectrically adjustable seats and exterior
mirrors* move into the position assigned to this key. The stored setting of driver seat and exterior mirrors is retrieved. The turn signal lights flash once to co
nfirm that the vehicle has been correctly
locked. If the turn signal lights do not fl
ash, check the doors, bonnet and boot lid
again to ensure that they are closed. If th
e doors, the bonnet or the boot lid remain
open when the anti-theft alarm system is activated, the turn signal lights do not flash until after they have been closed. When the vehicle is unlocked or locked, the
interior lights in the door contact are
automatically switched on or off.
WARNING
If the vehicle is locked from the outsid
e and the safe securing system is acti-
vated, there must not be any person in the vehicle as it is then not possible to open either a door or a window from the inside. The locked doors make it more difficult for rescuers to get into
the vehicle in an emergency - hazard!
Note
•
Operate the radio remote control only when the doors and boot lid are closed
and you have visual co
ntact with the vehicle.
•
Once in the car, you must
not press the lock button
of the radio remote
control before inserting the key into the ignition lock in order to avoid the car being inadvertently locked and the alarm syst
em* being switched on. Should this
happen, press the unlock button
of the radio remote control.
Synchonisation of the remote controlIf the vehicle cannot be unlocked by actuatin
g the remote control system then it is
possible that the code in the key and the
control unit in the vehicle are no longer
synchronised. This can occur when the buttons on the radio-operated key are actu-
Fig. 40 Folding key with radio remote control
A1A2A2A3A3
A1
s2g8.b.book Page 42 Tuesday, April 7, 2009 8:53 AM

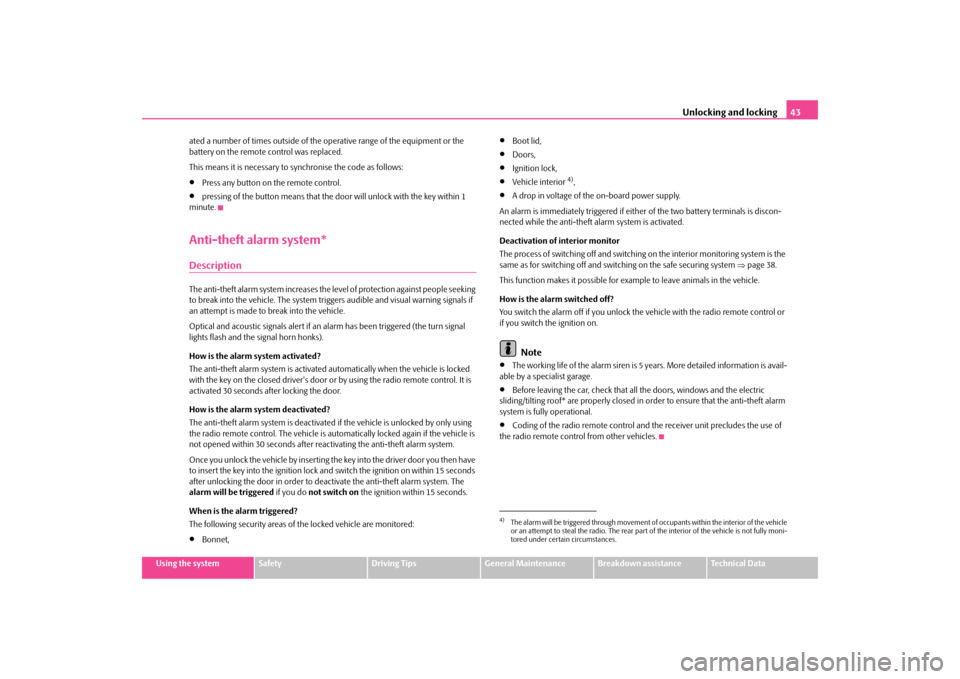

Page 44 of 224
Unlocking and locking
43
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
ated a number of times outside of the operative range of the equipment or the battery on the remote control was replaced. This means it is necessary to synchronise the code as follows:•
Press any button on the remote control.
•
pressing of the button means that the door will unlock with the key within 1
minute.Anti-theft alarm system*DescriptionThe anti-theft alarm system increases the le
vel of protection against people seeking
to break into the vehicle. The system tri
ggers audible and visual warning signals if
an attempt is made to break into the vehicle. Optical and acoustic signals alert if an al
arm has been triggered (the turn signal
lights flash and the signal horn honks). How is the alarm system activated? The anti-theft alarm system is activated
automatically when th
e vehicle is locked
with the key on the closed driver's door or
by using the radio remote control. It is
activated 30 seconds after locking the door. How is the alarm system deactivated? The anti-theft alarm system is deactivated
if the vehicle is unlocked by only using
the radio remote control. The vehicle is au
tomatically locked agai
n if the vehicle is
not opened within 30 seconds after reac
tivating the anti-theft alarm system.
Once you unlock the vehicle by inserting the key into the driver door you then have to insert the key into the ignition lock an
d switch the ignition on within 15 seconds
after unlocking the door in order to deac
tivate the anti-theft alarm system. The
alarm will be triggered
if you do
not switch on
the ignition within 15 seconds.
When is the alarm triggered? The following security areas of the locked vehicle are monitored:•
Bonnet,
•
Boot lid,
•
Doors,
•
Ignition lock,
•
Vehicle interior
4),
•
A drop in voltage of the on-board power supply.
An alarm is immediately triggered if either of the two battery terminals is discon- nected while the anti-theft
alarm system is activated.
Deactivation of interior monitor The process of switching off and switching on the interior monitoring system is the same as for switching off and switching on the safe securing system
⇒page 38.
This function makes it possible for example to leave animals in the vehicle. How is the alarm switched off? You switch the alarm off if you unlock the
vehicle with the radio remote control or
if you switch the ignition on.
Note
•
The working life of the alarm siren is 5 years. More detailed information is avail-
able by a specialist garage.•
Before leaving the car, check that all the doors, windows and the electric
sliding/tilting roof* are properly closed in order to ensure that the anti-theft alarm system is fully operational.•
Coding of the radio remote control and
the receiver unit precludes the use of
the radio remote control from other vehicles.4)The alarm will be triggered through movement of
occupants within the interior of the vehicle
or an attempt to steal the radio. The rear part of the interior of the vehicle is not fully moni-tored under certain circumstances.
s2g8.b.book Page 43 Tuesday, April 7, 2009 8:53 AM
