radio SKODA OCTAVIA TOUR 2010 1.G / (1U) Columbus Navigation System Manual

Unlocking and locking41
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
This function makes it possible for example to leave animals in the vehicle.
How is the alarm switched off?
You switch the alarm off if you unlock the vehicle with the radio remote control or if
you switch the ignition on.
Note

The working life of the alarm siren is 5 years. More detailed information is available
by a specialist garage.

Before leaving the car, check that all the doors, windows and the electric
sliding/tilting roof* are properly closed in order to ensure that the anti-theft alarm
system is fully operational.

Coding of the radio remote control and th e receiver unit precludes the use of the
radio remote control from other vehicles.
Power windows*Buttons on the driver's doorThe power windows operate only when igniti on is switched on. After switching the
ignition off, the power windows can sti ll be operated however for maximum 10
minutes if a front door is not opened.
Opening a window– A window is opened by pressing lightly on the respective button in the door. The process stops when one releases the button.
– Additionally you can open the window automatically (fully open ed) by pressing the
button up to the stop. Renewed pressing of the button causes the window to stop
immediately.Closing a window– A window is closed through pulling lightly on the respective button in the door. The
closing process stops when one releases the button.
– Additionally you can close the window automatically (fully closed) by pulling the button up to the stop. Renewed pulling of the button causes the window to stop
immediately.
The buttons for the individual windows are lo cated in the armrest of the driver's door
 fig. 36 , front passenger door and in the rear doors*.
Buttons for the power windows in the armrest for the driver Button for the power window in the driver's door
Button for the power window in the front passenger's door
Button for the power window in the rear door on the right*
Button for the power window in the rear door on the left*
Safety pushbutton*
Safety pushbutton*
You can deactivate the buttons for power wind ows at rear doors by pressing the safety
pushbutton fig. 36 . The buttons for power windows at rear doors are activated
again by pressing the safety pushbutton again.
If the buttons for the rear doors are deactivated, the indicator light
 in the safety
switch lights up.
Fig. 36 Buttons on the driver's
door
AAABACADAS
AS
AS
AS
s2rc.book Page 41 Thursd ay, April 22, 2010 10:58 AM

Seats and Storage
58
Storing settingStoring seat and exterior mirror settings for driving forward– Switch on the ignition.
– Adjust the seat page 57.
– Adjust both exterior mirrors page 54.
– Press one of the memory buttons and hold the button pressed for about 3 seconds until an audible signal confirms that the setting has been stored. The
setting of this button was stored.Storing exterior mirror setting for reversing*– Switch on the ignition.
– Turn the exterior mirror control to position
  page 54.
– Engage the reverse gear.
– Move the right exterior mirror into the desired position page 54.
– Press one of the memory buttons and hold the button pressed for about 3 seconds until an audible signal confirms that the setting has been stored. The
setting of the selected button was stored.
The memory system can be deactivated at any time with the button . The seat and
the exterior mirrors can al so be manually operated. Memory buttons
Memory for the seat offers the possibility to store the individual driver seat and
external mirror position. An individual posi
tion can be allocated to each of the three
memory buttons page 58, fig. 56 , that is three in total. By pressing the appro-
priate memory button the seat and external mirror will automatically move into the
position allocated to this button page 59.
Note

When storing settings with the memory buttons, we recommend that you begin
with the front button and assign a memory button to each additional driver.

Each new setting stored with the same button erases the previous setting.

Each time you store the seat and exterior mirror settings for driving forward you
also have to re-store the individual setting of the exterior mirror on the passenger side
for reversing.
Assigning radio remote cont rol* to the memory buttonsAfter storing the settings of the seat and exterior mirrors, you have 10 seconds in order
to assign the radio remote control to the appropriate memory button.
– Withdraw the ignition key.
– Press the release button page 39 and hold it presse d for 1 second until an
audible signal confirms that the setting has been stored. The setting is stored with
the memory button which you have selected.
If you wish to be able to retrieve the settings which are stored in the memory by also
using the radio remote control, you have to assign the radio remote control to a
memory button in each case.
If you wish, you can obtain an additional re mote control key from a specialist garage
and then assign the remote contro l key to another memory button.
Note

If the radio remote control had previous ly been assigned to another memory
button, this setting is then erased by the new assignment.
Fig. 56 Driver seat: Memory
buttons and the button MEM
OFF
ADAD
AE
AD
AD
s2rc.book Page 58 Thursd ay, April 22, 2010 10:58 AM

Seats and Storage59
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data

If you assign the radio remote control to a memory button which has already been
assigned to a radio remote control, the ol d assignment is also replaced by a new
assignment in this case.

The assignment of the radio remote co ntrol to a memory button is retained,
however, after reassigning the seats and exterior mirrors.
Retrieving seat and exterior mirror settings for driving forward
You can retrieve the stored settings either with the memory button
or also with the radio remote control*.Retrieving the settings of the seat and mirrors can only be carried out when the igni-
tion is switched off for safety reasons. Retrieving the settings can be carried out in two
different ways:Retrieving settings with memory buttons– By pressing briefly: with the door open, operate the desired memory button
 page 58, fig. 56 with one-touch. The seat and the exterior mirrors now move
automatically into the stored position.
– By pressing for a long period of time: with the driver door open or closed, press
and hold the desired memory button until the seat and the exterior mirrors
have moved into the stored position.Retrieving settings with remote control*– If the driver door is closed and the ignition is switched off, briefly press the unlock button of the radio remote control page 39 and then open the driver door.
– The seat and exterior mirrors now move automatically into the stored positions.Retrieving setting of exterior mirror for reversing*– Turn the rotary knob for the exterior mirror setting into the position
  page 54
before engaging the reverse gear.
Emergency Off– Press any button on the driver seat.
Note
If the memory button is pressed once agai n during the automatic setting of the seat
and the exterior mirrors, the setting operation is interrupted. After repeated pressing
of the same button, the setting operation is continued to the end. If one of the two
remaining memory buttons is pressed, the stored setting of this button is retrieved.Information concerning the off switch of the memory systemAfter pressing the off switch page 58, fig. 56 of the memory system, the memory
system is deactivated. You can only adjust the seat and the exterior mirrors manually.
You can switch on the memory system again by once again pressing the off switch
of the memory system. The setting is not ca rried out to the end if a retrieved setting
operation is interrupted.
We recommend that you switch off the memo ry system with the off switch if the
vehicle is used for a short period by a driver and you do not wish to store any particular
settings of the seat and mirrors in this case.Head restraints
ADAD
AD
AE
AE
AE
AE
Fig. 57 Head restraint: adjusting
s2rc.book Page 59 Thursd ay, April 22, 2010 10:58 AM

Communication
94
CommunicationMobile phone, handsfree-system*Universal preparation for the phoneOnly one telephone mount is factory-fitted. An adapter for the telephone can be
purchased from the range of the Škoda origin al accessories. The mount is attached to
the centre console.Insert mobile phone– Insert the mobile phone into the adapter (as specified in manufacturer's instructions).Inserting adapter with mobile phone into mount– First insert the adapter with the mobile phone into the mount in the direction
of arrow until the adapter is touching the stop.
– Press the adapter slightly in the directio n of arrow until it locks into position.Initialisation– Withdraw the ignition key.
– Insert the adapter without the mobile phone into the mount . – Plug the adapter cable into
the mobile phone socket. The socket is located on the
mobile phone mount below.
– Switch on the ignition.
– Wait approximately 20 seconds, switch off the ignition and pull the ignition key out
of the ignition lock.
– Insert the mobile phone into the adapter (as specified in manufacturer's instructions) and switch on the ignition.
Removing the mobile phone with the adapter– Press the button and remove the mobile telephone.
An initialisation mu st be carried out:
after the first connection of the adapter;

after reconnecting the battery;

after pulling out the adapter cable from the power socket for the mobile phone.
This enables you to make full use of the advantages of a normal carphone (“handsfree
system” using a microphone integrated in the vehicle, optimal transmission of signals
using an external aerial etc.). The battery of the mobile phone is also constantly
charged.
Should you have any questions, please contact a specialist garage.
Please refer to the following guidelines page 94.
Mobile phones and two-way radio systemsThe installation of a mobile phone and two- way radio system in a vehicle should be
carried out by a specialist garage.
Škoda Auto permits the operation of mobile phones and two-way radio systems with
a professionally installed external aerial and a maximum transmission power of up to
10 watts.
Fig. 105 Universal preparation
for the phone
AA
AB
A1
A2
AB
AA
AC
s2rc.book Page 94 Thursd ay, April 22, 2010 10:58 AM

Communication95
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data

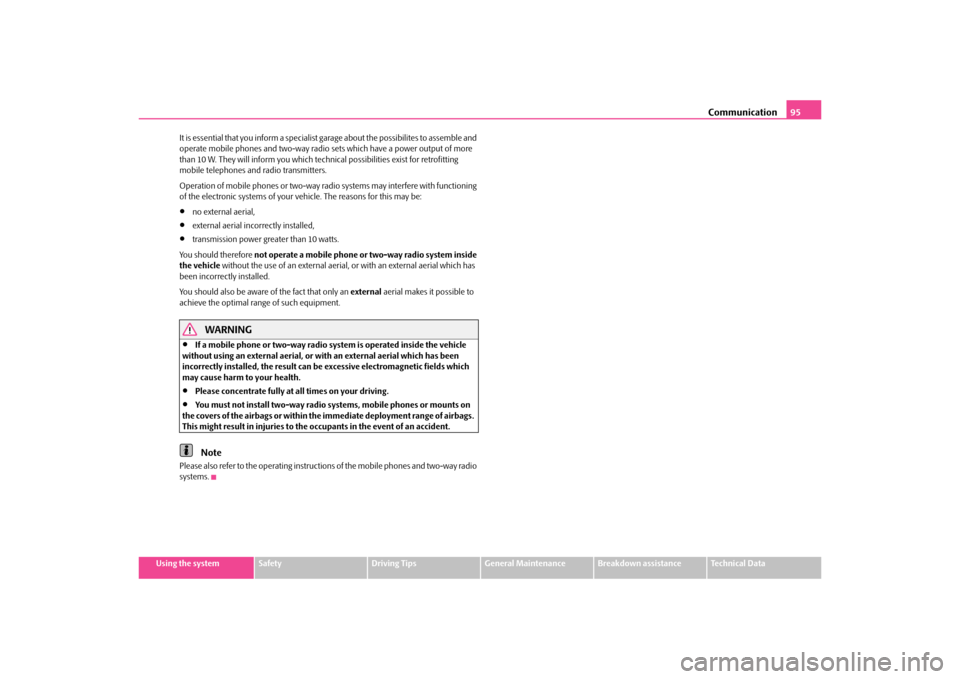

It is essential that you inform a specialist garage about the possibilites to assemble and
operate mobile phones and two-way radio sets which have a power output of more
than 10 W. They will inform you which technical possibilities exist for retrofitting
mobile telephones an
d radio transmitters.
Operation of mobile phones or two-way ra dio systems may interfere with functioning
of the electronic systems of your vehicle. The reasons for this may be:

no external aerial,

external aerial incorrectly installed,

transmission power greater than 10 watts.
You should therefore not operate a mobile phone or two-way radio system inside
the vehicle without the use of an external aerial, or with an external aerial which has
been incorrectly installed.
You should also be aware of the fact that only an external aerial makes it possible to
achieve the optimal range of such equipment.
WARNING

If a mobile phone or two-way radio system is operated inside the vehicle
without using an external aerial, or wi th an external aerial which has been
incorrectly installed, the result can be excessive electromagnetic fields which
may cause harm to your health.

Please concentrate fully at all times on your driving.

You must not install two-way radio systems, mobile phones or mounts on
the covers of the airbags or within the immediate deployment range of airbags.
This might result in injuries to the occupants in the event of an accident.Note
Please also refer to the operating instructions of the mobile phones and two-way radio
systems.
s2rc.book Page 95 Thursd ay, April 22, 2010 10:58 AM

Taking care of your vehicle and cleaning the vehicle
138
There are no particular points to note before washing your vehicle in such a plant other
than the usual precautionary measures (closing windows and sliding/tilting roof,
moving any factory-fitted aerials down flat against the bodywork, etc.).
If you have any particular attached parts fitted to your car - such as spoiler, roof rack
system, two-way radio aerial - it is best to first of all consult the operator of the car
wash plant.
It is important to degrease the lips of the windscreen wiper rubbers after passing
through the automatic vehicle wash system.
Caution
Do not screw the swivelling down roof aeri al tight before washing the vehicle in an
automatic vehicle wash sy stem - risk of damage!Washing vehicle by handIt is important to first soften the dirt with plenty of water and rinse it off as thoroughly
as possible before washin g your vehicle by hand.
One should then clean the vehicle using a soft washing sponge, washing glove or a
washing brush and only slight pressure. Work from the top to the bottom - beginning
with the roof. Only place slight pressure on the vehicle paintwork during cleaning Only
use a car shampoo for stubborn dirt.
Wash out the sponge or washing glove thoroughly at short intervals.
Clean wheels, door sills and similar parts last. Use a second sponge for such areas.
Rinse off the vehicle well after giving it a wash and dry it off using a chamois leather.
WARNING

The ignition should always be switched off when you wash your vehicle -
risk of accident!

Protect your hands and arms from sharp-edged metal parts when you are
cleaning the underfloor, the inside of the wheel housings or the wheel trims -
risk of cuts.
Caution

Do not wash your vehicl e in bright sunlight - risk of paint damage.

Ensure that the jet of water is not aimed di rectly at the locking cylinders or at the
door and panel joints if you spray your vehi cle in winter down with a hose - risk of
freezing.

Do not use any insect sponges, rough kitc hen sponges or similar cleaning products
- risk of damage to the surface of paintwork.For the sake of the environment
Only wash your vehicle at wa shing bays specifically reserved for this purpose. This
ensures that no water which may be contaminated by oil flows into the sewage system.
It is not even permitted to wash your vehicl e in certain areas except at such specific
washing bays.Washing with a high-pressure cleanerWhen you wash your vehicle with a high-press ure cleaner, it is essential to comply with
the instructions for use of the cleaning equi pment. This applies in particular to the
pressure used and to the spraying distance . Maintain a sufficiently large distance to
soft materials such as rubber hoses or insulation material.
On no account use circular spray nozzles or so-called dirt cutters!
WARNING
It is particularly important that you do not clean tyres with circular spray jets.
Visible but also invisible damage to tyres may occur even at a relatively large
spraying distance and if sprayed only for a short time - risk of accident!
Caution
The water containing wax must be no hotter than 60°C, otherwise the vehicle can be
damaged.
s2rc.book Page 138 Thursday, April 22, 2010 10:58 AM

Inspecting and replenishing
158
Charging the battery
A properly charged battery is essentia l for reliably starting the engine.– Read the warning notes  in “Working on the battery” on page 155 and .
– Switch the ignition and all electrical components off.
– Only for “quick-charging”: Disconnect both battery cables (first of all “negative”,
then “positive”).
– Carefully attach the terminal clamps of the charger to the battery terminals (red =
“positive”, black = “negative”).
– You can now plug the mains cable of the charger into the power socket and switch on the charger.
– When charging is completed: switch the charger off and unplug the mains cable from the power socket.
– Only then should you disconnect the terminal clamps of the charger.
– Reconnect the cables to the battery (first of all “positive”, then “negative”).
It is not normally necessary to disconnect th e cables of the battery if you recharge the
battery using low amperages (as for example from a mini-charger). Please also refer
to the instructions from the charger manufacturer.
A charging current of 0.1 of the total battery capacity (or lower) is that which should be
used until full charging is achieved.
It is, however, necessary to disconnect both cables before charging the battery with
high amperages, so-called “ quick-charging”.
“Quick-charging” a battery is dangerous  in “Working on the battery” on
page 155. It requires a special charger and appropriate knowledge. We therefore
recommend that you have your battery quick- charged only by your specialist garage.
A discharged battery may already freeze at temperatures just below 0°C . We
recommend that you no longer use a batter y which has thawed out because the casing
of the battery may be cracked through th e formation of ice and this would allow
battery electrolyte to flow out.
The vent plugs of the battery should not be opened for charging.
WARNING
Never charge a frozen or thawed battery - risk of explosion and caustic burns.
Replace a frozen battery.Disconnecting and reconnecting the batteryOn disconnecting and reconnecting the battery the following functions are initially
deactivated or are no longer able to operate fault-free.
We recommend having the vehicl e checked by a specialist garage to ensure full func-
tionality of all electrical systems.Replacing the batteryYou should only replace a battery with a new battery of the same capacity, voltage (12
V), amperage and of the same size. Specialist garages have a range of suitable batteries
available.
In view of the problems involved with its proper disposal, we recommend having the
battery replaced by a specialist garage.
For the sake of the environment
Batteries contain poisonous subs tances such as sulphuric acid and lead. They must be
disposed of in accordance with local envi ronmental protection regulations and on no
account as domestic waste.Operation
Operating measure
Electrical power window (operational faults)
 page 43
Enter radio code number
see Radio Operating Instructions
Set hours
page 19
Data in the multi-functional indicator* are
deleted.
page 19
s2rc.book Page 158 Thursday, April 22, 2010 10:58 AM

Accessories, changes and replacement of parts
166
Accessories, changes and replacement of partsAccessories and re placement partsŠkoda vehicles have been built according to the latest discoveries in safety engi-
neering. Thus one should not change the co ndition in which the vehicle was delivered
from the manufacturer without some thought.
The following guidelines should be observed when a vehicle is to be retrofitted with
accessories, have technical ch anges made to it or a part has to be replaced at some
time in the future.
Advise should always be obtained from a specialist garage before buying any
accessories and before making any technical changes .

This is particularly the case when acce ssories are bought in a foreign country.

Škoda Genuine Accessories which have been released for use and Skoda original
parts can be bought from specialist ga rages that professionally undertake the
assembly of parts which were purchased there.

All Škoda original accessories which are listed in the catalogue of original accesso-
ries such as sliding/tilting roofs, sp oilers, wheel rims etc. are homologized.

Radios, aerials and other electrical acce ssories should only be installed by a
specialist garage.

The guidelines issued by Škoda Auto mu st be observed when making technical
changes.

This is to ensure that no technical damage occurs to the vehicle, that travelling and
operating safety are maintained and that the chnages are permissible. The specialist
garages also undertake this work professionally or refer it to another specialist garage
in special cases.
Any damage which is done caused by tech nical changes made without consulting
a Skoda dealer is exclud ed from the guarantee.
WARNING

We advise you, in your own interest, to only use Škoda Genuine Accessories
and Škoda original parts which have been expressly approved for use on your Škoda. Reliability, safety and suitabilii
ty have been established for these Škoda
original parts.

We cannot guarantee suitability of installation into your vehicle of other
products despite keeping a constant eye on market developments (also not in
the case where there is an attestation or permission can be produced).
Technical changesInterference on the electronic components and their software can lead to operational
faults. This interference can also impair no t directly affected systems because of the
networking of the electronic components. This means that the operating safety of your
vehicle can be considerably jeopardized, a greater wear of vehicle parts can occur and
finally the vehicle registration documents expire.
We trust that you will understand that Šk oda Auto cannot be liable for damage
resulting from unprofessional work.
We therefore recommend that you have all wo rk carried out with Škoda original parts
at specialist garages.
WARNING
Work or modifications on your vehicle, which have been carried out unprofes-
sionally, can cause operational faults - risk of accident!Vehicles of category N1The vehicle of category N1 is a vehicle wh ich is designed and manufactured for trans-
porting loads with a maximum weight of 3.5 tonnes.
WARNING (continued)
s2rc.book Page 166 Thursday, April 22, 2010 10:58 AM

Fuses and light bulbs
180
Electrically adjustable seats are protected by automatic circuit breakers, which
switch on again automatically after a few seconds after the overload has been
eliminated.BulbsChanging bulbsThe relevant lamp must always be switch ed off before a light bulb is replaced.
Defect light bulbs should only be replaced with light bulbs of the same type. The desig-
nation is located on the light socket or the glass bulb.
Changing certain bulbs is not something whic h you can do yourself, but requires to be
done by a specialist. Other parts of the vehi cle must be removed in order to change the
13
Brake lights
10
14
Interior lighting, central locking system, interior lighting
(without central locking system)
10
15
Instrument cluster, steering angle sender, rear mirror
5
16
Air conditioning system
10
17
Heated windscreen washer nozzles
daylight driving lights
5
30
18
Right main beam
10
19
Left main beam
10
20
Right low beam, headlight range adjustment
15
21
Low beam on the left
15
22
Right parking light
5
23
Left parking light
5
24
Front window wiper, motor for wash pump
20
25
Air blower, air conditioning system, Climatronic
25
26
Rear window heater
25
27
Rear window wiper
15
28
Fuel pump
15
29
Control unit: Petrol engine
control unit: Diesel engine
15
10
30
Electric sliding/tilting roof
20
31
Not assigned
32
Petrol engine - injection valves
diesel engine - injection pump, control unit
10
30
33
Headlight cleaning system
20
34
Petrol engine: Control unit
diesel engine: Control unit
10
10
No.
Power consumer
Amperes
35
Trailer socket, power socket in the luggage compartment
30
36
Fog lights
15
37
Petrol engine: Control unit
diesel engine: Control unit
20
5
38
Luggage compartment light, central locking system, inte-
rior lighting
15
39
Hazard warning light system
15
40
Horn
20
41
Cigarette lighter
15
42
Radio, mobile phone
15
43
Petrol engine: Control unit
diesel engine: Control unit
10
10
44
Seat heaters
15
a)For power consumers, e.g. the radio, which can be operated with the ignition switched off as
long as the ignition key is not withdrawn.No.
Power consumer
Amperes
s2rc.book Page 180 Thursday, April 22, 2010 10:58 AM

Index203
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Service Interval Display . . . . . . . . . . . . . . . . . . . . . . . . 18
Setting temperature
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Setting the clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Shifting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Side airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Side lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Snow chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Spare wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Stability system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Starting the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88 after fuel tank has run empty . . . . . . . . . . . . . . . 89
Diesel engines . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Petrol engines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Storage compartment Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Storage compartments . . . . . . . . . . . . . . . . . . . . . . . . 74
Storage facilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Sun . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Switching lights on and off . . . . . . . . . . . . . . . . . . . . . 46
Switching off the engine . . . . . . . . . . . . . . . . . . . . . . . 89
TTaking care of your vehicle . . . . . . . . . . . . . . . . . . . 137
TCS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Telephone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Temperature outside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
the first 1 500 kilometres . . . . . . . . . . . . . . . . . . . . . 128 The roof luggage rack system . . . . . . . . . . . . . . . . . . 70
Thickness of brake pads
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Tilting roof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Towing a trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Towing device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
towing vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Tow-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Traction control system . . . . . . . . . . . . . . . . . . . . . . . 125
Traction control system (TCS) Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134 General Maintenance . . . . . . . . . . . . . . . . . . . . . 134
Transporting children . . . . . . . . . . . . . . . . . . . . . . . . 115
Tread depth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Two-way radio systems . . . . . . . . . . . . . . . . . . . . . . . . 94
Tyre . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Tyres Winter tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
UUnderbody protection . . . . . . . . . . . . . . . . . . . . . . . . 141
Unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39VVanity mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Vehicle tool kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167 Visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
WWarning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Warning symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Warning triangle . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
with a high-pressure cleaner . . . . . . . . . . . . . . 138
Washing the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 137
Washing vehicle by hand . . . . . . . . . . . . . . . . . . . . 138
Wax treatment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Wheel Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Spare . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Wheel bolts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Wheel trim . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160, 170
Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 de-icing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Windscreen washer nozzles . . . . . . . . . . . . . . . . . . . . 52
Windshield washer fluid reservoir . . . . . . . . . . . . 159 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Windshield washer system . . . . . . . . . . . . . . . . . . . 159 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Windshield wiper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Winter tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Wiper blades Replacing the wiper blades . . . . . . . . . . . . . . . . . 53XXenon headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
s2rc.book Page 203 Thursday, April 22, 2010 10:58 AM
