Technical Data
190
1.4 ltr./55 kW - EU4Engine
Performances
Fuel consumption (in ltr./100 km) and CO
2 emission (in g/km)
Power output
kW per rpm
55/5000
Maximum torque
Nm per rpm
126/3800
Number of cylinders
4
Displacement
cm3
1389
OCTAVIA - M5
COMBI - M5
Maximum speed
km/h
171
171
Acceleration 0 - 100 km/h
s
15,3
15,5
OCTAVIA - M5
COMBI - M5
Urban consumption
9,1
9,1
Non-urban consumption
5,4
5,4
Consumption - combination
6,8
6,8
CO2 emission - combination
163
163
s2rc.book Page 190 Thursday, April 22, 2010 10:58 AM

Technical Data191
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Capacities (in liter)
Weight (in kg)
Fuel tank capaci
ty/of which spare
55/7
Reservoir for windscreen washer system/with headlight cleaning system
3/5,5
Engine oil
a)
a)Oil capacity with oil filter change. Inspect oi l level according to filling - see Owner's Manual.
3,2
Cooling system of the vehicle
5,5
OCTAVIA - M5
COMBI - M5
Permissible gross weight
1750
1770
Unloaden weight ready for work
1230
1245
Loading capacity
520
525
Loading capacity when using the TLC
470
475
Permissible front axle load
1000
1000
Permissible rear axle load
990
1000
Permissible trailer loads, trailer braked
850
a)/850
b)
a)For uphills up to 12%.b)Only country specific up to 8% uphill.
850
a)/850
b)
Permissible trailer loads, trailer unbraked
500
500
s2rc.book Page 191 Thursday, April 22, 2010 10:58 AM

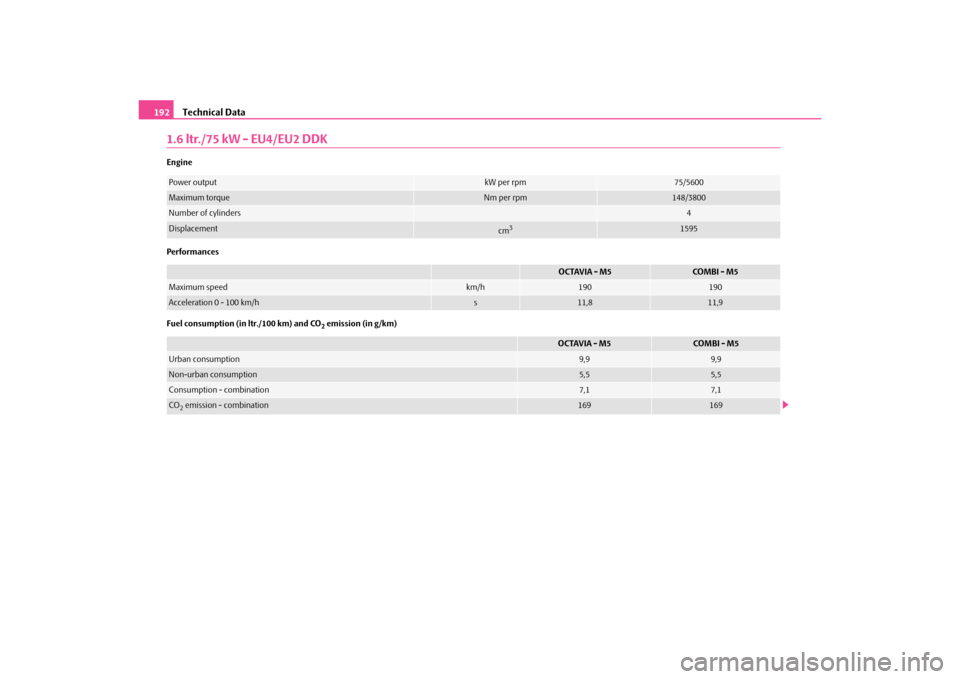

Technical Data
192
1.6 ltr./75 kW - EU4/EU2 DDKEngine
Performances
Fuel consumption (in ltr./100 km) and CO
2 emission (in g/km)
Power output
kW per rpm
75/5600
Maximum torque
Nm per rpm
148/3800
Number of cylinders
4
Displacement
cm3
1595
OCTAVIA - M5
COMBI - M5
Maximum speed
km/h
190
190
Acceleration 0 - 100 km/h
s
11,8
11,9
OCTAVIA - M5
COMBI - M5
Urban consumption
9,9
9,9
Non-urban consumption
5,5
5,5
Consumption - combination
7,1
7,1
CO2 emission - combination
169
169
s2rc.book Page 192 Thursday, April 22, 2010 10:58 AM

Technical Data193
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Capacities (in liter)
Weight (in kg)
1.8 ltr./110 kW - EU4/EU3DEngineFuel tank capaci
ty/of which spare
55/7
Reservoir for windscreen washer system/with headlight cleaning system
3/5,5
Engine oil
a)
a)Oil capacity with oil filter change. Inspect oi l level according to filling - see Owner's Manual.
4,5
Cooling system of the vehicle
7,0
OCTAVIA - M5
COMBI - M5
Permissible gross weight
1790
1805
Unloaden weight ready for work
1260
1275
Loading capacity
530
530
Loading capacity when using the TLC
470
470
Permissible front axle load
1000
1000
Permissible rear axle load
990
1000
Permissible trailer loads, trailer braked
1200
a)/1400
b)
a)For uphills up to 12%.b)Only country specific up to 8% uphill.
1200
a)/1400
b)
Permissible trailer loads, trailer unbraked
500
500
Power output
kW per rpm
110/5700
Maximum torque
Nm per rpm
210/1750-4600
Number of cylinders
4
Displacement
cm3
1781
s2rc.book Page 193 Thursday, April 22, 2010 10:58 AM

Technical Data
194
Performances
Fuel consumption (in ltr./100 km) and CO
2 emission (in g/km)
OCTAVIA - M5
COMBI - M5
Maximum speed
km/h
219
219
Acceleration 0 - 100 km/h
s
8,4
8,5
OCTAVIA - M5
COMBI - M5
EU4
EU3D
EU4
EU3D
Urban consumption
10,7
10,9
10,7
10,9
Non-urban consumption
6,2
6,2
6,2
6,3
Consumption - combination
7,9
7,9
7,9
8,0
CO2 emission - combination
189
190
189
192
s2rc.book Page 194 Thursday, April 22, 2010 10:58 AM

Technical Data195
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Capacities (in liter)
Weight (in kg)
Fuel tank capaci
ty/of which spare
55/7
Reservoir for windscreen washer system/with headlight cleaning system
3/5,5
Engine oil
a)
a)Oil capacity with oil filter change. Inspect oi l level according to filling - see Owner's Manual.
4,5
Cooling system of the vehicle
6,8
OCTAVIA - M5
COMBI - M5
Permissible gross weight
1845
1865
Unloaden weight ready for work
1315
1330
Loading capacity
530
535
Loading capacity when using the TLC
470
475
Permissible front axle load
1000
1000
Permissible rear axle load
990
1000
Permissible trailer loads, trailer braked
1300
a)/1500
b)
a)For uphills up to 12%.b)Only country specific up to 8% uphill.
1300
a)/1500
b)
Permissible trailer loads, trailer unbraked
500
500
s2rc.book Page 195 Thursday, April 22, 2010 10:58 AM

Technical Data
196
1.9 ltr./74 kW TDI PD - EU4Engine
Performances
Fuel consumption (in ltr./100 km) and CO
2 emission (in g/km)
Power output
kW per rpm
74/4000
Maximum torque
Nm per rpm
240/1800
Number of cylinders
4
Displacement
cm3
1896
OCTAVIA - M5
COMBI - M5
Maximum speed
km/h
189
189
Acceleration 0 - 100 km/h
s
11,8
11,9
OCTAVIA - M5
COMBI - M5
Urban consumption
6,5
6,5
Non-urban consumption
4,3
4,3
Consumption - combination
5,1
5,1
CO2 emission - combination
135
135
s2rc.book Page 196 Thursday, April 22, 2010 10:58 AM

Technical Data197
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Capacities (in liter)
Weight (in kg)
Fuel tank capaci
ty/of which spare
55/7
Reservoir for windscreen washer system/with headlight cleaning system
3/5,5
Engine oil
a)
a)Oil capacity with oil filter change. Inspect oi l level according to filling - see Owner's Manual.
4,3
Cooling system of the vehicle
6,8
OCTAVIA - M5
COMBI - M5
Permissible gross weight
1855
1875
Unloaden weight ready for work
1325
1340
Loading capacity
530
535
Loading capacity when using the TLC
470
475
Permissible front axle load
1000
1000
Permissible rear axle load
990
1000
Permissible trailer loads, trailer braked
1300
a)/1500
b)
a)For uphills up to 12%.b)Only country specific up to 8% uphill.
1300
a)/1500
b)
Permissible trailer loads, trailer unbraked
500
500
s2rc.book Page 197 Thursday, April 22, 2010 10:58 AM

Technical Data
198
Octavia - Vehicles of the group N1Octavia Combi - Vehicles of the group N1Engine
1.4 ltr./55 kW - EU4
1.6 ltr./75 kW - EU4
1.8 ltr./110 kW - EU4
1.9 ltr./74 kW TDI PD - EU4
Acceleration 0 - 100 km/h (s)
15,5
11,9
8,5
11,9
Permissible gross weight
1690
1720
1775
1785
Unloaden weight ready for work
1230
1260
1315
1325
Loading capacity
460
460
460
460
Loading capacity when using the TLC
410
400
400
400
Engine
1.4 ltr./55 kW - EU4
1.6 ltr./75 kW - EU4
1.8 ltr./110 kW - EU4
1.9 ltr./74 kW TDI PD - EU4
Acceleration 0 - 100 km/h (s)
15,5
11,9
8,5
11,9
Permissible gross weight
1705
1735
1790
1800
Unloaden weight ready for work
1245
1275
1330
1340
Loading capacity
460
460
460
460
Loading capacity when using the TLC
410
400
400
400
s2rc.book Page 198 Thursday, April 22, 2010 10:58 AM

Index199
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Index
AAbroad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
ABS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
Adjusting seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56, 98 electrically . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Adjusting the steering wheel . . . . . . . . . . . . . . . . . . . 87
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . 79 Recirculated air mode . . . . . . . . . . . . . . . . . . . . . 82
Airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108 Deployment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Front airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Side airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Alternator Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Antilock brake system . . . . . . . . . . . . . . . . . . . . . . . . 126
Antilock brake system (ABS) Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Anti-theft alarm system . . . . . . . . . . . . . . . . . . . . . . . 40
Ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Auto Check Control . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Auto Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Automatic seat adjustment . . . . . . . . . . . . . . . . . . . . 58 Automatic vehicle wash systems . . . . . . . . . . . . . . 137
Automatic wiper/washer system . . . . . . . . . . . . . . . 52
Avoiding damage to your vehicle . . . . . . . . . . . . . . 133
BBattery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31, 155
change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Charge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Inspecting the electrolyte level . . . . . . . . . . . . . 157
Operation in winter . . . . . . . . . . . . . . . . . . . . . . . 157
Before setting off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Belt Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Belt tensioners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14, 147
Boot lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Brake Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Brake Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Brake booster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Brake pads Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Bulbs Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Button for the central locking system . . . . . . . . . . . 37 Buttons on the driver's door
Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
CCar state . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Central locking system . . . . . . . . . . . . . . . . . . . . . . . . . 35lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
unlock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Changing the engine oil . . . . . . . . . . . . . . . . . . . . . . 151
Changing wheels around . . . . . . . . . . . . . . . . . . . . 162
Charging the battery . . . . . . . . . . . . . . . . . . . . . . . . . 158 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Check engine oil level . . . . . . . . . . . . . . . . . . . . . . . 150
Child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115 Side airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Child safety lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Child safety seat on the front passenger seat . . . . . . . . . . . . . . . 116
Safety information . . . . . . . . . . . . . . . . . . . . . . . 115
Child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118 Classification into groups . . . . . . . . . . . . . . . . . 118
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Use of child safety seats . . . . . . . . . . . . . . . . . . 118
Children and safety . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Chrome parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Cigarette lighter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
s2rc.book Page 199 Thursday, April 22, 2010 10:58 AM
