seats SKODA OCTAVIA TOUR 2010 1.G / (1U) Columbus Navigation System Manual

Transporting children safely117
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data

If this is not done, a child seated on the front passenger seat may suffer
severe or even fatal injuries if the front passenger airbag or airbags are
deployed. Have the airbag (or airbags) deactivated if necessary  page 113.

You should have the front passenger airbag (or airbags) reactivated just as
soon as you no longer use a child safe ty seat on the front passenger seat.
Child safety and side airbag*
Children must never be seated in the deployment area of side airbags.In the event of a side collision, the side ai rbags offer the vehicle occupants enhanced
protection. The side airbags are inflated in fractions of a second in order to be able to provide this
protection
page 112, “Function of the side airbags”.
An airbag inflating develops such a strong force that an occupant who has not adopted
an upright seated position may suffer injuries from the airbag or as a result of objects
which are located within the deployment area of the side airbag.
This applies particularly to children if they are not transported in accordance
with legal requirements.
The child is protected when seated in a chil d safety seat matching its age. Adequate
room is available between the child and the deployment area of the side airbag and
head airbag. The airbag offers optimal protection.
WARNING

It is essential to always switch off the front passenger airbag and possibly
the side airbag* when attaching a child safety seat on the front passenger seat
where the child is seated wi th its back facing in direction of travel (in some
countries also when the child is facing the direction of travel) page 113. If this
is not done, there is a risk of the child su ffering severe or even fatal injuries if
the front passenger airbag is deployed. In certain countries national legal
provisions also require that the side airbags be deactivated. When transporting
a child on the front passenger seat, please comply with the appropriate
national regulations regarding the use of child safety seats.

When transporting a child on the front passenger seat, please comply with
the appropriate national regulations r egarding the use of child safety seats.

Children must never be seated with th eir head in the deployment area of
the side airbag - risk of injury!

Do not place any objects within the deployment area of the side airbag - risk
of injury!
WARNING (continued)
Fig. 126 Seated position of an
unprotected child at risk from
side airbagFig. 127 Child properly
protected by safety seat
s2rc.book Page 117 Thursday, April 22, 2010 10:58 AM

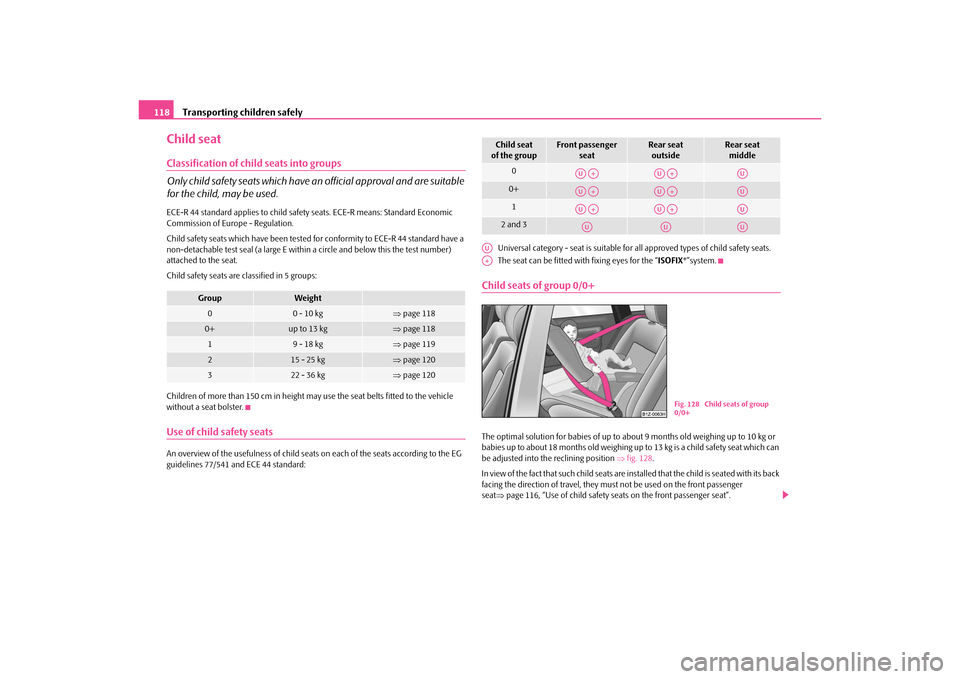

Transporting children safely
118
Child seatClassification of child seats into groups
Only child safety seats which have an official approval and are suitable
for the child, may be used.ECE-R 44 standard applies to child safety seats. ECE-R means: Standard Economic
Commission of Europe - Regulation.
Child safety seats which have been tested for conformity to ECE-R 44 standard have a
non-detachable test seal (a large E within a circle and below this the test number)
attached to the seat.
Child safety seats are classified in 5 groups:
Children of more than 150 cm in height may use the seat belts fitted to the vehicle
without a seat bolster.Use of child safety seatsAn overview of the usefulness of child seat s on each of the seats according to the EG
guidelines 77/541 and ECE 44 standard: Universal category - seat is suitable for all approved types of child safety seats.
The seat can be fitted wi
th fixing eyes for the “ISOFIX*”system.
Child seats of group 0/0+The optimal solution for babies of up to about 9 months old weighing up to 10 kg or
babies up to about 18 months old weighing up to 13 kg is a child safety seat which can
be adjusted into the reclining position fig. 128 .
In view of the fact that such child seats are installed that the child is seated with its back
facing the direction of travel, they mu st not be used on the front passenger
seat page 116, “Use of child safety se ats on the front passenger seat”.
Group
Weight
0
0 - 10 kg
page 118
0+
up to 13 kg
page 118
1
9 - 18 kg
page 119
2
15 - 25 kg
page 120
3
22 - 36 kg
page 120
Child seat
of the group
Front passenger seat
Rear seat outside
Rear seat middle
0


0+


1


2 and 3
AUA+
AUA+
AU
AUA+
AUA+
AU
AUA+
AUA+
AU
AU
AU
AU
AUA+
Fig. 128 Child seats of group
0/0+
s2rc.book Page 118 Thursday, April 22, 2010 10:58 AM

Transporting children safely119
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
WARNING

It is essential to always switch off th e front passenger airbag (airbags) when
attaching in exceptional circumstances a child safety seat on the front
passenger seat where the child is seated with its back facing in direction of
travel (in some countries also when the child is facing the direction of travel).
in a specialist garage
 or by using the switch for the front passenger airbag*  page 113.

In certain countries national legal provisions require that besides the front
passenger airbag also the front passenger side airbag is deactivated. Please
comply with any differing national legal regulations regarding the use of child
safety seats.

If this is not done, a child seated on the front passenger seat may suffer
severe or even fatal injuries if the front passenger airbag or airbags are
deployed.

You should have the front passenger airbag (or airbags) reactivated just as
soon as you no longer use a child safe ty seat on the front passenger seat.
Child safety seats in Group 1Child seats in Group 1 are for babies and small children up to 4 years of age with a
weight of between 9 and 18 kilograms. It is best for children in the lower range of this
group, to use a child seat which allows the ch ild to sit with its back to the direction of travel. It is best for children in the uppe
r range of the Group 0+, to use a child seat
which allows the child to sit fig. 129 in the direction of travel.
Child safety seats in which the child is seated with its back facing the direction of travel,
must not be used on th e front passenger seat page 116, “Use of child safety seats
on the front passenger seat”.
WARNING

It is essential to always switch off th e front passenger airbag (airbags) when
attaching in exceptional circumstances a child safety seat on the front
passenger seat where the child is seated with its back facing in direction of
travel (in some countries also when the child is facing the direction of travel).
in a specialist garage
 or by using the switch for the front passenger airbag* page 113.

In certain countries national legal provisions require that besides the front
passenger airbag also the front passenger side airbag is deactivated. Please
comply with any differing national legal regulations regarding the use of child
safety seats.

If this is not done, a child seated on the front passenger seat may suffer
severe or even fatal injuries if the front passenger airbag or airbags are
deployed.

You should have the front passenger airbag (or airbags) reactivated just as
soon as you no longer use a child safe ty seat on the front passenger seat.
Fig. 129 Child seat with padded
table in Group 1 installed on rear
seat bench facing the direction of
travel
s2rc.book Page 119 Thursday, April 22, 2010 10:58 AM

Transporting children safely
120
Child safety seats in Group 2For children up to about 7 years of age weighing between 15 and 25 kg the optimal
solution is a child safety seat in comb ination with the three-point seat belt fig. 130 .
WARNING

When transporting a child on the front passenger seat, please comply with
the appropriate national regu lations regarding the use of child safety seats. If
required, the airbag has to be deactivated,
in a specialist garage
 or by using the switch for the front passenger airbag*  page 113.

The shoulder part of the seat belt must run approximately across the middle
of the shoulder and fit snugly against the chest. It must on no account run
across the neck. The lap part of the seat belt must run across the pelvis and fits
snugly; it must not run over the belly. Tighten the belt webbing over your hip if
necessary.

Please comply with any differing nati onal legal regulations regarding the
use of child safety seats.
Child safety seats in Group 3For children of about 7 years of age weighing between 22 and 36 kg and of a height of
less than 150 cm, the optimal solution is a child safety seat (seat bolster) in combina-
tion with the three-point seat belt fig. 131 .
Children of more than 150 cm in height ma y use the seat belts fitted to the vehicle
without a seat bolster.
WARNING

When transporting a child on the fron t passenger seat, please comply with
the appropriate national regulations regard ing the use of child safety seats. If
required, the airbag has to be deactivated,
in a specialist garage
 or by using the switch for the front passenger airbag* page 113.

The shoulder part of the seat belt mu st run approximately across the middle
of the shoulder and fit snugly against the chest. It must on no account run
across the neck. The lap part of the seat belt must run across the pelvis and fits
snugly; it must not run over the belly. Tighten the belt webbing over your hip if
necessary.

Please comply with any differing nati onal legal regulations regarding the
use of child safety seats.
Fig. 130 Child seat in Group 2
installed on the rear seat facing
the direction of travel
Fig. 131 Child seat in Group 3
installed on the rear seat facing
the direction of travel
s2rc.book Page 120 Thursday, April 22, 2010 10:58 AM

Transporting children safely121
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Attaching a child seat using the “ISOFIX” systemThere are two locking eyes between the rear exterior seat backrest and the surface of
the seat itself on both sides for fixing the ISOFIX system child seat in place. One can
mount a child safety seat using the ISOFIX system quickly, easily and reliably. The
installation must be carried out according to the supplied instructions. The seat must
click into place audi bly when installing.Install child seat– Insert the mounting funnels onto the lock ing eyes between the seat backrest and
the seat cushion fig. 132 .
– Push the notched arms of the child seat in to the locking eyes until they are heard
to lock in place  fig. 133. –
Pull on both sides of the child seat!
One can mount a child safety seat using the “ISOFIX” system quickly, easily and reli-
ably. Please pay close attention to instruct ions from the manufacturer of the child
safety seat when installing and removing the seat.
Child seats fitted with the “ISOFIX” system can only be mounted and fixed in a vehicle
fitted with an “ISOFIX” system when these child seats have been released for this type
of vehicle according to the ECE-R 44 standard.
You can obtain child seats with the “ISOFIX” attachment system from specialist garages
who will also installed it as well.
Complete installation instructions are enclosed with the child safety seat.
WARNING

The locking eyes have just been deve loped for child safety seats which use
the “ISOFIX” system. You should therefore never attach other child safety seats,
seat belts or objects to the locking eyes - hazard!

Ask a specialist garage whether a child seat which you bought for another
vehicle is recommended for use in your vehicle before using a child seat with
“ISOFIX” system.

Certain child seats which use the “ISO FIX” system can be attached with
standard three-point seat belts. Please pay close attention to instructions from
the manufacturer of the child safety seat when installing and removing the
seat.Note

Child seats which use the “ISOFIX” system are currently available for children
weighing from 9 up to 18 kg. This correspond s to an age range of from 9 months to 4
years.
Fig. 132 Locking eyes (ISOFIX
system)Fig. 133 The ISOFIX child seat is
pushed into the mounting
funnels
s2rc.book Page 121 Thursday, April 22, 2010 10:58 AM

Taking care of your vehicle and cleaning the vehicle
142
Care of the interior of vehiclePlastic parts, artificial leather and clothsYou can clean plastic parts and artificial leather with a moist cloth. You should only
treat such parts with special solvent-free plastic cleaning and care products it does
prove to be adequate.
Upholstery cloth and cloth trim on the d oors, luggage compartment cover, headliner
etc. are best treated with special cleaning products, using if necessary a dry foam and
a soft sponge or brush.
We recommend using a cleaning product from Škoda genuine accessories offered by
your Škoda dealer.
Caution
Solvent-free cleaners attack th e material and can damage it.Fabric covers of electrically heated seatsDo not clean the seat covers moist as this may re sult in damage to the seat heating
system.
Clean such covers using specia l agents, for example dry foam.Natural leather
Natural leather requires quite particular care and attention.Leather should be treated from time to time according the following guidelines
depending on how much it is used.Normal cleaning– Clean soiled areas of the leather with slightly moistened cotton or woollen cloth.Severe soiling– Clean severely soiled areas with a cloth dipped in a mild soapy solution (2 spoon-
fuls of natural soap to 1 litre of water). – Ensure that the leather is not soaked through at any point and that no water gets
into the stitching of the seams.
– Dry off the leather with a soft, dry cloth.
Removing stains– Remove fresh stains which are water-based (e.g. coffee, tea, juices, blood etc.)
with an absorbent cloth or household paper or use the cleaner from the care set
for a stain which has already dried in.
– Remove fresh stains on a fat base (e.g. butter, mayonnaise, chocolate etc.) with an
absorbent cloth or household cleaning paper or with the cleaner from the care set
if the stain has not yet pe netrated into the surface.
– Use a grease dissolver for grease stains which have dried in .
–Eliminate special stains (e.g. ball-point pens, felt pe n, nail varnish, dispersion
paint, shoe cream etc.) with a special stain remover suitable for leather.Leather care– Treat the leather every six months with the leather care product available from
specialist garages.
– Apply only a small amount of the care product.
– Dry the leather off with a soft cloth
We recommend that you consult a speciali st garage if you have any questions
regarding cleaning and care of the leather interior in your vehicle.
Caution

You must on no account treat the leather wi th solvents (e.g. gasoline, turpentine),
floor wax, shoe cream or such like.

Avoid leaving your vehicle for lengthy period s in bright sunlight in order to avoid
bleaching the leather. If you leave your vehicle parked in the open for lengthy periods,
protect the leather from the direct ra ys of the sun by covering it over.

Sharp-edged objects on items of clothing su ch as zip fasteners, rivets, sharp-edged
belts may leave permanent scratches or signs of rubbing on the surface.
s2rc.book Page 142 Thursday, April 22, 2010 10:58 AM

Fuses and light bulbs179
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Fuse assignment in engine compartment - version 2Certain electrical components are only standard on certain vehicle model versions or
only suppliable as optional equipment for certain models.
Fuse assignment in the dash panelCertain electrical components are only stan dard on certain vehicle model versions or
only suppliable as optional equipment for certain models.
No.
Power consumer
Amperes
1
Pump for ABS
30
2
Va lve s for AB S
30
3
Radiator fan 1st stage
30
4
Glow plugs for heating the coolant, relay for secondary air
pump
50
5
Engine control unit
50
6
Radiator fan 2nd stage
40
7
Main fuse of the interior
110
8
Dynamo
110 / 150
a)
a)Depending on the engine type and equipment.
Fig. 172 Schematic representa-
tion of fuse box in engine
compartment - version 2
No.
Power consumer
Amperes
1
Heating of the exterior mirrors, relay for cigarette lighter,
power seats and washing nozzles
10
2
Turn signal lights, Xenon headlight
10
3
Lighting in storage compartment
5
4
Licence plate light
5
5
Seat heating, Climatronic, circulating air flap, exterior mir-
ror heater, cruise control system
7,5
6
Central locking system
5
7
Reversing light, sensors for parking aid
10
8
Phone
5
9
ABS, ESP
5
10
Ignition, S-contact
a)
10
11
Instrument cluster
5
12
Power supply of the self-diagnosis
7,5
Fig. 173 Schematic representa-
tion of the fuse carrier in the
dash panel
s2rc.book Page 179 Thursday, April 22, 2010 10:58 AM

Fuses and light bulbs
180
Electrically adjustable seats are protected by automatic circuit breakers, which
switch on again automatically after a few seconds after the overload has been
eliminated.BulbsChanging bulbsThe relevant lamp must always be switch ed off before a light bulb is replaced.
Defect light bulbs should only be replaced with light bulbs of the same type. The desig-
nation is located on the light socket or the glass bulb.
Changing certain bulbs is not something whic h you can do yourself, but requires to be
done by a specialist. Other parts of the vehi cle must be removed in order to change the
13
Brake lights
10
14
Interior lighting, central locking system, interior lighting
(without central locking system)
10
15
Instrument cluster, steering angle sender, rear mirror
5
16
Air conditioning system
10
17
Heated windscreen washer nozzles
daylight driving lights
5
30
18
Right main beam
10
19
Left main beam
10
20
Right low beam, headlight range adjustment
15
21
Low beam on the left
15
22
Right parking light
5
23
Left parking light
5
24
Front window wiper, motor for wash pump
20
25
Air blower, air conditioning system, Climatronic
25
26
Rear window heater
25
27
Rear window wiper
15
28
Fuel pump
15
29
Control unit: Petrol engine
control unit: Diesel engine
15
10
30
Electric sliding/tilting roof
20
31
Not assigned
32
Petrol engine - injection valves
diesel engine - injection pump, control unit
10
30
33
Headlight cleaning system
20
34
Petrol engine: Control unit
diesel engine: Control unit
10
10
No.
Power consumer
Amperes
35
Trailer socket, power socket in the luggage compartment
30
36
Fog lights
15
37
Petrol engine: Control unit
diesel engine: Control unit
20
5
38
Luggage compartment light, central locking system, inte-
rior lighting
15
39
Hazard warning light system
15
40
Horn
20
41
Cigarette lighter
15
42
Radio, mobile phone
15
43
Petrol engine: Control unit
diesel engine: Control unit
10
10
44
Seat heaters
15
a)For power consumers, e.g. the radio, which can be operated with the ignition switched off as
long as the ignition key is not withdrawn.No.
Power consumer
Amperes
s2rc.book Page 180 Thursday, April 22, 2010 10:58 AM

Index199
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Index
AAbroad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
ABS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
Adjusting seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56, 98 electrically . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Adjusting the steering wheel . . . . . . . . . . . . . . . . . . . 87
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . 79 Recirculated air mode . . . . . . . . . . . . . . . . . . . . . 82
Airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108 Deployment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Front airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Side airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Alternator Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Antilock brake system . . . . . . . . . . . . . . . . . . . . . . . . 126
Antilock brake system (ABS) Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Anti-theft alarm system . . . . . . . . . . . . . . . . . . . . . . . 40
Ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Auto Check Control . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Auto Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Automatic seat adjustment . . . . . . . . . . . . . . . . . . . . 58 Automatic vehicle wash systems . . . . . . . . . . . . . . 137
Automatic wiper/washer system . . . . . . . . . . . . . . . 52
Avoiding damage to your vehicle . . . . . . . . . . . . . . 133
BBattery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31, 155
change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Charge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Inspecting the electrolyte level . . . . . . . . . . . . . 157
Operation in winter . . . . . . . . . . . . . . . . . . . . . . . 157
Before setting off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Belt Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Belt tensioners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14, 147
Boot lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Brake Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Brake Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Brake booster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Brake pads Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Bulbs Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Button for the central locking system . . . . . . . . . . . 37 Buttons on the driver's door
Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
CCar state . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Central locking system . . . . . . . . . . . . . . . . . . . . . . . . . 35lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
unlock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Changing the engine oil . . . . . . . . . . . . . . . . . . . . . . 151
Changing wheels around . . . . . . . . . . . . . . . . . . . . 162
Charging the battery . . . . . . . . . . . . . . . . . . . . . . . . . 158 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Check engine oil level . . . . . . . . . . . . . . . . . . . . . . . 150
Child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115 Side airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Child safety lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Child safety seat on the front passenger seat . . . . . . . . . . . . . . . 116
Safety information . . . . . . . . . . . . . . . . . . . . . . . 115
Child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118 Classification into groups . . . . . . . . . . . . . . . . . 118
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Use of child safety seats . . . . . . . . . . . . . . . . . . 118
Children and safety . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Chrome parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Cigarette lighter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
s2rc.book Page 199 Thursday, April 22, 2010 10:58 AM

Index
202
Luggage compartment door
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Luggage rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70MMain beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46, 49 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Manual shifting of gears . . . . . . . . . . . . . . . . . . . . . . . . 90
Memory for the on-board computer . . . . . . . . . . . . 19
Mobile phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Motoring abroad . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Multi-functional indicator . . . . . . . . . . . . . . . . . . . . . . 19NNote holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71OOil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Oil dipstick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Onboard computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Open door Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Opening a single door . . . . . . . . . . . . . . . . . . . . . . . . . 35
Operation in winter Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Biodiesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
De-icing windows . . . . . . . . . . . . . . . . . . . . . . . . 139
Outside temperature . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Overview of the engine compartment . . . . . . . . . 149
PPaint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Paint damage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Parking aid
rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Parking light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Parking the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Passive Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Petrol engines Starting the engine . . . . . . . . . . . . . . . . . . . . . . . . 89
Polishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Button in the front passenger door and in the rear doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Buttons on the driver's door . . . . . . . . . . . . . . . 41
Operational faults . . . . . . . . . . . . . . . . . . . . . . . . . 43
with central locking system . . . . . . . . . . . . . . . . 43RRadiator fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Rear armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Rear fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Rear window heater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Rear window heater . . . . . . . . . . . . . . . . . . . . . . . . . . 51 Rear-view mirror
Exterior mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Interior mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Recharge battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Synchronisation process . . . . . . . . . . . . . . . . . . . 40
Replacing fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
Replacing the wiper blades . . . . . . . . . . . . . . . . . . . . 53
Roof aerial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Running in the car . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
SSafe securing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Safety information Engine compartment . . . . . . . . . . . . . . . . . . . . . 148
Safety wheel bolts . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Saving electrical energy . . . . . . . . . . . . . . . . . . . . . . 129
Seat belt height adjuster . . . . . . . . . . . . . . . . . . . . . . 105
Seat belt warning light . . . . . . . . . . . . . . . . . . . . . . . . 104
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102, 106 Belt tensioners . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
fastening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Height adjustment . . . . . . . . . . . . . . . . . . . . . . . 105
Safety information . . . . . . . . . . . . . . . . . . . . . . . . 103
taking off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Seat heaters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Service Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
s2rc.book Page 202 Thursday, April 22, 2010 10:58 AM
