Instruments and warning lights25
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Warning lightsOverview
The warning lights indicate certain functions or faults.
Fig. 26 Instrument cluster with warning lights

Turn signal lights (to the left)
page 26

Turn signal lights (to the right)
page 26

Turn signal system for vehicles towing a
trailer*
page 26

Main beam light
page 26

Low beam light
page 26

Fog lights*
page 27

Rear fog light
page 27

Electronic immobiliser
page 27

Bulbs*
page 27

Control system for exhaust
page 27

EPC fault light* (petrol engine)
page 27

Glow plug system (diesel engine)
page 27

Airbag system*
page 28

Coolant temperature/coolant level
page 28
s2rc.book Page 25 Thursd ay, April 22, 2010 10:58 AM

Instruments and warning lights
26WARNING

If you do not pay attention to the warning lights coming on and the corre-
sponding descriptions and warning notes, this may result in severe body inju-
ries or major vehicle damage.

The engine compartment of your car is a hazardous area. There is a risk of
injuries, scalding, accident s and fire when working in the engine compartment,
e.g. inspecting and replenishing oil and other fluids. It is also essential to
observe all warnings page 148.
Note

Arrangement of the indicator lights depends on the model and model version. The
symbols shown in the following functional description are to be found as indicator
lights in the instrument cluster.

Operational faults are shown in the instrument cluster as red symbols (priority 1 -
danger) or yellow symbol s (priority 2 - warning).
Turn signal system

Either the left
 or right
 indicator light flashes depending on the position of the turn
signal lever.
The indicator light flashes at twice its normal rate if a turn signal light fails. This does
not apply when towing a trailer.
Switching off the hazard warning light system is switched on will cause all of the turn
signal lights as well as both indicator lights to flash.
Further information about the turn signal system page 49.
Turn signal system for vehicles towing a trailer

*
The warning light
 flashes together with the other turn signal lights only if the vehicle
is towing a trailer.
The indicator light does not flash if a turn sign al light on the trailer or on the vehicle is
not operating.
Main beam

The indicator light
 comes on when the main beam is selected or also when the
headlight flasher is operated.
Further information about the main beam page 49.
Low beam

The warning light
 comes on when low beam is selected page 46.

Brake pad wear*
page 29

Fuel reserve
page 29

Engine oil
page 29

Open door*
page 30

Fluid level in windshield washer system*
page 29

Antilock brake system (ABS)*
page 30

Traction control system (TCS)*
page 31

Electronic stability programme (ESP)*
page 31

Dynamo
page 31

Brake system
page 31

Seat belt warning light*
page 32
s2rc.book Page 26 Thursd ay, April 22, 2010 10:58 AM

Lights and Visibility47
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data

The temperature difference between interior and external area of the headlight
lenses is decisive.
 When the driving lights are switched on, the light outlet surfaces are free from
mist after a short period. The headlight le nses can possibly mist up at the border
areas.
 It also concerns reverse light and turn signal lights.
 This mist has no influence on th e life of the lighting system.
Fog lights*

Switching on the fog lights– First of all turn the light switch into position
 or   fig. 41 .
– Pull the light switch into position .
If the fog lights are switched on, the symbol
 next to the light switch is more brightly
illuminated as well as the warning light in the instrument cluster page 27.
Rear fog light

Switching on the rear fog light– First of all turn the light switch into position
 or   fig. 41 .
– Pull the switch into position . If the vehicle is not fitted with fog lights*, th
e rear fog light is switched on by turning the
light switch to the position
 and is pulled out directly to the position . This switch
does not have two positions, but only one position.
The warning light
 lights up in the instrument cluster when the rear fog light is
switched on page 25.
Only the rear fog light of the trailer lights up automatically when you are towing a
trailer using a factory-fitted towing device which is fitted with the rear fog light.
The rear fog light is located in the rear light array on the driver's side.
Caution
The rear fog light should only be switched on if visibility is particularly poor (conform
with any varying legal provisions) to avoi d dazzling vehicles behind your vehicle.Instrument lighting*

You can adjust the brightness of the instrument lighting.Instrument lighting– Switch on the light.
– Turn the control dial fig. 42 to the desired intensity of the instrument lighting.
Fig. 41 Dash panel: Light switch
A1
A2
A2
Fig. 42 Dash panel: Instrument
lighting
s2rc.book Page 47 Thursd ay, April 22, 2010 10:58 AM

Lights and Visibility49
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
The turn signal
  and main beam lever

The parking lights and headlight flas her are also switched on and off
using the turn signal and main beam lever.The turn signal and main beam le ver perform the following functions:Right
 and left
 turn signal light
– Push the lever upwards or downwards fig. 45 .
– Turn signal for changing lanes - in order to only flash briefly, move the lever up or
down to the pressure point and hold it in this position.Main beam

– Switch on the low beam.
– Push the lever forwards.
– Pull the lever back into the initial positi on in order to switch the main beam off
again.Headlight flasher

– Pull the lever towards the steering wheel (spring-tensioned position) - the main
beam and warning light in the instrument cluster come on.
Parking light

– Switch off the ignition.
– Push the lever up or down - the right-hand or left-hand parking light is switched
on.
Information concerning the function of the lights.
The turn signal system only operates when the ignition is switched on. The corre-
sponding warning light
 or  in the instrument cluster also flashes.

The turn signal is automatically cancelled after negotiating a curve.

The indicator light flashes at twice its normal rate if a bulb of the turn signal light
fails.

The side light and rear light on the appropriate side of the vehicle are switched on
when the parking light is selected. The parking light function only operates if the igni-
tion is switched off.

An acoustic warning signal will sound when the driver's door is opened if the lever
is not in the middle position after removi ng the ignition key. The acoustic warning
signal will stop just as soon as the driver's door is closed.Caution
Use main beam or the headlight flasher only if this does not risk dazzling other road
users.
Note
Use only in accordance with the legal requ irements the described lighting and signal
systems.Coming Home Function*This function makes it possible to switch on low beam for a short time after leaving the
car, e.g. to illuminate the path to your front door, etc.Selecting function– Switch off the light.
Fig. 45 Turn signal and main
beam lever
s2rc.book Page 49 Thursd ay, April 22, 2010 10:58 AM

Lights and Visibility51
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
The rear interior lighting
page 50, fig. 47 is switched on and off by pressing the glass
on the indented point.
The same principles apply for the interior ligh ting at the rear as for the for the interior
lighting at the front page 50.
Note
We recommend having the bulb replaced by a specialist garage.Luggage compartment light*The light is located at the left top side of the (right - Combi) luggage compartment.
The lighting comes on automatically when th e boot lid is opened. If the lid remains
open for more than about 30 minutes, the luggage compartment lighting switches off

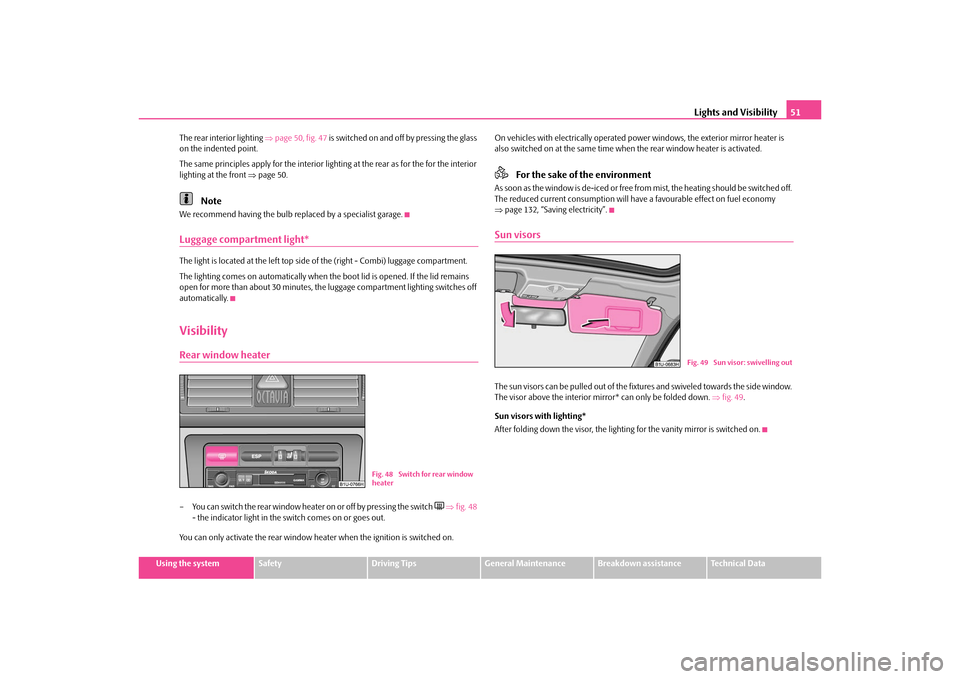

automatically.VisibilityRear window heater– You can switch the rear window heater on or off by pressing the switch
  fig. 48
- the indicator light in the switch comes on or goes out.
You can only activate the rear window he ater when the ignition is switched on. On vehicles with electrically operated power windows, the exterior mirror heater is
also switched on at the same time when
the rear window heater is activated.
For the sake of the environment
As soon as the window is de-iced or free from mist, the heating should be switched off.
The reduced current consumption will have a favourable effect on fuel economy
page 132, “Saving electricity”.Sun visorsThe sun visors can be pulled out of the fixtures and swiveled towards the side window.
The visor above the interior mirr or* can only be folded down. fig. 49 .
Sun visors with lighting*
After folding down the visor, the lighting for the vanity mirror is switched on.
Fig. 48 Switch for rear window
heater
Fig. 49 Sun visor: swivelling out
s2rc.book Page 51 Thursd ay, April 22, 2010 10:58 AM

Lights and Visibility
52
Windshield wiper and wash systemWindshield wiper
You can operate the windscreen wipers and automatic wipe/wash
using the windscreen wiper lever.The windscreen wiper lever fig. 50 has the following positions:Finger-operated wiping– If you wish to wipe the windscreen only briefly, push the lever into the sprung
position .Intermittent wiping– Position the lever up into position .
– Set with the switch the desired break between the individual wiper strokesSlow wipe– Position the lever up into position .Fast wipe– Position the lever up into position .
Automatic wipe/wash for windscreen– Pull the lever towards the steering wheel into the spring-tensioned position , the windscreen wiper and wash system will operate immediately.
– Release the lever. The windscreen wash system stops and the wiper continues for another 1 - 3 wiper strokes (depending on the period of spraying of the wind-
screen).Rain sensor*– Move the lever into position .
– You can set the sensitivity of the sensor individually with switch .
– After switching off the ignition, you must then once again activate the sensor by moving the lever into position , and then back into position .Wiping the rear window pane*– Push the lever away from the steering wheel into position - the widescreen
wiper will operate every 6 seconds.Automatic wipe/wash for the rear window pane*– Push the lever away from the steering wh eel into the spring-tensioned position ,
the windscreen wiper and wash system will operate. As long as you hold the lever
in this position, the wiper and the wash system operate - spring-tensioned posi-
tion.
– Letting go of the lever will cause the windscreen wash system to stop and the wiper to continue for another 1 - 3 wiper strokes (depending on the period of spraying of
the windscreen). The lever will stay in position after releasing it .Switching windscreen wipers off– Move the lever back into its home position .
The windscreen wipers and the windscreen washer system only operate if the ignition
is switched on.
The rain sensor* automatically regulates the break between the individual wiper
strokes depending on the intensity of the rain.
Fig. 50 Windscreen wiper lever
A4
A1
AA
A2A3
A5
A1
AA
A0
A1
A6
A7
A6
A0
s2rc.book Page 52 Thursd ay, April 22, 2010 10:58 AM

Seats and Storage63
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data

There must be no objects on the floor which could roll under the pedals. You
would then no longer be able to apply the brakes, operate the clutch or accel-
erator - risk of accident!
luggage compartmentLoading the luggage compartmentPlease observe the following in the interest of having good handling characteristics of
your vehicle:
– Distribute the items of luggage as evenly as possible.
– Place heavy objects as far forward as possible.
– Attach the items of luggage to the lashing eyes or the fixing net* page 64.
In the event of an accident, there is such a high kinetic energy which is produced by
small and light objects that th ey can cause severe injuries. The magnitude of the kinetic
energy depends on the speed at which the vehi cle is travelling and on the weight of the
object. The speed at which the vehicle is travelling is in this case the more significant
factor.
Example: In the event of a frontal collision at a speed of 50 km/h, an unsecured object
with a weight of 4.5 kg produces an ener gy, which corresponds to 20 times its own
weight. This means that it results in a weight of approx. 90 kg. You can imagine the inju-
ries that can occur, if this “bullet” is fl ying through the interior compartment and hits
an occupant.
WARNING

Stow the objects in the luggage compartm ent and attach them to the lashing
eyes.

Loose objects in the passenger compartment can be thrown forward during
a sudden manoeuvre or in case of an accident and can injure the occupants or
other oncoming traffic. This risk is still increased, if the objects which are flying around are hit by a deployed airbag. In this case, the objects which are thrown
back can injure the occupants - hazard.

Please note that the handling properties of your vehicle may be affected
when transporting heavy objects as a result of the displacement of the centre of
gravity. The speed and style of driv ing must be adjusted accordingly.

The items carried in the luggage compartment should be stowed in such a
way that no objects are able to slip fo rward if there are any sudden driving or
braking manoeuvres underta ken - risk of injury!

Never drive with the boot lid fully open ed or slightly ajar otherwise exhaust
gases may get into the interior of the vehicle - risk of poisoning!

On no account exceed the permissible axle loads and the permissible gross
weight of the vehicle - risk of accident!

Never transport occupants in the luggage compartment!Caution
Please ensure that the heating elements of the rear window heater are not damaged
as a result of objects sliding in this area.
Note
Tyre pressure must be adjusted to the load page 160, fig. 153 .
WARNING (continued)
WARNING (continued)
s2rc.book Page 63 Thursd ay, April 22, 2010 10:58 AM

Seats and Storage
64
Lashing eyesYou can use the mounts which can be fitted in the openings in the body (Octavia)
 page 64, fig. 64 or the mounts for fixing nets (Combi) fig. 65 , the eyes are located
on the luggage compartment floor.
You can also attach a floor fixing net* to these eyes for holding small objects.
The floor fixing net* together with the instal lation instruction are stowed in a container
under the floor covering of the luggage compartment behind the spare wheel.
WARNING

The load to be transported must be fixed in place in such a way that it cannot
move during the journey and when braking.

If the items of luggage or objects are attached to the lashing eyes with
unsuitable or damaged lashing straps, inju ries can occur in the event of braking
manoeuvres or accidents. In order to prevent the items of luggage being
thrown forward, always use suitable lash ing straps which are firmly attached to
the lashing eyes.
Fixing nets - Net programme Octavia*Fixing examples of th e fixing net as double horizontal pocket fig. 66 and floor net
 fig. 67 .
Fig. 64 Luggage compartment:
Lashing eyes (Octavia)Fig. 65 Luggage compartment:
Lashing eyes (Combi)
WARNING (continued)
Fig. 66 Fixing net: Double hori-
zontal pocketFig. 67 Fixing net: double hori-
zontal pocket, floor fixing net
s2rc.book Page 64 Thursd ay, April 22, 2010 10:58 AM

Seats and Storage
66
Luggage compartment cover (Octavia)
You can use the luggage compartment cover behind the head
restraints for storing light and soft items.The luggage compartment cover can be removed as required if one must transport
bulky goods.
– Unhook the support straps fig. 71 .
– Place the cover in the horizontal position.
– Pull the cover out of the holder horizontally to the rear.
– Install again by pushing the luggage compartment cover forwards into the holder and hanging the support straps on the boot lid.
You can stow the removed luggage compartment cover behind the rear seat backrest.
WARNING
No objects should be placed on the luggage compartment cover, the vehicle
occupants could be endangered if ther e is sudden braking or the vehicle
collides with something.
Caution
Please ensure that the heating elements of the rear window heater are not damaged
as a result of objects placed in this area.
Note
Opening the tailgate also lifts up the luggage compartment cover.Foldable luggage compartment cover (Combi)Pulling out– Pull the foldable luggage compartment cover in direction of arrow fig. 72 .
– Hang the luggage compartment cover in the recesses on the side of the luggage compartment.Folding– Pull the foldable cover out of the recesses, the cover is folded up.Removing– Have the foldable luggage compartment cover removed to transport bulky goods by pressing on the side of the cross rod in direction of arrow and taking it out
by moving it in direction of arrow fig. 72 .
WARNING
No objects should be placed on the luggage compartment cover.
Fig. 71 Removing the luggage
compartment cover
A1
A2
A2
A1
Fig. 72 Luggage compartment:
removing the foldable luggage
compartment cover
A1
A2
s2rc.book Page 66 Thursday, April 22, 2010 10:58 AM
