jacking points SKODA RAPID 2013 1.G Owner's Manual

›Grasp the end of the wrench and turn the bolt against the direction of the ar-
row » Fig. 150 until it is tight.WARNINGUndo the wheel bolts only a little (about one turn) provided that the vehicle
has not yet been jacked up. Otherwise the wheel could come off and fall down – risk of injury!
Note
If it proves difficult to undo the bolts, carefully apply pressure to the end of the
wrench with your foodt. Keep hold of the vehicle when doing so, and make sure
you keep your footing.

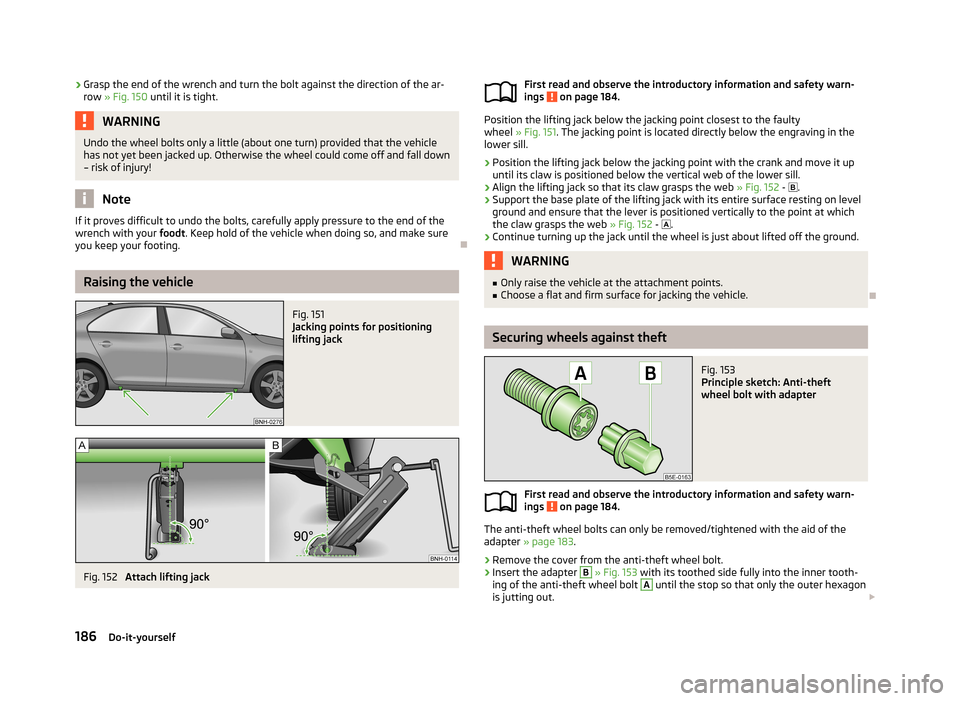

Raising the vehicle
Fig. 151
Jacking points for positioning
lifting jack
Fig. 152
Attach lifting jack
First read and observe the introductory information and safety warn-
ings on page 184.
Position the lifting jack below the jacking point closest to the faulty
wheel » Fig. 151 . The jacking point is located directly below the engraving in the
lower sill.
›
Position the lifting jack below the jacking point with the crank and move it up until its claw is positioned below the vertical web of the lower sill.
›
Align the lifting jack so that its claw grasps the web » Fig. 152 -  .
›
Support the base plate of the lifting jack with its entire surface resting on level
ground and ensure that the lever is positioned vertically to the point at which the claw grasps the web » Fig. 152 -  .
›
Continue turning up the jack until the wheel is just about lifted off the ground.
WARNING■
Only raise the vehicle at the attachment points.■Choose a flat and firm surface for jacking the vehicle.

Securing wheels against theft
Fig. 153
Principle sketch: Anti-theft
wheel bolt with adapter
First read and observe the introductory information and safety warn-
ings on page 184.
The anti-theft wheel bolts can only be removed/tightened with the aid of the
adapter » page 183 .
›
Remove the cover from the anti-theft wheel bolt.
›
Insert the adapter
B
» Fig. 153 with its toothed side fully into the inner tooth-
ing of the anti-theft wheel bolt
A
until the stop so that only the outer hexagon
is jutting out. 

186Do-it-yourself
