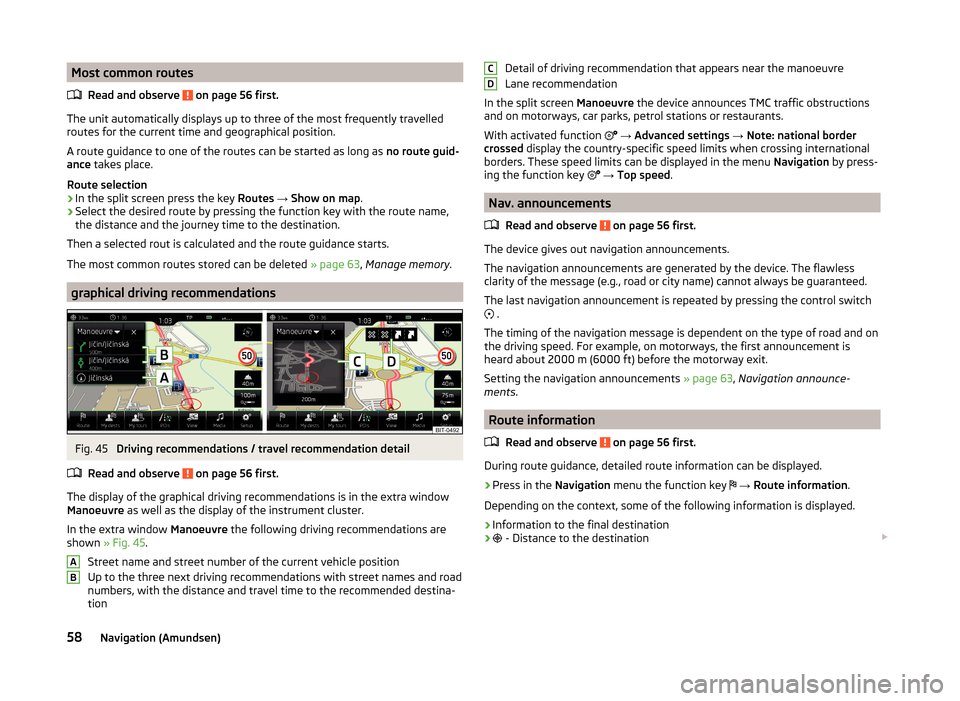

SKODA RAPID 2015 1.G Amundsen Bolero Infotainment System Manual

Most common routesRead and observe
on page 56 first.
The unit automatically displays up to three of the most frequently travelledroutes for the current time and geographical position.
A route guidance to one of the routes can be started as long as no route guid-
ance takes place.
Route selection
›
In the split screen press the key Routes → Show on map .
›
Select the desired route by pressing the function key with the route name,
the distance and the journey time to the destination.
Then a selected rout is calculated and the route guidance starts.
The most common routes stored can be deleted » page 63, Manage memory .
graphical driving recommendations
Fig. 45
Driving recommendations / travel recommendation detail
Read and observe
on page 56 first.
The display of the graphical driving recommendations is in the extra window
Manoeuvre as well as the display of the instrument cluster.
In the extra window Manoeuvre the following driving recommendations are
shown » Fig. 45 .
Street name and street number of the current vehicle position
Up to the three next driving recommendations with street names and road
numbers, with the distance and travel time to the recommended destina-
tion
ABDetail of driving recommendation that appears near the manoeuvre
Lane recommendation
In the split screen Manoeuvre the device announces TMC traffic obstructions
and on motorways, car parks, petrol stations or restaurants.
With activated function 
→ Advanced settings → Note: national border
crossed display the country-specific speed limits when crossing international
borders. These speed limits can be displayed in the menu Navigation by press-
ing the function key 
→ Top speed .
Nav. announcements
Read and observe
on page 56 first.
The device gives out navigation announcements.
The navigation announcements are generated by the device. The flawless
clarity of the message (e.g., road or city name) cannot always be guaranteed.
The last navigation announcement is repeated by pressing the control switch
 .
The timing of the navigation message is dependent on the type of road and on
the driving speed. For example, on motorways, the first announcement is
heard about 2000 m (6000 ft) before the motorway exit.
Setting the navigation announcements » page 63, Navigation announce-
ments .
Route information
Read and observe
on page 56 first.
During route guidance, detailed route information can be displayed.
›
Press in the Navigation menu the function key

→ Route information .
Depending on the context, some of the following information is displayed.
› Information to the final destination
› 
- Distance to the destination 
CD58Navigation (Amundsen)

›
- Arrival time at destination 1)
› 
- Remaining travel time to the destination 1)
› Route type (economic, fastest, shortest)
› Current vehicle position (coordinates)

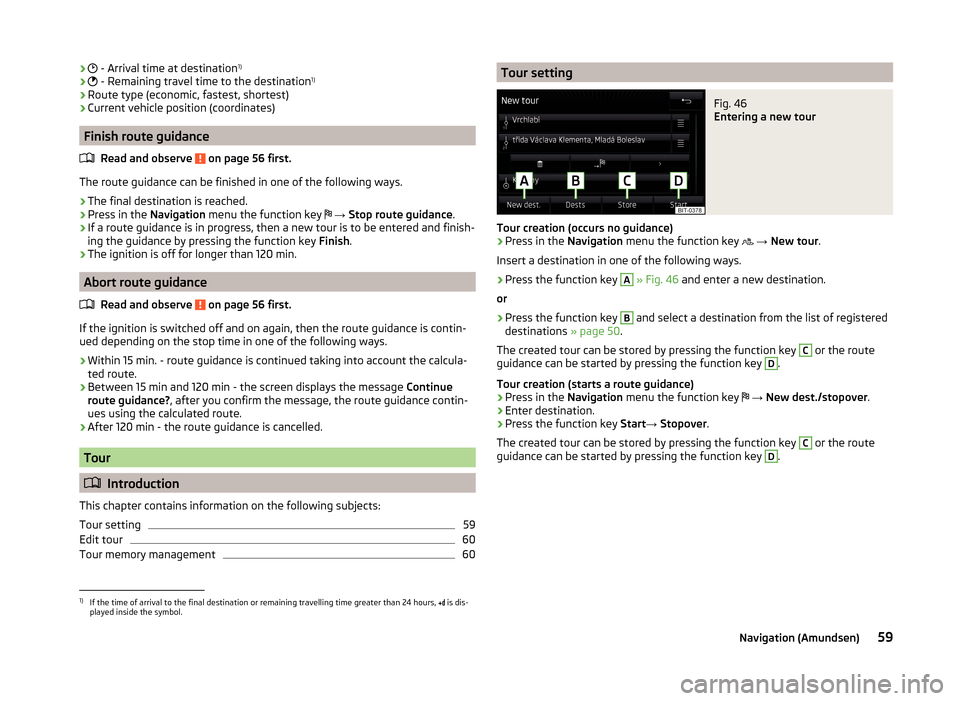

Finish route guidance
Read and observe
on page 56 first.
The route guidance can be finished in one of the following ways.
›
The final destination is reached.
›
Press in the Navigation menu the function key

→ Stop route guidance .
›
If a route guidance is in progress, then a new tour is to be entered and finish-
ing the guidance by pressing the function key Finish.
›
The ignition is off for longer than 120 min.
Abort route guidance
Read and observe
on page 56 first.
If the ignition is switched off and on again, then the route guidance is contin-ued depending on the stop time in one of the following ways.
› Within 15 min. - route guidance is continued taking into account the calcula-
ted route.
› Between 15 min and 120 min - the screen displays the message
Continue
route guidance? , after you confirm the message, the route guidance contin-
ues using the calculated route.
› After 120 min - the route guidance is cancelled.
Tour

Introduction
This chapter contains information on the following subjects:
Tour setting
59
Edit tour
60
Tour memory management
60Tour settingFig. 46
Entering a new tour
Tour creation (occurs no guidance)
›
Press in the Navigation menu the function key

→ New tour .
Insert a destination in one of the following ways.
›
Press the function key
A
» Fig. 46 and enter a new destination.
or
›
Press the function key
B
and select a destination from the list of registered
destinations » page 50.
The created tour can be stored by pressing the function key
C
or the route
guidance can be started by pressing the function key
D
.
Tour creation (starts a route guidance)
›
Press in the Navigation menu the function key

→ New dest./stopover .
›
Enter destination.
›
Press the function key Start→ Stopover .
The created tour can be stored by pressing the function key
C
or the route
guidance can be started by pressing the function key
D
.
1)
If the time of arrival to the final destination or remaining travelling time greater than 24 hours,  is dis-
played inside the symbol.
59Navigation (Amundsen)

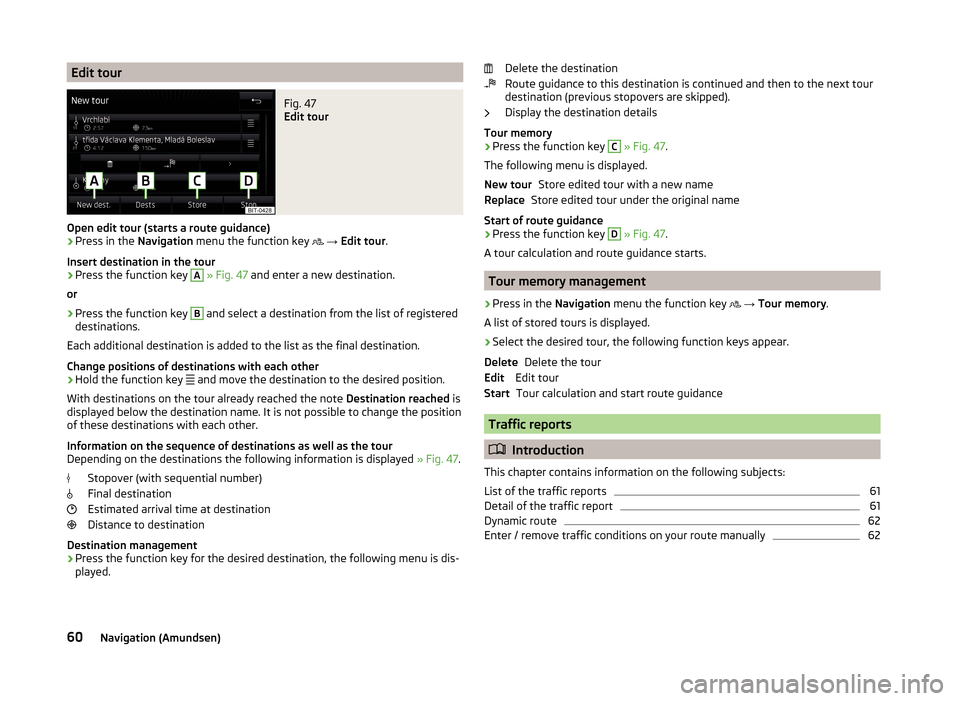

Edit tourFig. 47
Edit tour
Open edit tour (starts a route guidance)
›
Press in the Navigation menu the function key

→ Edit tour .
Insert destination in the tour
›
Press the function key
A
» Fig. 47 and enter a new destination.
or
›
Press the function key
B
and select a destination from the list of registered
destinations.
Each additional destination is added to the list as the final destination.
Change positions of destinations with each other
›
Hold the function key  and move the destination to the desired position.
With destinations on the tour already reached the note Destination reached is
displayed below the destination name. It is not possible to change the position
of these destinations with each other.
Information on the sequence of destinations as well as the tour
Depending on the destinations the following information is displayed » Fig. 47.
Stopover (with sequential number)
Final destination
Estimated arrival time at destination
Distance to destination
Destination management
› Press the function key for the desired destination, the following menu is dis-
played.
Delete the destination
Route guidance to this destination is continued and then to the next tour
destination (previous stopovers are skipped).
Display the destination details
Tour memory
› Press the function key C

» Fig. 47 .
The following menu is displayed. Store edited tour with a new name
Store edited tour under the original name
Start of route guidance › Press the function key
D

» Fig. 47 .
A tour calculation and route guidance starts.
Tour memory management
›
Press in the Navigation menu the function key

→ Tour memory .
A list of stored tours is displayed.
›
Select the desired tour, the following function keys appear.
Delete the tour
Edit tour Tour calculation and start route guidance
Traffic reports
 Introduction
This chapter contains information on the following subjects:
List of the traffic reports
61
Detail of the traffic report
61
Dynamic route
62
Enter / remove traffic conditions on your route manually
62New tourReplaceDeleteEditStart60Navigation (Amundsen)

List of the traffic reportsFig. 48
List of traffic reports
The device allows you to receive TMC traffic reports (Traffic Message Channel),
which contain information regarding traffic obstructions.
During route guidance information messages are then issued with respect to
traffic congestion from the device.
Show list
›
Press the key .
A list of traffic reports is shown » Fig. 48.
The list of traffic reports is arranged according to the type of road and the road
number (motorway, express way, country road, etc.).
A traffic report may contain some of the following information.
›
Number of road affected
›
Name of the location in question
›
Description of the traffic obstruction
›
Symbol of the traffic obstruction
A traffic report with a number contains multiple reports.
If the icon  in the list of traffic reports is crossed out, then the device is out-
side the range of the traffic report provider.
Display options
With ongoing route guidance and after pressing the function key
A
» Fig. 48
selected can be from the following menu.
›
All - View all traffic reports
›
Route - Display the traffic reports on the route
NoteThe traffic reports are updated by the device constantly in the background.
The reception of traffic reports is always switched on and cannot be turned
off.
Detail of the traffic report
Fig. 49
Detail of the traffic report
Show details of the traffic report
The details of the traffic report can be shown in one of the following ways.
›
Select the required traffic report in the list of traffic reports.
or
›
Tap on the symbol for the traffic obstruction in the map.
The display then shows the following information and function keys » Fig. 49.
Map of the affected location
Details of the traffic obstruction
Reception time as well as information regarding the traffic report provider
Symbol of the traffic obstruction
Length of the traffic obstruction Display previous / subsequent traffic report
Magnification of the window with information on the traffic obstruction
Reduction of the window with information on the traffic obstruction
Colour coding of the importance of the traffic obstruction
The symbol for the traffic obstruction (e.g. 
, 
, 
or similar) precedes the ob-
struction and the length of obstruction is shown in the map on the right along
the route.
Depending on the context, the symbol for the obstruction is displayed in one
of the following ways. 
ABCDE61Navigation (Amundsen)

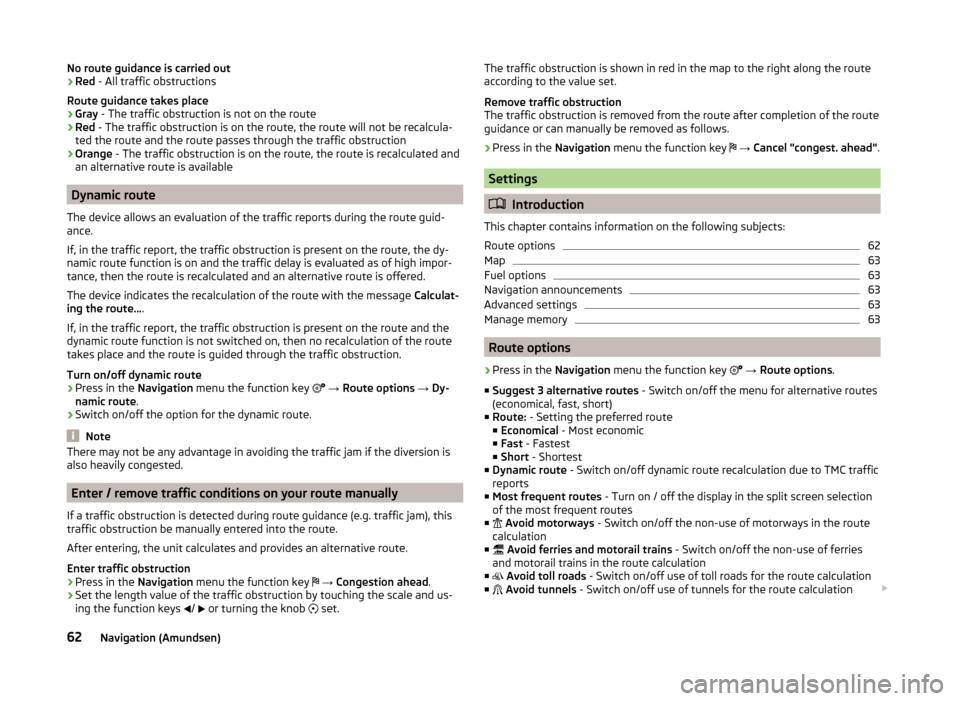

No route guidance is carried out› Red
- All traffic obstructions
Route guidance takes place
› Gray
- The traffic obstruction is not on the route
› Red
- The traffic obstruction is on the route, the route will not be recalcula-
ted the route and the route passes through the traffic obstruction
› Orange
- The traffic obstruction is on the route, the route is recalculated and
an alternative route is available
Dynamic route
The device allows an evaluation of the traffic reports during the route guid- ance.
If, in the traffic report, the traffic obstruction is present on the route, the dy-
namic route function is on and the traffic delay is evaluated as of high impor-
tance, then the route is recalculated and an alternative route is offered.
The device indicates the recalculation of the route with the message Calculat-
ing the route… .
If, in the traffic report, the traffic obstruction is present on the route and the
dynamic route function is not switched on, then no recalculation of the route
takes place and the route is guided through the traffic obstruction.
Turn on/off dynamic route
›
Press in the Navigation menu the function key

→ Route options → Dy-
namic route .
›
Switch on/off the option for the dynamic route.
Note
There may not be any advantage in avoiding the traffic jam if the diversion is
also heavily congested.
Enter / remove traffic conditions on your route manually
If a traffic obstruction is detected during route guidance (e.g. traffic jam), this
traffic obstruction be manually entered into the route.
After entering, the unit calculates and provides an alternative route.
Enter traffic obstruction
›
Press in the Navigation menu the function key

→ Congestion ahead .
›
Set the length value of the traffic obstruction by touching the scale and us-
ing the function keys /
 or turning the knob
 set.
The traffic obstruction is shown in red in the map to the right along the route
according to the value set.
Remove traffic obstruction
The traffic obstruction is removed from the route after completion of the route
guidance or can manually be removed as follows.›
Press in the Navigation menu the function key

→ Cancel "congest. ahead" .
Settings
Introduction
This chapter contains information on the following subjects:
Route options
62
Map
63
Fuel options
63
Navigation announcements
63
Advanced settings
63
Manage memory
63
Route options
›
Press in the Navigation menu the function key

→ Route options .
■ Suggest 3 alternative routes - Switch on/off the menu for alternative routes
(economical, fast, short)
■ Route: - Setting the preferred route
■ Economical - Most economic
■ Fast - Fastest
■ Short - Shortest
■ Dynamic route - Switch on/off dynamic route recalculation due to TMC traffic
reports
■ Most frequent routes - Turn on / off the display in the split screen selection
of the most frequent routes
■ 
Avoid motorways - Switch on/off the non-use of motorways in the route
calculation
■ 
Avoid ferries and motorail trains - Switch on/off the non-use of ferries
and motorail trains in the route calculation
■ 
Avoid toll roads - Switch on/off use of toll roads for the route calculation
■ 
Avoid tunnels - Switch on/off use of tunnels for the route calculation 
62Navigation (Amundsen)

■ Avoid routes requiring toll stickers - Switch use of routes requiring toll
stickers on/off for route calculation
■ Available toll stickers - Selection of countries for which a valid toll sticker is
required (routes requiring toll stickers are used for route calculation)
Map
›
Press in the Navigation menu the function key 
→ Map .
■ Lane guidance - Display of lane guidance on/off
■ Show favourites - Switch on/off the display of favourites
■ Show road signs - Switch on/off the display of traffic signs
■ Show POIs - Switch on/off the display of POIs
■ Select categories for POIs - Selection of displayed POIs (max 10 categories)
■ Show brands for POIs - Switch on/off the display company logos at the POIs
Fuel options
›
Press in the Navigation menu the function key

→ Fuel options .
■ Select preferred fuel station - Select your preferred fuel station brand (the
selected station brand will be displayed in the first three positions of the list)
■ Fuel warning - Switch on / off the display of the following warning (when the
fuel gauge reaches the reserve area)
Warning: fuel tank almost empty. Would you like to find a fuel station near-
by? with the following menu items.
› Cancel
- Close the window with the warning
› Find
- Find the nearest petrol station; by selecting the petrol station the
route guidance is started
Navigation announcements
›
Press in the Navigation menu the function key

→ Navigation announce-
ments .
■ Volume - Volume control of the navigation announcements
■ Entertainment fading (nav. announce.) - Setting the fading of the audio vol-
ume (e.g. radio volume.) with navigation announcements
■ No navigation sound during call - Enable / disable the playback of navigation
prompts during a telephone conversation
Advanced settings›
Press in the Navigation menu the function key 
→ Advanced settings .
■ Time display: - Select the time display in the status line
■ Time of arrival - Estimated time of arrival at the destination
■ Travelling time - Estimated travelling time to the destination
■ Status line: - Selection of the target type for which the status line the route
and travel time are displayed according to the setting Time display: (the se-
lection also affects the target type displayed in the map » page 54)
■ Destination - Final destination
■ Next stopover - Next stopover
■ Note: national border crossed - Switching on/off the display for information
on national speed limits when crossing the national border
■ Demo mode - Switch on/off guidance in demo mode
■ Define demo mode starting point - Enter the start point of the route guid-
ance in the demo mode
■ Cancel - Cancel the entry
■ Position - Enter the current vehicle position as the starting point
■ Address - Enter an address as the starting point
Manage memory
›
Press in the Navigation menu the function key

→ Manage memory .
■ Sort by: - Setting the configuration of the phone book
■ Surname - Sort by contact name
■ Forename - Sort by contact's first name
■ Define home address - Enter the home address
■ Delete my POIs - Delete the custom POIs
■ Update my POIs - Update the custom POIs
■ Delete user data - Delete user data (by pressing the function key Delete and
confirming the deletion, the selected menu item is deleted) ■ Last destinations - Delete the last destinations
■ Dest. memory - Delete the stored destinations
■ Tour memory - Deletes the stored tours
■ My points of interest (Personal POI) - Delete the custom POIs
■ Entered cities - Delete the history of places already entered via the address
■ Home address - Delete the stored home address
■ Flagged destination - Delete the flagged destination
■ Most frequent routes - Deletion of the most travelled routes
63Navigation (Amundsen)

Vehicle systems
CAR - vehicle setting
Introduction
This chapter contains information on the following subjects:
Main menu
64
Convenience consumer
64
Driving data
65
DriveGreen
65
Vehicle condition
65
ESC and TCS systems
65
Tyres
65
Assistance systems
66
Parking and manoeuvring
66
Light
67
Interior lighting
67
Mirror and wiper
67
Opening and closing
67
Seats
68
Instrument cluster (multifunction display)
68
Time, date and unit setting
68
Service
68
Reset to factory settings
68
In the menu CAR travel data and information displayed on the vehicle and
some vehicle systems can be set.
Description of the individual systems » Vehicle Owner's Manual .
Note
Settings relating to the vehicle systems can only be made when the ignition is
switched on.Main menuFig. 50
Function keys in the main menu
Function keys in the main menu » Fig. 50
Selecting the following menu points
› Conv. consumers
› Driving data
› DriveGreen
› Vehicle status
Operation of the radio / media playback Depending on the vehicle equipment with manual air conditioning: Set-
ting the auxiliary heating and ventilation / operating the heated wind- screen
Vehicle system settings
Convenience consumer
›
Press the key 
→

→ Conv. consumers .
The screen displays up to three consumers that currently have the largest
share of fuel consumption (e.g. air conditioning or similar). A display also ap-
pears which shows the fuel used for the operation of all convenience systems.
 64Vehicle systems

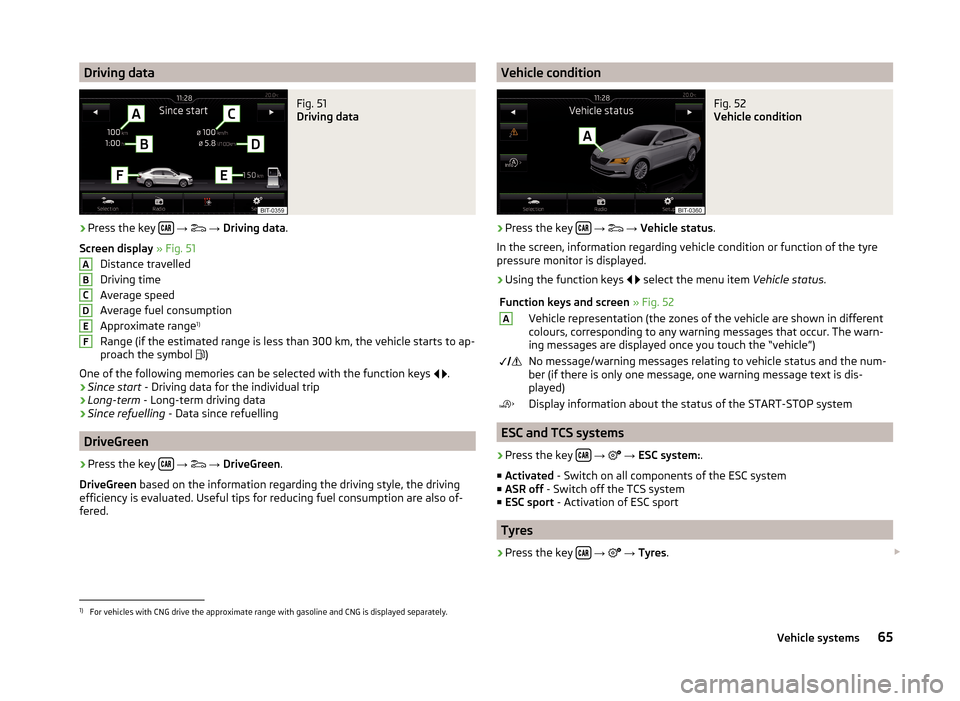

Driving dataFig. 51
Driving data
›
Press the key 
→

→ Driving data .
Screen display » Fig. 51
Distance travelled
Driving time
Average speed
Average fuel consumption
Approximate range 1)
Range (if the estimated range is less than 300 km, the vehicle starts to ap-
proach the symbol )
One of the following memories can be selected with the function keys 
 .
› Since start
- Driving data for the individual trip
› Long-term
- Long-term driving data
› Since refuelling
- Data since refuelling
DriveGreen
›
Press the key 
→

→ DriveGreen .
DriveGreen based on the information regarding the driving style, the driving
efficiency is evaluated. Useful tips for reducing fuel consumption are also of-
fered.
ABCDEFVehicle conditionFig. 52
Vehicle condition
›
Press the key 
→

→ Vehicle status .
In the screen, information regarding vehicle condition or function of the tyre
pressure monitor is displayed.
›
Using the function keys 
 select the menu item
Vehicle status.
Function keys and screen » Fig. 52AVehicle representation (the zones of the vehicle are shown in different
colours, corresponding to any warning messages that occur. The warn-
ing messages are displayed once you touch the “vehicle”) No message/warning messages relating to vehicle status and the num-
ber (if there is only one message, one warning message text is dis-
played)Display information about the status of the START-STOP system
ESC and TCS systems
›
Press the key 
→

→ ESC system: .
■ Activated - Switch on all components of the ESC system
■ ASR off - Switch off the TCS system
■ ESC sport - Activation of ESC sport
Tyres
›
Press the key 
→

→ Tyres . 
1)
For vehicles with CNG drive the approximate range with gasoline and CNG is displayed separately.
65Vehicle systems

■Tyre Pressure Loss Indicator - Tyre pressure monitoring function
■ SET  - Storing the tyre pressure values
■ Winter tyres - Setting an alarm on reaching the speed limit for winter tyres
■ Speed warning - Switching the function Winter tyres on and off
■ Warning at - Setting the speed for the warning
Assistance systems
›
Press the key 
→ 
→ Driver assistance .
■ ACC (adaptive cruise control) - Setting for the adaptive cruise control
■ Driving programme: - Set the vehicle acceleration when adaptive cruise
control is activated 1)
■ Normal - Normal
■ Sport - Sports
■ Eco - Economical
■ Last distance selected - Last selected distance on/off
■ Distance: - Set the distance monitoring to the vehicles ahead
■ Very close - Very small distance
■ Close - Small distance
■ Medium - Medium distance
■ Far - Large distance
■ Very far - Very large distance
■ Front Assist (ambient traffic monitor. sys.) - Set the assistant for distance
monitoring to the vehicles ahead
■ Active - Activate/deactivate the assistant
■ Advance warning (Version 1) - Activate/deactivate warning
■ Advance warning (Version 2) - Activating/deactivating and setting the dis-
tance level at which a warning occurs
■ Early - Longer distance
■ Medium - Medium distance
■ Late - Short distance
■ Off - Deactivation of the warning
■ Display distance warning - Activate/deactivate distance warnings
■ Lane Assist - Settings for Lane Assist
■ Active - Activate/deactivate the assistant
■ Adaptive lane guidance - Activate/deactivate adaptive lane guidance
■
Blind Spot Monitor - Activation / deactivation of the assistant “Blind Spot
Monitor”
■ Dynamic Road Sign Display - Settings for the Dynamic Road Sign Display
■ Show in instrument cluster - Activation/deactivation of the additional traf-
fic signs in the display of the instrument cluster
■ Trailer recognition (show road signs) - Activate/deactivate the Dynamic
Road Sign Display relevant for trailer operation
■ Top speed 2)
- Set the top speed for towing a trailer
■ Warning 2)
- Activation / deactivation and setting for the excessive speed
warning ■ Off - The warning is deactivated
■ At + 0 km/h - Warning when reaching the speed limit
■ At + 5 km/h - Warning when exceeding the speed limit by 5 km/h
■ At + 10 km/h - Warning when exceeding the speed limit by 10 km/h
■ At + 15 km/h - Warning when exceeding the speed limit by 15 km/h
■ Driver Alert System - Activate/deactivate the driver alert system
■ Proactive passenger protection - Activate/deactivate proactive passenger
protection
Parking and manoeuvring
›
Press the key 
→

→ Parking and manoeuvring .
■ ParkPilot - Settings for the parking aid
■ Activate automatically - Activate/deactivate the compact parking aid dis-
play (when driving forward)
■ Front volume - Adjust the volume of the beeps for obstacle detection in
front
■ Front tone setting - Setting the pitch of the beeps for obstacle detection in
front
■ Rear volume - Set the volume level of the beeps for the rear obstacle de-
tection
■ Rear tone setting - Setting the pitch of the beeps for the rear obstacle de-
tection
■ Entertainment fading (parking) - Lowers the audio volume (e.g. radio vol-
ume) with activated parking aid
■ Rear Traffic Alert - Activate/deactivate the Rear Traffic Alert
1)
On vehicles with the choice of travel mode, this setting is done » Vehicle Owner's Manual , chapter Selec-
tion of travel mode (MODE button) .
2)
Applies for the Superb.
66Vehicle systems

Light›
Press the key 
→ 
→ Light .
■ Light assistance - Setting of outdoor lighting
■ Dynamic Light Assist - Activation/deactivation of the function Dynamic
Light Assist
■ Light Assist - Activation / deactivation of the Light Assist function
■ Switch-on time: - Sensitivity adjustment of the sensor for the automatic
headlight control
■ Early - High sensibility
■ Medium - Medium sensibility
■ Late - Low sensibility
■ Automatic headlight control in rain - Activate/deactivate automatic head-
light control in rain
■ Daytime running lights - Activate/deactivate daytime running lights
■ Convenience turn signal - Activate/deactivate lane change flashing
■ Travel mode: - Light setting for the right/left-hand traffic
■ R-hand traffic - For right-hand traffic
■ L-hand traffic - For left-hand traffic
■ Background lighting - Sets the interior lighting
■ Instrument/switch lighting - Sets the brightness of the instrument/switch
lighting
■ Footwell lighting - Sets the brightness of the footwell light
■ Coming/Leaving Home function - setting the COMING HOME / LEAVING HOME
function
■ Coming Home function - Sets the period that the lights remain on after you
leave the vehicle (0 - 30 seconds; 0 = function deactivated)
■ Leaving Home function - Sets the period that the lights remain on after
you unlock the vehicle (0 - 30 seconds; 0 = function deactivated)
Interior lighting
Fig. 53
Interior lighting
› Press the key

→  → Background lighting .
Description of the function keys » Fig. 53
Selecting the illumination colour (or switching off the lighting)
Activation of the brightness setting for all areas at the same time
Button to activate the brightness setting for the instrument panel area
Button to activate the brightness setting for the footwell area
Button to activate the brightness setting for the door area
Mirror and wiper
›
Press the key 
→

→ Mirrors and wipers .
■ Mirrors - Adjustment of the mirrors
■ Synchronous adjustment - Activate/deactivate synchronous mirror adjust-
ment
■ Lower while reversing - Activates/deactivates the lowering of the front
passenger mirror when reversing
■ Fold in when parked - Activation / deactivation of the full collapse of the
mirror housing when the vehicle is locked
■ Wipers - Adjusts the windscreen wipers
■ Automatic wiping in rain - Activate/deactivate automatic windscreen wip-
ing in rain
■ Automatic rear wiper - Activate/deactivate automatic rear window wiping
Opening and closing
›
Press the key 
→

→ Opening and closing .
■ Window operation - Window operation settings
■ Conven. opening: - Set the convenience opening feature
■ All windows - All windows
■ Driver window - Driver's window only
■ Off - Deactivates the convenience opening
■ Central locking - Settings for opening and closing of doors
■ Door unlocking: - Set the door unlocking feature
■ All doors - All doors
■ Single door - Driver's or passenger's door (when unlocking via the sensor
in the passenger door handle)
■ Vehicle side - Doors on the driver or passenger side (when unlocking via
the sensor in the passenger door handle) 
ABCDE67Vehicle systems
