AbbreviationsAbbreviationDefinitionrpmEngine revolutions per minuteA2DPa Bluetooth software profile for a one-way transfer of audio
dataABSAnti-lock brake systemAGAutomatic gearboxAGMVehicle battery typeTCSTraction controlCO 2Carbon dioxideCOCDeclaration of conformityDPFDiesel particle filterDSGAutomatic double clutch gearboxEDLElectronic differential lockECEEconomic Commission for EuropeEPCEPC fault lightESCElectronic Stability ControlETRim depthEUEuropean UnionGSMGlobal System for Mobile communicationsHBAHydraulic brake assistHHCUphill start assistKESSYKeyless unlocking, starting and lockingkWKilowatt, measuring unit for outputLEDLighting element typeMCBMulti-collision brakeMDIInputs for connecting external devicesMFDMultifunction displayMGManual gearboxMPIGasoline engine with a multi-point fuel injectionN1Panel van intended exclusively or mainly for the transporta-
tion of goodsAbbreviationDefinitionNmNewton meter, measuring unit for the engine torquePINpersonal identification numberSIM carda card for the identification of the mobile network operatorTDI CRDiesel engine with turbo charging and common rail injection
systemTSATrailer stabilisationTSIPetrol engine with turbo charging and direct injectionVINVehicle identification numberWWatt, unit of powerWi-Fiwireless data network7Abbreviations

Reset counter for distance travelled (trip)›Press button A » Fig. 26 on page 31 .
Setting the clock
Fig. 26
Button in the instrument cluster
Read and observe on page 28 first.
›
Switch on the ignition.
›
Press and hold the button
A
» Fig. 26 until the
Time
is shown in the display.
›
Release the button
A
and the system switches to the hour setting function.
›
Press the button
A
again and set the hours.
›
Wait around 4 seconds - the system switches to the minutes setting.
›
Press the button
A
again and set the minutes.
›
Wait around 4 seconds - the system switches to the start setting.
The time can also be set in the Infotainment » Owner´s Manual Infotainment ,
chapter Device settings .
Indicator lights

Introduction
This chapter contains information on the following subjects:
 Handbrake
32
 Brake system
32
 Seat belt warning light
32

 Power steering/steering lock (KESSY system)
32
 Stability control (ESC) / Traction control (TCS)
33
 Traction control system (TCS) deactivated
33
 Anti-lock braking system (ABS)
33
 Rear fog light
34
Exhaust inspection system34 Glow plug system (diesel engine)34

Engine performance check (petrol engine)
34
 Airbag system
34
 Tyre pressure
34
 Fuel reserve
35

 Turn signal system
35

Trailer turn signal lights
35
 Fog lights
35
 Cruise control system
35
 Brake pedal (automatic gearbox)
35
 Main beam
36
 Automatic transmission
36

 Rear seat belt warning light
36
 Alternator
36
 Coolant
36
 Engine oil pressure too low
37
 Engine oil level
37
 Lamp failure
37
 Diesel particulate filter (diesel engine)
37
 Windscreen washer fluid level
38

 START-STOP system
38
 Display of a low temperature
38
 Distance warning (Front Assist)
38
 Advance warning/emergency brake (Front Assist)
38
 Service
38
The warning lights in the instrument cluster indicate certain functions or
faults.
Some warning lights can be accompanied by acoustic signals and messages in
the display of the instrument cluster.
After switching on the ignition, some warning lights light up briefly as a func-
tion test.
If the tested systems are OK, the corresponding warning lights go out a few
seconds after switching on the ignition or after starting the engine. 
31Instruments and Indicator Lights

WARNING■Always adjust the speed and driving style to the actual weather, road, ter-
rain and traffic conditions.■
The diesel particulate filter reaches very high temperatures - there is a
fire hazard and serious injury could be caused. Therefore, never stop the
vehicle at places where the underside of your vehicle can come into contact
with flammable materials such as dry grass, undergrowth, leaves, spilled
fuel or such like.
CAUTION
■ As long as the warning light  illuminates, one must take into account an
increased fuel consumption and a power reduction of the engine.■
Using diesel fuel with increased sulphur content can significantly reduce the
service life of the diesel particle filter. A ŠKODA Partner will be able to tell you
which countries use diesel fuel with increased sulphur content.
Note
We encourage you to avoid constant short journeys. This will improve the com-
bustion process of the soot particles in the diesel particulate filter.
 Windscreen washer fluid level
Read and observe
on page 32 first.

 illuminates – the windscreen washer fluid level is too low.
Add washer fluid!WASHER FLUID PLEASE TOP UP›
Fill up the windscreen washer fluid.
  START-STOP system
Read and observe
on page 32 first.
The warning lights 
 indicates the state of the START STOP system
» page 95 , START-STOPsystem .
 Display of a low temperature
Read and observe
on page 32 first.
 illuminates – the outside temperature is below +4 °C.
WARNINGEven at temperatures of around +4 °C, black ice may still be on the road
surface! You should therefore not only rely on the outside temperature dis- play for accurate information as to whether there is ice on the road.
 Distance warning (Front Assist)
Read and observe
on page 32 first.
 illuminates – the safe distance to the vehicle in front is below the mini-
mum.
The warning light  is only shown in the MAXI DOTdisplay.
Information on the Front Assist system » page 112.
 Advance warning/emergency brake (Front Assist)
Read and observe
on page 32 first.
 illuminates – the system has recognized the risk of a collision or automati-
cally triggered an emergency braking manoeuvre.
Information on the Front Assist system » page 112.
 Service
Read and observe
on page 32 first.
 illuminates – note regarding a due service appointment
» page 46, Service
interval display .
38Using the system

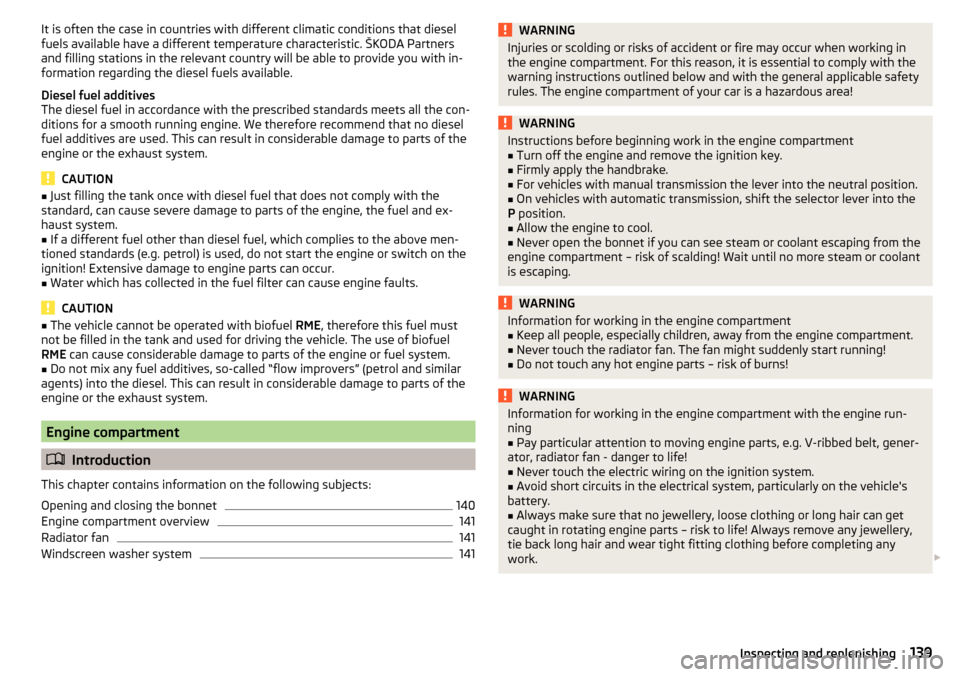

It is often the case in countries with different climatic conditions that diesel
fuels available have a different temperature characteristic. ŠKODA Partners
and filling stations in the relevant country will be able to provide you with in-
formation regarding the diesel fuels available.
Diesel fuel additives
The diesel fuel in accordance with the prescribed standards meets all the con-
ditions for a smooth running engine. We therefore recommend that no diesel
fuel additives are used. This can result in considerable damage to parts of the
engine or the exhaust system.
CAUTION
■ Just filling the tank once with diesel fuel that does not comply with the
standard, can cause severe damage to parts of the engine, the fuel and ex-
haust system.■
If a different fuel other than diesel fuel, which complies to the above men-
tioned standards (e.g. petrol) is used, do not start the engine or switch on the
ignition! Extensive damage to engine parts can occur.
■
Water which has collected in the fuel filter can cause engine faults.
CAUTION
■ The vehicle cannot be operated with biofuel RME, therefore this fuel must
not be filled in the tank and used for driving the vehicle. The use of biofuel
RME can cause considerable damage to parts of the engine or fuel system.■
Do not mix any fuel additives, so-called “flow improvers” (petrol and similar
agents) into the diesel. This can result in considerable damage to parts of the
engine or the exhaust system.
Engine compartment
 Introduction
This chapter contains information on the following subjects:
Opening and closing the bonnet
140
Engine compartment overview
141
Radiator fan
141
Windscreen washer system
141WARNINGInjuries or scolding or risks of accident or fire may occur when working in
the engine compartment. For this reason, it is essential to comply with the
warning instructions outlined below and with the general applicable safety
rules. The engine compartment of your car is a hazardous area!WARNINGInstructions before beginning work in the engine compartment■Turn off the engine and remove the ignition key.■
Firmly apply the handbrake.
■
For vehicles with manual transmission the lever into the neutral position.
■
On vehicles with automatic transmission, shift the selector lever into the
P position.
■
Allow the engine to cool.
■
Never open the bonnet if you can see steam or coolant escaping from the
engine compartment – risk of scalding! Wait until no more steam or coolant
is escaping.
WARNINGInformation for working in the engine compartment■Keep all people, especially children, away from the engine compartment.■
Never touch the radiator fan. The fan might suddenly start running!
■
Do not touch any hot engine parts – risk of burns!
WARNINGInformation for working in the engine compartment with the engine run-
ning■
Pay particular attention to moving engine parts, e.g. V-ribbed belt, gener-
ator, radiator fan - danger to life!
■
Never touch the electric wiring on the ignition system.
■
Avoid short circuits in the electrical system, particularly on the vehicle's
battery.
■
Always make sure that no jewellery, loose clothing or long hair can get
caught in rotating engine parts – risk to life! Always remove any jewellery,
tie back long hair and wear tight fitting clothing before completing any
work. 
139Inspecting and replenishing

Cockpit12-Volt power outlet75
Ashtray75
Cigarette lighter74
General view27
Lights63
storage compartments72
useful equipment72
COMING HOME62
compartments72
Component protection128
Components of the puncture repair kits162
Computer see multifunction display
40
convenience turn signal61
Coolant144
Checking144
Messages36
Replenishing145
Temperature gauge29
Warning light36
CORNER see Headlights with CORNER function
62
Correct routing of seat belt
12
Correct seated position8
Front passenger10
Rear seats10
Correct seat position Driver
9
Counter for distance driven30
cruise control operation
110
operation Description111
Cruise control system Warning light
35
Cup holders73
D
DAY LIGHT See Daytime running lights
60
Daytime running lights60
De-icing windows
132
Deactivating an airbag18
Decorative films131
Defrosting rear window64
Delayed locking of the boot lid see boot lid
55
Departure angle183
Diesel refer to Fuel
138
Diesel fuel Operation in winter
138
Diesel particulate filter37
information messages37
Digital Clock31
Dipstick143
Disconnecting and reconnecting vehicle battery
149
Display29
Compass points45
Coolant temperature29
Fuel supply30
Gear changes39
Service intervals46
Disposal Acceptance and recycling of used vehicles
129
Distance driven30
Distance warning Warning light
38
Door Child safety lock
53
Closing53
Emergency locking168
Opening53
Door warning39
Drive Driving through water
104
DriveGreen103
Driving Emissions
180
Fuel consumption180
Maximum speed184
through water104
driving data operation
40
E
Economical driving Tips
102
EDL107
Electrical power windows Button in the rear doors
57
Electric power windows Operational faults
58
Electric Windows56
Button in driver's door56
Electronic Differential Lock (EDL)107
Electronic immobilizer91
Emergency Changing a wheel
157
Hazard warning light system62
Jump-starting164
Locking the door without a locking cylinder168
Selector lever-unlocking168
Switch off the engine by pressing a button94
Towing the vehicle165
Towing the vehicle using the tow hitch167
tyre repair161
emergency equipment reflective vest
156
Emergency equipment Fire extinguisher
156
First aid kit156
Jack157
189Index
