Reset counter for distance travelled (trip)›Press button A » Fig. 26 on page 31 .
Setting the clock
Fig. 26
Button in the instrument cluster
Read and observe on page 28 first.
›
Switch on the ignition.
›
Press and hold the button
A
» Fig. 26 until the
Time
is shown in the display.
›
Release the button
A
and the system switches to the hour setting function.
›
Press the button
A
again and set the hours.
›
Wait around 4 seconds - the system switches to the minutes setting.
›
Press the button
A
again and set the minutes.
›
Wait around 4 seconds - the system switches to the start setting.
The time can also be set in the Infotainment » Owner´s Manual Infotainment ,
chapter Device settings .
Indicator lights

Introduction
This chapter contains information on the following subjects:
 Handbrake
32
 Brake system
32
 Seat belt warning light
32

 Power steering/steering lock (KESSY system)
32
 Stability control (ESC) / Traction control (TCS)
33
 Traction control system (TCS) deactivated
33
 Anti-lock braking system (ABS)
33
 Rear fog light
34
Exhaust inspection system34 Glow plug system (diesel engine)34

Engine performance check (petrol engine)
34
 Airbag system
34
 Tyre pressure
34
 Fuel reserve
35

 Turn signal system
35

Trailer turn signal lights
35
 Fog lights
35
 Cruise control system
35
 Brake pedal (automatic gearbox)
35
 Main beam
36
 Automatic transmission
36

 Rear seat belt warning light
36
 Alternator
36
 Coolant
36
 Engine oil pressure too low
37
 Engine oil level
37
 Lamp failure
37
 Diesel particulate filter (diesel engine)
37
 Windscreen washer fluid level
38

 START-STOP system
38
 Display of a low temperature
38
 Distance warning (Front Assist)
38
 Advance warning/emergency brake (Front Assist)
38
 Service
38
The warning lights in the instrument cluster indicate certain functions or
faults.
Some warning lights can be accompanied by acoustic signals and messages in
the display of the instrument cluster.
After switching on the ignition, some warning lights light up briefly as a func-
tion test.
If the tested systems are OK, the corresponding warning lights go out a few
seconds after switching on the ignition or after starting the engine. 
31Instruments and Indicator Lights

Maximum permissible front axle load
Maximum permissible rear axle load
Vehicle identification number (VIN)
The vehicle identification number - VIN (vehicle body number) is stamped into
the engine compartment on the right hand suspension strut dome. This num-
ber is also located on a sign on the lower left hand edge below the windscreen
(together with a VIN bar code), and on the type plate.
The VIN number can also be displayed in the Infotainment » Owner´s Manual
Infotainment , chapter CAR - vehicle settings .
Engine number
The engine number (three-digit identifier and serial number) is stamped on the
engine block.
Supplementary Information (applies to Russia)
The full type approval number of the means of transport is indicated in the
registration documents, field 17.
Maximum permissible trailer weight
The listed maximum allowable trailer weight is only valid for altitudes up to
1000 m above sea level.
The engine output falls as altitude increases, as does the vehicle's climbing
power. Therefore, for every additional 1000 m in height (or part), the maximum
permissible towed weight must be reduced by 10%.
The towed weight is made up of the actual weights of the loaded towing vehi-
cle and the loaded trailer.WARNINGDo not exceed the specified maximum permissible weights – risk of acci-
dent and damage!
Operating weight
The value represents the lightest possible vehicle weight without any addi-
tional equipment that would add to the weight, e.g. air conditioning, spare
wheel.
The specified operating weight is for orientation purposes only.
The operating weight also contains the weight of the driver (75 kg), the weight
of the operating fluids, the tool kit, and a fuel tank filled to 90 % capacity.
1011Operating weightEngineTransmissionOperating weight (kg)1.2 ltr./66 kW TSIMG1165DSG11991.2 ltr./81 kW TSIMG11851.4 ltr./92 kW TSIDSG1217DSG (Green tec)12261.6 l./66 kW MPIMG11501.6 l./81 kW MPIMG1165AG12051.4 l/66 kW TDI CRMG1234DSG12551.6 l/85 kW TDI CRMG1280
Note
If required, you can find out the precise weight of your vehicle at a specialist
garage.
Payload
It is possible to calculate the approximate maximum payload from the differ-
ence between the permissible total weight and the operating weight.
The payload consists of the following weights.
▶ The weight of the passengers.
▶ The weight of all items of luggage and other loads.
▶ The weight of the roof, including the roof rack system.
▶ The weight of the equipment that is excluded from the operating weight.
▶ Trailer draw-bar load when towing a trailer (max. 50 kg).
Measurement of fuel consumption and CO
2 emissions according to
ECE Regulations and EU Directives
The data on fuel consumption and CO 2 emissions were not available at the
time of going to press.
The data on fuel consumption and CO 2 emissions are given on the ŠKODA
websites or in the sales and technical vehicle documentation. 
180Technical data

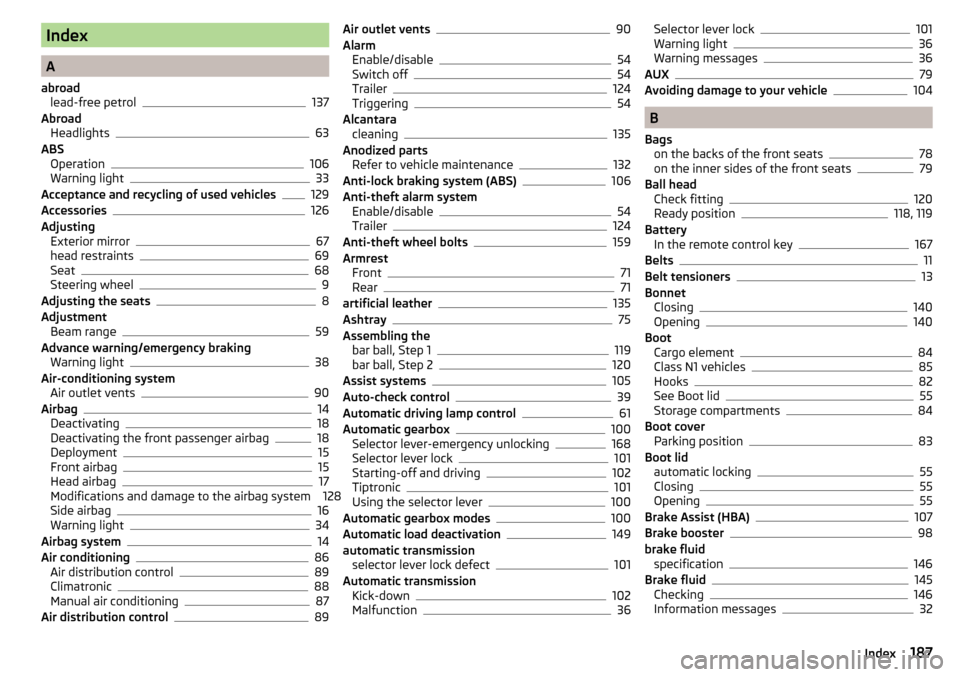

Index
A
abroad lead-free petrol
137
Abroad Headlights
63
ABS Operation
106
Warning light33
Acceptance and recycling of used vehicles129
Accessories126
Adjusting Exterior mirror
67
head restraints69
Seat68
Steering wheel9
Adjusting the seats8
Adjustment Beam range
59
Advance warning/emergency braking Warning light
38
Air-conditioning system Air outlet vents
90
Airbag14
Deactivating18
Deactivating the front passenger airbag18
Deployment15
Front airbag15
Head airbag17
Modifications and damage to the airbag system 128
Side airbag
16
Warning light34
Airbag system14
Air conditioning86
Air distribution control89
Climatronic88
Manual air conditioning87
Air distribution control89
Air outlet vents90
Alarm Enable/disable
54
Switch off54
Trailer124
Triggering54
Alcantara cleaning
135
Anodized parts Refer to vehicle maintenance
132
Anti-lock braking system (ABS)106
Anti-theft alarm system Enable/disable
54
Trailer124
Anti-theft wheel bolts159
Armrest Front
71
Rear71
artificial leather135
Ashtray75
Assembling the bar ball, Step 1
119
bar ball, Step 2120
Assist systems105
Auto-check control39
Automatic driving lamp control61
Automatic gearbox100
Selector lever-emergency unlocking168
Selector lever lock101
Starting-off and driving102
Tiptronic101
Using the selector lever100
Automatic gearbox modes100
Automatic load deactivation149
automatic transmission selector lever lock defect
101
Automatic transmission Kick-down
102
Malfunction36
Selector lever lock101
Warning light36
Warning messages36
AUX79
Avoiding damage to your vehicle104
B
Bags on the backs of the front seats
78
on the inner sides of the front seats79
Ball head Check fitting
120
Ready position118, 119
Battery In the remote control key
167
Belts11
Belt tensioners13
Bonnet Closing
140
Opening140
Boot Cargo element
84
Class N1 vehicles85
Hooks82
See Boot lid55
Storage compartments84
Boot cover Parking position
83
Boot lid automatic locking
55
Closing55
Opening55
Brake Assist (HBA)107
Brake booster98
brake fluid specification
146
Brake fluid145
Checking146
Information messages32
187Index
