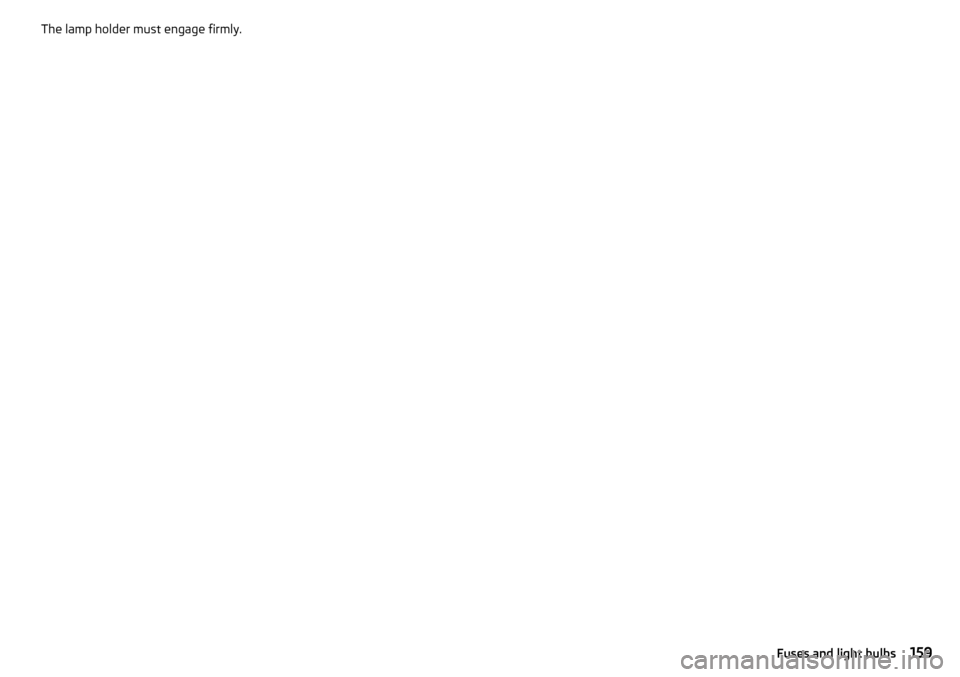

The lamp holder must engage firmly.159Fuses and light bulbs

Technical data
Technical data
Basic vehicle data
Introduction
This chapter contains information on the following subjects:
Vehicle data
160
Operating weight
161
Payload
161
Measurement of fuel consumption and CO 2 emissions according to ECE
Regulations and EU Directives
161
Dimensions
163
Departure angle
164
The details given in the vehicle's technical documentation always take prece-
dence over the details in the Owner's Manual.
The performance values listed were determined without performance-reduc- ing equipment, e.g. air conditioning system.
The values given have been determined in accordance with regulations and in
conditions prescribed by legal or technical provisions for determining the oper-
ating and technical data of vehicles.
The listed values are for the basic model without optional equipment.
Vehicle dataFig. 193
Vehicle data sticker/type plate
Vehicle data sticker
The vehicle data sticker » Fig. 193 -
 is located on the base of the luggage
compartment and is also stuck into the Owner's Manual.
The vehicle data sticker contains the following data. Vehicle identification number (VIN)
Vehicle type
Gearbox code/paint number/interior equipment/engine output/engine code
Partial vehicle description
Approved tyre diameter in inches 1)
The approved tyres and rim sizes for your vehicle are listed in the vehicle's
technical documentation (the so called COC document) and this also states the
declaration of conformity.
Type plate
The type plate » Fig. 193 -
 is located at the bottom of the B-pillar on the
right-hand driver's side.
The type plate contains the following data. Vehicle manufacturers
Vehicle identification number (VIN)
Maximum permissible gross weight
Maximum permissible towed weight (towing vehicle and trailer) 
1234567891)
Only valid for some countries.
160Technical data

Maximum permissible front axle load
Maximum permissible rear axle load
Vehicle identification number (VIN)
The vehicle identification number - VIN (vehicle body number) is stamped into
the engine compartment on the right hand suspension strut dome. This num-
ber is also located on a sign on the lower left hand edge below the windscreen
(together with a VIN bar code), and on the type plate.
The VIN number can also be displayed in Infotainment » Owner´s Manual - In-
fotainment .
Engine number
The engine number (three-digit identifier and serial number) is stamped on the
engine block.
Supplementary Information (applies to Russia)
The full type approval number of the means of transport is indicated in the
registration documents, field 17.
Maximum permissible trailer weight
The listed maximum allowable trailer weight is only valid for altitudes up to
1000 m above sea level.
The engine output falls as altitude increases, as does the vehicle's climbing
power. Therefore, for every additional 1000 m in height (or part), the maximum
permissible towed weight must be reduced by 10%.
The towed weight is made up of the actual weights of the loaded towing vehi-
cle and the loaded trailer.WARNINGDo not exceed the specified maximum permissible weights – risk of acci-
dent and damage!
Operating weight
This value is only a guide value and corresponds to the lowest possible operat-
ing weight without any equipment added that would also increase the weight
(e.g. air conditioning, emergency or spare wheel etc.). It also includes a weight
allowance for the driver (75 kg), the weight of the operating fluids, the tool kit
and a fuel tank filled to 90% capacity.
1011Operating weightEngineTransmissionOperating weight (kg)1.2 ltr./66 kW TSIMG1165DSG11991.2 l/81 kW TSIMG11851.4 l/92 kW TSIDSG1217DSG (Green tec)12261.6 l./66 kW MPIMG11501.6 l./81 kW MPIMG1165AG12051.4 l/66 kW TDI CRMG1234DSG12551.6 l/85 kW TDI CRMG1280
Note
If required, you can find out the precise weight of your vehicle at a specialist
garage.
Payload
It is possible to calculate the approximate maximum payload from the differ-
ence between the permissible total weight and the operating weight.
The payload consists of the following weights.
▶ The weight of the passengers.
▶ The weight of all items of luggage and other loads.
▶ The weight of the roof, including the roof rack system.
▶ The weight of the equipment that is excluded from the operating weight.
▶ Trailer draw-bar load when towing a trailer (max. 50 kg).
Measurement of fuel consumption and CO
2 emissions according to
ECE Regulations and EU Directives
The data on fuel consumption and CO 2 emissions were not available at the
time of going to press.
The data on fuel consumption and CO 2 emissions are given on the ŠKODA
websites or in the sales and technical vehicle documentation. 
161Technical data

The measurement of the intra-urban cycle begins with a cold start of the en-
gine. Afterwards urban driving is simulated.
In the extra-urban driving cycle, the vehicle is accelerated and decelerated in
all gears, corresponding to daily routine driving conditions. The driving speed
varies between 0 and 120 km/h.
The calculation of the combined fuel consumption considers a weighting of
about 37 % for the intra-urban cycle and 63 % for the extra-urban cycle.
Note
■ The emission and fuel consumption figures given on the ŠKODA websites or
in the commercial and technical vehicle documentation have been established
in accordance with rules and under conditions that are set out by statutory or
technical rules for the determination of operational and technical data of mo-
tor vehicles.■
Depending on the extent of the equipment, the driving style, traffic condi-
tions, weather influences and vehicle condition, consumption values can in
practice result in fuel economy figures in the use of the vehicle that differ from
the fuel consumption values listed on the ŠKODA websites or in the commer-
cial and technical vehicle documentation.
162Technical data

DimensionsFig. 194
Vehicle dimensions
Vehicle dimensions for operating weight without driver (in mm)
» Fig. 194SpecificationValueAHeight1461BFront trackBasic dimensions1457Vehicles with the 1.2 l/66 kW TSI, 1.6 l/66 kW MPI and 1.4 l/66 kW TDI CR engine1463CWidth1706DRear trackBasic dimensions1494Vehicles with the 1.2 l/66 kW TSI, 1.6 l/66 kW MPI and 1.4 l/66 kW TDI CR engine1500EWidth including exterior mirror1940FClearance136GWheel base2602HLength4483163Technical data

Departure angleFig. 195
Overhang angle
Angle » Fig. 195
Overhang angle, front
Overhang angle, rear
The overhang angle values indicate the maximum incline of a slope, up which the vehicle can drive at a slow speed without the bumper or underbody mak-
ing contact with the slope. The values listed correspond to the maximum axle
load, front or back.
Overhang angle (°)
Overhang angle, frontOverhang angle, rear1412.3AB164Technical data

Vehicle-specific details per engine type
Introduction
This chapter contains information on the following subjects:
1.2 ltr. / 66 kW TSI engine165
1.2 ltr. / 81 kW TSI engine
165
1.4 ltr./92 kW TSI engine
1661.6 l/66 kW MPI engine1661.6 l/81 kW MPI engine166
1.4 l/66 kW TDI CR engine
166
1.6 l/85 kW TDI CR engine
167The values given have been determined in accordance with regulations and in conditions prescribed by legal or technical provisions for determining the operat-
ing and technical data of vehicles.The emissions standard is detailed in the technical vehicle documentation as well as in the certificate of conformity (COC document), which can be obtained from
a ŠKODA partner a)
.a)
Only valid for some countries and some models.
1.2 ltr. / 66 kW TSI engine
Output (kW/rpm)66/4400Maximum torque (Nm at 1/min)160 / 1400-3500Number of cylinders/displacement (cm 3
)4/1197TransmissionMGDSGTop speed (km/h)186186Acceleration 0-100 km/h (s)11.311.4
1.2 ltr. / 81 kW TSI engine
Output (kW/rpm)81/4600Maximum torque (Nm at 1/min)175 / 1400-4000Number of cylinders/displacement (cm 3
)4/1197TransmissionMGTop speed (km/h)200Acceleration 0-100 km/h (s)9.8165Technical data

1.4 ltr./92 kW TSI engineOutput (kW/rpm)92/5000Maximum torque (Nm at 1/min)200 / 1400-4000Number of cylinders/displacement (cm3
)4/1395TransmissionDSGTop speed (km/h)208Acceleration 0-100 km/h (s)9.0
1.6 l/66 kW MPI engine
Output (kW/rpm)66/4250Maximum torque (Nm at 1/min)155/3800Number of cylinders/displacement (cm 3
)4/1598TransmissionMGTop speed (km/h)185Acceleration 0-100 km/h (s)11.4
1.6 l/81 kW MPI engine
Output (kW/rpm)81/5800Maximum torque (Nm at 1/min)155/3800Number of cylinders/displacement (cm 3
)4/1598TransmissionMGAGTop speed (km/h)195191Acceleration 0-100 km/h (s)10.311.6
1.4 l/66 kW TDI CR engine
Output (kW/rpm)66/3500Maximum torque (Nm at 1/min)230 / 1750-2500Number of cylinders/displacement (cm 3
)3/1422TransmissionMGDSGTop speed (km/h)185185Acceleration 0-100 km/h (s)11.711.8166Technical data

1.6 l/85 kW TDI CR engineOutput (kW/rpm)85/3500Maximum torque (Nm at 1/min)250 / 1500-3000Number of cylinders/displacement (cm3
)4/1596TransmissionMGTop speed (km/h)201Acceleration 0-100 km/h (s)10.0167Technical data
