engine SKODA RAPID 2016 1.G Repair Manual

Fuses and light bulbs
Fuses
Introduction
Fig. 178
Blown fuse
This chapter contains information on the following subjects:
Fuses in the dashboard
151
Fuse arrangement in the dashboard
152
Fuses in the engine compartment
153
Fuse arrangement in the engine compartment
154
Individual electrical circuits are protected by fuses. A blown fuse is recognisa-
ble from the melted-through metal strip » Fig. 178.
WARNINGAlways read and observe the warning notes before completing any work in
the engine compartment » page 125, Engine compartment .
CAUTION
■
Replace the faulty fuse with a new one of the same amperage.■If a newly inserted fuse blows again after a short time, seek assistance from
a specialist garage.■
“Do not repair” the fuses and do not replace them with stronger fuses - dan-
ger of fire and damage to another electrical system.
Note
■ We recommend always carrying replacement fuses in the vehicle.■There can be several power consuming devices for one fuse. Multiple fuses
may exist for a single power consuming device.Fuses in the dashboardFig. 179
Remove the fuse box cover.
Read and observe and on page 151 first.
The fuses are located on the bottom of the dash panel behind a cover.
Replacing fuses
›
Remove the ignition key, turn off the lights and all electrical consumers.
›
Remove the cover of the fuse box » Fig. 179 in the direction of the arrow.
›
Remove the plastic clip from the holder in the fuse box cover.
›
Use the clip to pull the fuse out, then insert a new fuse.
›
Replace the bracket at the original position.
›
Insert the top edge of the cover into the dash panel first.
›
Push the lower edge of the cover in the region
A
.
151Fuses and light bulbs

Fuse arrangement in the dashboardFig. 180
Fuses: LHD / RHD
Read and observe
and on page 151 first.
No.Power consumer1Light - left2Central locking, front and rear window washer system (only with
KESSY or heated windscreen)3Ignition4Light - right5Power windows - driver6Interior lighting7Horn8Towing hitch - left light
9
Operating lever beneath the steering wheel, engine control unit (on-
ly without KESSY), automatic gearbox (only without KESSY), auto-
matic gearbox (only without KESSY), ESC (only without KESSY), tow-
ing equipment (only without KESSY), power steering (only without
KESSY)10Power windows - rear left11Headlight cleaning system12Infotainment display13Multifunction unit for taxi vehicles14Operating lever under the steering wheel, light switch, ignition key
removal lock (automatic gearbox), headlight flasher, SmartGate, rain
sensor, rear view cameraNo.Power consumer15Air conditioning, automatic gearbox, diagnostic connector, heated windscreen16Instrument cluster, emergency call17Anti-theft alarm, horn18Rear seat heating19Not assigned20Not assigned21Not assigned22Front and rear window washer system (without KESSY or without
heated windscreen)23Heated front seats24Blower fan for air conditioning system, heating, air conditioning,
heating25Not assigned26Heated front seats27Rear window wiper28Not assigned29Airbag30Electric windows, reverse light switches, air conditioning system,
Park Assist, exterior mirror surface settings, power feed for centre
button strip, power feed for side button strip, interior mirror31Fuel pump, radiator fan, cruise control, front and rear window wash-
er, light switch32Diagnostic connector, beam range adjustment, control lever under
the steering wheel, interior lighting, voltage stabiliser for taxi vehi-
cles33Engine starting, clutch pedal switch34Heated windscreen washer jets35Not assigned36Not assigned37Radar38Not assigned39Electrical auxiliary heating system40Not assigned 152Do-it-yourself

No.Power consumer41Rear window heater42Power windows - front passenger43Trailer device - electrical outlet44Cigarette lighter, 12-volt outlet in the interior, 12-volt power socket
in the luggage compartment45Power windows - rear right46Front and rear window washer, operating lever under the steering
wheel47Trailer device - electrical outlet48Towing hitch - right light49Fuel pump50Infotainment51Heating of the external mirror52KESSY53Steering lock (KESSY)54ABS or ESC55Not assigned56Not assigned57Not assigned58Rear seat heating59Not assigned
Fuses in the engine compartment
Fig. 181
Cover for the fuse box - variant 1
Fig. 182
Cover for the fuse box - variant 2
Read and observe
and on page 151 first.
Replacing fuses
›
Remove the ignition key, turn off the lights and all electrical consumers.
›
Press together the lock buttons of the cover simultaneously in the direction
of arrow
1
» Fig. 181 or » Fig. 182 and remove the cover in the direction of
arrow
2
.
›
Remove the plastic clip from the holder on the cover of the fuse box in the
dashboard.
›
Replace the defective fuse.
›
Replace the cover, push the lock buttons of the cover together and lock.
›
Replace the bracket at the original position.
CAUTION
The cover of the fuse box in the engine compartment must always be inserted
correctly, otherwise water may penetrate into the fuse box – there is a danger
of damage to the vehicle!153Fuses and light bulbs

Fuse arrangement in the engine compartmentFig. 183
Fuses
Read and observe and on page 151 first.
No.Power consumer1Radiator fan2Glow plug system3ABS or ESC4Additional electrical heating, heated windscreen5Additional electrical heating, heated windscreen6Automatic gearbox7Engine control system8Windscreen wipers9Battery data module10ABS or ESC11Not assigned12Injectors, valve for fuel metering, control valve for fuel pressure13Brake pedal switch14Fuel pump, radiator fan, cooling pump, pump for intercooling15Engine control system, voltage stabiliser for taxi vehicles16Starter17Engine control system18Additional electric heater, valve for intake manifold, supercharger reg-
ulator, oil temperature, valve for activated charcoal filter, valve for oil
pressure controlNo.Power consumer19Lambda probe20Glow plug system, crankcase ventilation heater
Bulbs
 Introduction
This chapter contains information on the following subjects:
Bulb arrangement in the front headlights
155
Replacing the bulb for the low beam (Halogen headlights)
155
Changing the bulb for main beam, separate daytime running lights, and
parking light
155
Changing the bulb for the front turn signal light
156
Replacing light bulbs for fog lights
157
Changing the bulb for the licence plate light
157
Removing/inserting the taillight
158
Replacing the bulbs in the taillight assembly
158
We recommend having bulbs replaced by a specialist garage or seeking other
expert help in the event of any uncertainties.
▶ Switch off the ignition and all of the lights before replacing a bulb.
▶ Faulty bulbs must only be replaced with the same type of bulbs. The designa-
tion is located on the light socket or the glass bulb.
We recommend having the headlight settings checked by a specialist garage after replacing a bulb in the low, high or fog beam.
In the case of failure of a Xenon gas discharge bulb or an LED diode, visit a
specialist garage.
WARNING■ Always read and observe the warning notes before completing any work
in the engine compartment » page 125.■
Accidents can be caused if the road in front of the vehicle is not suffi-
ciently illuminated and the vehicle cannot or can only be seen with difficul-
ty by other road users. 
154Do-it-yourself

Technical data
Technical data
Basic vehicle data
Introduction
This chapter contains information on the following subjects:
Vehicle data
160
Operating weight
161
Payload
161
Measurement of fuel consumption and CO 2 emissions according to ECE
Regulations and EU Directives
161
Dimensions
163
Departure angle
164
The details given in the vehicle's technical documentation always take prece-
dence over the details in the Owner's Manual.
The performance values listed were determined without performance-reduc- ing equipment, e.g. air conditioning system.
The values given have been determined in accordance with regulations and in
conditions prescribed by legal or technical provisions for determining the oper-
ating and technical data of vehicles.
The listed values are for the basic model without optional equipment.
Vehicle dataFig. 193
Vehicle data sticker/type plate
Vehicle data sticker
The vehicle data sticker » Fig. 193 -
 is located on the base of the luggage
compartment and is also stuck into the Owner's Manual.
The vehicle data sticker contains the following data. Vehicle identification number (VIN)
Vehicle type
Gearbox code/paint number/interior equipment/engine output/engine code
Partial vehicle description
Approved tyre diameter in inches 1)
The approved tyres and rim sizes for your vehicle are listed in the vehicle's
technical documentation (the so called COC document) and this also states the
declaration of conformity.
Type plate
The type plate » Fig. 193 -
 is located at the bottom of the B-pillar on the
right-hand driver's side.
The type plate contains the following data. Vehicle manufacturers
Vehicle identification number (VIN)
Maximum permissible gross weight
Maximum permissible towed weight (towing vehicle and trailer) 
1234567891)
Only valid for some countries.
160Technical data

Maximum permissible front axle load
Maximum permissible rear axle load
Vehicle identification number (VIN)
The vehicle identification number - VIN (vehicle body number) is stamped into
the engine compartment on the right hand suspension strut dome. This num-
ber is also located on a sign on the lower left hand edge below the windscreen
(together with a VIN bar code), and on the type plate.
The VIN number can also be displayed in Infotainment » Owner´s Manual - In-
fotainment .
Engine number
The engine number (three-digit identifier and serial number) is stamped on the
engine block.
Supplementary Information (applies to Russia)
The full type approval number of the means of transport is indicated in the
registration documents, field 17.
Maximum permissible trailer weight
The listed maximum allowable trailer weight is only valid for altitudes up to
1000 m above sea level.
The engine output falls as altitude increases, as does the vehicle's climbing
power. Therefore, for every additional 1000 m in height (or part), the maximum
permissible towed weight must be reduced by 10%.
The towed weight is made up of the actual weights of the loaded towing vehi-
cle and the loaded trailer.WARNINGDo not exceed the specified maximum permissible weights – risk of acci-
dent and damage!
Operating weight
This value is only a guide value and corresponds to the lowest possible operat-
ing weight without any equipment added that would also increase the weight
(e.g. air conditioning, emergency or spare wheel etc.). It also includes a weight
allowance for the driver (75 kg), the weight of the operating fluids, the tool kit
and a fuel tank filled to 90% capacity.
1011Operating weightEngineTransmissionOperating weight (kg)1.2 ltr./66 kW TSIMG1165DSG11991.2 l/81 kW TSIMG11851.4 l/92 kW TSIDSG1217DSG (Green tec)12261.6 l./66 kW MPIMG11501.6 l./81 kW MPIMG1165AG12051.4 l/66 kW TDI CRMG1234DSG12551.6 l/85 kW TDI CRMG1280
Note
If required, you can find out the precise weight of your vehicle at a specialist
garage.
Payload
It is possible to calculate the approximate maximum payload from the differ-
ence between the permissible total weight and the operating weight.
The payload consists of the following weights.
▶ The weight of the passengers.
▶ The weight of all items of luggage and other loads.
▶ The weight of the roof, including the roof rack system.
▶ The weight of the equipment that is excluded from the operating weight.
▶ Trailer draw-bar load when towing a trailer (max. 50 kg).
Measurement of fuel consumption and CO
2 emissions according to
ECE Regulations and EU Directives
The data on fuel consumption and CO 2 emissions were not available at the
time of going to press.
The data on fuel consumption and CO 2 emissions are given on the ŠKODA
websites or in the sales and technical vehicle documentation. 
161Technical data

DimensionsFig. 194
Vehicle dimensions
Vehicle dimensions for operating weight without driver (in mm)
» Fig. 194SpecificationValueAHeight1461BFront trackBasic dimensions1457Vehicles with the 1.2 l/66 kW TSI, 1.6 l/66 kW MPI and 1.4 l/66 kW TDI CR engine1463CWidth1706DRear trackBasic dimensions1494Vehicles with the 1.2 l/66 kW TSI, 1.6 l/66 kW MPI and 1.4 l/66 kW TDI CR engine1500EWidth including exterior mirror1940FClearance136GWheel base2602HLength4483163Technical data

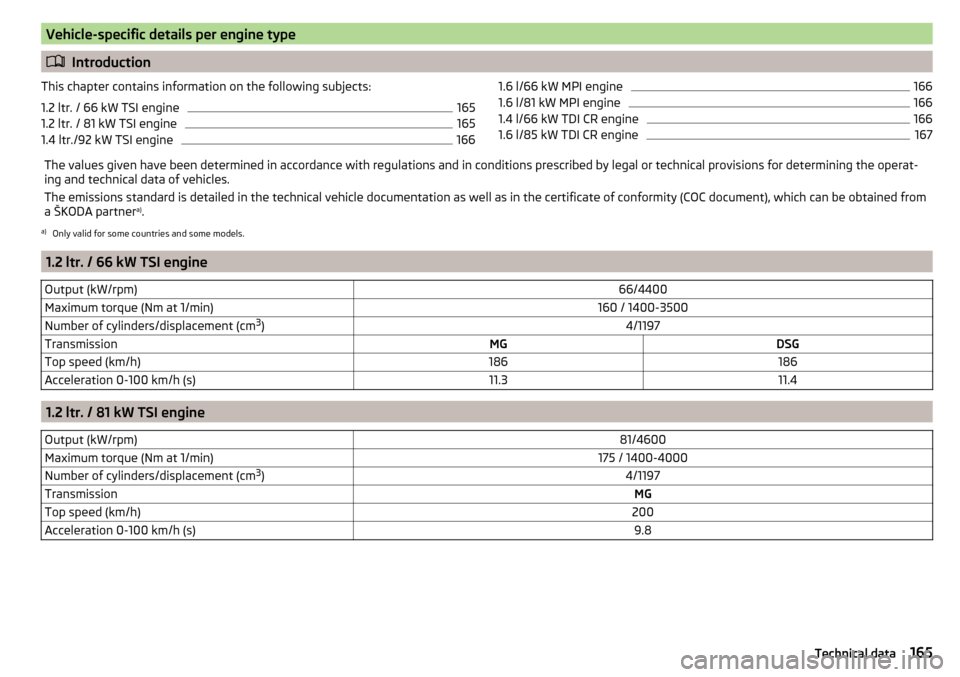

Vehicle-specific details per engine type
Introduction
This chapter contains information on the following subjects:
1.2 ltr. / 66 kW TSI engine165
1.2 ltr. / 81 kW TSI engine
165
1.4 ltr./92 kW TSI engine
1661.6 l/66 kW MPI engine1661.6 l/81 kW MPI engine166
1.4 l/66 kW TDI CR engine
166

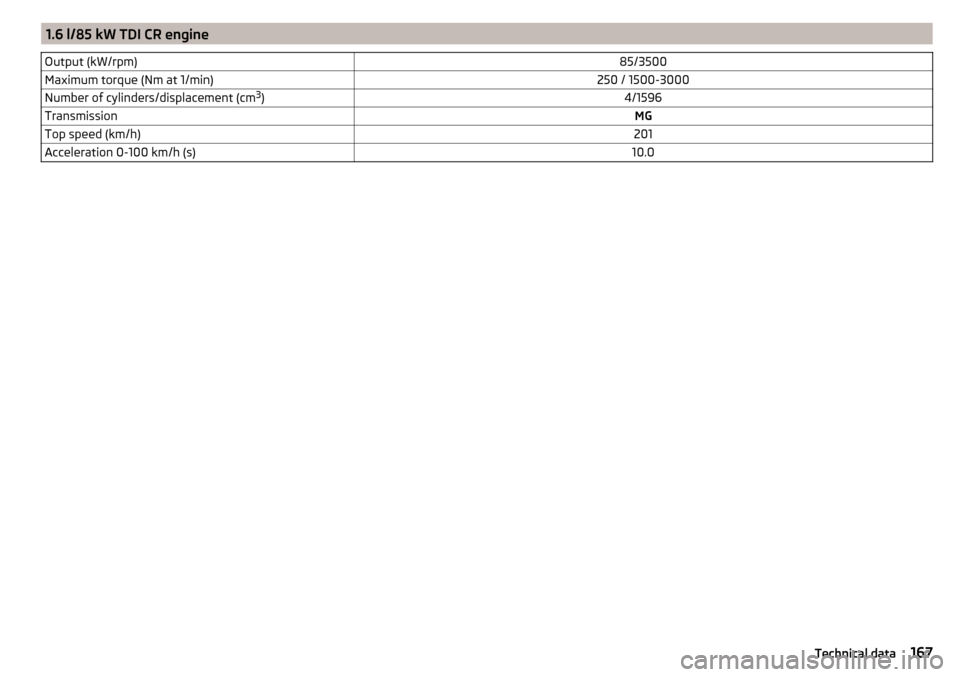

1.6 l/85 kW TDI CR engine
167The values given have been determined in accordance with regulations and in conditions prescribed by legal or technical provisions for determining the operat-
ing and technical data of vehicles.The emissions standard is detailed in the technical vehicle documentation as well as in the certificate of conformity (COC document), which can be obtained from
a ŠKODA partner a)
.a)
Only valid for some countries and some models.
1.2 ltr. / 66 kW TSI engine
Output (kW/rpm)66/4400Maximum torque (Nm at 1/min)160 / 1400-3500Number of cylinders/displacement (cm 3
)4/1197TransmissionMGDSGTop speed (km/h)186186Acceleration 0-100 km/h (s)11.311.4
1.2 ltr. / 81 kW TSI engine
Output (kW/rpm)81/4600Maximum torque (Nm at 1/min)175 / 1400-4000Number of cylinders/displacement (cm 3
)4/1197TransmissionMGTop speed (km/h)200Acceleration 0-100 km/h (s)9.8165Technical data

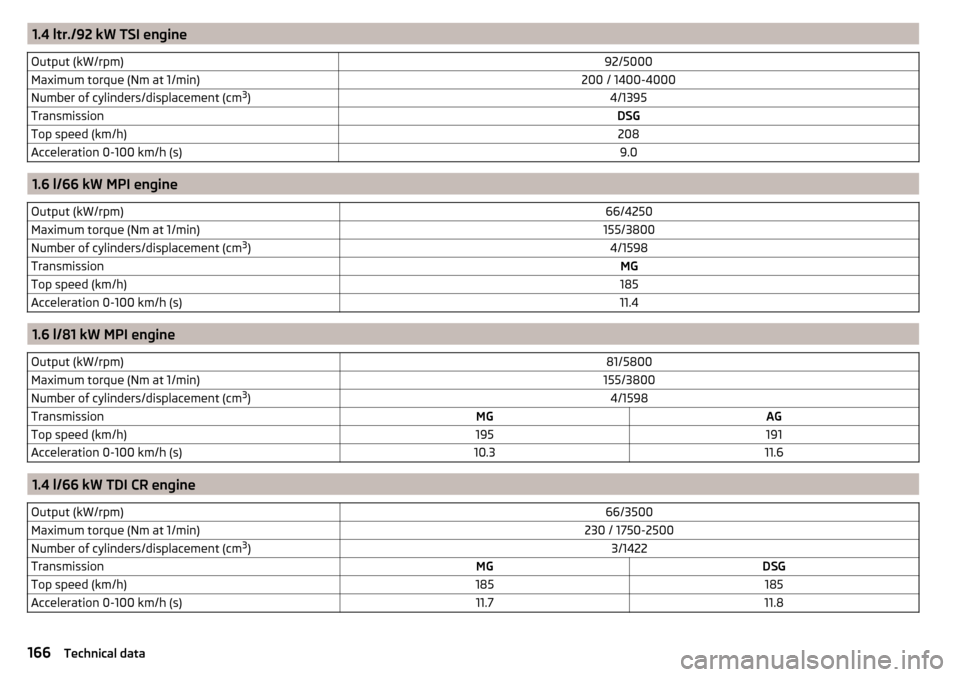

1.4 ltr./92 kW TSI engineOutput (kW/rpm)92/5000Maximum torque (Nm at 1/min)200 / 1400-4000Number of cylinders/displacement (cm3
)4/1395TransmissionDSGTop speed (km/h)208Acceleration 0-100 km/h (s)9.0
1.6 l/66 kW MPI engine
Output (kW/rpm)66/4250Maximum torque (Nm at 1/min)155/3800Number of cylinders/displacement (cm 3
)4/1598TransmissionMGTop speed (km/h)185Acceleration 0-100 km/h (s)11.4
1.6 l/81 kW MPI engine
Output (kW/rpm)81/5800Maximum torque (Nm at 1/min)155/3800Number of cylinders/displacement (cm 3
)4/1598TransmissionMGAGTop speed (km/h)195191Acceleration 0-100 km/h (s)10.311.6
1.4 l/66 kW TDI CR engine
Output (kW/rpm)66/3500Maximum torque (Nm at 1/min)230 / 1750-2500Number of cylinders/displacement (cm 3
)3/1422TransmissionMGDSGTop speed (km/h)185185Acceleration 0-100 km/h (s)11.711.8166Technical data

1.6 l/85 kW TDI CR engineOutput (kW/rpm)85/3500Maximum torque (Nm at 1/min)250 / 1500-3000Number of cylinders/displacement (cm3
)4/1596TransmissionMGTop speed (km/h)201Acceleration 0-100 km/h (s)10.0167Technical data
