width SKODA RAPID 2016 1.G Owner's Manual

›To
remove , hold the locking button A in the direction of arrow 1, at the
same time, using a flat screwdriver with a max. width of 5 mm, press the
locking button in the opening B
in the direction of arrow
2
and pull out the
rest in the direction of arrow
3
» Fig. 59 .
›
To insert , push the headrest into the seat backrest in the direction of arrow
4
until the locking button clicks into place.
Seat heaters
Fig. 60
Buttons for heating the front seats/rear seats
The seat backrests and surfaces of the front seats and the outer rear seats
can be heated electrically.
Seat heating buttons » Fig. 60
Left seat heating
Right seat heating
›
To turn on the heater at maximum heat (level 2), press button
 or
.
By repeatedly pressing the button, the heat is turned down until it is com-
pletely switched off . The level of the seat heating is indicated by the number
of illuminated warning lights in the switch.
The seat heating only operates when the engine is running.
WARNINGIf you are sensitive to pain and/or temperature, e.g. through medication,
paralysis or because of chronic illness (e.g. diabetes), we recommend not to
use the seat heating. If the seat heating is used, we recommend to make
regular breaks in your journey when driving long distances, so that the
body can recuperate from the stress of the journey. Please consult your
doctor, who can evaluate your specific condition.CAUTIONThe following instructions must be observed to avoid damage to the seats.■Do not kneel on the seats or otherwise apply concentrated pressure to them.■
Do not switch on the heating for unoccupied seats.
■
Do not switch on the heating for seats which have objects on them (e.g. a
child seat, bag or similar).
■
Do not switch on the heating for seats which have seat covers or protective
covers on them.
Note
■ If the heaters for the rear seats are set to their highest intensity (level 2),
they are automatically switched down to level 1 after 10 minutes.■
If the on-board voltage decreases, the seat heating switches off automati-
cally » page 131 , Automatic shutdown of consumers - vehicle battery dis-
charge protection .
65Seats and head restraints

OperationFig. 115
Installation location of the camera / scanned area behind the ve-
hicle
Read and observe
and on page 98 first.
The camera for capturing the area behind the vehicle is in the grip of the boot
lid » Fig. 115 .
Area behind the vehicle » Fig. 115
Detection range of the camera
Area outside the detection range of the camera
The system can assist the driver when parking and manoeuvring under the fol- lowing basic conditions.
The ignition is switched on.
The reverse gear is engaged. 1)
The luggage compartment lid is completely closed.
The vehicle is travelling at less than 15 km/h.
The area behind the vehicle is clearly visible.
The selected parking / manoeuvring area is clear and even.
Note
■ The display can be interrupted by pressing the symbol button  » Fig. 113 on
page 97 .■
After disengaging the reverse gear, automatic display of the parking aid is
carried out (variant 2, 3) » page 96.
ABGuidelines and function surfacesFig. 116
Infotainment Display: Orientation lines / functional surfaces
Read and observe
and on page 98 first.
Orientation lines are shown along with the monitored area behind the vehicle
in the display.
Distance of the orientation lines behind the vehicle » Fig. 116
The distance is about 40 cm (safety distance limit).
The distance is about 100 cm.
The distance is about 200 cm.
The distance may vary slightly depending on the load of the vehicle and the
road inclination.
The distance between the side lines corresponds approximately to the vehicle
width including mirrors.
Functional surfaces » Fig. 116
Depending on the Infotainment Type: Turns the display of the area be-
hind the vehicle off
Display settings - brightness, contrast, colour Switching on/off audible parking signals
Switching on/off the reduced park assistance display
Change to park assistance display 
ABC
     1)
The area behind the vehicle can be displayed for a few seconds more after disengaging the reverse gear.
99Assist systems

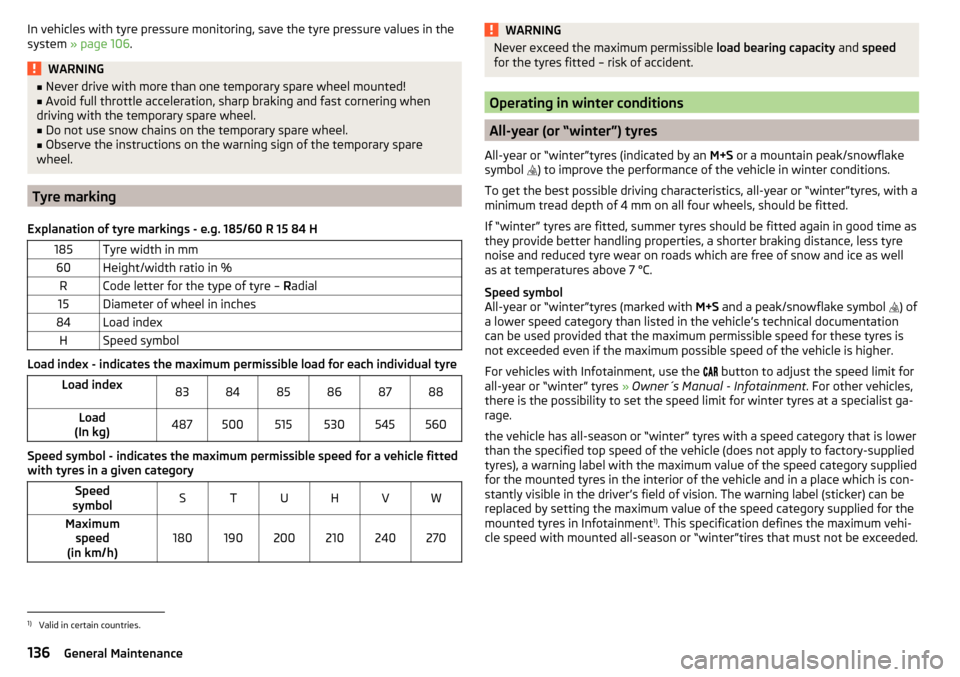

In vehicles with tyre pressure monitoring, save the tyre pressure values in the
system » page 106 .WARNING■
Never drive with more than one temporary spare wheel mounted!■Avoid full throttle acceleration, sharp braking and fast cornering when
driving with the temporary spare wheel.■
Do not use snow chains on the temporary spare wheel.
■
Observe the instructions on the warning sign of the temporary spare
wheel.
Tyre marking
Explanation of tyre markings - e.g. 185/60 R 15 84 H
185Tyre width in mm60Height/width ratio in %RCode letter for the type of tyre – Radial15Diameter of wheel in inches84Load indexHSpeed symbol
Load index - indicates the maximum permissible load for each individual tyre
Load index838485868788Load
(In kg)487500515530545560
Speed symbol - indicates the maximum permissible speed for a vehicle fitted
with tyres in a given category
Speed
symbolSTUHVWMaximum speed
(in km/h)180190200210240270WARNINGNever exceed the maximum permissible load bearing capacity and speed
for the tyres fitted – risk of accident.
Operating in winter conditions
All-year (or “winter”) tyres
All-year or “winter”tyres (indicated by an M+S or a mountain peak/snowflake
symbol ) to improve the performance of the vehicle in winter conditions.
To get the best possible driving characteristics, all-year or “winter”tyres, with a
minimum tread depth of 4 mm on all four wheels, should be fitted.
If “winter” tyres are fitted, summer tyres should be fitted again in good time as
they provide better handling properties, a shorter braking distance, less tyre
noise and reduced tyre wear on roads which are free of snow and ice as well
as at temperatures above 7 °C.
Speed symbol
All-year or “winter”tyres (marked with M+S and a peak/snowflake symbol
) of
a lower speed category than listed in the vehicle’s technical documentation
can be used provided that the maximum permissible speed for these tyres is
not exceeded even if the maximum possible speed of the vehicle is higher.
For vehicles with Infotainment, use the  button to adjust the speed limit for
all-year or “winter” tyres » Owner´s Manual - Infotainment . For other vehicles,
there is the possibility to set the speed limit for winter tyres at a specialist ga-
rage.
the vehicle has all-season or “winter” tyres with a speed category that is lower
than the specified top speed of the vehicle (does not apply to factory-supplied tyres), a warning label with the maximum value of the speed category supplied
for the mounted tyres in the interior of the vehicle and in a place which is con-
stantly visible in the driver’s field of vision. The warning label (sticker) can be
replaced by setting the maximum value of the speed category supplied for the mounted tyres in Infotainment 1)
. This specification defines the maximum vehi-
cle speed with mounted all-season or “winter”tires that must not be exceeded.
1)
Valid in certain countries.
136General Maintenance

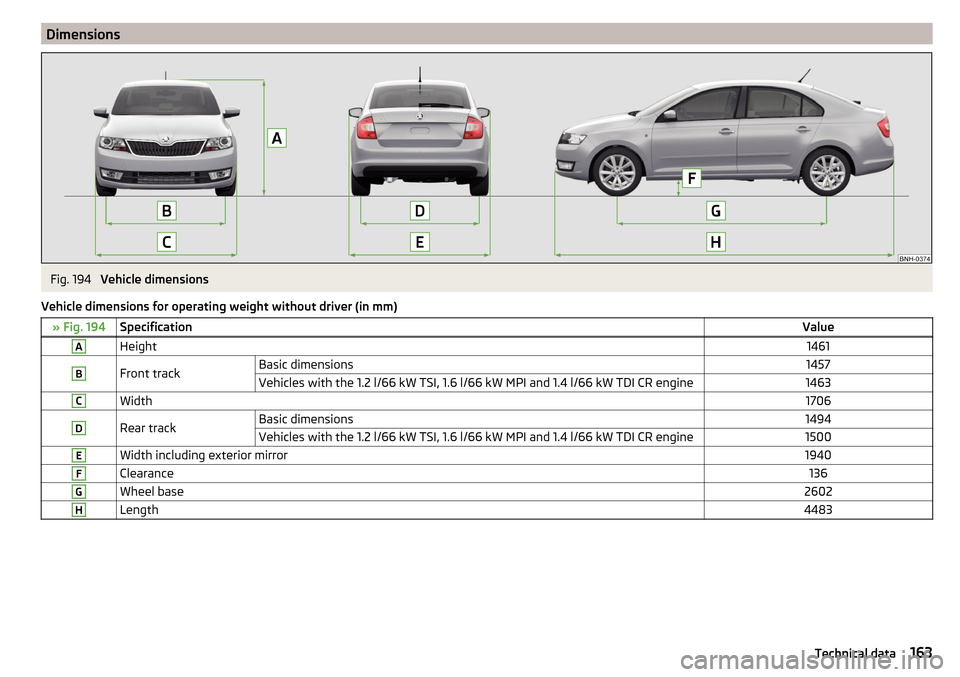

DimensionsFig. 194
Vehicle dimensions
Vehicle dimensions for operating weight without driver (in mm)
» Fig. 194SpecificationValueAHeight1461BFront trackBasic dimensions1457Vehicles with the 1.2 l/66 kW TSI, 1.6 l/66 kW MPI and 1.4 l/66 kW TDI CR engine1463CWidth1706DRear trackBasic dimensions1494Vehicles with the 1.2 l/66 kW TSI, 1.6 l/66 kW MPI and 1.4 l/66 kW TDI CR engine1500EWidth including exterior mirror1940FClearance136GWheel base2602HLength4483163Technical data

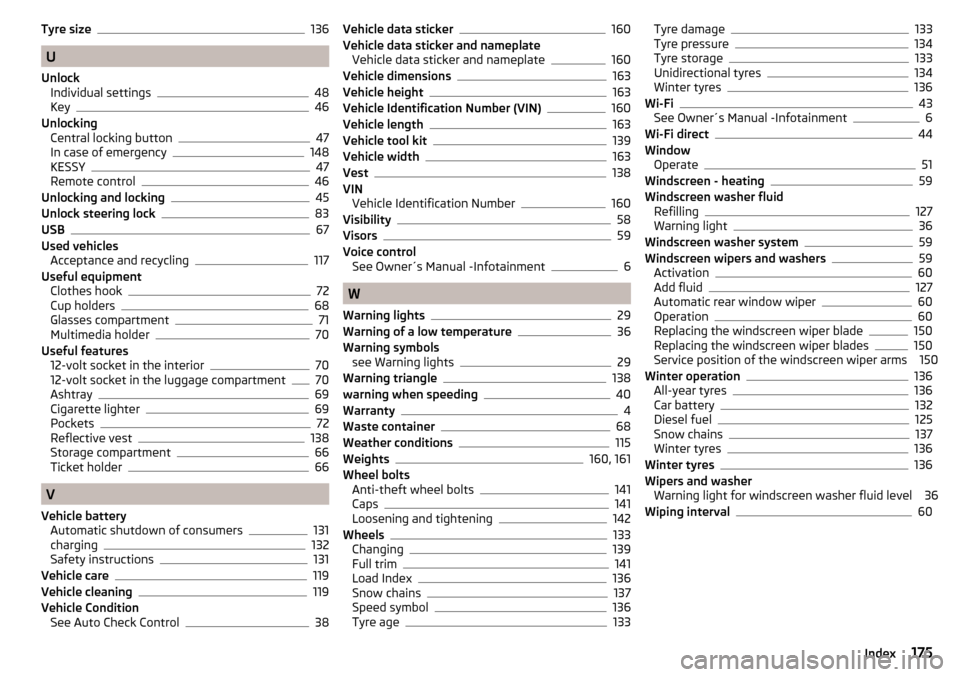

Tyre size136
U
Unlock Individual settings
48
Key46
Unlocking Central locking button
47
In case of emergency148
KESSY47
Remote control46
Unlocking and locking45
Unlock steering lock83
USB67
Used vehicles Acceptance and recycling
117
Useful equipment Clothes hook
72
Cup holders68
Glasses compartment71
Multimedia holder70
Useful features 12-volt socket in the interior
70
12-volt socket in the luggage compartment70
Ashtray69
Cigarette lighter69
Pockets72
Reflective vest138
Storage compartment66
Ticket holder66
V
Vehicle battery Automatic shutdown of consumers
131
charging132
Safety instructions131
Vehicle care119
Vehicle cleaning119
Vehicle Condition See Auto Check Control
38
Vehicle data sticker160
Vehicle data sticker and nameplate Vehicle data sticker and nameplate
160
Vehicle dimensions163
Vehicle height163
Vehicle Identification Number (VIN)160
Vehicle length163
Vehicle tool kit139
Vehicle width163
Vest138
VIN Vehicle Identification Number
160
Visibility58
Visors59
Voice control See Owner´s Manual -Infotainment
6
W
Warning lights
29
Warning of a low temperature36
Warning symbols see Warning lights
29
Warning triangle138
warning when speeding40
Warranty4
Waste container68
Weather conditions115
Weights160, 161
Wheel bolts Anti-theft wheel bolts
141
Caps141
Loosening and tightening142
Wheels133
Changing139
Full trim141
Load Index136
Snow chains137
Speed symbol136
Tyre age133
Tyre damage133
Tyre pressure134
Tyre storage133
Unidirectional tyres134
Winter tyres136
Wi-Fi43
See Owner´s Manual -Infotainment6
Wi-Fi direct44
Window Operate
51
Windscreen - heating59
Windscreen washer fluid Refilling
127
Warning light36
Windscreen washer system59
Windscreen wipers and washers59
Activation60
Add fluid127
Automatic rear window wiper60
Operation60
Replacing the windscreen wiper blade150
Replacing the windscreen wiper blades150
Service position of the windscreen wiper arms 150
Winter operation
136
All-year tyres136
Car battery132
Diesel fuel125
Snow chains137
Winter tyres136
Winter tyres136
Wipers and washer Warning light for windscreen washer fluid level 36
Wiping interval
60
175Index
