SKODA RAPID SPACEBACK 2013 1.G Owner's Manual

Fig. 164
Replacing the light bulb
Read and observe and on page 167 first.
Removing the protective grille
›
Undo the protective grille in the area of the arrow » Fig. 163 -
 using the
clamp for removing the wheel trims » page 150, Vehicle tool kit .
›
Remove the protective grille in the direction of the arrow
1
» Fig. 163 .
Changing light bulbs for fog lights
›
Unscrew the screws » Fig. 163 -
 marked with the arrows 1)
.
›
Unlock the fuse in the direction of the arrow
2
with the screwdriver.
›
Remove the headlight in the direction of arrow
3
.
›
Remove the connector » Fig. 164.
›
Turn the lamp socket in the direction of arrow
4
» Fig. 164 and pull it out.
›
Insert the bulb holder with the new bulb into the headlight and turn counter
to the direction of arrow
4
.
›
Attach the connector.
›
Replace the fog light by inserting it in the opposite direction of the arrow
3
» Fig. 163 and tighten.
›
Insert the protective grille and carefully press it in.
The protective grille must engage firmly.
Replacing the bulb for the licence plate lightFig. 165
Remove the number plate light/replace the bulb
Read and observe
and on page 167 first.
›
Open the boot lid.
›
Push in the lamp in the direction of the arrow
1
» Fig. 165 .
The lamp comes loose.
›
Swivel out the lamp in the direction of the arrow
2
and remove it.
›
Remove the faulty bulb from the holder in the direction of the arrow
3
.
›
Insert a new bulb into the holder.
›
Reinsert the lamp in the opposite direction to the arrow
1
.
›
Push on the light until the spring clicks into place.
Check that the light is securely inserted.
1)
The screwdriver is part of the tool kit.
169Fuses and light bulbs

Rear lampFig. 166
Remove cover/light
Fig. 167
Installing the lamp connector/lamp
Read and observe
and on page 167 first.
Removing
›
Open the boot lid.
›
Insert the clamp for removing the wheel trims » page 150, Vehicle tool kit
into the hole at the position indicated by the arrow » Fig. 166 -
 .
›
Remove the cover in the direction of the arrow
1
-
» Fig. 166 .
›
Use the screwdriver from the tool kit to unscrew the lamp » Fig. 166 -
 .
›
Grasp the light and carefully remove with shaky movements in the direction
of arrow
2
.
›
Carefully remove the connector from the tail lamp » Fig. 167 -
 .
Installing
›
Insert the connector into the lamp and lock it securely.
›
Insert the lamp into the mounts in the body » Fig. 167 -
 .
›Carefully press the tail lamp into the body so that the bolts 2
» Fig. 168 on
page 170 on the lamp engage into the mounts in the body » .
Ensure that the cable bundle does not become pinched between the body and
the lamp.›
Screw the tail lamp into place and install the cover.
The cover must engage securely.
CAUTION
■ Ensure that the cable bundle does not become pinched between the body
and the lamp when it is being refitted – risk of damage to the electrical instal-
lation and risk of water ingress.■
If you are not sure whether the cable bundle has become pinched, we recom-
mend that you have the light connection checked by a specialist garage.
■
Ensure that the vehicle paintwork and the tail lamp are not damaged when
removing and installing the tail lamp.
Replacing bulbs in rear light
Fig. 168
Outer part of the lamp/inner part of the lamp
Read and observe
and on page 167 first.
Outer part of the lamp
›
Turn the bulb holder
1
» Fig. 168 in an anti-clockwise direction and remove
it from the lamp housing.
›
Replace the bulb, reinsert the holder with the bulb into the lamp housing and
turn to the stop in a clockwise direction.
Inner parts of the lamp
›
Unlock the bulb holder using the locking latches marked with ar-
rows » Fig. 168 -
 and remove the bulb holder from the tail lamp. 
170Do-it-yourself

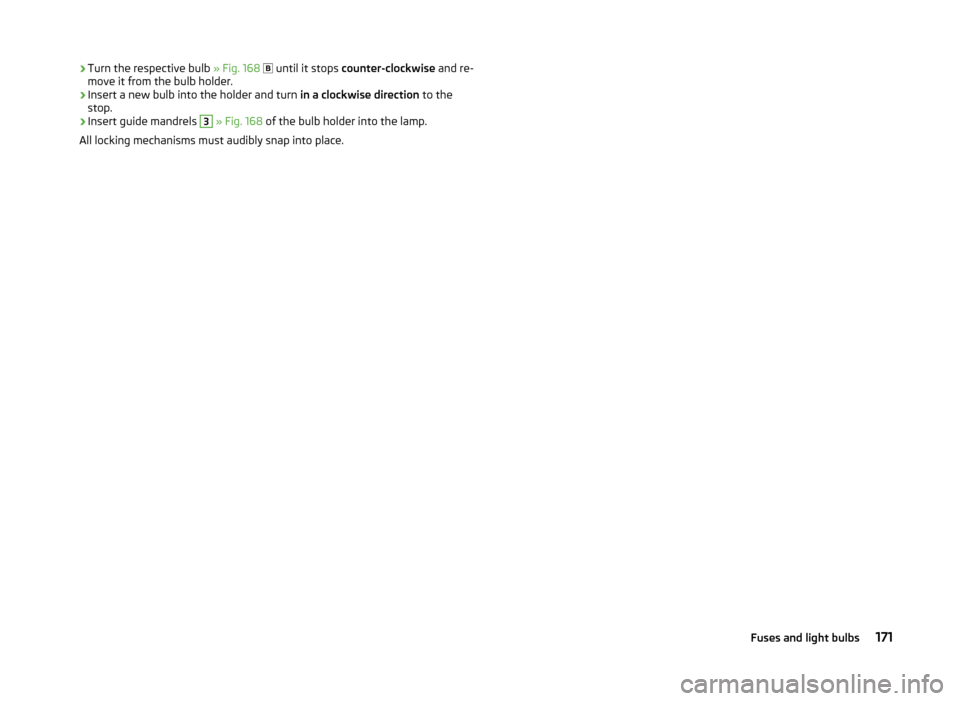

›Turn the respective bulb
» Fig. 168  until it stops counter-clockwise and re-
move it from the bulb holder.›
Insert a new bulb into the holder and turn in a clockwise direction to the
stop.
›
Insert guide mandrels
3
» Fig. 168 of the bulb holder into the lamp.
All locking mechanisms must audibly snap into place.
171Fuses and light bulbs

Technical data
Technical data
Vehicle data
Introduction
This chapter contains information on the following subjects:
Vehicle characteristics
172
Operating weight and payload
172
Measurement of fuel consumption and CO 2 emissions according to ECE
Regulations and EU Directives
173
Dimensions
174
Angle
175
Vehicle-specific details per engine type
176
The details given in the vehicle's technical documentation always take prece-
dence over the details in the Owner's Manual.
The listed performance values were determined without performance-reduc- ing equipment, e.g. air conditioning system.
Vehicle characteristics
Fig. 169
Vehicle data sticker/type plate
Vehicle data sticker
The vehicle data sticker » Fig. 169 -
 is located on the base of the luggage
compartment and is also stuck into the service schedule.
The vehicle data sticker contains the following data.
Vehicle identification number (VIN)
Vehicle type
Gearbox code/paint number/interior equipment/engine output/engine
code
Partial vehicle description
Type plate
The type plate » Fig. 169 - 
is located at the bottom of the B-pillar on the
driver's side.
The type plate contains the following data. Vehicle identification number (VIN)
Maximum permissible gross weight
Maximum permissible towed weight (towing vehicle and trailer)
Maximum permissible front axle load
Maximum permissible rear axle load
Vehicle identification number (VIN)
The vehicle identification number - VIN (vehicle body number) is stamped into
the engine compartment on the right hand suspension strut dome. This num-
ber is also located on a sign on the lower left hand edge below the windscreen
(together with a VIN bar code), and on the type plate.
Engine number
The engine number (three-digit identifier and serial number) is stamped on the engine block.WARNINGDo not exceed the specified maximum permissible weights – risk of acci-
dent and damage!
Operating weight and payload
Operating weight
This value represents the minimum operating weight without additional
weight-increasing equipment such as air conditioning system, spare wheel, or
trailer hitch.
The specified operating weight is for orientation purposes only. 
123456789172Technical data

The operating weight also contains the weight of the driver (75 kg), the weight
of the operating fluids, the tool kit, and a fuel tank filled to 90 % capacity.
Operating weight of the vehicle » page 176, Vehicle-specific details per engine
type .
Payload
It is possible to calculate the approximate maximum payload from the differ-
ence between the permissible total weight and the operating weight.
The payload consists of the following weights.
› The weight of the passengers.
› The weight of all items of luggage and other loads.
› The weight of the roof, including the roof rack system.
› The weight of the equipment that is excluded from the operating weight.
› Trailer drawbar load when towing a trailer (max. 50 kg).
Note
If required, you can find out the precise weight of your vehicle at a specialist
garage.
Measurement of fuel consumption and CO 2 emissions according to
ECE Regulations and EU Directives
The data on fuel consumption and CO 2 emissions were not available at the
time of going to press.
The data on fuel consumption and CO 2 emissions are given on the ŠKODA
websites or in the sales and technical vehicle documentation.
The measurement of the intra-urban cycle begins with a cold start of the en-
gine. Afterwards urban driving is simulated.
In the extra-urban driving cycle, the vehicle is accelerated and decelerated in
all gears, corresponding to daily routine driving conditions. The driving speed
varies between 0 and 120 km/h.
The calculation of the combined fuel consumption considers a weighting of
about 37 % for the intra-urban cycle and 63 % for the extra-urban cycle.
Note■ The fuel consumption and emission levels given on the ŠKODA websites or in
the commercial and technical vehicle documentation have been established in
accordance with rules and under conditions that are set out by legal or techni-
cal rules for the determination of operational and technical data of motor vehi-
cles.■
Depending on the extent of the equipment, the driving style, traffic condi-
tions, weather influences and vehicle condition, consumption values can in
practice result in fuel economy figures in the use of the vehicle that differ from
the fuel consumption values listed on the ŠKODA websites or in the commer-
cial and technical vehicle documentation.
173Technical data

DimensionsFig. 170
Principle sketch: Vehicle dimensions
Vehicle dimensions (mm)
» Fig. 170SpecificationValueAHeightBasic dimension1459/1471 a)Vehicles with a rough road package.1472/1484 a)B
Front track
Basic dimension1457For vehicles fitted with the 1.2 l/55 kW MPI and 1.2 l/63 kW TSI engines and 14"
wheel rims.1463CWidth1706D
Rear track
Basic dimension1494For vehicles fitted with the 1.2 l/55 kW MPI and 1.2 l/63 kW TSI engines and 14"
wheel rims.1500EWidth including exterior mirror1940FClearanceBasic dimension134Vehicles with a rough road package.141GWheel base2602HLength4304a)
Valid for vehicles with the Amundsen+ navigation system.
174Technical data

AngleFig. 171
Principle illustration: Departure
angle
Angle » Fig. 171
Overhang angle, front
Overhang angle, rear
Departure angle
Transition from the horizontal plane to an upward slope or from a downward
slope back to the plane.
The angle indication determines the angle at which you can drive the vehicle
down the embankment, at a slow speed, without the bumper or the under-
body of the vehicle touching the ground.
Overhang angle (°)
Overhang angle, frontOverhang angle, rear13.816.5AB175Technical data

Vehicle-specific details per engine typeThe specified values have been determined in accordance with rules and under conditions set out by legal or technical requirements for determining operational
and technical data for motor vehicles.
1.2 l/55 kW MPI engine
Output (kW per rpm)Max. torque (Nm per rpm)Number of cylinders/displacement (cm 3
)55/5400112/37503/1198 Performance and WeightsMG5Top speed (km/h)172Acceleration 0-100 km/h (s)13.8Operating weight (in kg)1130Permissible trailer load, braked (kg)750 a)
/ 950 b)Permissible trailer load, unbraked (kg)560a)
Slopes up to 12 %.
b)
Slopes up to 8 %.
1.2 ltr./63 kW TSI engine
Output (kW per rpm)Max. torque (Nm per rpm)Number of cylinders/displacement (cm 3
)63/4800160/1500-35004/1197 Performance and WeightsMG5Top speed (km/h)180Acceleration 0-100 km/h (s)11.7Operating weight (in kg)1150Permissible trailer load, braked (kg)900 a)
/ 1100 b)Permissible trailer load, unbraked (kg)570a)
Slopes up to 12 %.
b)
Slopes up to 8 %.

176Technical data

1.2 ltr./77 kW TSI engineOutput (kW per rpm)Max. torque (Nm per rpm)Number of cylinders/displacement (cm3
)77/5000175/1550-41004/1197 Performance and WeightsMG6Top speed (km/h)193Acceleration 0-100 km/h (s)10.2Operating weight (in kg)1170Permissible trailer load, braked (kg)1100 a)
/ 1200 b)Permissible trailer load, unbraked (kg)580a)
Slopes up to 12 %.
b)
Slopes up to 8 %.
1.2 ltr./90 kW TSI engine
Output (kW per rpm)Max. torque (Nm per rpm)Number of cylinders/displacement (cm 3
)90/5000200/1500-40004/1390 Performance and WeightsDSG7Top speed (km/h)203Acceleration 0-100 km/h (s)9.4Operating weight (in kg)1225Permissible trailer load, braked (kg)1200Permissible trailer load, unbraked (kg)610 177Technical data

1.6 l/77 kW MPI engineOutput (kW per rpm)Max. torque (Nm per rpm)Number of cylinders/displacement (cm3
)77/5600153/38004/1598 Performance and WeightsMG5AG6Top speed (km/h)191190Acceleration 0-100 km/h (s)10.511.8Operating weight (in kg)11501190Permissible trailer load, braked (kg)1000 a)
/ 1200 b)Permissible trailer load, unbraked (kg)570590a)
Slopes up to 12 %.
b)
Slopes up to 8 %.
1.6 ltr./66 kW TDI CR engine
Output (kW per rpm)Max. torque (Nm per rpm)Number of cylinders/displacement (cm 3
)66/4200230/1500-25004/1598 Performance and WeightsMG5DSG7Top speed (km/h)182/184 a)182Acceleration 0-100 km/h (s)11.912.1Operating weight (in kg)1260/1258 a)1280Permissible trailer load, braked (kg)1200/1000 a)1200Permissible trailer load, unbraked (kg)630/628a)640a)
GreenLine

178Technical data
