Departure angleFig. 199
Principle sketch: Departure an-
gle
Angle » Fig. 199
Overhang angle, front
Overhang angle, rear
Departure angle
The values shown indicate the maximum incline of an embankment, up which
the vehicle can drive at a slow speed without collision of the bumper or under-
body.
The values listed correspond to the maximum axle load, front or back.
Overhang angle (°)
Overhang angle, frontOverhang angle, rear13.816.5AB187Technical data

Vehicle-specific details per engine type
Introduction
This chapter contains information on the following subjects:
1.2 ltr. / 66 kW TSI engine188
1.2 ltr. / 81 kW TSI engine
188
1.4 ltr./92 kW TSI engine
1891.6 l/81 kW MPI engine1891.4 l/66 kW TDI CR engine189
1.6 l/85 kW TDI CR engine
189The specified values have been determined in accordance with rules and under conditions set out by legal or technical requirements for determining operational
and technical data for motor vehicles.The emissions standard is detailed in the technical vehicle documentation as well as in the certificate of conformity (COC document), which can be obtained from a ŠKODA partner a)
.a)
Only valid for some countries and some models.
1.2 ltr. / 66 kW TSI engine
Output (kW/rpm)66/4400Maximum torque (Nm/rpm)160/1400-3500Number of cylinders/displacement (cm 3
)4/1197GearboxMGDSGTop speed (km/h)184184Acceleration 0-100 km/h (s)11.211.3
1.2 ltr. / 81 kW TSI engine
Output (kW/rpm)81/4600Maximum torque (Nm/rpm)175/1400-4000Number of cylinders/displacement (cm 3
)4/1197GearboxMGTop speed (km/h)198Acceleration 0-100 km/h (s)9.7188Technical data

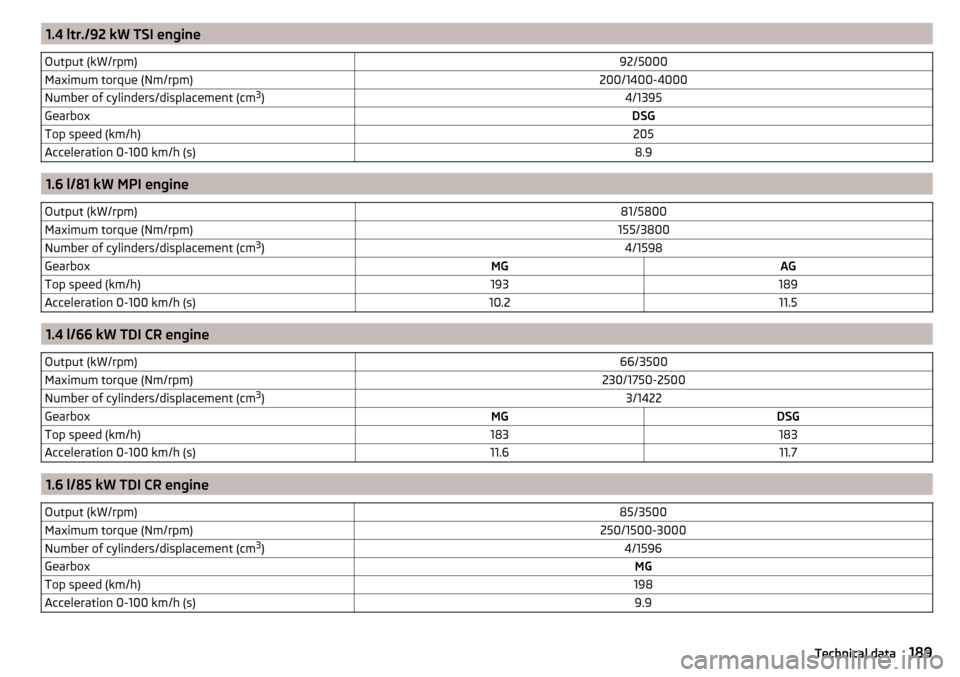

1.4 ltr./92 kW TSI engineOutput (kW/rpm)92/5000Maximum torque (Nm/rpm)200/1400-4000Number of cylinders/displacement (cm3
)4/1395GearboxDSGTop speed (km/h)205Acceleration 0-100 km/h (s)8.9
1.6 l/81 kW MPI engine
Output (kW/rpm)81/5800Maximum torque (Nm/rpm)155/3800Number of cylinders/displacement (cm 3
)4/1598GearboxMGAGTop speed (km/h)193189Acceleration 0-100 km/h (s)10.211.5
1.4 l/66 kW TDI CR engine
Output (kW/rpm)66/3500Maximum torque (Nm/rpm)230/1750-2500Number of cylinders/displacement (cm 3
)3/1422GearboxMGDSGTop speed (km/h)183183Acceleration 0-100 km/h (s)11.611.7
1.6 l/85 kW TDI CR engine
Output (kW/rpm)85/3500Maximum torque (Nm/rpm)250/1500-3000Number of cylinders/displacement (cm 3
)4/1596GearboxMGTop speed (km/h)198Acceleration 0-100 km/h (s)9.9189Technical data

Selector leverRefer to Selector lever104
Selector lever lock (automatic gearbox) Warning light
35
Service131
Service interval display46
Warning light38
Setting Lower position of the variable loading floor
87
Seat belt height12
seats and head restraints69
Upper position of the variable loading floor87
Settings Interior mirror
67
Setting the Clock
31
Side airbag16
SmartGate Connection by searching for a Wi-Fi network
47
introductory information47
Password/PIN code change49
Setting48
Wi-Fi Direct48
SmartLink see Infotainment
4
Snow chains159
Spare wheel157
Remove162
Stow162
Speed control system114
Speed symbol Refer to Wheels
158
Spoiler132
Stabilisation system109
Stability Control (ESC)110
Staring engine Jump-starting
168
START-STOP99
Jump-starting168
Manually deactivating/activating the system101
operation100
Warning light38
START-STOP system99
Starter button Problems with the engine start
99
Steering column lock locking97
Steering column lock unlocking97
Switching off the engine98
Switch off the ignition98
Switch on the ignition98
Starting and stopping the engine at the push of the button
97
Starting and stopping the engine using the key 95
Starting engine Jump-starting
168
Starting the engine Starter button
98
START STOP Information messages
101
Start the engine Key
96
Steering column lock locking Starter button
97
Steering column lock unlocking Starter button
97
Steering lock locking Key
96
Steering lock unlocking Key
96
Steering wheel correct posture
9
setting9
Stop see Parking
103
Stopping the engine Key
96
Storage73
Storage compartment Glasses compartment
78
in the boot85
in the centre console74
in the front arm rest77
on the front passenger side78
Storage compartments73
Storage net bag85
Stowage compartments in the doors
73
Sun visors65
Switching off the engine Starter button
98
Switch light on/off59
Switch off the ignition Key
96
Starter button98
Switch on the ignition Key
96
Starter button98
T
Tablet holder Behind the headrests
80
Handling80
Taking care of your vehicle Automatic car wash system
134
High-pressure cleaner134
Washing by hand133
Wash system134
TCS Operation
110
Warning light33
Technical data183
Time31
Tiptronic105
Tools161
TOP TETHER24
Towing169
Towing a trailer128
197Index
