bulb SKODA RAPID SPACEBACK 2018 Owners Manual

Emergency unlocking/locking of doors219
Replacing windscreen wiper blades
220

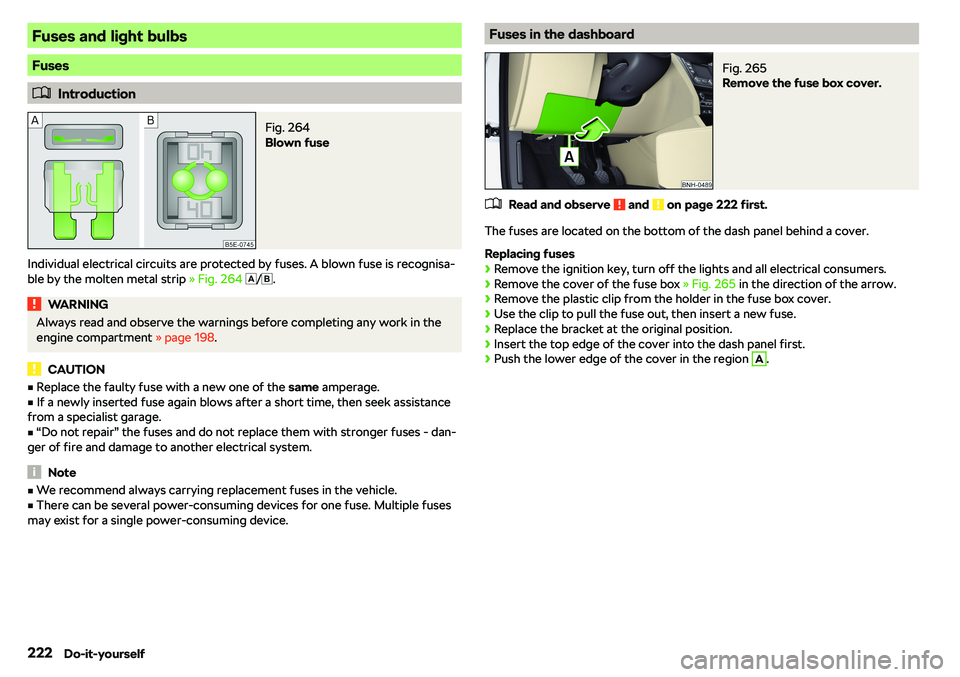

Fuses and light bulbs
222
Fuses
222
Bulbs
225
Technical data
Technical data
231
Basic vehicle data
231
Vehicle-specific details per engine type
235
Index
5Table of Contents

Fuses and light bulbs
Fuses

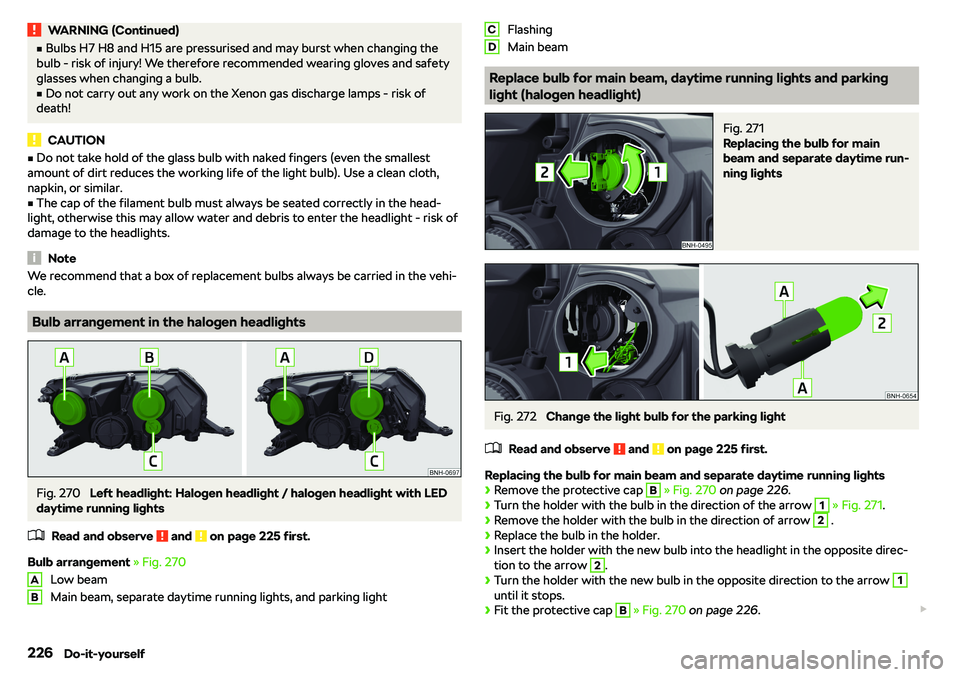

WARNING (Continued)
vBulbs H7 H8 and H15 are pressurised and may burst when changing the
bulb - risk of injury! We therefore recommended wearing gloves and safety
glasses when changing a bulb.
v
Do not carry out any work on the Xenon gas discharge lamps - risk of
death!
CAUTION

v Do not take hold of the glass bulb with naked fingers (even the smallest
amount of dirt reduces the working life of the light bulb). Use a clean cloth,
napkin, or similar.
v
The cap of the filament bulb must always be seated correctly in the head-
light, otherwise this may allow water and debris to enter the headlight - risk of
damage to the headlights.
Note
We recommend that a box of replacement bulbs always be carried in the vehi- cle.
Bulb arrangement in the halogen headlights
Fig. 270
Left headlight: Halogen headlight / halogen headlight with LED
daytime running lights

Remove / insert the bulb for parking light

Jacking pointsRaise vehicle213
Journey data
49
Jump-starting
216
K
KESSY deactivating
54
Starting/Stopping the engine160
Switching the ignition on/off160
Unlocking/locking53
Key Changing battery
218, 219
Lock53
Starting/Stopping the engine160
Switching the ignition on/off160
Unlock53
Keyboard
96
L
Lamp failure
44
Lamps Warning light
44
Lane recommendation
154
Language characters
103
Last destinations
146
Latitude
141
LEAVING HOME
63
Lever Cruise control
177
Front Assist180
Operation of the information system47
Speed limiter178
Turn signal/main beam61
Windscreen wipers67, 68
Liability for defects
6
Light60
Cockpit64
COMING HOME / LEAVING HOME63
Daytime running lights61
Driving abroad64
Flash61
Fog lights/rear fog light63
Fog lights with CORNER function63
Hazard warning light system64
Headlight assist62
Headlight cleaning system68
Parking light64
Replacing bulbs225
Turn signal/main beam61
Light Assist see Headlight assist
62
Light bulbs Replacing
225
Lighting Interior lighting
64
Luggage compartment81
Lights Automatic driving light control
62
Dipped beam60
Headlight range control60
Parking lights60
Switching on and off60
Warning lights37
List of available stations
115
of telephone contacts130
With folder/track list119
List of available hotspots
135
List of paired external devices
129
List of traffic reports
156
Load
232
Localisation services
15
Lock Individual settings55
KESSY53
Key53
Locking Central locking button
54
in case of emergency219
Remote control53
Lock steering lock
159
Longitude
141
Luggage compartment
81
Cover83
Fastening elements82
Fixing nets82
Floor covering on both sides83
Lighting81
unlocking manually220
Unlocking the boot lid220
Variable loading floor86
Luggage compartment cover
83
Luggage Storage Storage compartments
84
Storage net bag85
M
Main beam
61
Warning light42
Main menu Android Auto
138
Apple CarPlay138
Images124
Media117
Media Command126
MirrorLink
