door lock SKODA RAPID SPACEBACK 2018 Owners Manual

Emergency unlocking/locking of doors219
Replacing windscreen wiper blades
220
Fuses and light bulbs
222
Fuses
222
Bulbs
225
Technical data
Technical data
231
Basic vehicle data
231
Vehicle-specific details per engine type
235
Index
5Table of Contents

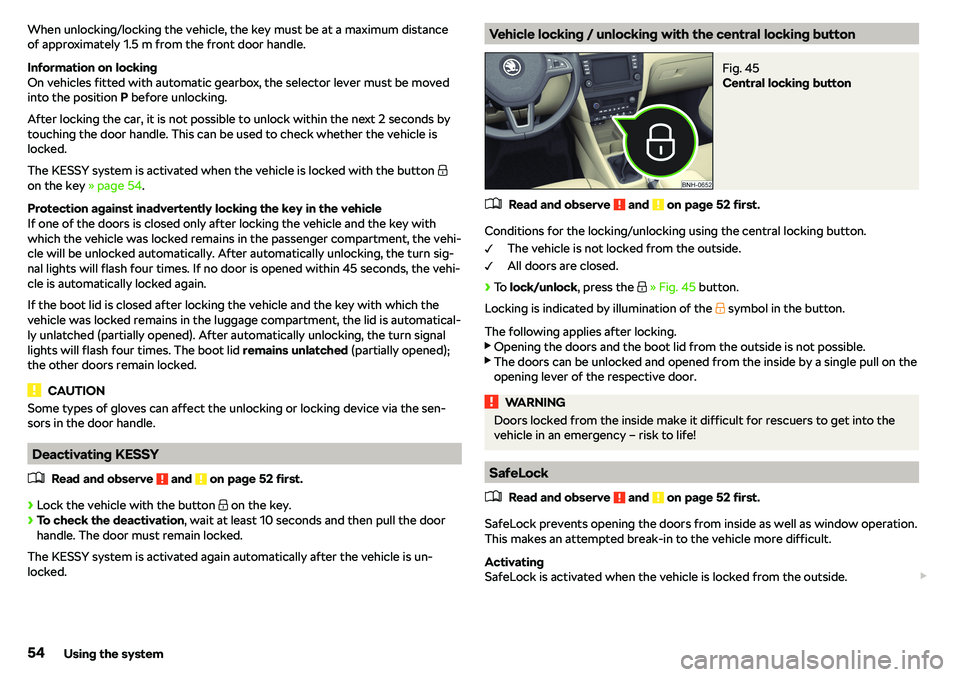

When unlocking/locking the vehicle, the key must be at a maximum distance
of approximately 1.5 m from the front door handle.
Information on locking
On vehicles fitted with automatic gearbox, the selector lever must be moved into the position P before unlocking.
After locking the car, it is not possible to unlock within the next 2 seconds by
touching the door handle. This can be used to check whether the vehicle is
locked.
The KESSY system is activated when the vehicle is locked with the button 
on the key

vDo not polish the films

v Do not use a high pressure cleaner on the films.
v
Rubber seals

v Do not treat the door seals and window guides deal with anything - the
protective varnish coating could be damaged.

v
Windows and door mirrors

v Do not clean the insides of the windows/mirrors with sharp objects - risk of
damage to the filaments or the antenna.

v Do not use a cloth which has been used to polish the body - this could dirty
the window and impair visibility.

v
Head / taillights

v Do not wipe head/taillights dry, do not use any sharp objects - risk of dam-
age to the protective coating and cracks forming on the headlight glass cov-
ers.

v
Reversing camera
The following instructions must be observed, otherwise there is a risk of
camera damage.

v Do not remove snow / ice with warm / hot water.

v To wash, never use a pressure washer or steam jet.

v For cleaning, do not use abrasive cleaners.

v
Door lock cylinders

v Make sure that as little water as possible gets into the locking cylinder
when washing the vehicle - there is a risk of freezing the lock cylinder!

v
Wheels

v Heavy soiling of the wheels can affect the balance of the wheels - the re-
sult can be a vibration, which can cause premature wear of the steering.
Removing snow and ice from the windscreens
Fig. 228
Installation location of the ice
scraper, removing the scraper

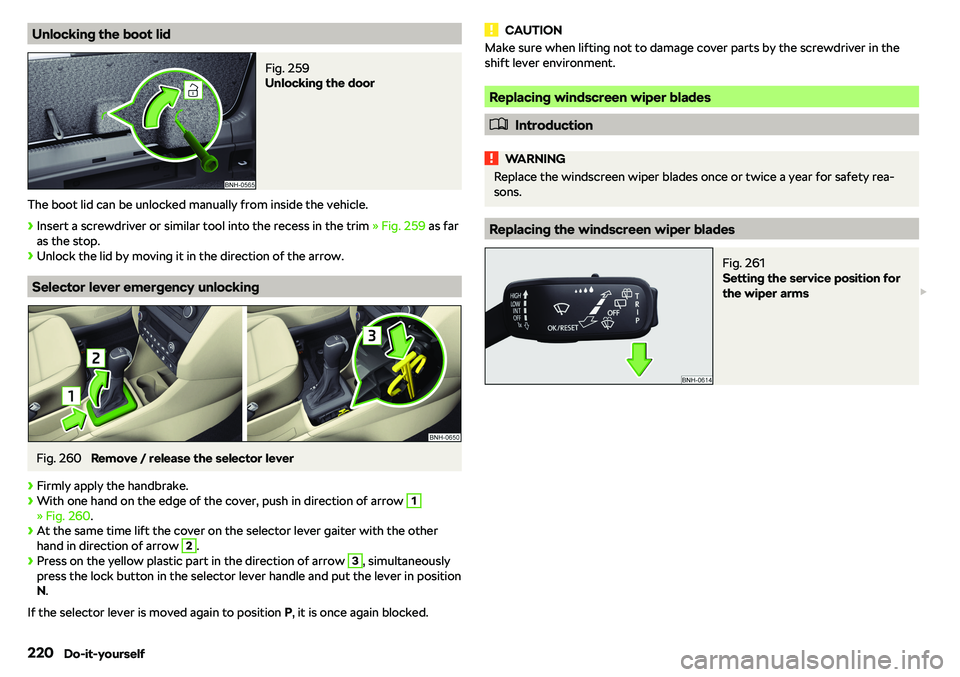

Unlocking the boot lidFig. 259
Unlocking the door
The boot lid can be unlocked manually from inside the vehicle.

Temperature display37
Warning light43
CORNER See Fog lights with CORNER function
63
Correct routing of seat belt
21
Correct seating position
18, 20
Cruise Control System
176
Cup holders
75
Custom POI categories
148, 149
D
DAB
113, 114
Additional information113
Radio text and images presentation113
Set105, 110
DAB slideshow
113
Data connection Amundsen
134
CarStick134
Internet134
Data roaming
104
Date
102, 109
DAY LIGHT see Daytime running lights
61
Daytime running lights
61
De-icing the windscreen and rear window
66
Deactivation Airbag
26
Delayed locking of the boot lid See boot lid
58
Delete destination
152
Demo mode
108, 153
Departure angle
234
Destination Custom destination
148
Enter destination using the address144
enter in map145
Favourite146, 152
Flagged destination146
Home address147
Image with GPS150
Last destinations146
Map point145
Memory152
Online destinations146
search143
Stored destination146
Telephone contact146
Types of destination search/destination en- try
143
vCard146
Destination details
152
Destination management Destination details
152
Favourite152
Storage152
Destination memory
146
Device menu Sound
102
Diesel
197
Diesel fuel
197
Diesel particle filter (DPF)
44
Digital clock
46
Digital service schedule
51
Dipped beam
60
Dipstick
200
Directive 2014/53/EU
8
Disclaimer applications
92
external devices92
Mobile phones92
Display Coolant temperature
37
Fuel level37
Gear changes47
In the instrument cluster46
MAXI DOT50
Display of a low temperature
45
Display POIs in the map
145
Distance warning
179
Diverting calls
106
Door Child safety lock
56
Emergency locking219
Emergency locking of the driver

Selector lever unlocking220
Starting/stopping the engine at the push of a button
160, 161
Towing the using the tow hitch218
Towing the vehicle217
Tyre repair213
Unlocking/locking the door219
Emergency call
15, 130
Emergency equipment Fire extinguisher
209
First aid kit209
Jack210
Reflective vest209
Vehicle tool kit210
Warning triangle209
Emergency spare Removing / stowing
211
Emergency spare wheel
207
Emission control system
40
Emissions
232
Engine Information messages
43
Run in167
Engine compartment
198
Brake fluid202
Coolant201
Engine oil200
Overview199
Vehicle battery203
Windscreen washer fluid200
Engine drag torque control (MSR)
170
Engine number
231
Engine oil
200
Check200
Oil changing200
Refilling200
Specification200
Warning light43, 44
Enter destination
144, 145
EPC40
Equalizer
102
ESC Operation
169
External device data transfer
98, 103, 109
External devices Disclaimer
92
External module
94
SD card120
Extras manual search
114
Scan114
F
Factory settings
103 , 109, 158
Familiarizing yourself with the vehicle
2
Fastening elements
82
Fatigue detection Fatigue detection system
181
Fatigue detection system
181
Favourite
146, 152
Favourite contacts
131
file formats media
122
Requirements and Restrictions122
File formats Images
125
File Formats
123
Films
193
Find Car park
145
Petrol station145
Restaurant145
Finish route guidance
155
Fire extinguisher
209
First aid kit
209
Flagged destination
146
Flashing61
Floor covering in the luggage compartment
83
Floor mats
164
See Floor mats164
FM
113, 114
Set105, 110
Fog lights
63
Warning light42
Fog lights/rear fog light
63
Fog lights with CORNER function
63
Force limiter Window
59
Front assist Warning light
45
Front Assist
178
Deactivation/activation180
Distance warning179
Malfunctions181
Operation179
Radar sensor169
Settings in Infotainment179
Warning and automatic braking180
Warning light45
Front seats
70
Fuel
196
Diesel197
Fuel gauge37
refer to Fuel196
Refuelling196
Unleaded petrol196
Warning light41
Fuel consumption
232
Fuel options
107
Fuel reserve
41
Functional surfaces
94
Fuses
222
in the dashboard222, 223
in the engine compartment224, 225
240Index
