SKODA RAPID SPACEBACK 2019 Owners Manual

Set the blower speed (the set blower speed is indicated by the corre-
sponding number of segments in the display)

CAUTIONWe recommend not smoking in the vehicle when the recirculating air opera-
tion is switched on. The smoke sucked from the interior is deposited on the
evaporator of the air conditioner. This produces a permanent odour when the
air conditioning system is operating which can only be eliminated through con-
siderable effort and expense (replacement of compressor).
Note
If recirculated air mode is switched on for around 15 minutes, the symbol 3
will begin to flash in the Climatronic display as a sign that the recirculated air
mode is switched on long-term. If the recirculated air mode is not switched
off, the symbol 3 flashes for around 5 minutes.

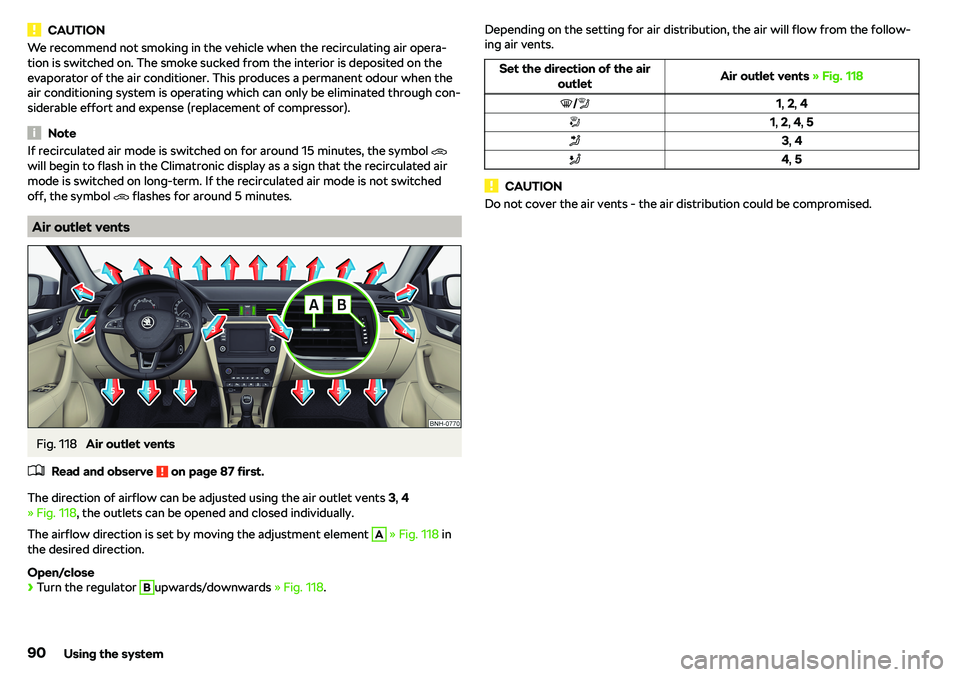

Air outlet vents
Fig. 118
Air outlet vents

Infotainment
Introductory information
Important information
Introduction to the subject
WARNING
vOnly use Infotainment in such a way that you have control of the vehicle
in every traffic situation (e.g. do not write text messages while driving, do
not link or connect the telephone, do not work with the contact list, do not
enter any destinations, do not connect WLAN or SmartLink etc.)

Left control dial for switching Infotainment on and off

External module
Applies to Infotainment Amundsen.Fig. 123
External module: Infotainment
Amundsen
The external module is located in the storage compartment on the front pas-
senger side

Scroll symbol

Operating the menus
Applies to Infotainment Amundsen.Fig. 127
Operating the menus
Operating the menus

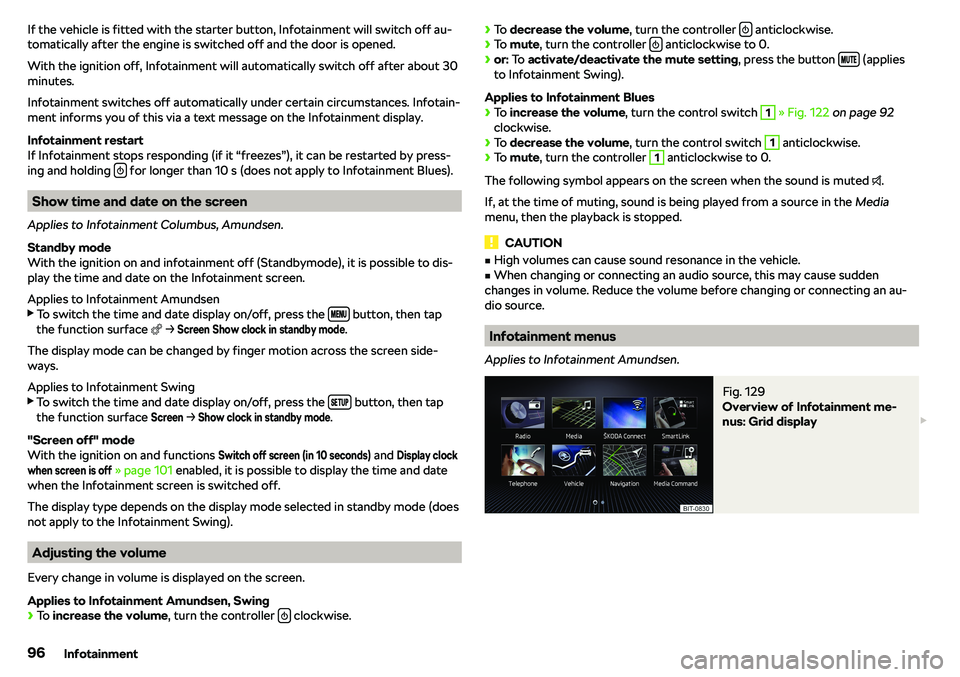

If the vehicle is fitted with the starter button, Infotainment will switch off au-
tomatically after the engine is switched off and the door is opened.
With the ignition off, Infotainment will automatically switch off after about 30
minutes.
Infotainment switches off automatically under certain circumstances. Infotain-
ment informs you of this via a text message on the Infotainment display.
Infotainment restart
If Infotainment stops responding (if it “freezes”), it can be restarted by press-
ing and holding 
for longer than 10 s (does not apply to Infotainment Blues).
Show time and date on the screen
Applies to Infotainment Columbus, Amundsen.
Standby mode
With the ignition on and infotainment off (Standbymode), it is possible to dis-
play the time and date on the Infotainment screen.
Applies to Infotainment Amundsen

Fig. 130
Overview of Infotainment me-
nus: List

Applies to Infotainment Swing
