Seats and Stowage70

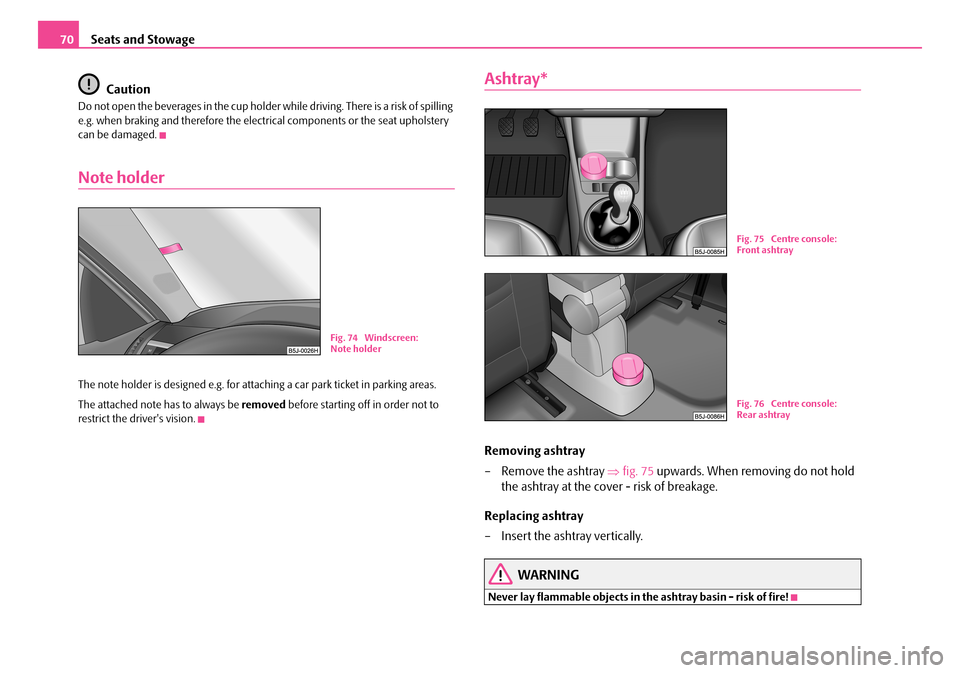

Caution
Do not open the beverages in the cup holder while driving. There is a risk of spilling e.g. when braking and therefore the electrical components or the seat upholstery can be damaged.
Note holder
The note holder is designed e.g. for atta ching a car park ticket in parking areas.
The attached note has to always be removed before starting off in order not to restrict the driver's vision.
Ashtray*
Removing ashtray
– Remove the ashtray ⇒fig. 75 upwards. When removing do not hold
the ashtray at the cover - risk of breakage.
Replacing ashtray
– Insert the ashtray vertically.
WARNING
Never lay flammable objects in the ashtray basin - risk of fire!
Fig. 74 Windscreen: Note holder
Fig. 75 Centre console: Front ashtray
Fig. 76 Centre console: Rear ashtray
NKO A05R 20 MR08.book Page 70 Wednesday, March 28, 2007 9:42 AM

Seats and Stowage71
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistancePraktikTechnical Data

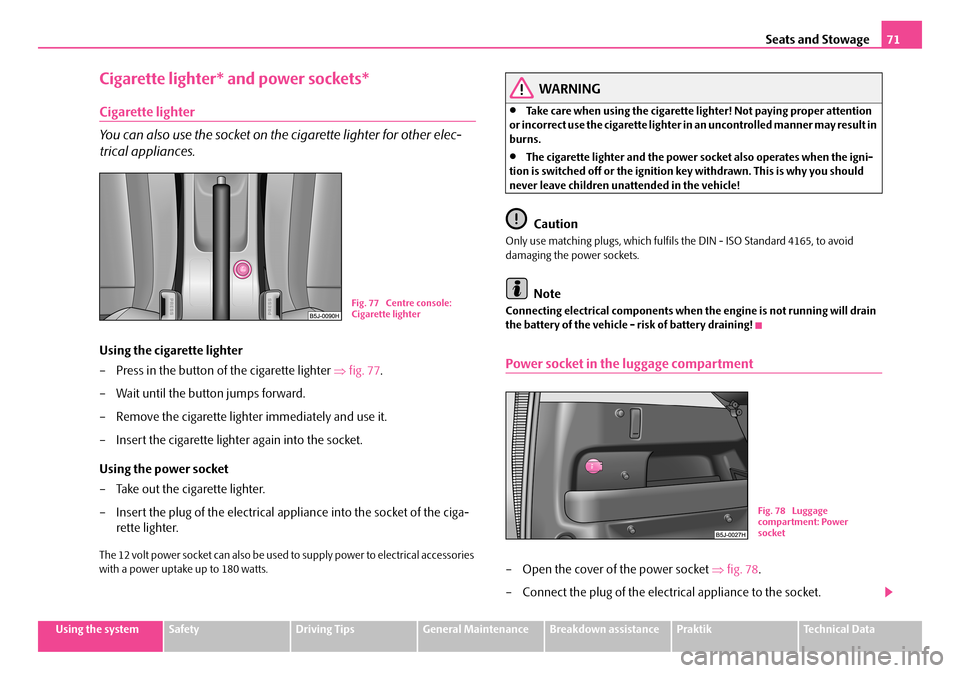

Cigarette lighter* and power sockets*
Cigarette lighter
You can also use the socket on th e cigarette lighter for other elec-
trical appliances.
Using the cigarette lighter
– Press in the button of the cigarette lighter ⇒fig. 77.
– Wait until the button jumps forward.
– Remove the cigarette lighter immediately and use it.
– Insert the cigarette lighter again into the socket.
Using the power socket
– Take out the cigarette lighter.
– Insert the plug of the electrical a ppliance into the socket of the ciga-
rette lighter.
The 12 volt power socket can also be used to supply power to electrical accessories with a power uptake up to 180 watts.
WARNING
•Take care when using the cigarette li ghter! Not paying proper attention or incorrect use the cigarette lighter in an uncontrolled manner may result in burns.
•The cigarette lighter and the power so cket also operates when the igni- tion is switched off or the ignition key withdrawn. This is why you should never leave children unattended in the vehicle!
Caution
Only use matching plugs, which fulfils the DIN - ISO Standard 4165, to avoid damaging the power sockets.
Note
Connecting electrical components when the engine is not running will drain the battery of the vehicle - risk of battery draining!
Power socket in the luggage compartment
– Open the cover of the power socket ⇒fig. 78.
– Connect the plug of the electr ical appliance to the socket.
Fig. 77 Centre console: Cigarette lighter
Fig. 78 Luggage compartment: Power socket
NKO A05R 20 MR08.book Page 71 Wednesday, March 28, 2007 9:42 AM

Seats and Stowage72
It fulfils the requirements of DIN standard ISO 4165 and must only be used for connecting approved electrical accessories wi th a power uptake of up to 240 watts. The vehicle battery will be discharged in the process if the engine is stationary.
The same remarks apply here as for ⇒page 71, “Cigarette lighter”.
Further information ⇒page 193, “Accessories, changes and replacement of parts”.

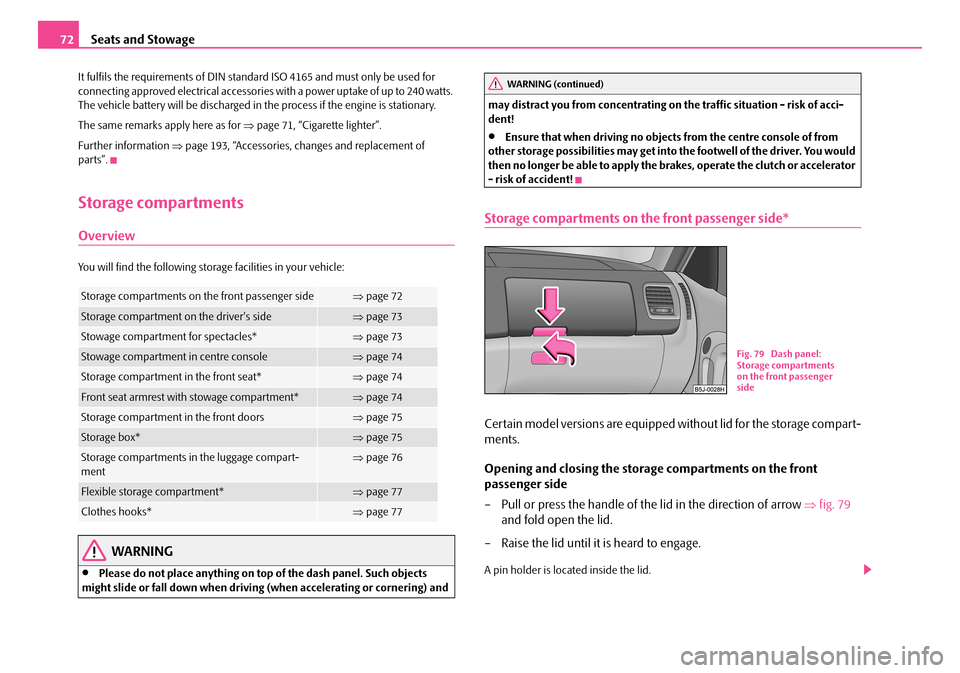

Storage compartments
Overview
You will find the following storag e facilities in your vehicle:
WARNING
•Please do not place anything on top of the dash panel. Such objects might slide or fall down when driving (when accelerating or cornering) and
may distract you from concentrating on the traffic situation - risk of acci- dent!
•Ensure that when driving no objects from the centre console of from other storage possibilities may get into the footwell of the driver. You would then no longer be able to apply the br akes, operate the clutch or accelerator - risk of accident!
Storage compartments on the front passenger side*
Certain model versions are equipped without lid for the storage compart-
ments.
Opening and closing the storage compartments on the front
passenger side
– Pull or press the handle of the lid in the direction of arrow ⇒fig. 79
and fold open the lid.
– Raise the lid until it is heard to engage.
A pin holder is loca ted inside the lid.
Storage compartments on the front passenger side⇒page 72
Storage compartment on the driver's side⇒page 73
Stowage compartment for spectacles*⇒page 73
Stowage compartment in centre console⇒page 74
Storage compartment in the front seat*⇒page 74
Front seat armrest with stowage compartment*⇒page 74
Storage compartment in the front doors⇒page 75
Storage box*⇒page 75
Storage compartments in the luggage compart- ment⇒ page 76
Flexible storage compartment*⇒page 77
Clothes hooks*⇒page 77
WARNING (continued)
Fig. 79 Dash panel: Storage compartments on the front passenger side
NKO A05R 20 MR08.book Page 72 Wednesday, March 28, 2007 9:42 AM

Seats and Stowage73
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistancePraktikTechnical Data
WARNING
The storage compartment must always be closed when driving for safety reasons.
Cooling of storage compartment on front passenger side*
The storage compartment can be fitted for vehicles with an air-
conditioning system with a closable inlet for cooled air.
– You can switch the cooling system on or off using the control dial
⇒ fig. 80.
Opening the air inlet when the air conditioning system is on causes fresh or interior air to flow into the storage compartment.
The storage compartment is only cooled in the cooling mode. We recommend that you switch off the cooling (opening concealed) if it is operating in the heating mode or if you are not using the cooling system for the storage compartment.
Storage compartment on the driver's side
Unlockable compartment below the steering wheel on the left.
Stowage compartment for spectacles*
– Press on the lid of the stowage compartment, the stowage compart-
ment opens downwards ⇒fig. 82.
Fig. 80 Storage compartment: Using cooling system
Fig. 81 Dash panel: Storage compartment on the driver's side
Fig. 82 Detail of the headliner: Stowage compartment for specta-cles
NKO A05R 20 MR08.book Page 73 Wednesday, March 28, 2007 9:42 AM

Seats and Stowage74
WARNING
The storage compartment must always be closed when driving for safety reasons - risk of head injury.

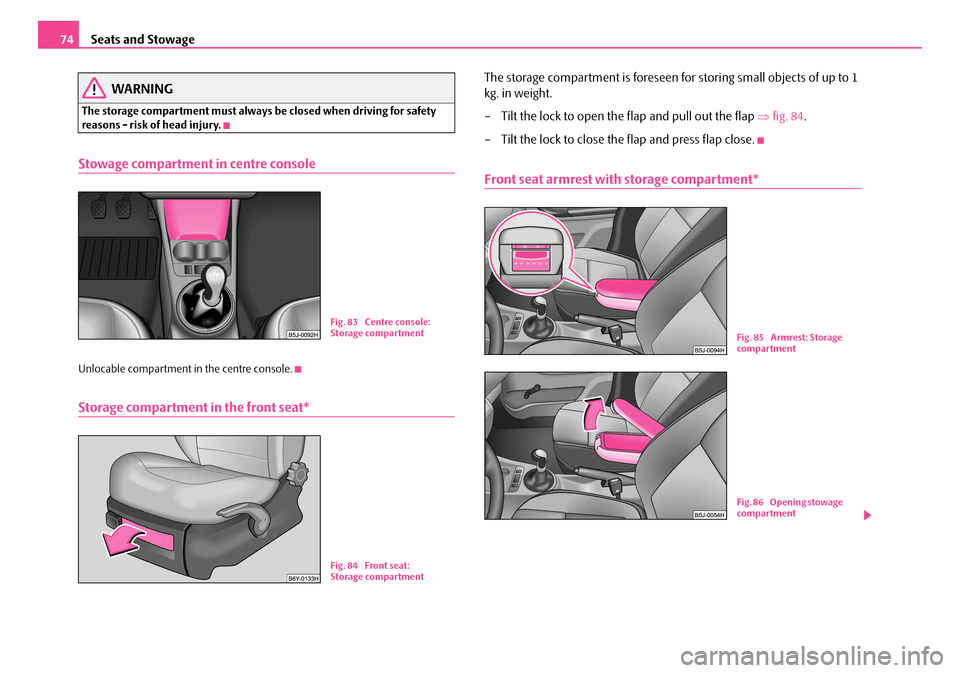

Stowage compartment in centre console
Unlocable compartment in the centre console.
Storage compartment in the front seat*
The storage compartment is foreseen for storing small objects of up to 1
kg. in weight.
– Tilt the lock to open the flap and pull out the flap ⇒fig. 84.
– Tilt the lock to close the flap and press flap close.
Front seat armrest with storage compartment*
Fig. 83 Centre console: Storage compartment
Fig. 84 Front seat: Storage compartment
Fig. 85 Armrest: Storage compartment
Fig. 86 Opening stowage compartment
NKO A05R 20 MR08.book Page 74 Wednesday, March 28, 2007 9:42 AM

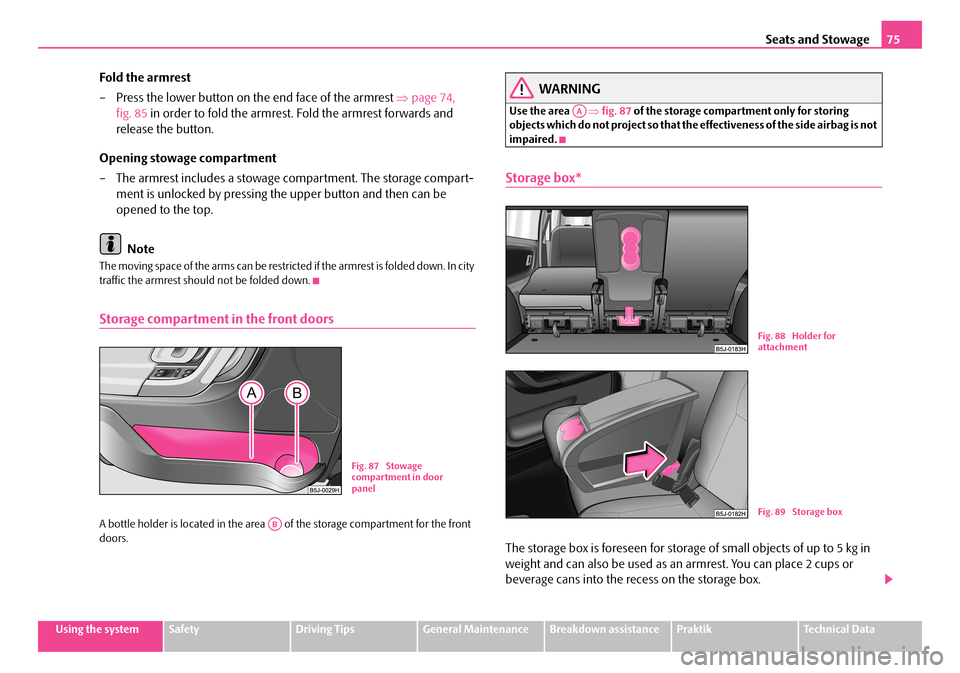

Seats and Stowage75
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistancePraktikTechnical Data
Fold the armrest
– Press the lower button on the end face of the armrest ⇒page 74,
fig. 85 in order to fold the armrest. Fold the armrest forwards and
release the button.
Opening stowage compartment
– The armrest includes a stowage compartment. The storage compart-
ment is unlocked by pressing the upper button and then can be
opened to the top.
Note
The moving space of the arms can be restricted if the armrest is folded down. In city traffic the armrest should not be folded down.
Storage compartment in the front doors
A bottle holder is located in the area of the storage compartment for the front doors.
WARNING
Use the area ⇒fig. 87 of the storage compartment only for storing objects which do not project so that the effectiveness of the side airbag is not impaired.
Storage box*
The storage box is foreseen for storage of small objects of up to 5 kg in
weight and can also be used as an armrest. You can place 2 cups or
beverage cans into the recess on the storage box.
Fig. 87 Stowage compartment in door panel
AB
AA
Fig. 88 Holder for attachment
Fig. 89 Storage box
NKO A05R 20 MR08.book Page 75 Wednesday, March 28, 2007 9:42 AM

Seats and Stowage76

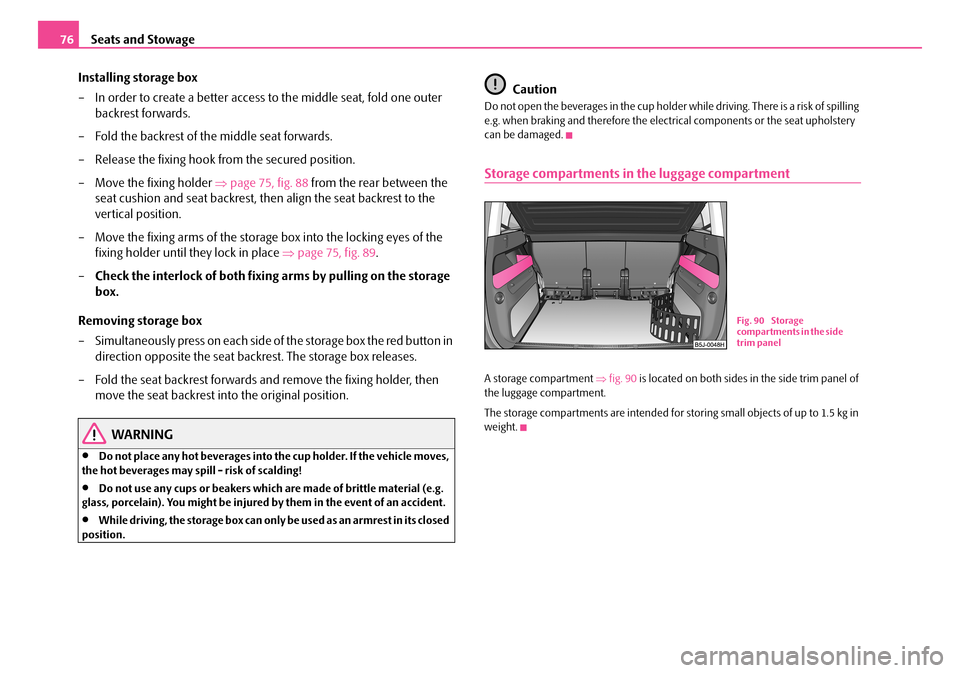

Installing storage box
– In order to create a better access to the middle seat, fold one outer
backrest forwards.
– Fold the backrest of the middle seat forwards.
– Release the fixing hook from the secured position.
– Move the fixing holder ⇒page 75, fig. 88 from the rear between the
seat cushion and seat backrest, then align the seat backrest to the
vertical position.
– Move the fixing arms of the storage box into the locking eyes of the
fixing holder until they lock in place ⇒page 75, fig. 89.
– Check the interlock of both fixing arms by pulling on the storage
box.
Removing storage box
– Simultaneously press on each side of the storage box the red button in
direction opposite the seat backrest. The storage box releases.
– Fold the seat backrest forwards and remove the fixing holder, then
move the seat backrest into the original position.
WARNING
•Do not place any hot beverages into th e cup holder. If the vehicle moves, the hot beverages may spill - risk of scalding!
•Do not use any cups or beakers which are made of brittle material (e.g. glass, porcelain). You might be injured by them in the event of an accident.
•While driving, the storage box can only be used as an armrest in its closed position.
Caution
Do not open the beverages in the cup holder while driving. There is a risk of spilling e.g. when braking and therefore the electrical components or the seat upholstery can be damaged.
Storage compartments in the luggage compartment
A storage compartment ⇒fig. 90 is located on both sides in the side trim panel of the luggage compartment.
The storage compartments are intended for storing small objects of up to 1.5 kg in weight.
Fig. 90 Storage compartments in the side trim panel
NKO A05R 20 MR08.book Page 76 Wednesday, March 28, 2007 9:42 AM

Seats and Stowage77
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistancePraktikTechnical Data

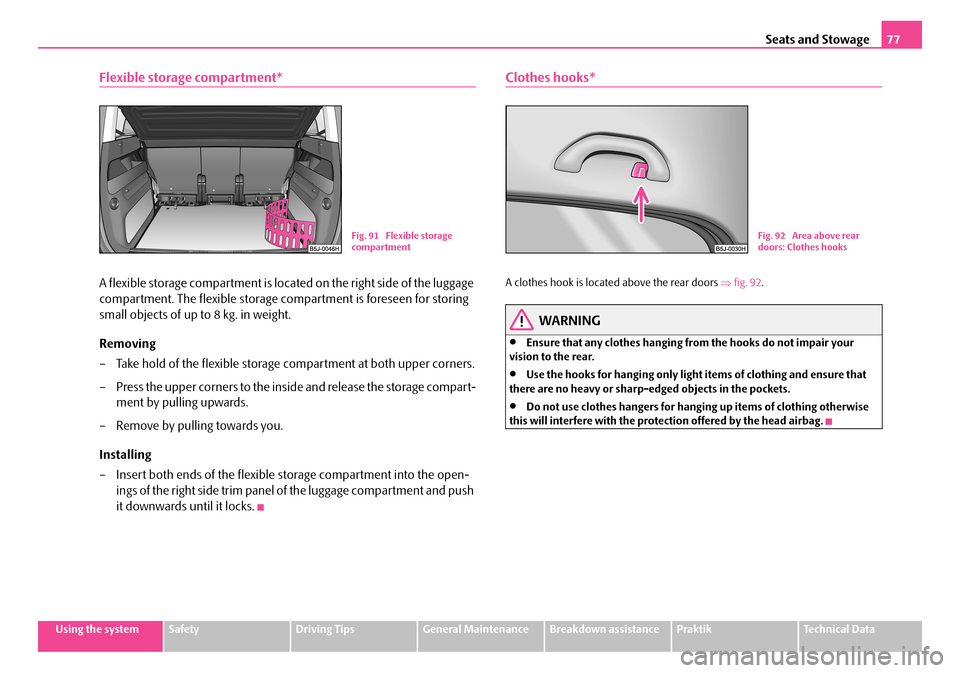

Flexible storage compartment*
A flexible storage compartment is located on the right side of the luggage
compartment. The flexible storage compartment is foreseen for storing
small objects of up to 8 kg. in weight.
Removing
– Take hold of the flexible storage compartment at both upper corners.
– Press the upper corners to the inside and release the storage compart-
ment by pulling upwards.
– Remove by pulling towards you.
Installing
– Insert both ends of the flexible storage compartment into the open-
ings of the right side trim panel of the luggage compartment and push
it downwards until it locks.
Clothes hooks*
A clothes hook is located above the rear doors ⇒fig. 92.
WARNING
•Ensure that any clothes hanging from the hooks do not impair your vision to the rear.
•Use the hooks for hanging only light items of clothing and ensure that there are no heavy or sharp-e dged objects in the pockets.
•Do not use clothes hangers for hanging up items of clothing otherwise this will interfere with the protection offered by the head airbag.
Fig. 91 Flexible storage compartmentFig. 92 Area above rear doors: Clothes hooks
NKO A05R 20 MR08.book Page 77 Wednesday, March 28, 2007 9:42 AM

Heating and air conditioning system78

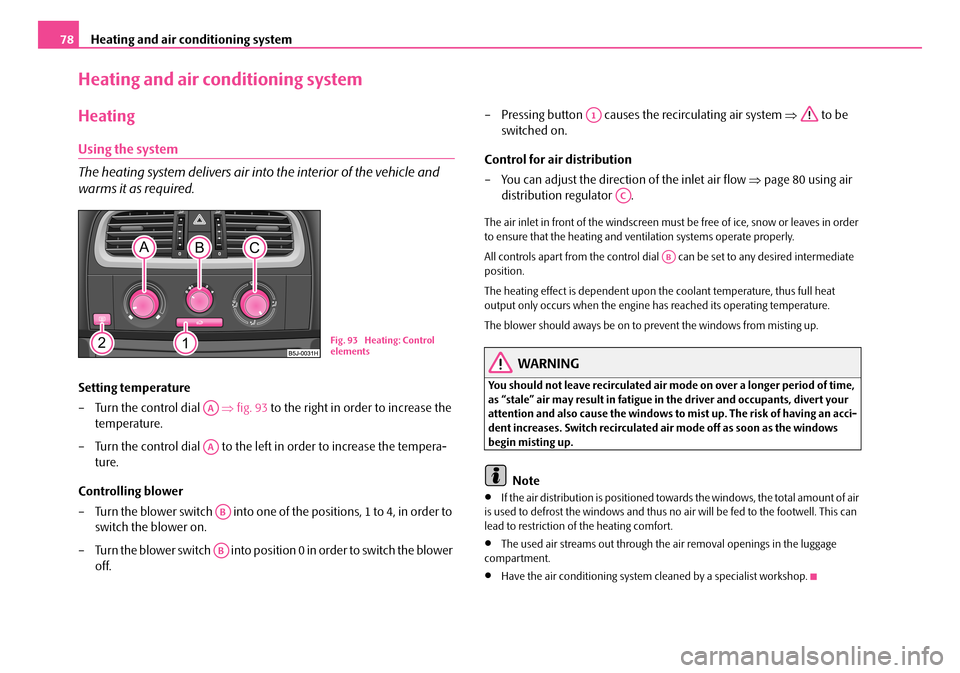

Heating and air conditioning system
Heating
Using the system
The heating system delivers air into the interior of the vehicle and
warms it as required.
Setting temperature
– Turn the control dial ⇒fig. 93 to the right in order to increase the
temperature.
– Turn the control dial to the left in order to increase the tempera-
ture.
Controlling blower
– Turn the blower switch into one of the positions, 1 to 4, in order to
switch the blower on.
– Turn the blower switch into position 0 in order to switch the blower
off.
– Pressing button causes the recirculating air system ⇒ to be
switched on.
Control for air distribution
– You can adjust the direction of the inlet air flow ⇒page 80 using air
distribution regulator .
The air inlet in front of the windscreen must be free of ice, snow or leaves in order to ensure that the heating and ventilation systems operate properly.
All controls apart from the control dial can be set to any desired intermediate position.
The heating effect is dependent upon th e coolant temperature, thus full heat output only occurs when the engine has reached its operating temperature.
The blower should aways be on to prevent the windows from misting up.
WARNING
You should not leave recirculated air mode on over a longer period of time, as “stale” air may result in fatigue in the driver and occupants, divert your attention and also cause the windows to mist up. The risk of having an acci- dent increases. Switch recirculated air mode off as soon as the windows begin misting up.
Note
•If the air distribution is positioned towa rds the windows, the total amount of air is used to defrost the window s and thus no air will be fed to the footwell. This can lead to restriction of the heating comfort.
•The used air streams out through the air removal openings in the luggage compartment.
•Have the air conditioning system cleaned by a specialist workshop.
Fig. 93 Heating: Control elements
AA
AA
AB
AB
A1
AC
AB
NKO A05R 20 MR08.book Page 78 Wednesday, March 28, 2007 9:42 AM

Heating and air conditioning system79
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistancePraktikTechnical Data

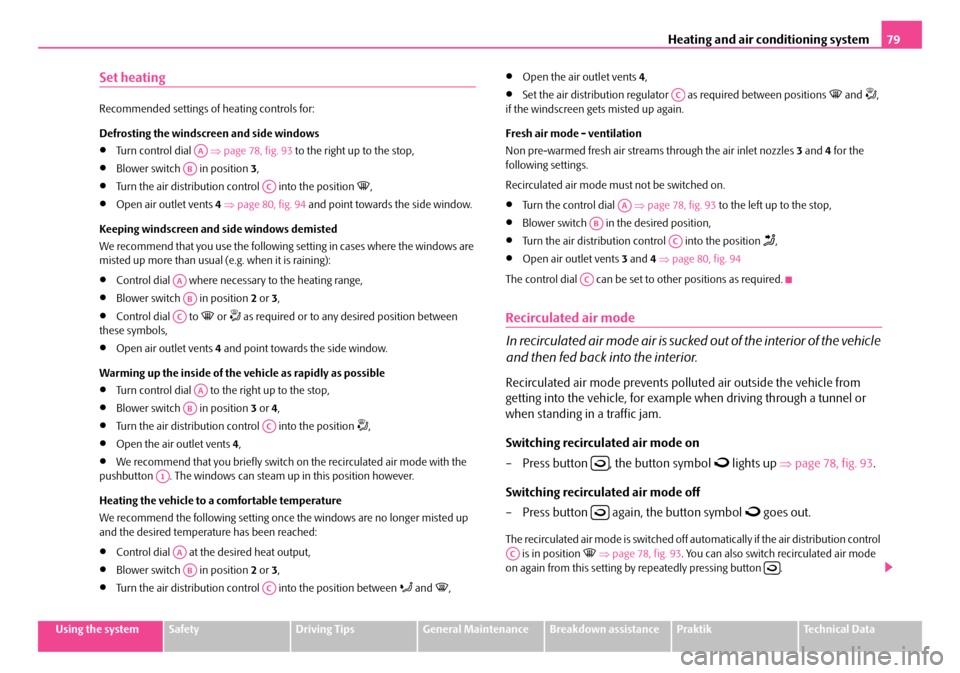

Set heating
Recommended settings of heating controls for:
Defrosting the windscreen and side windows
•Tu r n c o n t ro l d i a l ⇒page 78, fig. 93 to the right up to the stop,
•Blower switch in position 3,
•Turn the air distribution control into the position ,
•Open air outlet vents 4 ⇒page 80, fig. 94 and point towards the side window.
Keeping windscreen and side windows demisted
We recommend that you use the following setting in cases where the windows are misted up more than usual (e.g. when it is raining):
•Control dial where necessary to the heating range,
•Blower switch in position 2 or 3,
•Control dial to  or  as required or to any desired position between these symbols,
•Open air outlet vents 4 and point towards the side window.
Warming up the inside of the vehicle as rapidly as possible
•Turn control dial to the right up to the stop,
•Blower switch in position 3 or 4,
•Turn the air distribution control into the position ,
•Open the air outlet vents 4,
•We recommend that you briefly switch on the recirculated air mode with the pushbutton . The windows can steam up in this position however.
Heating the vehicle to a comfortable temperature
We recommend the following setting once the windows are no longer misted up and the desired temperature has been reached:
•Control dial at the desired heat output,
•Blower switch in position 2 or 3,
•Turn the air distribution control into the position between  and ,
•Open the air outlet vents 4,
•Set the air distribution regulator as required between positions  and , if the windscreen gets misted up again.
Fresh air mode - ventilation
Non pre-warmed fresh air stream s through the air inlet nozzles 3 and 4 for the following settings.
Recirculated air mode must not be switched on.
•Turn the control dial ⇒page 78, fig. 93 to the left up to the stop,
•Blower switch in the desired position,
•Turn the air distribution control into the position ,
•Open air outlet vents 3 and 4 ⇒page 80, fig. 94
The control dial can be set to other positions as required.
Recirculated air mode
In recirculated air mode air is sucked out of the interior of the vehicle
and then fed back into the interior.
Recirculated air mode prevents polluted air outside the vehicle from
getting into the vehicle, for example when driving through a tunnel or
when standing in a traffic jam.
Switching recirculated air mode on
– Press button , the button symbol  lights up ⇒page 78, fig. 93.
Switching recirculated air mode off
– Press button again, the button symbol  goes out.
The recirculated air mode is switched off au tomatically if the air distribution control is in position  ⇒page 78, fig. 93. You can also switch recirculated air mode on again from this setting by repeatedly pressing button .
AA
AB
AC
AA
AB
AC
AA
AB
AC
A1
AA
AB
AC
AC
AA
AB
AC
AC


AC
NKO A05R 20 MR08.book Page 79 Wednesday, March 28, 2007 9:42 AM
