Contents3
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Praktik
Technical Data
ContentsLayout of this Owner's Manual
(explanations)
. . . . . . . . . . . . . . . . . . . . . . . . . .
Using the system
. . . . . . . . . . . . . . . . . . . . . .
Cockpit
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
The brief instruction
. . . . . . . . . . . . . . . . . . . . . . . . . .
Basic functions and important information . . . . .
Instruments and Indicator/Warning Lights
. . .
General view of the instrument cluster . . . . . . . . .
Engine revolutions counter . . . . . . . . . . . . . . . . . . . .
Coolant temperature gauge* . . . . . . . . . . . . . . . . . .
Fuel gauge* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Counter for distance driven . . . . . . . . . . . . . . . . . . .
Service Interval Display . . . . . . . . . . . . . . . . . . . . . . .
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Multi-functional indicator (onboard computer)*
Information display* . . . . . . . . . . . . . . . . . . . . . . . . . .
Auto Check Control . . . . . . . . . . . . . . . . . . . . . . . . . . .
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Unlocking and locking
. . . . . . . . . . . . . . . . . . . . . . . .
Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Child safety lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Central locking system* . . . . . . . . . . . . . . . . . . . . . . .
Remote control* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Anti-theft alarm system* . . . . . . . . . . . . . . . . . . . . . .
Interior monitor* and towing protection
monitoring* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrical power windows* . . . . . . . . . . . . . . . . . . . .
Panorama roof* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Lights and Visibility
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Visibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield wiper and wash system . . . . . . . . . . . .
Rear mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seats and Storage
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Heating the front seats* . . . . . . . . . . . . . . . . . . . . . . .
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
luggage compartment . . . . . . . . . . . . . . . . . . . . . . . .
Variable loading floor* . . . . . . . . . . . . . . . . . . . . . . . .
Bicycle carrier* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
The roof luggage rack system* . . . . . . . . . . . . . . . . .
Front cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear cup holder* . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Note holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ashtray* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cigarette lighter* and power sockets* . . . . . . . . . .
Storage compartments . . . . . . . . . . . . . . . . . . . . . . . .
Heating and air conditioning system
. . . . . . . . .
Air outlet vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Recirculated air mode . . . . . . . . . . . . . . . . . . . . . . . .
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Climatic (semi-automatic air conditioning
system)* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Climatronic (automatic air conditioning)* . . . . . .
Starting-off and Driving
. . . . . . . . . . . . . . . . . . . . . . .
Setting steering wheel position . . . . . . . . . . . . . . . .
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Starting the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . Switching off the engine . . . . . . . . . . . . . . . . . . . . . .
Shifting (manual gearbox) . . . . . . . . . . . . . . . . . . . . .
Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parking aid* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cruise control system (CCS)* . . . . . . . . . . . . . . . . . .
Automatic gearbox
. . . . . . . . . . . . . . . . . . . . . . . . . . .
6-speed automatic gearbox* . . . . . . . . . . . . . . . . . .
Communication
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating the radio . . . . . . . . . . . . . . . . . . . . . . . . . . .
Radio and mobile phone operation . . . . . . . . . . . .
Universal telephone preinstallation with voice
control* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Inserting the mobile phone with the adapter* . .
Mobile phone operation . . . . . . . . . . . . . . . . . . . . . .
Voice commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Enter PIN code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dial number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Repeat last call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Phone voice phonebook* . . . . . . . . . . . . . . . . . . . . .
Bluetooth®* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mobile phones and two-way radio system . . . . .
Input AUX-IN* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CD changer* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Passive Safety
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Basic information . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Correct seated position . . . . . . . . . . . . . . . . . . . . . . .
Seat belts
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Why seat belts? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
The physical principle of a frontal collision . . . . . 6
9
11
11
12
12
18
18
18
19
19
20
20
22
22
25
27
29
39
39
41
41
42
46
48
49
49
5253
53
57
58
59
62
63
63
64
65
66
70
70
74
77
79
80
81
81
81
82
83
89
89
89
90
92
95
99
99
100
100102
102
103
103
104
107
107
112
112
113
114
115
116
117
117
118
118
119
121
122
123
123
127
127
127
128
132
132
133
s29g.4.book Page 3 Wednesday, June 17, 2009 9:54 AM

Instruments and Indicator/Warning Lights 22Digital clockA reset button is installed on the left below beside the speedometer for
adjusting the clock ⇒page 18, fig. 18.
Set hours
– Turn the reset button to the left.
Setting minutes
– Turn the reset button to the right.
WARNING
The clock should not be adjusted while driving for safety reasons but only
when the vehicle is stationary.Multi-functional indicator (onboard computer)*IntroductionThe multi-functional indicator appears in the display ⇒fig. 21 or in the information
display ⇒page 25, fig. 24 depending on the equipment fitted to your vehicle.
The multi-functional indicator offers you a range of useful information.
Note
In certain national versions the displays appear in the Imperial system of
measures.MemoryThe multi-functional indicator is equipped with two automatic memories. The
selected memory is displayed in the middle of the display field ⇒fig. 21.
The data of the single-trip memory (memory 1) is shown if a 1 appears in the
display. A 2 shown in the display means that data relates to the total distance
memory (memory 2).
Switching of the memory takes place when the button ⇒page 23, fig. 22.
Single-trip memory (memory 1)
The single-trip memory collates the driving information from the moment the igni-
tion is switched on until it is switched off. New data will also flow into the calcula-
tion of the current driving information if the trip is continued within 2 hours after
switching off the ignition. The memory will be is automatically erased, on the other
hand, if the trip is interrupted for more than 2 hours.
The outside temperature
⇒page 24
Range
⇒page 24
Current fuel consumption
⇒page 24
Average fuel consumption
⇒page 24
Driving time
⇒page 25
Distance driven
⇒page 25
Average speed
⇒page 25
Fig. 21 Instrument cluster:
Multi-functional indicatorAB
s29g.4.book Page 22 Wednesday, June 17, 2009 9:54 AM

Starting-off and Driving99
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Praktik
Technical Data
Starting-off and DrivingSetting steering wheel positionYou can set the height and the forward/back position of the steering
wheel to the desired position.
– Adjust the driver seat ⇒page 63.
– Pull the lever below the steering column ⇒fig. 118 down ⇒.
– Set the steering wheel to the desired position (concerning height and
forward/back position).– Then push the lever up against the steering column until it locks into
place.
WARNING
•
You must not adjust the steering wheel when the vehicle is moving!
•
The driver must maintain a distance of at least 25 cm to the steering
wheel ⇒fig. 119. Not maintaining this minimum distance will mean that the
airbag system will not be able to properly protect you - hazard!
•
For s a fe t y re a s ons the le v e r m ust a lwa y s b e fi rm l y pus he d up t o a vo id the
steering wheel altering its position unintentionally when driving - risk of
accident!
•
If you adjust the steering wheel further towards the head, you will reduce
the protection offered by the driver airbag in the event of an accident. Check
that the steering wheel is aligned to the chest.
•
When driving, hold the steering wheel with both hands firmly on the
outer edge in the 9 o'clock and 3 o'clock position. Never hold the steering
wheel firmly in the 12 o'clock position or in another way (e.g. in the middle
of the steering wheel or at the inner steering wheel edge). In such cases,
injuries to the arms, the hands and the head can occur when the driver
airbag is deployed.
Fig. 118 Adjustable steering
wheel: Lever below steering
columnFig. 119 Safe distance to
steering wheel
s29g.4.book Page 99 Wednesday, June 17, 2009 9:54 AM

Passive Safety129
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Praktik
Technical Data For your own safety and to reduce the risk of injury in the event of an accident, we
recommend the following setting.
•
Adjust the steering wheel so that the distance between the steering wheel and
your chest is at least 25 cm ⇒page 128, fig. 136.
•
Position the driver seat in the forward/back direction so that you are able to fully
press the pedals with your legs at a slight angle.
•
Adjust the seat backrest so that you are able to reach the highest point of the
steering wheel with your arms at a slight angle.
•
Adjust the head restraint so that the top edge of the head restraint is at the same
level as the upper part of your head ⇒fig. 137.
•
Fasten the seat belt correctly ⇒page 134, “How are seat belts correctly
fastened?”.
Driver seat adjustment ⇒page 63, “Adjusting the front seats”.
WARNING
•
The front seats and the head restraints must always be adjusted to match
the body size of the seat occupant as well as the seat belts must always be
correctly fastened in order to provide an optimal protection for you and your
occupants.
•
The driver must maintain a distance of at least 25 cm to the steering
wheel ⇒page 128, fig. 136. Not maintaining this minimum distance will mean that the airbag system will not be able to properly protect you -
hazard!
•
When driving, hold the steering wheel with both hands firmly on the
outer edge in the 9 o'clock and 3 o'clock position. Never hold the steering
wheel firmly in the 12 o'clock position or in another way (e.g. in the middle
of the steering wheel or at the inner steering wheel edge). In such cases,
injuries to the arms, the hands and the head can occur when the driver
airbag is deployed.
•
The seat backrests must not be angled too far back when driving other-
wise this will affect proper operation of the seat belts and of the airbag
system - risk of injury!
•
Ensure that there are no objects in the footwell as any objects may get
behind the pedals during a driving or braking manoeuvre. You would then
no longer be able to operate the clutch, to brake or accelerate.
Correct seated position for the front passenger
The front passenger must maintain a distance of at least 25 cm from
the dash panel so that the airbag offers the greatest possible safety
when an airbag is deployed.For the safety of the front passenger and to reduce the risk of injury in the event of
an accident, we recommend the following setting.•
Adjust the front passenger seat as far as possible to the rear.
•
Adjust the head restraint so that the top edge of the head restraint is at the same
level as the upper part of your head ⇒fig. 137.
•
Fasten the seat belt correctly ⇒page 134, “How are seat belts correctly
fastened?”.
In exceptional cases the front passenger airbag can be deactivated ⇒page 145,
“Deactivating airbags”.
Adjusting the passenger seat ⇒page 63, “Adjusting the front seats”.
Fig. 137 The correct head
restraint adjustment for the
driver
WARNING (continued)
s29g.4.book Page 129 Wednesday, June 17, 2009 9:54 AM

Index 252Child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Classification into groups . . . . . . . . . . . . . . . . . 150
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Children and safety . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Chrome parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Cigarette lighter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Climatronic
Defrosting windows . . . . . . . . . . . . . . . . . . . . . . . 97
Setting temperature . . . . . . . . . . . . . . . . . . . . . . . 98
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Clothes hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Cockpit
General view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Compartments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Convenience operation . . . . . . . . . . . . . . . . . . . . . . . 51
Converting/masking over headlights . . . . . . . . . . 169
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
replenishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Coolant level
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Coolant temperature gauge . . . . . . . . . . . . . . . . . . . 19
Coolant temperature/coolant level
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Cornering lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Correct seated position . . . . . . . . . . . . . . . . . . . . . . 128
Counter for distance driven . . . . . . . . . . . . . . . . . . . 20
Cruise control system . . . . . . . . . . . . . . . . . . . . . . . . 104Cup holder
front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
DDeactivating an airbag . . . . . . . . . . . . . . . . . . . . . . . 145
Defrosting rear window . . . . . . . . . . . . . . . . . . . . . . . . 58
De-icing the windows . . . . . . . . . . . . . . . . . . . . . . . 176
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Diesel engines
Starting the engine . . . . . . . . . . . . . . . . . . . . . . . 101
Diesel particle filter . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Direction indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Distance driven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Door
Child safety lock . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Door, luggage compartment door and bonnet ajar
warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Driving economically . . . . . . . . . . . . . . . . . . . . . . . . 164
Driving time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25EEDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Electric power-operated window
Operational faults . . . . . . . . . . . . . . . . . . . . . . . . . 51
Electrical power windows . . . . . . . . . . . . . . . . . . . . . . 49Electrically adjustable rear mirror . . . . . . . . . . . . . . 62
Electronic Differential Lock . . . . . . . . . . . . . . . . . . . 157
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Electronic Differential Lock (EDL) . . . . . . . . . . . . . 157
Electronic immobiliser . . . . . . . . . . . . . . . . . . . . . 33, 40
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Electronic stability programme (ESP) . . . . . . . . . . 155
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Emergency locking of the door . . . . . . . . . . . . . . . . . 45
Engine
starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
switching off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Engine compartment
Safety information . . . . . . . . . . . . . . . . . . . . . . . . 185
Engine electronics
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
replenishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Engine revolutions counter . . . . . . . . . . . . . . . . . . . . 18
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Environmental compatibility . . . . . . . . . . . . . 164, 167
ESP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Exhaust gas
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Exhaust gas inspection
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Explanations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Exterior mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
s29g.4.book Page 252 Wednesday, June 17, 2009 9:54 AM

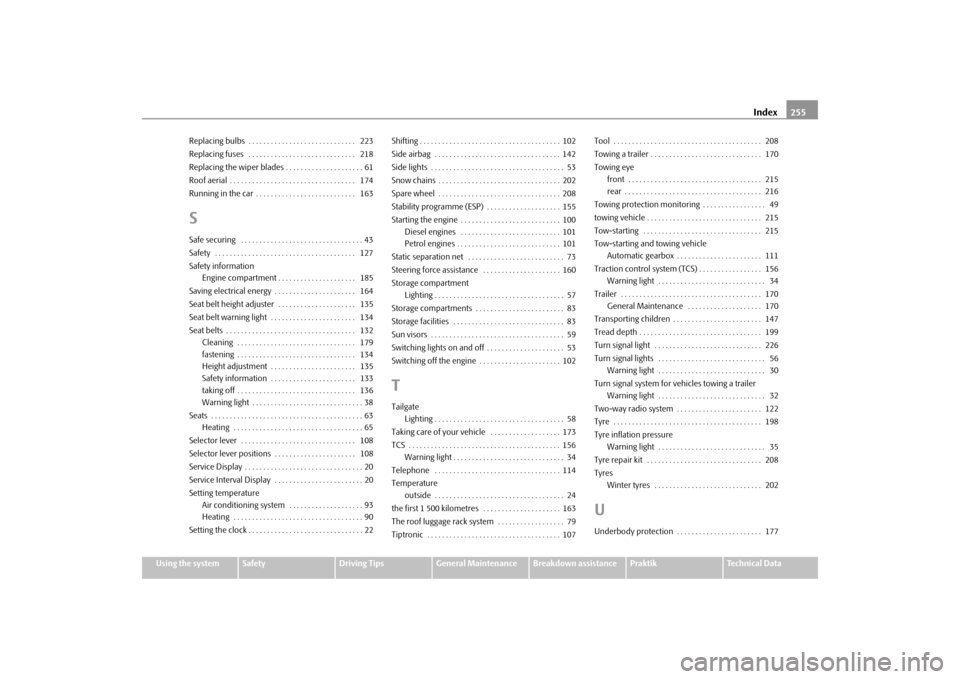

Index255
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Praktik
Technical Data Replacing bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223
Replacing fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
Replacing the wiper blades . . . . . . . . . . . . . . . . . . . . . 61
Roof aerial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Running in the car . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
SSafe securing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Safety information
Engine compartment . . . . . . . . . . . . . . . . . . . . . 185
Saving electrical energy . . . . . . . . . . . . . . . . . . . . . . 164
Seat belt height adjuster . . . . . . . . . . . . . . . . . . . . . 135
Seat belt warning light . . . . . . . . . . . . . . . . . . . . . . . 134
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
fastening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Height adjustment . . . . . . . . . . . . . . . . . . . . . . . 135
Safety information . . . . . . . . . . . . . . . . . . . . . . . 133
taking off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Selector lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Selector lever positions . . . . . . . . . . . . . . . . . . . . . . 108
Service Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Service Interval Display . . . . . . . . . . . . . . . . . . . . . . . . 20
Setting temperature
Air conditioning system . . . . . . . . . . . . . . . . . . . . 93
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Setting the clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22Shifting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Side airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Side lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Snow chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Spare wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Stability programme (ESP) . . . . . . . . . . . . . . . . . . . . 155
Starting the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Diesel engines . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Petrol engines . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Static separation net . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Steering force assistance . . . . . . . . . . . . . . . . . . . . . 160
Storage compartment
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Storage compartments . . . . . . . . . . . . . . . . . . . . . . . . 83
Storage facilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Switching lights on and off . . . . . . . . . . . . . . . . . . . . . 53
Switching off the engine . . . . . . . . . . . . . . . . . . . . . . 102
TTailgate
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Taking care of your vehicle . . . . . . . . . . . . . . . . . . . 173
TCS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Telephone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Temperature
outside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
the first 1 500 kilometres . . . . . . . . . . . . . . . . . . . . . 163
The roof luggage rack system . . . . . . . . . . . . . . . . . . 79
Tiptronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Towing a trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Towing eye
front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216
Towing protection monitoring . . . . . . . . . . . . . . . . . 49
towing vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
Tow-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
Tow-starting and towing vehicle
Automatic gearbox . . . . . . . . . . . . . . . . . . . . . . . 111
Traction control system (TCS) . . . . . . . . . . . . . . . . . 156
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
General Maintenance . . . . . . . . . . . . . . . . . . . . 170
Transporting children . . . . . . . . . . . . . . . . . . . . . . . . 147
Tread depth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Turn signal light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Turn signal system for vehicles towing a trailer
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Two-way radio system . . . . . . . . . . . . . . . . . . . . . . . 122
Tyre . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
Tyre inflation pressure
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Tyre repair kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Tyres
Winter tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
UUnderbody protection . . . . . . . . . . . . . . . . . . . . . . . 177
s29g.4.book Page 255 Wednesday, June 17, 2009 9:54 AM
