Instruments and Indicator/Warning Lights19
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Praktik
Technical Data During the driving time and always before the engine has reached its operating
temperature, generally avoid high engine speeds ⇒page 163.
Caution
The needle of the revolutions counter must on no account move into the red zone
of the scale - risk of engine damage!
For the sake of the environment
Shifting to a higher gear in good time helps to reduce the fuel consumption, mini-
mises operating noise levels, protects the environment and contributes to a longer
life and reliability of the engine.Coolant temperature gauge*The coolant temperature gauge ⇒page 18, fig. 18 operates only when the igni-
tion is switched on.
In order to avoid any damage to the engine, please pay attention to the following
notes regarding the temperature ranges:
Cold range
If the pointer is in the left-hand area of the scale* it means that the engine has not
yet reached its operating temperature. Avoid running at high engine speeds, at full
throttle and at severe engine loads.
The operating range
The engine has reached its operating temperature as soon as the pointer has
reached the mid-range of the scale*. The pointer may also move further to the right
at high engine loads and high outside temperatures. This is not critical provided the
warning symbol
 in the instrument cluster does not flash.
If the symbol
 in the instrument cluster flashes it means that either the coolant
temperature is too high or the coolant level is too low. Observe the guidelines
⇒page 32, “Coolant temperature/coolant level ”.
WARNING
Pay attention to the warning notes ⇒page 185, “Working in the engine
compartment” before opening the bonnet and inspecting the coolant level.
Caution
Additional headlights and other attached components in front of the fresh air inlet
impair the cooling efficiency of the coolant. There is then a risk of the engine over-
heating at high outside temperatures and high engine loads!Fuel gauge*The fuel gauge ⇒page 18, fig. 18 only operates when the ignition is switched
on.
The fuel tank has a capacity of about 55 litres. The warning symbol in the instrument
cluster lights up when the pointer drops to the reserve marking
. There are now
about 7 litres of fuel remaining in the tank. This symbol is a reminder for you, that
you must refuel.
The following will be displayed in the information display*:
PLEASE REFUEL
A peep sounds as an additional warning signal.
Caution
Never run the fuel tank completely empty! An irregular fuel supply can result in
poor ignition or misfiring. Unburnt fuel may get into the exhaust system and
damage the catalytic converter.
A4
A7
s29g.4.book Page 19 Wednesday, June 17, 2009 9:54 AM

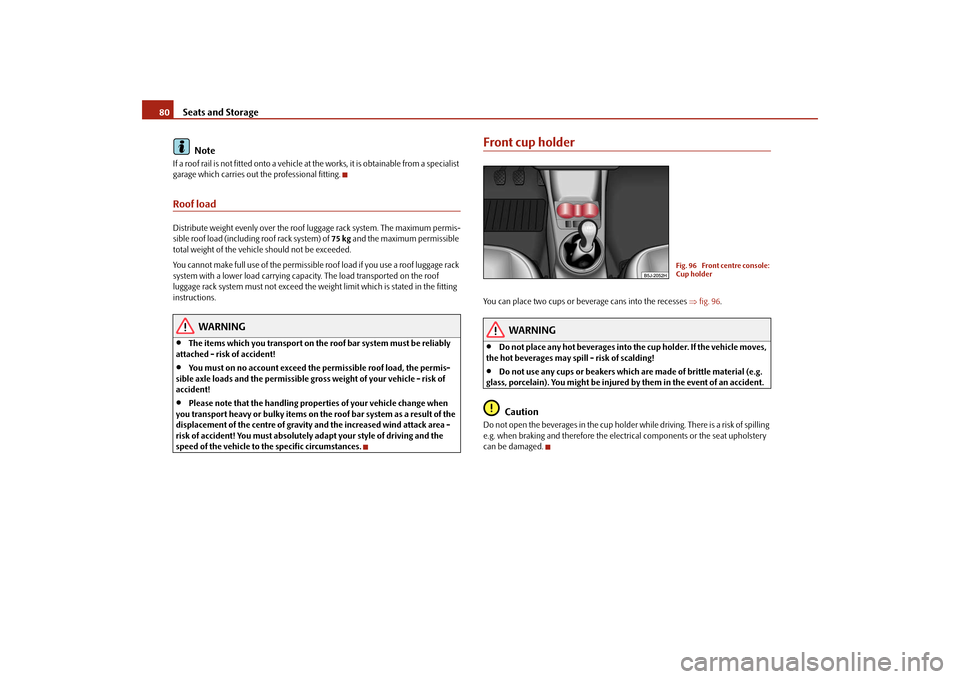

Seats and Storage 80
NoteIf a roof rail is not fitted onto a vehicle at the works, it is obtainable from a specialist
garage which carries out the professional fitting.Roof loadDistribute weight evenly over the roof luggage rack system. The maximum permis-
sible roof load (including roof rack system) of 75 kg and the maximum permissible
total weight of the vehicle should not be exceeded.
You cannot make full use of the permissible roof load if you use a roof luggage rack
system with a lower load carrying capacity. The load transported on the roof
luggage rack system must not exceed the weight limit which is stated in the fitting
instructions.
WARNING
•
The items which you transport on the roof bar system must be reliably
attached - risk of accident!
•
You must on no account exceed the permissible roof load, the permis-
sible axle loads and the permissible gross weight of your vehicle - risk of
accident!
•
Please note that the handling properties of your vehicle change when
you transport heavy or bulky items on the roof bar system as a result of the
displacement of the centre of gravity and the increased wind attack area -
risk of accident! You must absolutely adapt your style of driving and the
speed of the vehicle to the specific circumstances.
Front cup holderYou can place two cups or beverage cans into the recesses ⇒fig. 96.
WARNING
•
Do not place any hot beverages into the cup holder. If the vehicle moves,
the hot beverages may spill - risk of scalding!
•
Do not use any cups or beakers which are made of brittle material (e.g.
glass, porcelain). You might be injured by them in the event of an accident.Caution
Do not open the beverages in the cup holder while driving. There is a risk of spilling
e.g. when braking and therefore the electrical components or the seat upholstery
can be damaged.
Fig. 96 Front centre console:
Cup holder
s29g.4.book Page 80 Wednesday, June 17, 2009 9:54 AM

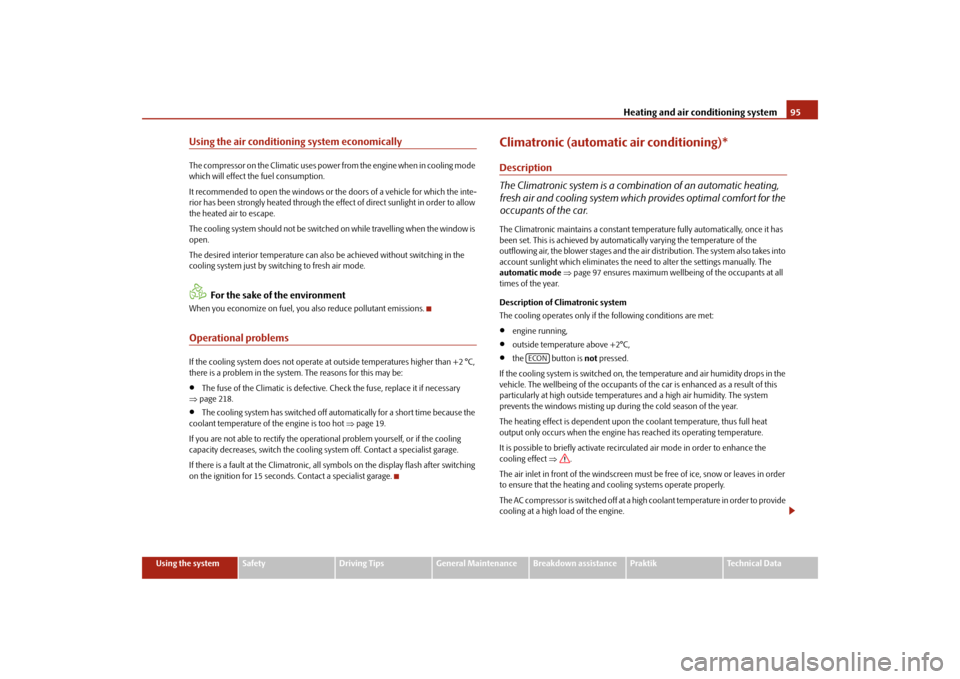

Heating and air conditioning system95
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Praktik
Technical Data
Using the air conditioning system economicallyThe compressor on the Climatic uses power from the engine when in cooling mode
which will effect the fuel consumption.
It recommended to open the windows or the doors of a vehicle for which the inte-
rior has been strongly heated through the effect of direct sunlight in order to allow
the heated air to escape.
The cooling system should not be switched on while travelling when the window is
open.
The desired interior temperature can also be achieved without switching in the
cooling system just by switching to fresh air mode.
For the sake of the environment
When you economize on fuel, you also reduce pollutant emissions.Operational problemsIf the cooling system does not operate at outside temperatures higher than +2 °C,
there is a problem in the system. The reasons for this may be:•
The fuse of the Climatic is defective. Check the fuse, replace it if necessary
⇒page 218.
•
The cooling system has switched off automatically for a short time because the
coolant temperature of the engine is too hot ⇒page 19.
If you are not able to rectify the operational problem yourself, or if the cooling
capacity decreases, switch the cooling system off. Contact a specialist garage.
If there is a fault at the Climatronic, all symbols on the display flash after switching
on the ignition for 15 seconds. Contact a specialist garage.
Climatronic (automatic air conditioning)*Description
The Climatronic system is a combination of an automatic heating,
fresh air and cooling system which provides optimal comfort for the
occupants of the car.The Climatronic maintains a constant temperature fully automatically, once it has
been set. This is achieved by automatically varying the temperature of the
outflowing air, the blower stages and the air distribution. The system also takes into
account sunlight which eliminates the need to alter the settings manually. The
automatic mode ⇒page 97 ensures maximum wellbeing of the occupants at all
times of the year.
Description of Climatronic system
The cooling operates only if the following conditions are met:•
engine running,
•
outside temperature above +2°C,
•
the button is not pressed.
If the cooling system is switched on, the temperature and air humidity drops in the
vehicle. The wellbeing of the occupants of the car is enhanced as a result of this
particularly at high outside temperatures and a high air humidity. The system
prevents the windows misting up during the cold season of the year.
The heating effect is dependent upon the coolant temperature, thus full heat
output only occurs when the engine has reached its operating temperature.
It is possible to briefly activate recirculated air mode in order to enhance the
cooling effect ⇒.
The air inlet in front of the windscreen must be free of ice, snow or leaves in order
to ensure that the heating and cooling systems operate properly.
The AC compressor is switched off at a high coolant temperature in order to provide
cooling at a high load of the engine.
ECON
s29g.4.book Page 95 Wednesday, June 17, 2009 9:54 AM

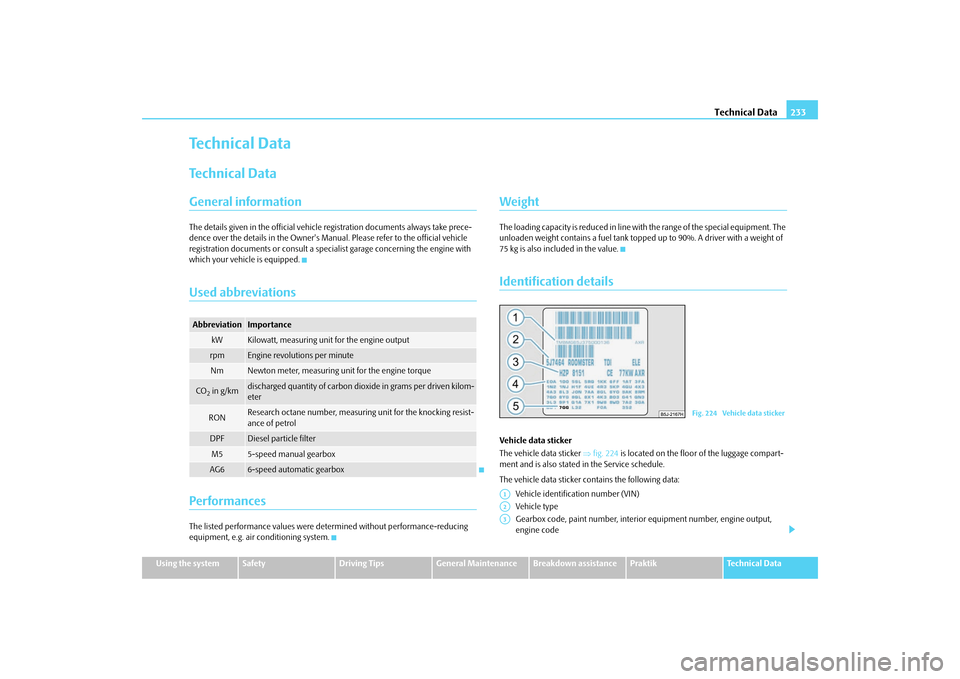

Technical Data233
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Praktik
Technical Data
Technical DataTechnical DataGeneral informationThe details given in the official vehicle registration documents always take prece-
dence over the details in the Owner's Manual. Please refer to the official vehicle
registration documents or consult a specialist garage concerning the engine with
which your vehicle is equipped.Used abbreviationsPerformancesThe listed performance values were determined without performance-reducing
equipment, e.g. air conditioning system.
WeightThe loading capacity is reduced in line with the range of the special equipment. The
unloaden weight contains a fuel tank topped up to 90%. A driver with a weight of
75 kg is also included in the value.Identification detailsVehicle data sticker
The vehicle data sticker ⇒fig. 224 is located on the floor of the luggage compart-
ment and is also stated in the Service schedule.
The vehicle data sticker contains the following data:
Vehicle identification number (VIN)
Vehicle type
Gearbox code, paint number, interior equipment number, engine output,
engine code
Abbreviation
Importance
kW
Kilowatt, measuring unit for the engine output
rpm
Engine revolutions per minute
Nm
Newton meter, measuring unit for the engine torque
CO2 in g/km
discharged quantity of carbon dioxide in grams per driven kilom-
eter
RON
Research octane number, measuring unit for the knocking resist-
ance of petrol
DPF
Diesel particle filter
M5
5-speed manual gearbox
AG6
6-speed automatic gearbox
Fig. 224 Vehicle data sticker
A1A2A3
s29g.4.book Page 233 Wednesday, June 17, 2009 9:54 AM

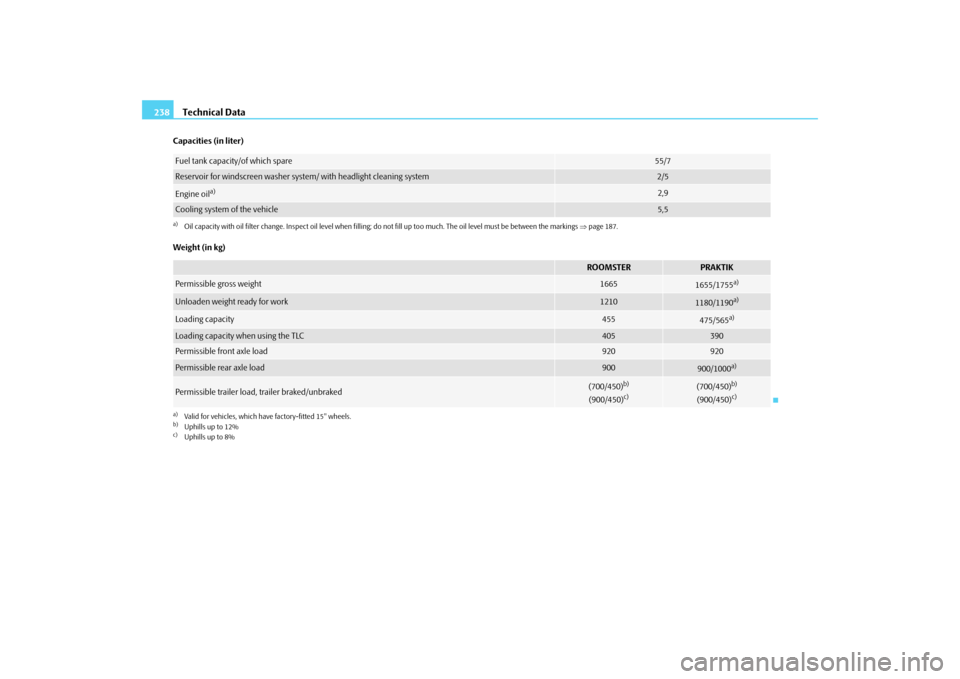

Technical Data 238Capacities (in liter)
Weight (in kg)Fuel tank capacity/of which spare
55/7
Reservoir for windscreen washer system/ with headlight cleaning system
2/5
Engine oil
a)
a)Oil capacity with oil filter change. Inspect oil level when filling; do not fill up too much. The oil level must be between the markings ⇒page 187.
2,9
Cooling system of the vehicle
5,5
ROOMSTER
PRAKTIK
Permissible gross weight
1665
1655/1755
a)
a)Valid for vehicles, which have factory-fitted 15" wheels.Unloaden weight ready for work
1210
1180/1190
a)
Loading capacity
455
475/565
a)
Loading capacity when using the TLC
405
390
Permissible front axle load
920
920
Permissible rear axle load
900
900/1000
a)
Permissible trailer load, trailer braked/unbraked
(700/450)
b)
(900/450)c)
b)Uphills up to 12%c)Uphills up to 8%
(700/450)
b)
(900/450)
c)
s29g.4.book Page 238 Wednesday, June 17, 2009 9:54 AM

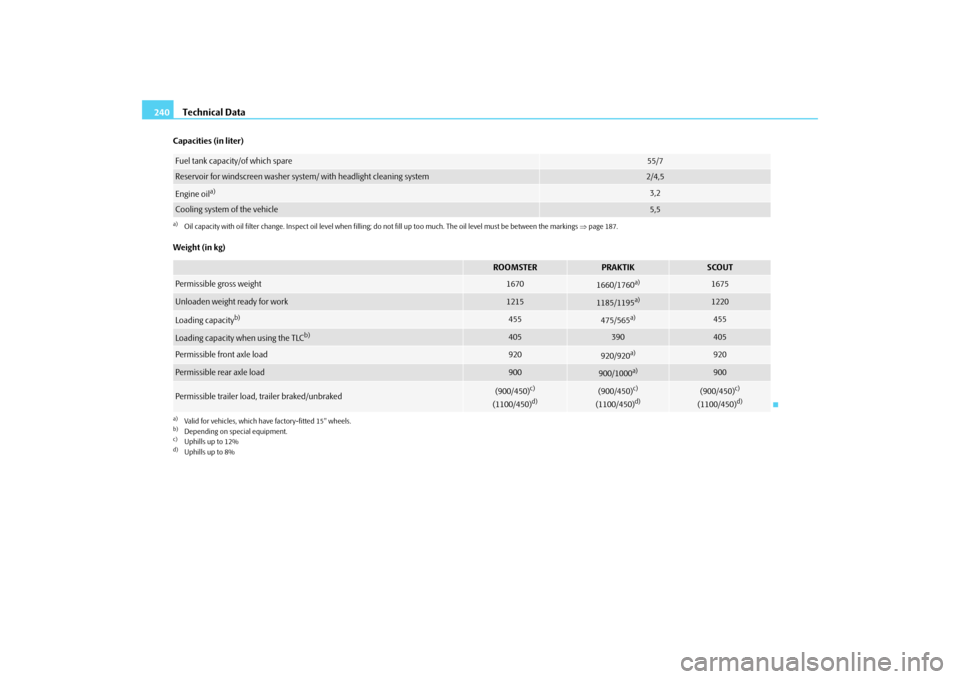

Technical Data 240Capacities (in liter)
Weight (in kg)Fuel tank capacity/of which spare
55/7
Reservoir for windscreen washer system/ with headlight cleaning system
2/4,5
Engine oil
a)
a)Oil capacity with oil filter change. Inspect oil level when filling; do not fill up too much. The oil level must be between the markings ⇒page 187.
3,2
Cooling system of the vehicle
5,5
ROOMSTER
PRAKTIK
SCOUT
Permissible gross weight
1670
1660/1760
a)
a)Valid for vehicles, which have factory-fitted 15" wheels.
1675
Unloaden weight ready for work
1215
1185/1195
a)
1220
Loading capacity
b)
b)Depending on special equipment.
455
475/565
a)
455
Loading capacity when using the TLC
b)
405
390
405
Permissible front axle load
920
920/920
a)
920
Permissible rear axle load
900
900/1000
a)
900
Permissible trailer load, trailer braked/unbraked
(900/450)
c)
(1100/450)
d)
c)Uphills up to 12%d)Uphills up to 8%
(900/450)
c)
(1100/450)
d)
(900/450)
c)
(1100/450)
d)
s29g.4.book Page 240 Wednesday, June 17, 2009 9:54 AM

Technical Data 242Capacities (in liter)
Weight (in kg)Fuel tank capacity/of which spare
55/7
Reservoir for windscreen washer system/ with headlight cleaning system
2/4,5
Engine oil
a)
a)Oil capacity with oil filter change. Inspect oil level when filling; do not fill up too much. The oil level must be between the markings ⇒page 187.
3,6
Cooling system of the vehicle
5,5
ROOMSTER
SCOUT
M5
AG6
M5
AG6
Permissible gross weight
1690
1725
1695
1730
Unloaden weight ready for work
1235
1270
1240
1275
Loading capacity
a)
a)Depending on special equipment.
455
455
455
455
Loading capacity when using the TLC
a)
405
405
405
405
Permissible front axle load
960
960
960
960
Permissible rear axle load
900
900
900
900
Permissible trailer load, trailer braked/unbraked
(1000/450)
b)
(1200/450)
c)
b)Uphills up to 12%c)Uphills up to 8%
(1000/450)
b)
(1200/450)
c)
(1000/450)
b)
(1200/450)
c)
(1000/450)
b)
(1200/450)
c)
s29g.4.book Page 242 Wednesday, June 17, 2009 9:54 AM

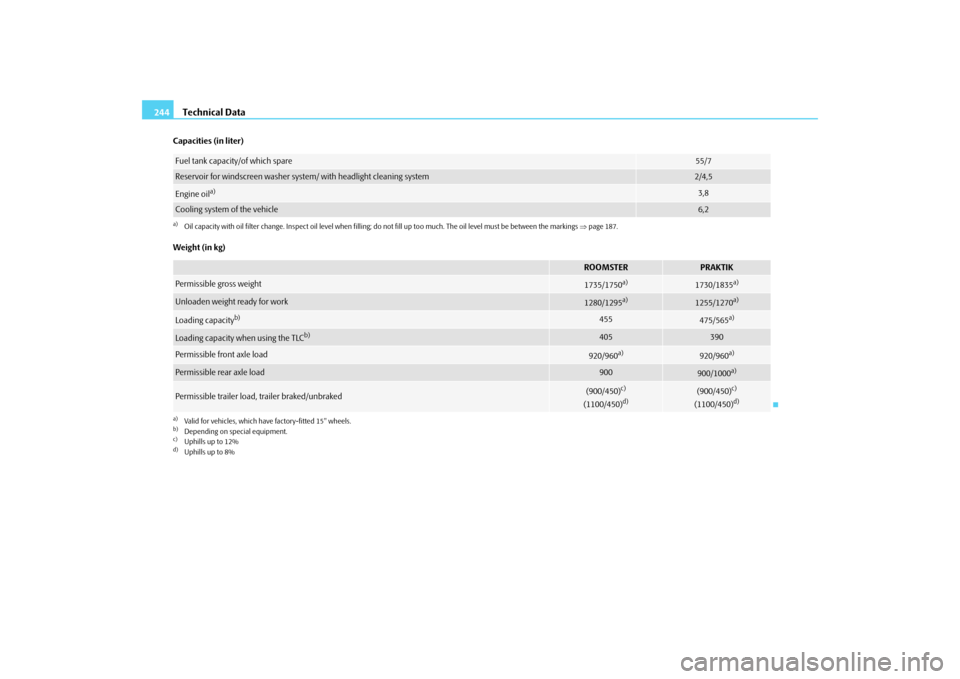

Technical Data 244Capacities (in liter)
Weight (in kg)Fuel tank capacity/of which spare
55/7
Reservoir for windscreen washer system/ with headlight cleaning system
2/4,5
Engine oil
a)
a)Oil capacity with oil filter change. Inspect oil level when filling; do not fill up too much. The oil level must be between the markings ⇒page 187.
3,8
Cooling system of the vehicle
6,2
ROOMSTER
PRAKTIK
Permissible gross weight
1735/1750
a)
a)Valid for vehicles, which have factory-fitted 15" wheels.
1730/1835
a)
Unloaden weight ready for work
1280/1295
a)
1255/1270
a)
Loading capacity
b)
b)Depending on special equipment.
455
475/565
a)
Loading capacity when using the TLC
b)
405
390
Permissible front axle load
920/960
a)
920/960
a)
Permissible rear axle load
900
900/1000
a)
Permissible trailer load, trailer braked/unbraked
(900/450)
c)
(1100/450)d)
c)Uphills up to 12%d)Uphills up to 8%
(900/450)
c)
(1100/450)
d)
s29g.4.book Page 244 Wednesday, June 17, 2009 9:54 AM

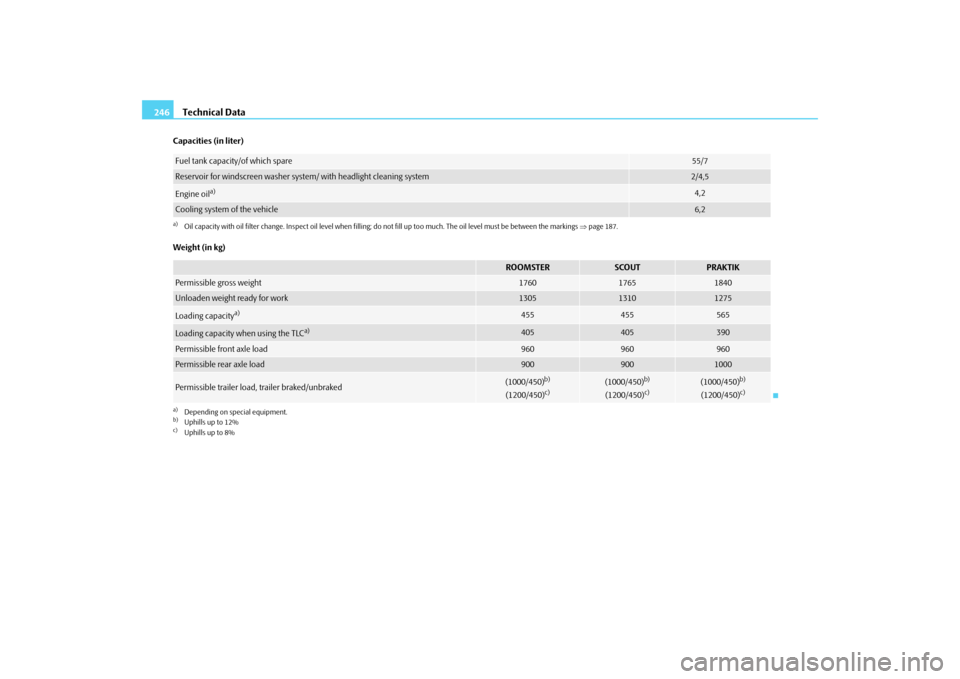

Technical Data 246Capacities (in liter)
Weight (in kg)Fuel tank capacity/of which spare
55/7
Reservoir for windscreen washer system/ with headlight cleaning system
2/4,5
Engine oil
a)
a)Oil capacity with oil filter change. Inspect oil level when filling; do not fill up too much. The oil level must be between the markings ⇒page 187.
4,2
Cooling system of the vehicle
6,2
ROOMSTER
SCOUT
PRAKTIK
Permissible gross weight
1760
1765
1840
Unloaden weight ready for work
1305
1310
1275
Loading capacity
a)
a)Depending on special equipment.
455
455
565
Loading capacity when using the TLC
a)
405
405
390
Permissible front axle load
960
960
960
Permissible rear axle load
900
900
1000
Permissible trailer load, trailer braked/unbraked
(1000/450)
b)
(1200/450)
c)
b)Uphills up to 12%c)Uphills up to 8%
(1000/450)
b)
(1200/450)
c)
(1000/450)
b)
(1200/450)
c)
s29g.4.book Page 246 Wednesday, June 17, 2009 9:54 AM

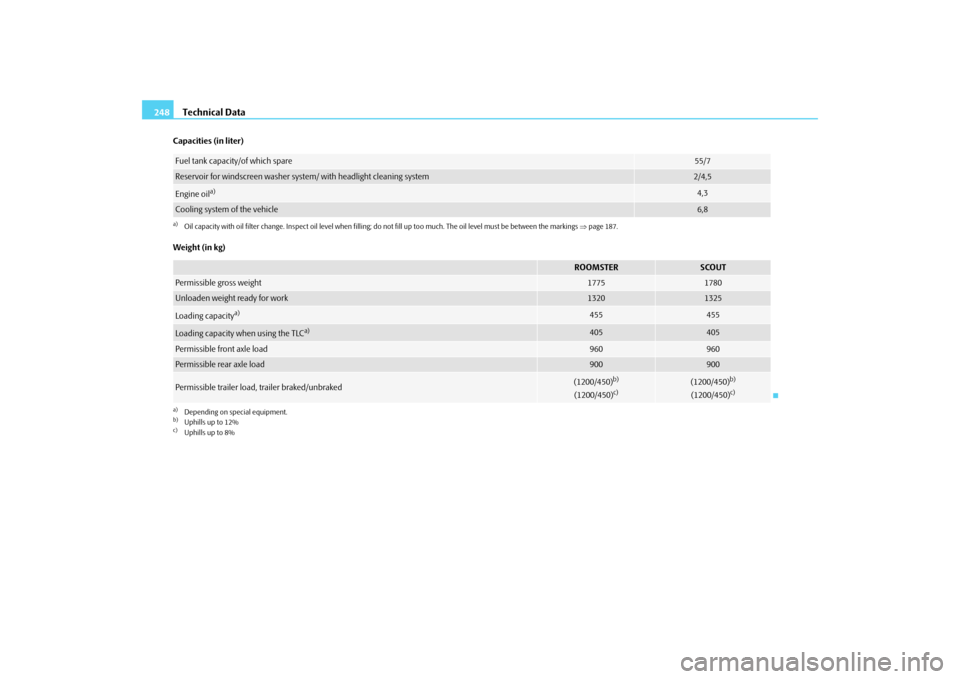

Technical Data 248Capacities (in liter)
Weight (in kg)Fuel tank capacity/of which spare
55/7
Reservoir for windscreen washer system/ with headlight cleaning system
2/4,5
Engine oil
a)
a)Oil capacity with oil filter change. Inspect oil level when filling; do not fill up too much. The oil level must be between the markings ⇒page 187.
4,3
Cooling system of the vehicle
6,8
ROOMSTER
SCOUT
Permissible gross weight
1775
1780
Unloaden weight ready for work
1320
1325
Loading capacity
a)
a)Depending on special equipment.
455
455
Loading capacity when using the TLC
a)
405
405
Permissible front axle load
960
960
Permissible rear axle load
900
900
Permissible trailer load, trailer braked/unbraked
(1200/450)
b)
(1200/450)
c)
b)Uphills up to 12%c)Uphills up to 8%
(1200/450)
b)
(1200/450)
c)
s29g.4.book Page 248 Wednesday, June 17, 2009 9:54 AM
